Question # 76

-- Exhibit –

-- Exhibit --

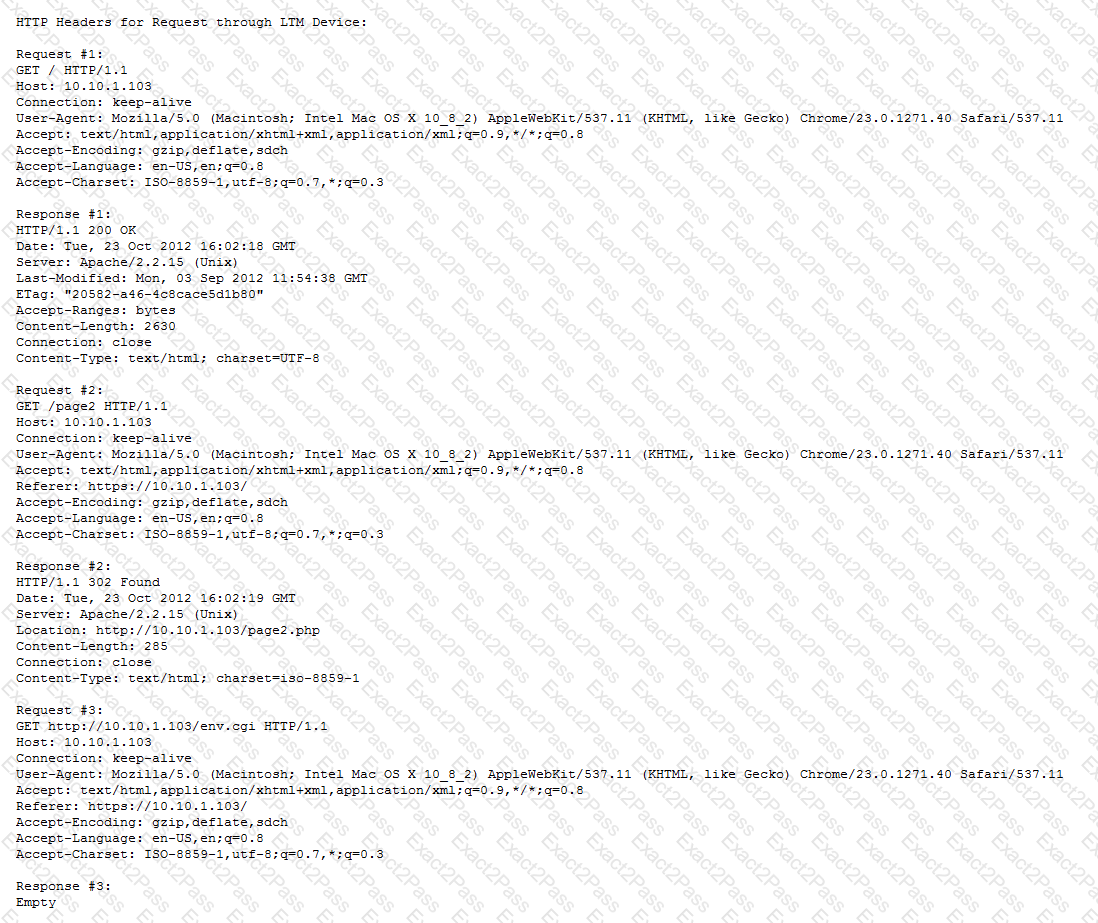

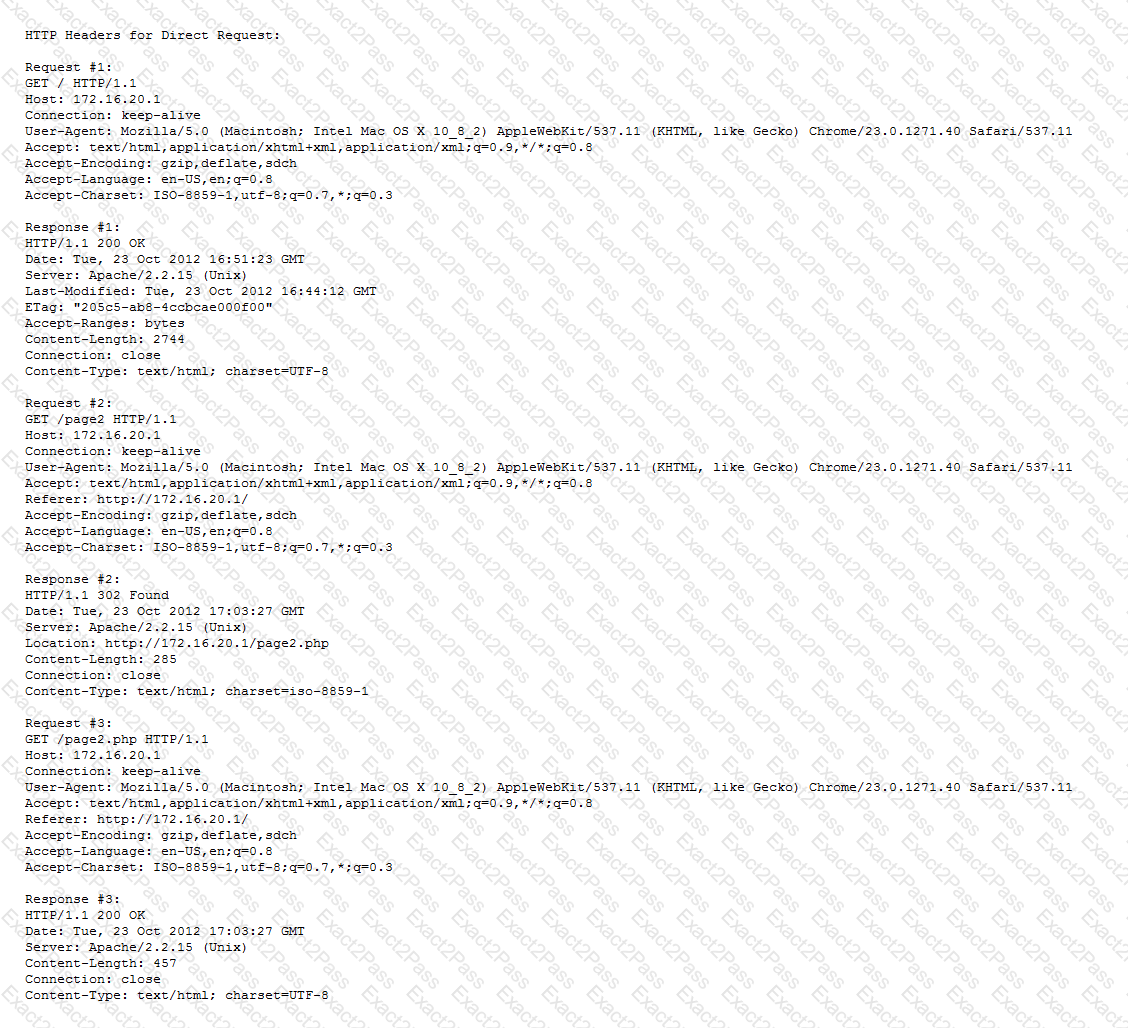

Refer to the exhibits.

A customer requests to offload SSL for an internal website. The front page of the website loads correctly; however, selecting links on the page fails.

How should the LTM Specialist fix the issue?

Create a new SNAT pool.

Add internal network IPs to the SNAT pool.

Add the SNAT pool to the VS.

Create a new HTTP profile.

Enable Insert X-Forwarded-For.

Add the new HTTP profile to the VS.

Create a new HTTP profile.

Enable redirect rewrite.

Add the new HTTP profile to the VS.

Create a new Server SSL profile.

Enable Proxy SSL.

Add the Server SSL profile to the VS.

Question # 77

A web server's default gateway is the network router. The LTM Specialist needs to introduce an LTM device to load balance to the web servers without changing the server's default gateway.

Which deployment method and settings should the LTM Specialist use to ensure correct traffic flow and that the web servers can obtain the actual con IP addresses?

route deployment with Automap configured and X-Forwarded-For inserted in HTTP headers

route deployment without SNAT configuration

SNAT deployment with automap configured and X-Forwarded-For inserted in HTTP headers

SNAT deployment with automap configured

Question # 78

A BIG-IP Administrator plans to upgrade a BIG-IP device to the latest TMOS version.

Which two tools could the administrator leverage to verify known issues for the target versions?

(Choose two.)

F5 University

F5 Downloads

F5 End User Diagnostics (EUD)

FSiHealth

F5 Bug Tracker

Question # 79

DNS queries from two internal DNS servers are being load balanced to external DNS Servers via a Virtual

Server on a BIG-P device. The DNS queries originate from 192.168.101.100 and 192.168.101.200 and

target 192.168.21.50

All DNS queries destined for the external DNS Servers fail

Which property change should the BIG-IP Administrator make in the Virtual Server to resolve this issue?

Protocol Profile (Client) to DNS-OPTIMZED

Type to Performance (HTTP)

Protocol to UDP

Source Address to 192.168.101.0/24

Question # 80

Which file should the BIG-IP Administrator check to determine when a Virtual Server changed its status

/var/log/audit

/var/log/lastlog

/var/log/tm

/var/log/monitors

Question # 81

A virtual server is using a TCP profile based on the top-wan-optimized profile for a streaming application Users report videos are loading slowly.

Which setting should be modified in the TCP profile to optimize the application?

Disable Slow Start

Disable Selective ACKs

Disable Nagle's Algorithm

Disable Reset on Timeout

Question # 82

Six servers have a varying number of connections that change based on the user load.

Which load balancing method should an LTM Specialist apply to divided the web application traffic to the servers on the relative performance trend?

Least Sessions

Least Connections

Predictive

Ratio

Question # 83

An LTM device load balances a pool of routers. The LTM device needs to verify path availability to an HTTP server with the IP address 192 168.10 10. located beyond the routers.

Which monitor type and parameters arc required?

HTTP monitor alias address 192 168.10 10. and set the alias to port 80

TCP monitor, alias address 192.168.10.10. and set the alias to port 80

TCP monitor change transparent option to Yes. set alias address 192.168.10.10. and set the alias to port 80

TCP monitor, change transparent option to Yes, and sot the alias to port 80

Question # 84

An LTM Specialist has a OneConnect profile and HTTP profile configured on a virtual server to load balance an HTTP application.

The following HTTP headers are seen in a network trace when a client connects to the virtual server:

Clientside:

GET / HTTP/1.1

Host: 192.168.136.100

User-Agent: Mozilla/5.0

Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8

Accept-EncodinG. gzip, deflate

Connection: keep-alive

Serverside:

HTTP/1.1 200 OK

DatE. 5 Jun 1989 17:06:55 GMT

Server: Apache/2.2.14 (Ubuntu)

Vary: Accept-Encoding

Content-EncodinG. gzip

Content-LengtH. 3729

X-Cnection: close

Content-TypE. text/html

The LTM Specialist notices the OneConnect feature is working incorrectly.

Why is OneConnect functioning incorrectly?

Client must support HTTP/1.0.

Client must support HTTP keep-alive.

Server must support HTTP/0.9.

Server must support HTTP keep-alive.

Question # 85

A device group is made up of four members: LTM-A, LTM-B, LTM-C, and LTM-D. An LTM Specialist makes a configuration change on LTM-B. Later, a different LTM Specialist notices a "changes pending" message on all devices. When logged into LTM-D, the LTM Specialist attempts to config-sync to the device group. The sync operation fails.

Why is the LTM Specialist on LTM-D unable to synchronize the configuration to the group?

The changes made on LTM-B are invalid.

LTM-D has the lowest commit-id of the group.

NTP is NOT configured on the devices in the group.

LTM-B is the device eligible to initiate a config-sync.

Question # 86

Refer to the exhibit.

An LTM device has a virtual server mapped to www.f5.com. Users report that when they connect to

/resources/201.1.2h.l_l.com they are unable to receive content.

What is the likely cause of the issue?

The pool associated with the virtual server does not have priority group activation enabled.

The virtual address does not have ARP enabled.

The virtual address does not have route advertising enabled.

The pool associated with the virtual server is falling its health check.

Question # 87

An LTM Specialist loads a UCS file generated on a different LTM device and receives the following error message:

"mcpd[2395]: 01070608:0: License is not operational (expired or digital signature does not match contents)"

Which command should the LTM Specialist use to prevent the error?

tmsh show /sys license

tmsh show /sys hardware

bigpipe config save /config.ucs

tmsh load /sys /ucs rma < path/to/UCS >

tmsh load /sys ucs < path/to/UCS > no-license

Question # 88

An application is configured on an LTM device:

Virtual server: 10.0.0.1:80 (VLAN vlan301)

SNAT IP: 10.0.0.1

Pool members: 10.0.1.1:8080, 10.0.1.2:8080, 10.0.1.3:8080 (VLAN vlan302)

Which packet capture should the LTM Specialist perform on the LTM device command line interface to capture only client traffic specifically for this virtual server?

tcpdump -ni 0.0:nnn -s 0 'host 10.0.0.1' -w /var/tmp/trace.cap

tcpdump -ni vlan301 -s 0 'port 80 and host 10.0.0.1' -w /var/tmp/trace.cap

tcpdump -ni vlan301 -s 0 'port 8080 and host 10.0.1.1 or host 10.0.1.2 or host 10.0.1.3' -w /var/tmp/trace.cap

tcpdump -ni vlan302 -s 0 'port 8080 and host 10.0.1.1 or host 10.0.1.2 or host 10.0.1.3' -w /var/tmp/trace.cap

tcpdump -ni 0.0:nnn -s 0 '(port 80 and host 10.0.0.1) or (port 8080 and host 10.0.1.1 or host 10.0.1.2 or host 10.0.1.3)' -w /var/tmp/trace.cap

Question # 89

An organization’s development team creates an application to put behind the F5 LTM device. The application can be quite load intensive at first, and then evens out over time. The team’s load balancing method needs to select a pool after taking into account the pool member’s response over the time to avoid landing on a busy pool member.

Which of the following load balancing methods meets this requirement?

Fastest (application)

Predictive (member)

Dynamic (node)

Observed (member)
