McConnell ' s sign is an echocardiographic finding characterized by regional right ventricular (RV) dysfunction with akinesia of the mid-free wall but preserved contractility of the apex. This pattern is highly specific for acute pulmonary embolism (PE).

In acute PE, sudden obstruction of the pulmonary artery leads to acute right ventricular pressure overload, causing regional wall motion abnormalities. The sparing of the apex differentiates it from other causes of RV dysfunction such as myocardial infarction.

This sign is considered a useful bedside clue in the echocardiographic diagnosis of PE, especially when combined with clinical findings and Doppler evidence of elevated pulmonary pressures.

The sign is described in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Acute Right Heart Dysfunction, with reference to McConnell ' s original description and its clinical significance in acute pulmonary embolism diagnosis 【 20:340-345†Textbook of Clinical Echocardiography 】 .

Comprehensive and Detailed Explanation From Exact Extract:

Cardiac tamponade occurs when fluid accumulation in the pericardial space increases intrapericardial pressure, restricting ventricular filling and reducing cardiac output. A hallmark clinical feature is hypotension due to decreased stroke volume and cardiac output.

Jugular venous pressure is typically elevated (not decreased) because of impaired right heart filling. Tachycardia, not bradycardia, is usually present as a compensatory response. Blood pressure tends to be low or normal, not hypertensive.

This pathophysiology and clinical presentation are well documented in adult echocardiography literature and clinical cardiology textbooks, where tamponade is diagnosed with signs such as right atrial and ventricular diastolic collapse and associated clinical hypotension and elevated venous pressures 【 16:Textbook of Clinical Echocardiography, 6e†p.280-285 】【 12:ASE Pericardial Disease Guidelines†p.300-305 】 .

The echocardiographic image is a parasternal long axis or apical view showing the left ventricle. The arrow points to the wall segment located inferiorly, corresponding to the inferior wall of the left ventricle. The inferior wall is typically visualized in parasternal long axis and apical views as the posterior aspect of the ventricle.

Other options correspond to different walls: anterior is anterior septal wall, anterolateral and inferolateral refer to the lateral wall regions. Accurate wall identification is critical for regional wall motion analysis and coronary artery territory correlation.

This segmental wall identification is detailed in adult echocardiography and ASE chamber quantification guidelines 【 12:ASE Chamber Quantification Guidelines†p.90-95 】【 16:Textbook of Clinical Echocardiography, 6e†p.140-145 】 .

Comprehensive and Detailed Explanation From Exact Extract:

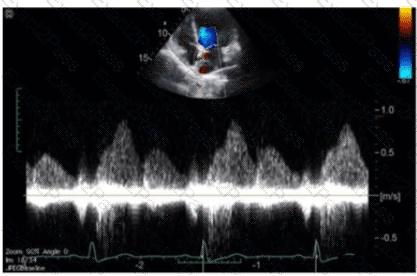

The image shows a pulsed-wave Doppler waveform with respiratory phasicity and distinct forward and reversed flow components characteristic of hepatic vein flow patterns. Hepatic vein Doppler typically displays a biphasic waveform with systolic (S) and diastolic (D) forward flow toward the heart and brief reversed flow during atrial contraction (A wave reversal), reflecting right atrial pressure changes.

Mitral and tricuspid inflow Doppler patterns show distinct E and A waves representing early and late diastolic ventricular filling but do not have the same flow reversal pattern. Pulmonary vein Doppler waveforms also differ, showing systolic and diastolic forward flows into the left atrium without the prominent reversed flow seen here.

The hepatic vein Doppler is commonly used in echocardiography to assess right atrial pressure and compliance, especially in conditions like constrictive pericarditis and right heart failure, where characteristic flow reversals and expiratory changes are observed.

This pattern and its clinical significance are detailed in adult echocardiography references, including the " Textbook of Clinical Echocardiography " and ASE guidelines on Doppler imaging 【 16:Hepatic Vein Doppler†Textbook of Clinical Echocardiography, 6e 】【 12:ASE Doppler Guidelines†p.95-100 】 .

Comprehensive and Detailed Explanation From Exact Extract:

The echocardiographic image shows a short-axis view of the left ventricle at the mid-papillary muscle level with segmental strain values. The arrow points to the wall segment located inferiorly (towards the bottom of the image in standard orientation), which corresponds to the inferior wall of the left ventricle.

According to the standardized 17-segment model endorsed by the American Society of Echocardiography (ASE), the inferior wall is situated posteriorly and inferiorly in the short-axis view. The other options represent adjacent walls: anterior is opposite the inferior wall, anterolateral and inferolateral correspond to lateral wall segments.

This segmental anatomy and nomenclature are detailed in adult echocardiography textbooks and ASE chamber quantification guidelines, which emphasize precise segmental identification for accurate regional function assessment 【 12:ASE Chamber Quantification Guidelines†p.90-95 】【 16:Textbook of Clinical Echocardiography, 6e†p.140-145 】 .

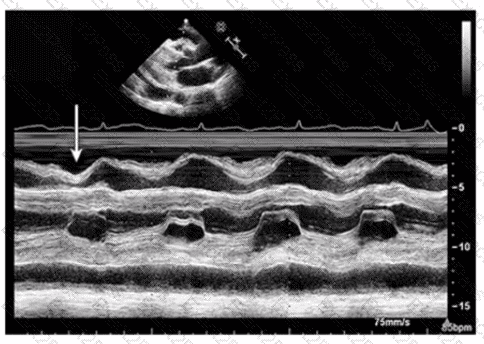

The image is a parasternal long axis M-mode echocardiographic tracing demonstrating the interventricular septum and posterior left ventricular wall. The arrow points to the septal “bounce” or “shudder,” which is an abnormal early diastolic septal motion.

This septal bounce is a classic echocardiographic finding in constrictive pericarditis, caused by rapid early diastolic filling with abrupt cessation due to pericardial constraint, resulting in paradoxical septal motion.

Cardiac tamponade usually shows pericardial effusion with chamber collapse but not septal bounce. Pulmonary embolism and pulmonary hypertension have different echocardiographic signs such as right ventricular dilatation and pressure overload but no septal bounce.

These features are well described in the " Textbook of Clinical Echocardiography " and ASE pericardial disease guidelines 【 16:Textbook of Clinical Echocardiography, 6e†p.280-285 】【 12:ASE Pericardial Disease Guidelines†p.300-305 】 .

In cardiac tamponade, pericardial fluid accumulation restricts cardiac filling leading to decreased stroke volume and cardiac output. As a compensatory mechanism, the heart rate increases (tachycardia) to maintain cardiac output.

Oxygen saturation typically does not increase; it may be normal or decreased if tamponade leads to hypoperfusion. Systolic and diastolic blood pressures often decrease due to reduced cardiac output.

This physiological response is well described in clinical cardiology texts and ASE pericardial disease guidelines 【 12:ASE Pericardial Disease Guidelines†p.300-305 】【 16:Textbook of Clinical Echocardiography, 6e†p.280-285 】

In the early stages of aortic stenosis, the left ventricle adapts to increased afterload by concentric remodeling, which is characterized by increased wall thickness without a proportional increase in chamber size. This adaptation helps normalize wall stress.

As the disease progresses, concentric hypertrophy develops with thickened walls and decreased compliance. Eccentric hypertrophy and global systolic dysfunction occur later with decompensation and ventricular dilation.

This progression is explained in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Left Ventricular Adaptations to Pressure Overload 【 20:365-370†Textbook of Clinical Echocardiography 】 .

Comprehensive and Detailed Explanation From Exact Extract:

The sniff maneuver is commonly used in echocardiography to assess right atrial pressure (RAP) indirectly by observing changes in the size and collapsibility of the inferior vena cava (IVC). During a sniff or rapid inspiration, negative intrathoracic pressure normally causes the IVC to collapse. The degree of IVC collapse during the sniff test correlates with RAP.

If the IVC is dilated and fails to collapse significantly with a sniff, this suggests elevated right atrial pressure, which can be caused by right heart failure, pulmonary hypertension, or volume overload.

This maneuver is not used to evaluate left atrial pressure or outflow tract obstructions, which require other echocardiographic parameters.

This assessment method is described in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Right Heart Evaluation and Hemodynamics 【 20:300-305†Textbook of Clinical Echocardiography 】 .

Comprehensive and Detailed Explanation From Exact Extract:

The left ventricular end-diastolic diameter (LVEDD) is measured at end-diastole, which is conventionally defined as the onset of the QRS complex on the electrocardiogram (ECG). This corresponds to the end of ventricular filling and just before ventricular contraction begins.

Measuring LVEDD at this point ensures consistency and accuracy for assessment of ventricular size and function. Measurement at the onset of the P wave would be too early (atrial contraction). The first frame after aortic valve closure corresponds to end-systole, and after mitral valve closure is during systole.

This timing is standard as per guidelines outlined in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Cardiac Chamber Quantification 【 20:60-65†Textbook of Clinical Echocardiography 】 .
