Comprehensive and Detailed Explanation From Exact Extract:

The left atrial volume index (LAVI) is the left atrial volume normalized to the patient ' s body surface area (BSA), which accounts for patient size. To calculate BSA, height and weight are required, most commonly using formulas such as the Mosteller formula.

Therefore, height is a necessary parameter to calculate the left atrial volume index. Age, blood pressure, and cardiac output are not used in the calculation of LAVI but may be clinically relevant for interpretation.

This approach standardizes LA size across patients of different body habitus, making LAVI a more accurate and reproducible measure of LA remodeling and a predictor of cardiovascular outcomes.

The echocardiography guidelines and textbooks emphasize the importance of indexing LA volume to BSA and highlight height as a required measurement for this purpose .

A respirometer monitors the respiratory cycle and is essential when evaluating diseases in which respiratory variation affects echocardiographic measurements, such as pericardial effusion and cardiac tamponade. In tamponade, respiratory changes in mitral and tricuspid inflows, as well as variations in inferior vena cava size, are key diagnostic features.

Congestive heart failure, ischemic cardiomyopathy, and mitral valve diseases do not require synchronization with respiration for diagnosis or quantification and are not reliant on respirometer use.

This recommendation is outlined in ASE pericardial disease guidelines and echocardiography procedural protocols 【 16:Textbook of Clinical Echocardiography, 6e†p.280-285 】【 12:ASE Pericardial Disease Guidelines†p.300-305 】 .

Comprehensive and Detailed Explanation From Exact Extract:

In hypertrophic obstructive cardiomyopathy (HOCM), systolic anterior motion (SAM) of the anterior mitral leaflet causes posteriorly directed mitral regurgitation (MR) jets. The abnormal anterior leaflet motion leads to incomplete leaflet coaptation and regurgitant flow directed toward the posterior left atrium.

Anterior jets are seen with posterior leaflet abnormalities. Central jets are seen in functional MR. Medial jets are less common and depend on leaflet pathology.

This jet direction is an important echocardiographic feature distinguishing HOCM-related MR and is outlined in ASE valvular heart disease and cardiomyopathy guidelines 【 12:ASE Valvular Regurgitation Guidelines†p.220-225 】【 16:Textbook of Clinical Echocardiography, 6e†p.350-355 】 .

The apical sparing pattern of global longitudinal strain (GLS) is a characteristic echocardiographic finding in cardiac amyloidosis. This pattern appears as a relative preservation of longitudinal strain in the apical segments compared to markedly reduced strain in basal and mid-ventricular segments, resulting in a " cherry on top " bullseye plot appearance.

This distinctive pattern helps differentiate amyloidosis from other causes of left ventricular hypertrophy and dysfunction, such as hypertensive heart disease, hypertrophic cardiomyopathy, or athlete’s heart, which generally show more uniform or different regional strain impairments.

This diagnostic feature has been validated in numerous studies and is included in the ASE guidelines on strain imaging and the " Textbook of Clinical Echocardiography, " providing a sensitive and specific noninvasive marker for amyloid infiltration of the myocardium 【 12:ASE Strain Imaging Guidelines†p.130-140 】【 16:Textbook of Clinical Echocardiography, 6e†p.320-325 】 .

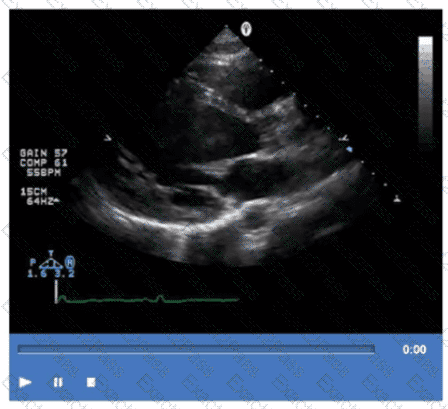

The video shows prominent trabeculations with deep intertrabecular recesses communicating with the left ventricular cavity, characteristic of isolated left ventricular noncompaction (LVNC). This congenital cardiomyopathy features a spongy myocardial appearance with thickened noncompacted layers.

Amyloidosis typically presents with thickened, bright myocardium but without prominent trabeculations. Sarcoidosis involves granulomatous inflammation, and apical hypertrophic cardiomyopathy shows localized hypertrophy without trabecular changes.

This pathology is detailed in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Cardiomyopathies and Myocardial Disorders 【 20:360-365†Textbook of Clinical Echocardiography 】 .

The Simpson biplane method (method of disks) is the recommended two-dimensional echocardiographic technique to quantify left ventricular ejection fraction (LVEF), especially when regional wall motion abnormalities are present. It involves tracing endocardial borders in apical two- and four-chamber views to calculate LV volumes and EF, accounting for segmental dysfunction.

Visual estimation is subjective and less accurate. The Quinones method (single plane area-length) and Teichholz method rely on geometric assumptions and are less accurate in abnormal ventricles.

ASE chamber quantification guidelines strongly endorse Simpson biplane for LVEF assessment in regional wall motion abnormalities 【 12:ASE Chamber Quantification Guidelines†p.70-75 】【 16:Textbook of Clinical Echocardiography, 6e†p.60-65 】 .

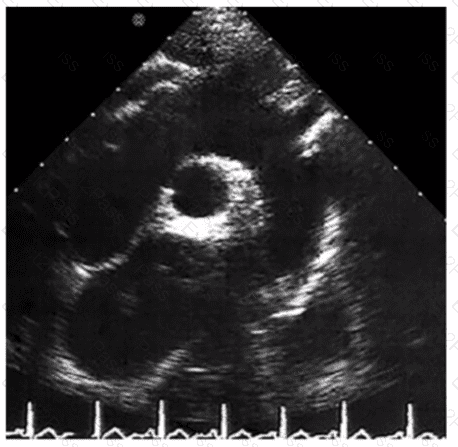

The subcostal view is the preferred transthoracic echocardiographic window to assess atrial situs, especially in congenital heart disease. This view provides a cross-sectional look at the abdominal organs and atrial chambers, helping determine the relative position of the inferior vena cava and aorta, which aids in defining atrial situs (solitus, inversus, or ambiguous).

Short axis and long axis views provide excellent cardiac anatomy but are less informative for visceral situs. The suprasternal notch window is mainly used to visualize the great vessels but does not provide adequate assessment of atrial situs.

The subcostal view ' s ability to demonstrate abdominal situs and systemic venous return makes it essential in congenital cardiac evaluations and is recommended in echocardiography protocols for congenital heart disease assessment .

The parasternal long axis (PLAX) view provides visualization of the left ventricle, left atrium, mitral and aortic valves, and importantly, the coronary sinus located posteriorly between the left atrium and left ventricle.

The pulmonic valve is best visualized in the parasternal short axis or suprasternal views. The eustachian valve is in the right atrium and visualized best in subcostal or apical views. The left atrial appendage is usually seen in transesophageal echocardiography.

This anatomical visualization is discussed in standard echocardiography textbooks and ASE imaging protocols 【 12:ASE Imaging Guidelines†p.70-75 】【 16:Textbook of Clinical Echocardiography, 6e†p.100-105 】 .

The structure indicated by the arrow in the right ventricle is the moderator band. The moderator band is a muscular band of tissue that crosses the right ventricular cavity from the interventricular septum to the anterior papillary muscle. It contains part of the right bundle branch of the conduction system and is a normal anatomical structure identifiable on echocardiography.

False tendons are fibrous or muscular strands within the left ventricle, not the right. The Chiari network is a mobile, net-like structure in the right atrium near the inferior vena cava and atrial septum. The Eustachian valve is a crescent-shaped ridge at the entrance of the inferior vena cava into the right atrium.

The moderator band is important to recognize to avoid misinterpretation as a pathological mass or thrombus.

This is detailed in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Right Ventricular Anatomy and Echocardiographic Landmarks 【 20:150-155†Textbook of Clinical Echocardiography 】 .

Comprehensive and Detailed Explanation From Exact Extract:

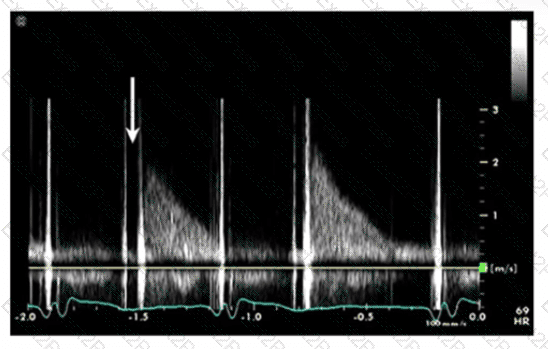

The Doppler waveform shows a typical left ventricular outflow tract or aortic valve velocity pattern. The arrow points to the steep rise and peak velocity of the jet, which corresponds to systolic ejection — the phase of the cardiac cycle when blood is rapidly ejected from the left ventricle into the aorta.

Isovolumic contraction precedes ejection and is represented by a flat baseline with no flow as ventricles build pressure. Isovolumic relaxation occurs after ejection before the mitral valve opens. Early diastole corresponds to mitral inflow, not aortic outflow.

This timing and flow pattern are standard in echocardiographic Doppler interpretation as described in the " Textbook of Clinical Echocardiography " and ASE Doppler imaging guidelines 【 16:Textbook of Clinical Echocardiography, 6e†p.100-105 】【 12:ASE Doppler Guidelines†p.50-55 】 .
