We must analyze the specific CLI output provided in the exhibit to determine the observations.

Analyze the Command and Output:

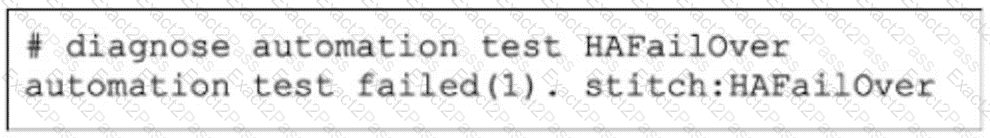

Command: # diagnose automation test HAFailOver

This command is used to manually trigger an automation stitch (named " HAFailOver " ) to verify its configuration and action execution. It simulates the trigger event to run the defined actions.

Output: automation test failed(1). stitch:HAFailOver

The output explicitly states that the test failed. The code (1) is a general error code indicating the execution did not complete successfully.

Evaluate the Options:

A. The configuration was backed up:

Incorrect. Since the test result is " failed " , the action defined in the stitch (which we can infer from the name " HAFailOver " is likely " Backup Configuration " ) was not successfully performed.

B. A high availability (HA) failover occurred:

Incorrect. The command diagnose automation test is a simulation tool. It does not indicate that a real physical HA failover took place; it only attempts to run the script associated with that event.

C. The test was unsuccessful:

Correct. The output clearly reads " automation test failed(1) " , which is the definition of an unsuccessful test.

D. The automation stitch test is not being logged:

Correct. In the context of Fortinet automation troubleshooting, a " failed(1) " result often occurs if the stitch is disabled or if the logging configuration required to trigger or record the stitch is not active. Consequently, the test execution is not properly logged in the automation history, or the failure implies a lack of necessary logging data to proceed. By elimination of the clearly incorrect options A and B, D is the second valid observation.

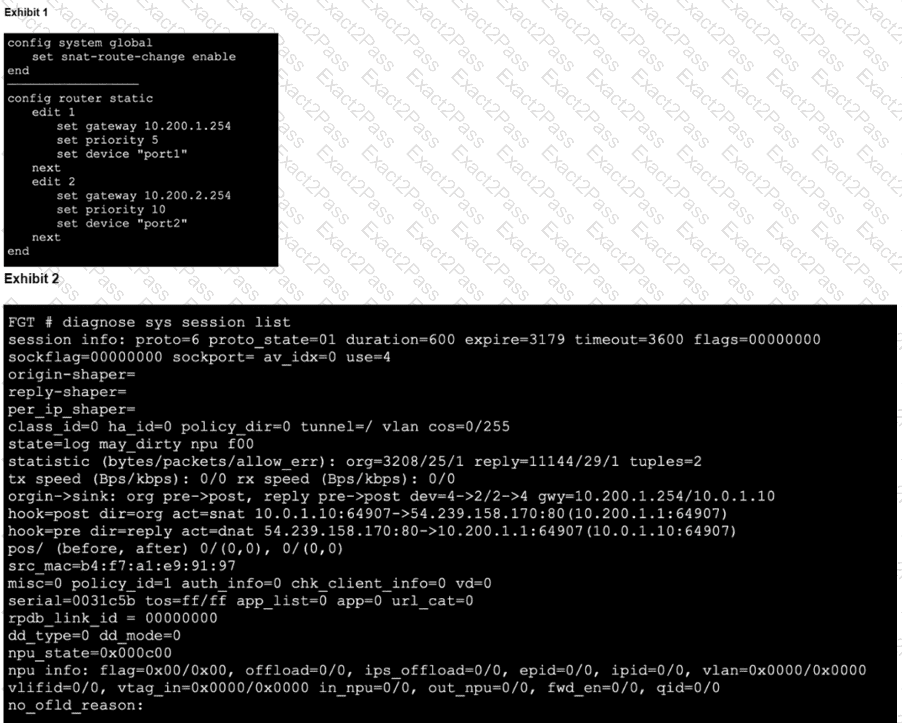

The correct answer is A . This behavior is dictated by the configuration command set snat-route-change enable shown in Exhibit 1 under config system global.

Routing Change: By changing the priority of route ID 2 from 10 to 0, it becomes lower than route ID 1 (priority 5). In FortiOS, a lower priority value indicates a more preferred route. Consequently, the active route for the destination changes from port1 to port2 .

SNAT Implication: The existing session (shown in Exhibit 2) is using Source NAT (SNAT) with the IP address associated with port1 (10.200.1.1). If the traffic were simply switched to port2 , the source IP would be incorrect for that interface and the return traffic would likely fail or be dropped.

snat-route-change enable: This specific setting instructs the FortiGate on how to handle established SNAT sessions when a routing change occurs that alters the preferred outgoing interface. When enabled, if a route change forces an SNAT session to a new interface, FortiGate flushes (deletes) the session from the session table. This is necessary because a live TCP session cannot survive a change in its source IP address. The client must initiate a new session, which will then be created using the new correct route (port2) and the corresponding new SNAT IP.

If this setting were disabled, the session would likely remain " sticky " to the original interface (port1) until it closed, provided the route still existed. However, the explicit configuration forces the deletion.

The correct answer is B .

In the exhibit:

Neighbor 100.64.1.254 shows State/PfxRcd = 1 , which means the session is established and the local FortiGate has received 1 prefix

Neighbor 100.64.2.254 shows State/PfxRcd = Active

The study guide explains the BGP states exactly:

Connect : Waiting for a successful three-way TCP connection

Active : Unable to establish the TCP session

OpenSent : Waiting for an OPEN message from the peer

OpenConfirm : Waiting for the keepalive message from the peer

Established : Peers have successfully exchanged OPEN and keepalive messages

It also explains how to read the State/PfxRcd column:

“If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor.”

Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established .

Why the other options are wrong:

A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another

C is wrong because BGP adjacency is not established based on neighbor “priority”; the output shows adjacency is established because the session completed and prefixes were exchanged

D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation

So the verified answer is: B .

To understand why Type 5 LSAs (AS External LSAs) are missing from the Link-State Database (LSDB), we must look at how OSPF generates and propagates them:

A. There is no autonomous system border router (ASBR) in the network:

Reason: Type 5 LSAs are exclusively generated by an ASBR to advertise routes redistributed from other protocols (like Static, BGP, or RIP) into the OSPF domain. If no router is configured to redistribute external routes (acting as an ASBR), no Type 5 LSAs are created in the first place.

C. The local router is located in a stub area:

Reason: By definition, a Stub Area (and a Totally Stubby Area) prevents Type 5 LSAs from entering. The Area Border Router (ABR) connecting the stub area to the backbone filters out all Type 5 LSAs to reduce the size of the LSDB and routing table for routers inside that area. Instead, a default route is usually injected.

Why other options are incorrect:

B: While database filtering exists, standard prefix-list filtering typically affects the routing table (RIB) generation, not the underlying LSDB propagation of Type 5 LSAs, or it is less common than the architectural reasons (Stub/No ASBR).

D: IP Protocol 89 is the transport for OSPF itself. If this were blocked, the OSPF adjacency would not form at all, meaning the router would receive no LSAs (Type 1, 2, etc.), not specifically just Type 5.

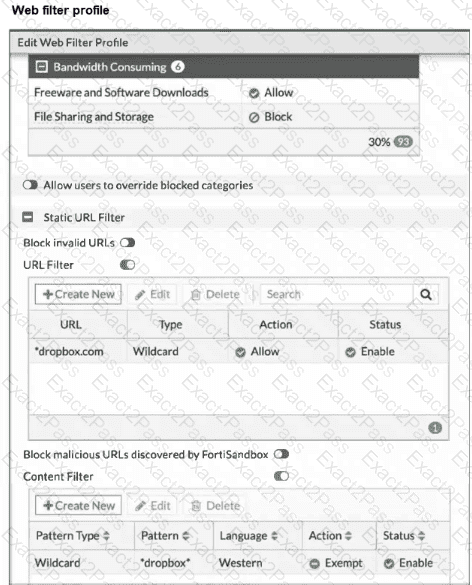

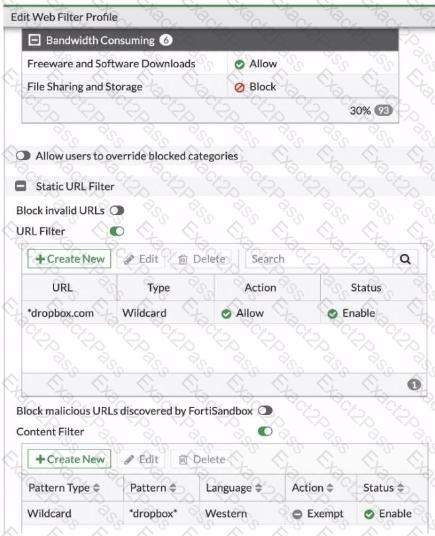

https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-Static-URL-filter-actions-explained/ta-p/206632

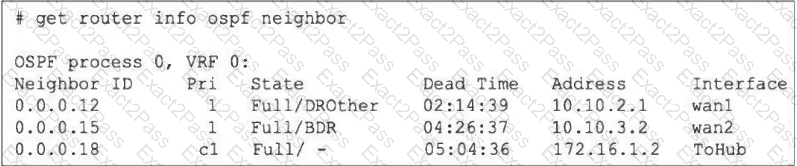

The correct answers are C, D, and E .

The study guide lists the exact OSPF adjacency requirements :

“Interfaces of peers are the same type and in the same OSPF area”

“Each peer has a unique router ID”

“OSPF authentication, if enabled, is successful”

These map directly to:

C. OSPF interface network types match

D. Authentication settings match

E. OSPF router IDs are unique

The same study-guide slide also states other requirements such as:

peers’ primary IPs must be in the same subnet with the same mask

hello and dead intervals must match

OSPF MTUs must match

Why the other options are wrong:

A is wrong because link cost matching is not listed as an adjacency requirement . OSPF cost affects path selection, not whether adjacency can form.

B is wrong because interface priority does not need to be unique . Priority is used for DR/BDR election, where the highest priority wins, and ties are broken by router ID.

So the verified answers are: C, D, E .

To establish a functional Security Fabric, specific network and configuration prerequisites must be met to ensure nodes can communicate, authorize, and share telemetry data:

A. You must ensure that TCP port 8013 is not blocked along the way:

TCP port 8013 is the dedicated port for FortiTelemetry (Fabric) communication. If firewalls (intermediate or local) block this port, the Fabric connection between the root and downstream FortiGates will fail.

D. You must authorize the downstream FortiGate on the root FortiGate:

Security Fabric relies on a trust relationship. When a downstream device attempts to join, it appears in the Root FortiGate ' s dashboard. The administrator must manually authorize this device (unless pre-authorized via serial number) to allow it to join the Fabric topology.

E. You must enable FortiTelemetry on the receiving interface of the upstream FortiGate:

The interface on the Root (upstream) FortiGate that faces the downstream devices must have the " Security Fabric Connection " (formerly CAPWAP/FortiTelemetry) administrative access setting enabled. Without this, the interface will not listen for or accept Fabric connection requests.

Why other options are incorrect:

B: Neighbor Discovery uses standard multicast/broadcast or static settings; changing the port is not a standard requirement.

C: FortiGates can participate in the Security Fabric in either NAT or Transparent mode; Transparent mode is not a mandatory requirement for the Fabric itself.
