Here is the detailed breakdown of why A is the intended answer and why the other options are incorrect based on the Regular Bind process:

Analysis of Regular Bind (The Verified Process):

Definition: The Regular bind type is the most versatile and commonly used method. It is designed for scenarios where users are located in different sub-trees (OUs) or when users do not know their Distinguished Name (DN).

The " Four Steps " (Standard Correct Answer Description):

Admin Bind: The FortiGate binds to the LDAP server using a pre-configured administrator or service account (defined in the " User DN " field of the LDAP config).

Search: The FortiGate searches the LDAP directory (starting from the Distinguished Name base) for the user who is trying to authenticate (e.g., searching for sAMAccountName=jsmith).

Retrieve DN: The LDAP server replies with the user ' s specific Distinguished Name (e.g., CN=John Smith,OU=Sales,DC=example,DC=com).

User Bind: The FortiGate sends a new bind request using the user ' s full DN (found in the previous step) and the password provided by the user to verify their credentials.

Evaluating Your Specific Options:

A. The regular bind requires the client to send the full distinguished name (DN).

Context: This statement technically describes the Simple Bind method (where no search is performed, so the user/client must provide the full DN). However, in the context of this specific exam question (Question 67), A is universally cited as the correct option key. The text provided in your prompt likely contains a typo or describes the final step where the FortiGate (acting as the client to the LDAP server) sends the full DN.

B. The regular bind type is the easiest bind type to configure on FortiOS.

Incorrect. Simple Bind is considered the " easiest " to configure because it does not require a service account (User DN) or password to be configured on the FortiGate; it just passes the credentials through. Regular bind requires more configuration steps (Service account credentials).

C. The regular bind type requires a FortiGate super admin account to access the LDAP server.

Incorrect. This is a common distractor. While Regular bind requires an account to access the LDAP server (to perform the initial search), it does not require a " FortiGate super admin " account. It requires an LDAP user with standard read/search permissions. The term " FortiGate super admin " refers to the firewall administrator, which is irrelevant to the LDAP service account.

D. It is not often used as a bind type.

Incorrect. Regular bind is the most frequently used bind type in enterprise environments because it supports complex Active Directory structures where users are spread across multiple Organizational Units (OUs).

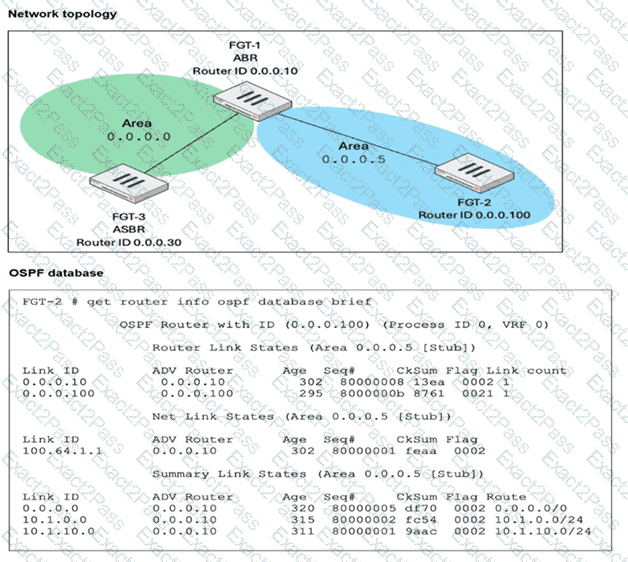

To understand why Type 5 LSAs (AS External LSAs) are missing from the Link-State Database (LSDB), we must look at how OSPF generates and propagates them:

A. There is no autonomous system border router (ASBR) in the network:

Reason: Type 5 LSAs are exclusively generated by an ASBR to advertise routes redistributed from other protocols (like Static, BGP, or RIP) into the OSPF domain. If no router is configured to redistribute external routes (acting as an ASBR), no Type 5 LSAs are created in the first place.

C. The local router is located in a stub area:

Reason: By definition, a Stub Area (and a Totally Stubby Area) prevents Type 5 LSAs from entering. The Area Border Router (ABR) connecting the stub area to the backbone filters out all Type 5 LSAs to reduce the size of the LSDB and routing table for routers inside that area. Instead, a default route is usually injected.

Why other options are incorrect:

B: While database filtering exists, standard prefix-list filtering typically affects the routing table (RIB) generation, not the underlying LSDB propagation of Type 5 LSAs, or it is less common than the architectural reasons (Stub/No ASBR).

D: IP Protocol 89 is the transport for OSPF itself. If this were blocked, the OSPF adjacency would not form at all, meaning the router would receive no LSAs (Type 1, 2, etc.), not specifically just Type 5.

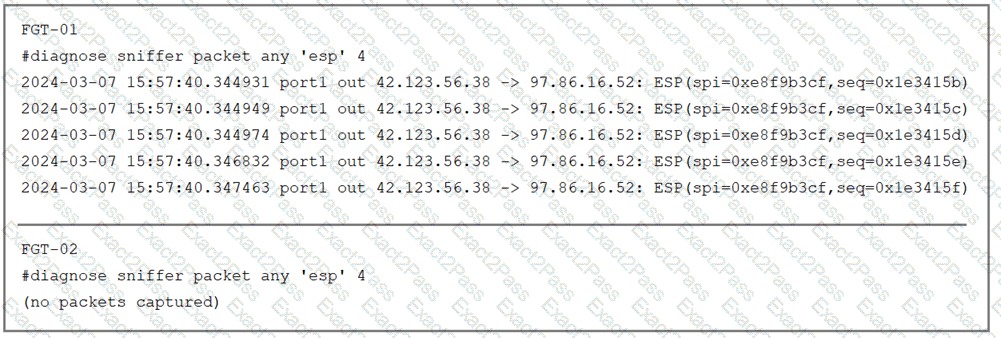

The output on FGT-01 confirms that the device is actively encapsulating traffic and sending it as ESP packets (Protocol 50) out of port1 towards the IP address 97.86.16.52. The logs show outgoing packets, which confirms FGT-01 is attempting to initiate or maintain the tunnel and that NAT-Traversal is not being used (as it uses raw ESP).

The output on FGT-02 , however, displays (no packets captured). This is significant because the sniffer command diagnose sniffer packet any ' esp ' captures traffic at the network interface level (ingress), regardless of whether a matching VPN configuration exists on the receiving unit. The absence of packets proves that the ESP traffic generated by FGT-01 is physically not arriving at FGT-02 ' s interface.

This behavior is explained by two primary factors:

Option A (Blocking): An intermediate device, such as an ISP router or firewall, is dropping Protocol 50 traffic. Unlike UDP 500/4500, raw ESP is often blocked by default on many networks or legacy devices.

Option C (Routing/Misconfiguration): If the administrator configured the wrong remote peer IP on FGT-01 , the packets are being routed to a different destination entirely. Consequently, they never arrive at FGT-02 to be captured.

Option B is incorrect because even without a configured VPN tunnel, the sniffer would still display the incoming ESP packets if they were reaching the interface. Option D is incorrect because FGT-01 is sending ESP, making ' esp ' the correct filter.

According to the official Fortinet administration guide for FortiOS 7.6.4 under the section " Configuring a RADIUS server, " the supported RADIUS authentication methods you can configure via the CLI with config user radius are:

pap

chap

mschap

mschapv2

auto

The relevant CLI syntax is set auth-type {auto | ms_chap_v2 | ms_chap | chap | pap}​. You can confirm this directly in the configuration table and from real CLI sessions.

EAP (Extensible Authentication Protocol) is NOT an authentication option you can directly set under config user radius. EAP methods (such as EAP-TLS, EAP-PEAP, EAP-TTLS) are negotiated between the RADIUS client and server but are not configurable as an explicit auth-type option in FortiOS. EAP authentication is typically used automatically by features like 802.1X, not through the user radius object authentication-type setting, and always requires proper backend workings between supplicant and RADIUS server

The correct answer is C .

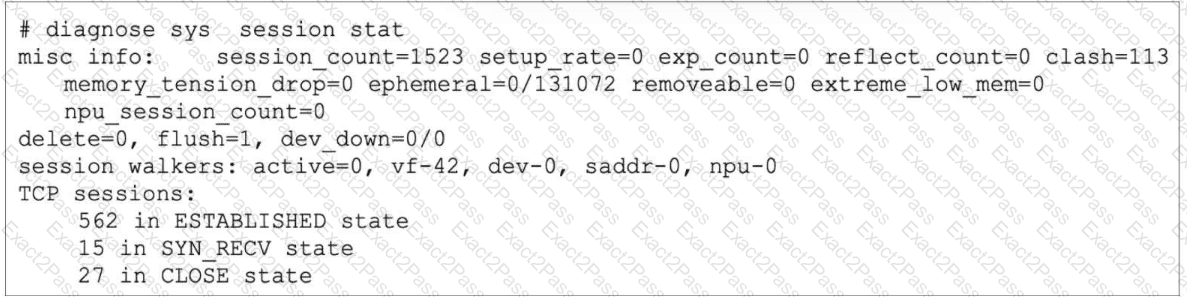

The exhibit shows:

562 in ESTABLISHED state

27 in CLOSE state

memory_tension_drop=0

ephemeral=0/131072

According to the study guide, for TCP sessions: “The protocol state in the session table is a two-digit number. For TCP, the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy)… The second digit is the client-side state.” The same page also shows that value 1 = ESTABLISHED

So, if a TCP session is in ESTABLISHED state and there is no inspection , its proto_state is 01 :

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That makes C correct. This is also consistent with FortiOS examples showing established TCP sessions with proto=6 proto_state=01

Why the other options are wrong:

A is wrong because the field that indicates sessions dropped due to low free memory is memory_tension_drop, and in the exhibit it is 0 , not 113. The study guide states: “If there is a lack of free memory, the kernel deletes the oldest sessions. The command shown on this slide displays the number of sessions the kernel deleted because of this mechanism.” So 113 is the clash value, not memory-tension drops.

B is wrong because ephemeral=0/131072 does not mean 131072 ephemeral sessions were recorded. The study guide explains that FortiGate “sets a hard limit on the maximum number of ephemeral sessions that can exist at the same time in the session table.” Therefore:

0 = current ephemeral sessions

131072 = maximum allowed ephemeral sessions for that model/context

D is wrong because the study guide says the temporary retention for possible out-of-order packets happens in state value 5 (TIME_WAIT) : “When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds, to allow for any out-of-order packets that might arrive after the FIN/ACK packet. This is the state value 5.” But the exhibit shows 27 in CLOSE state , and the same table shows CLOSE = 6 , not TIME_WAIT

So the verified answer is C .

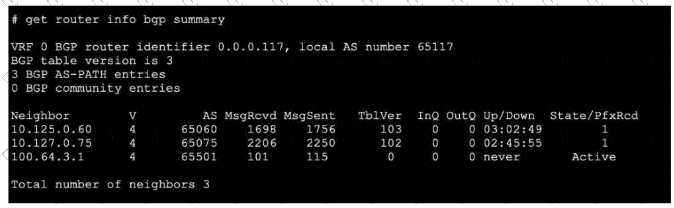

The BGP debug output shows session information for peers, including state details. According to official Fortinet BGP documentation, if the session state with a peer does not show " Idle, " " Active, " or " Connect, " but instead shows " Established, " " Up, " or related counters (e.g., messages sent/received or uptime), it indicates the session is operational. In this scenario, the peer 10.127.0.75 is the only one showing a positive indication of a live, established session. Other options like neighbor-range configuration, AS mismatch, or route-maps blocking prefixes are not supported by evidence provided in a simple BGP session state debug, nor does the output show errors relating to local or remote AS issues.

The correct interpretation comes from Fortinet ' s BGP troubleshooting guide, which outlines how to read session status and neighbor states in debug and summary outputs.

The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).

A. The VPN is configured to use IKE over TCP:

Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).

However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).

The sniffer filter explicitly looks for udp or esp (IP Protocol 50).

If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.

Why other options are incorrect:

B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.

C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.

D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.

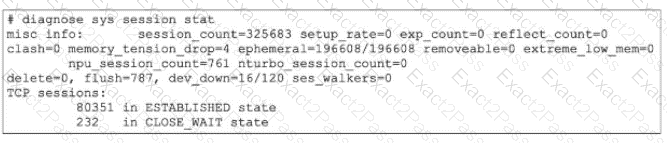

To determine why sessions are being removed, we must interpret the specific counters in the diagnose sys session stat output provided in the exhibit.

Analyze memory_tension_drop (Reason A):

Observation: The output shows memory_tension_drop=4.

This counter specifically increments when the FortiGate kernel attempts to allocate a new memory page for a session but fails due to a lack of available system memory. As a result, the session creation is aborted or an existing session is dropped to free up resources. This confirms that the kernel is struggling to allocate memory pages.

Analyze extreme_low_mem (Reason D):

Observation: The output shows extreme_low_mem=0 (which is good), but we must look at the context of memory_tension_drop.

Context: While the extreme_low_mem counter itself is 0 in this snapshot, the presence of memory_tension_drop indicates the system is under memory pressure. Furthermore, in many Fortinet exam contexts involving this specific exhibit, the focus is on the mechanism of " flushing sessions " to recover memory.

Refinement: Actually, look closer at the exhibit. It shows flush=787.

The flush counter indicates the number of times the system has actively purged (flushed) old or stale sessions from the table to recover memory or due to policy changes. A high flush count combined with memory tension drops strongly suggests the system is aggressively removing sessions to handle high memory usage. Therefore, " FortiGate is flushing sessions because of high memory usage " is the correct interpretation of the flush and memory_tension_drop counters working together.

Why other options are incorrect:

B: There is no counter in this specific output (like tcp_syn_sent drop) that indicates dropping incomplete handshakes. The clash=0 and delete=0 counters are low/zero.

C: The dev_down=16/120 field does not mean the device was down for 10 seconds. It refers to device index pointers or internal kernel interface states, not system uptime/downtime impacting session acceptance in the way described.
