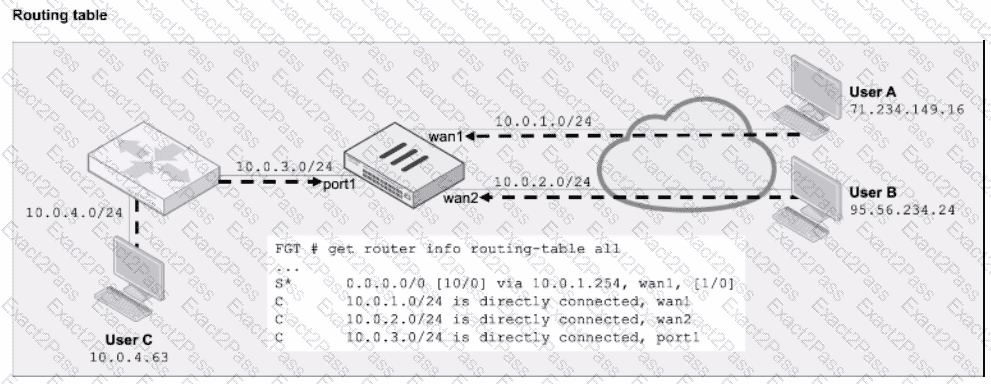

The correct answers are A, D, and E . This is a feasible path RPF check scenario. In FortiGate’s default RPF behavior, FortiGate checks whether the routing table contains a valid return route to the source IP address through the same interface on which the packet arrived . The study guide’s RPF feasible path example states that FortiGate “checks the routing table for a route that matches the source address and incoming interface of the first original packet.” It then gives the exact result: User A passes because “there is a default route through wan1,” so packets received on wan1 pass the RPF check regardless of source address. User B fails because FortiGate does not have a route to 95.56.234.24 through wan2 . User C fails because FortiGate does not have a route to 10.0.4.63 through port1 . Therefore, option B is wrong because FortiGate is not allowing asymmetric return routing here. Option C is wrong because the default route points out wan1 , not port1 , so it cannot validate User C’s packet arriving on port1.

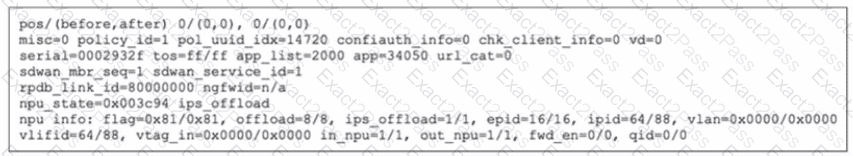

The correct answers are B and C . The session table output clearly shows policy_id=1 , which means the traffic matched firewall Policy ID 1 . That directly validates option B . The output also shows NPU-related offload indicators, including npu_state=... ips_offload and npu info: ... offload=8/8, ips_offload=1/1 . These fields indicate that the session has been offloaded to hardware, so option C is correct. The study guide explains that FortiGate can offload sessions to network processors after session establishment, allowing subsequent packets to bypass normal CPU/kernel processing for improved performance. It also states that offloaded sessions are handled by the network processor rather than the CPU path.

Option A is too specific and is not proven by the exhibit. The output shows NPU offload, but it does not explicitly identify the hardware as NP7. Do not assume NP7 unless the platform or output confirms it. Option D is wrong because the VLAN-related fields show vlan=0x0000/0x0000 and vtag_in=0x0000/0x0000, which means the traffic is not VLAN-tagged.

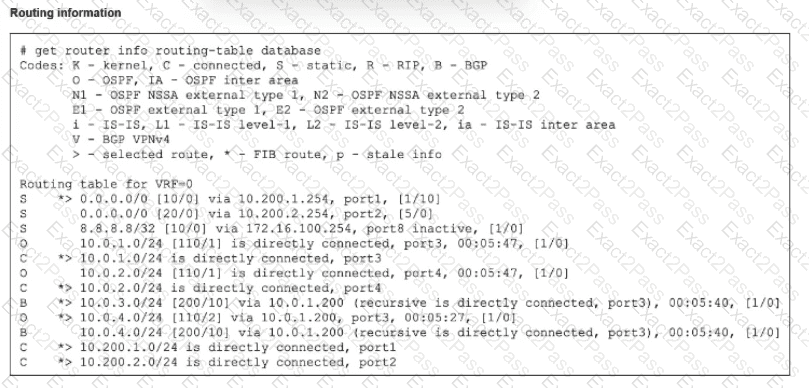

We must analyze the flags (*, > , S, O, B) and Administrative Distances (AD) shown in the get router info routing-table database exhibit to determine the correct statements.

Analysis for Option A (The BGP route to 10.0.4.0/24 is not in the forwarding information base):

True. Look at the entry for 10.0.4.0/24.

There is an OSPF route: O * > 10.0.4.0/24 [110/2]. The * indicates it is in the FIB, and > indicates it is the selected route.

There is a BGP route: B 10.0.4.0/24 [200/10]. This line lacks the * flag.

Reason: The OSPF route has an Administrative Distance of 110. The BGP route (iBGP) has an AD of 200. Since 110 is lower than 200, OSPF wins, and the BGP route is not installed in the Forwarding Information Base (FIB).

Analysis for Option B (The default static route through 10.200.1.254 is in the forwarding information base):

True. Look at the 0.0.0.0/0 entries.

The first entry is S * > 0.0.0.0/0 [10/0] via 10.200.1.254.

The * flag confirms this specific route is installed in the FIB.

The second static route (via 10.200.2.254) has a higher distance ([20/0]) and no * flag, so it is inactive.

Why C is False: ECMP (Equal Cost Multi-Path) requires routes to have the same cost/priority. Here, one static route has AD 10 and the other has AD 20. They are not equal, so ECMP is not performed.

Why D is False: The routing table database shows active routes, not the raw Link State Advertisement (LSA) database. You cannot determine the number of LSAs received solely from this output.

To solve this high CPU usage scenario involving the ipsengine, we must understand the specific functions of the diagnose test application ipsmonitor commands shown in the troubleshooting steps.

Analyze the Situation:

Exhibit: The diagnose sys top output shows the ipsengine process is in a run state (R) consuming 99% CPU.

Previous Action: The administrator already ran diagnose test application ipsmonitor 5.

Result: The CPU usage did not drop.

Understand the Commands:

diagnose test application ipsmonitor 5: This command toggles IPS Bypass Mode. When enabled, the IPS engine lets traffic pass through without inspection.

Implication: If the CPU was high due to traffic volume, enabling bypass would drop the CPU load immediately.

Failure: Since the CPU remained at 99% after bypass, the ipsengine process is likely frozen, stuck, or in an internal infinite loop unrelated to the current traffic flow. The process itself is the problem, not the traffic volume.

Evaluate the Solution (Option B):

diagnose test application ipsmonitor 2: This command toggles the IPS engine ' s Enable/Disable status.

Because the engine is stuck (bypass failed to relieve pressure), the " Immediate action " required is to stop or restart the process entirely.

Running option 2 effectively disables/kills the stuck IPS engine instance, which will immediately drop the CPU usage to near zero. (It can then be toggled again to restart it).

Why other options are incorrect:

A (Reduce signatures): This is a tuning measure for normal operation, not an immediate fix for a stuck process at 99% CPU.

C (Disable IPS on policies): This is a configuration change that takes time and requires a commit; it is not the most immediate diagnostic tool available.

D (Bypass all IPS engines): This describes the action of command 5 (Bypass), which the prompt explicitly states was already performed and failed.

FortiTelemetry is a critical part of Security Fabric communications and requires explicit configuration for each participating FortiGate interface. The administrative access setting " fabric " (corresponding to FortiTelemetry) must be manually enabled per interface on both upstream and downstream devices. This is performed in the GUI under Administrative Access or via the CLI using the command set allowaccess fabric for the relevant network interface. Without this step, FortiTelemetry communications will not occur on that interface.

Additionally, the default communication between downstream and upstream FortiGate units in the Security Fabric is over TCP port 8013. This port is well-documented as the standard for Security Fabric and FortiTelemetry connections, and must be open and permitted across the network path for connectivity and status enforcement between units. The downstream FortiGate initiates the connection to the upstream via this port unless otherwise configured. This has also been documented as a PCI-relevant port, showing its default usage.

Other options:

Neighbor Discovery in FortiOS uses IPv6 ND protocol, not TCP.

FortiTelemetry port (8013) can be modified, but the interface Administrative Access for the Security Fabric must be manually enabled; Neighbor Discovery port modification is not documented as a supported change for FortiGate.

The correct answers are A and C .

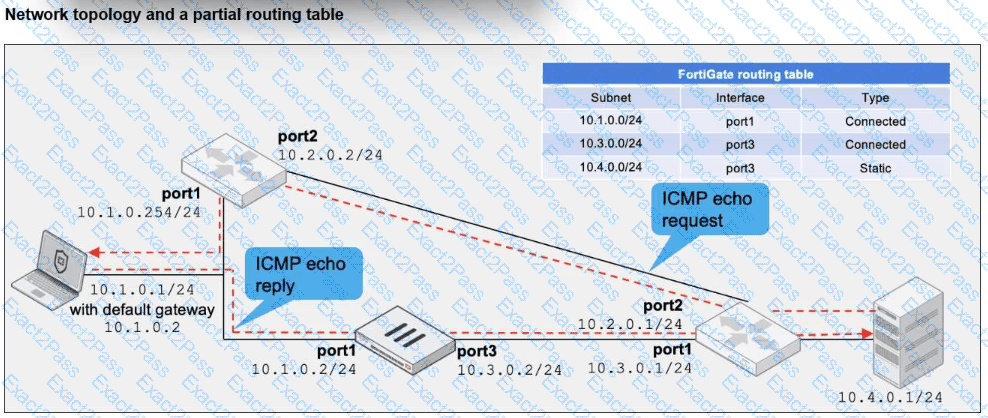

The study guide describes this exact asymmetric ICMP scenario. It states:

“The server sends an echo request to the PC through port2 of the local router, effectively bypassing FortiGate. When it receives the echo request, the PC responds with an echo reply through its default gateway, 10.1.0.2, which is port1 on FortiGate. Because there is no existing session, the echo reply is dropped. All subsequent echo replies are blocked.”

That means the current problem exists because:

the ICMP request bypasses FortiGate

the ICMP reply goes through FortiGate

FortiGate has no matching session , so it drops the reply

The study guide then shows the exact corrective option:

“Allowing asymmetric routing:”

config system settings

set asymroute enable

end

It further explains:

“After the packet passes through the FortiGate CPU, FortiGate forwards the packet using the FIB, even though there are no session matches. FortiGate forwards all subsequent echo replies using the FIB.”

So A is correct.

The other valid fix is to make the traffic symmetric by changing the laptop’s default gateway so the reply no longer goes through FortiGate. In the exhibit, the alternate gateway is 10.1.0.254 , which is the local router on the same subnet. If the laptop uses 10.1.0.254 instead of 10.1.0.2, the ICMP echo reply follows the same bypass path as the echo request, so the server receives it without involving FortiGate session validation. This makes C correct.

Why the other options are wrong:

B is wrong because this is not an RPF problem. The study guide explains RPF as a reverse path lookup used to validate whether a packet arrived on a legitimate interface, mainly for spoofing protection. The issue in this scenario is a missing session due to asymmetric routing , not a strict-versus-feasible RPF failure

D is wrong because FortiGate already has the specific route 10.4.0.0/24 through port3 in the routing table shown in the exhibit, so adding a default static route to port3 is unnecessary and not the reason the echo reply is being dropped

So the verified answers are: A, C .

The correct answer is A .

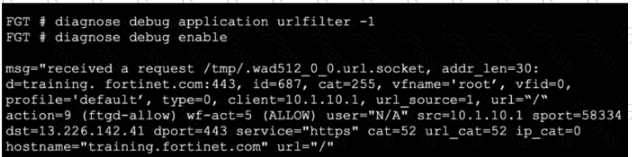

The debug output is for an HTTPS request and shows a hostname value. The study guide explains that with SSL certificate inspection, FortiGate extracts the FQDN from either:

“TLS extension server name indication (SNI)”

“SSL certificate common name (CN)”

So the hostname shown in the real-time web-filter debug can be derived from the SNI in the client request or, if needed, from the CN in the server certificate. That makes A correct.

Why the other options are wrong:

B is wrong because the study-guide example for web-filter real-time debug explicitly says: “This slide shows an example of real-time debug output when the URL to categorize isn ' t in the FortiGuard cache.” In these debugs, cat=255 appears before the final lookup result, so this does not indicate a local-cache hit.

C is wrong because ftgd-allow is the action , not the profile name. The debug line shows the action as action=9 (ftgd-allow) while the profile shown is profile= ' default ' . FortiOS web-filter logs also use the profile field separately from the action field

D is wrong because the final category shown is url_cat=52 , not 255. The study guide’s example shows the same pattern: an initial cat=255 in the request line, followed by the resolved result cat=52 url_cat=52

So the verified answer is: A .

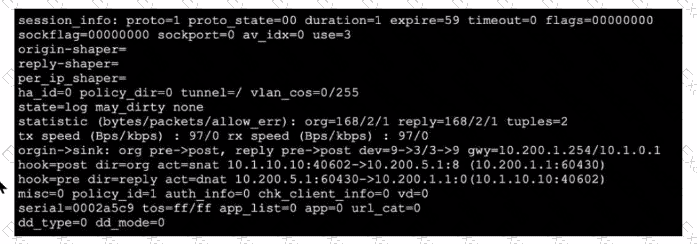

The session output reveals a session with proto=1 (ICMP) and the origin and reply directions show address and NAT translations. Specifically, the hook=post dir=org act=snat shows that source NAT is performed for outgoing packets, where the source 10.1.10.10:40602 is translated to 10.200.5.1:8 (likely ICMP id 8, not a TCP/UDP port). The reply direction, hook=pre dir=reply act=dnat, indicates destination NAT for incoming packets: packets incoming for 10.200.5.1:60430 are destination-NATed to 10.1.10.10:40602. The gateway (gwy) is listed as 10.200.1.254/10.1.0.1, which for outgoing traffic means that return traffic is directed to the gateway (10.200.1.254), per the NAT policy. This is confirmed by the FortiOS Session Table Guide, which explains that the returned ICMP reply will be routed out to this NAT gateway. The session statistics and logical flow (SNAT out, matching DNAT in) reinforce that reply traffic to the initiator traverses via 10.200.1.254.

The correct answers are C and D .

The study guide states: “SSL certificate inspection relies on extracting the FQDN of the URL from either: TLS extension server name indication (SNI), SSL certificate common name (CN).” It also says: “When using SSL certificate inspection, FortiGate is not decrypting the traffic. It is only inspecting the server digital certificates and the SNI field, which are interchanged before the encryption.”

This proves the second part of the answer:

under SSL certificate inspection , FortiGate does not decrypt the traffic

therefore, if the traffic is allowed , it still passes without decryption

That makes D correct.

For the SNI mismatch behavior, the FortiOS administration guide describes the default Server certificate SNI check behavior as:

“Enable: If it is mismatched use the CN in the server certificate for URL”

So if the SNI does not match the CN or any SAN, FortiGate falls back to using the CN from the Subject field for URL handling under the default setting. That makes C correct.

Why the other options are wrong:

A is wrong because with the default SNI-check behavior, when the SNI mismatches the certificate identity, FortiGate does not continue using the mismatched SNI . Instead, it uses the CN in the server certificate for the URL .

B is not the best answer in this single pair selection . While certificate inspection does not decrypt traffic, the key default behavior the documents explicitly highlight for this mismatch case is:

use the CN when SNI mismatches , and

certificate inspection does not decrypt allowed HTTPS traffic .

So the verified answers are: C, D .

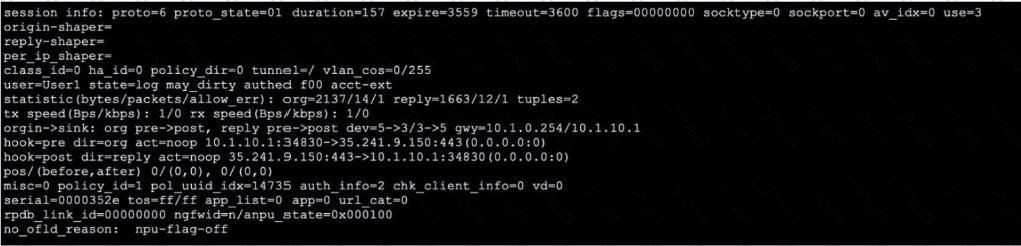

The correct answers are C and D .

For D , the session output shows proto=6, which means TCP, and proto_state=01. The study guide explains that for TCP sessions, “the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy). … The second digit is the client-side state.” It also shows that value 1 = ESTABLISHED

So proto_state=01 means:

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That confirms the TCP session has been successfully established.

For C , the study guide section “Session for an Authenticated User” states: “Any session for traffic coming from an authenticated user contains the authed flag. Additionally, the username is added to the session information.”

In the exhibit, the session contains user=User1 and an authentication state flag (authd), which indicates the session is associated with an authenticated user.

Why the other options are wrong:

A is wrong because the session did match a firewall policy . The study guide says the session output includes “The ID of the matching policy” In the exhibit, the session shows policy_id=1 , so a firewall policy was matched.

B is wrong because the study guide explains the gwy field as:

first value = gateway to destination

second value = gateway to source The exhibit shows gwy=10.1.0.254/10.1.10.1, so:

gateway to destination = 10.1.0.254

gateway to source = 10.1.10.1

So the verified answers are: C, D .
