Comprehensive and Detailed In-Depth Explanation:

1. Understanding VXLAN Asymmetric IRB Forwarding:

In VXLAN (Virtual Extensible LAN) networks, there are two types of IRB forwarding: Symmetric IRB and Asymmetric IRB.

In Asymmetric IRB, routing occurs only at the ingress VTEP (Virtual Tunnel Endpoint).

The ingress VTEP (VTEP1) encapsulates the original data frame and sends it to the egress VTEP (VTEP2) over the VXLAN tunnel.

The destination MAC address of the original Ethernet frame is the MAC address of the Layer 3 gateway (VBDIF) at the egress VTEP.

2. Analyzing the Topology:

PC1 (172.16.2.1/24) with MAC A is sending traffic to PC2 (172.16.1.2/24) with MAC D.

Both PCs are in different subnets, so inter-subnet routing is required.

VTEP1 (1.1.1.1) on SW1 is the ingress VTEP.

VTEP2 (2.2.2.2) on SW2 is the egress VTEP.

The VXLAN Network Identifier (VNI) for the traffic is 100.

SW1 has two VBDIF interfaces:

VBDIF10 (MAC B) - Interface for BD10 (172.16.2.254).

VBDIF20 (MAC C) - Interface for BD20 (172.16.1.254).

3. Packet Flow in Asymmetric IRB:

Step 1: PC1 sends a packet destined for PC2. The packet is routed at the ingress VTEP (SW1) using the VBDIF interface (VBDIF10 with MAC B).

Step 2: The ingress VTEP (SW1) encapsulates the packet in a VXLAN header (VNI 100) and sends it to VTEP2.

Step 3: The original data frame inside the VXLAN packet must have a destination MAC address that matches the gateway MAC address (VBDIF20 - MAC C) at the egress VTEP (SW2).

Step 4: On reaching VTEP2, the encapsulation is removed, and the original frame with destination MAC C is forwarded.

Step 5: VTEP2 performs Layer 3 routing to forward the packet to PC2.

4. Why MAC C is Correct:

In asymmetric IRB forwarding, the routing decision at the ingress VTEP ensures that the destination MAC in the original frame is set to the VBDIF (gateway) MAC of the egress VTEP.

Since the egress VTEP (SW2) has VBDIF20 (MAC C) for the destination subnet (172.16.1.0/24), the destination MAC address of the original frame is MAC C.

Virtual Networks in Huawei CloudCampus Solution:

Virtual networks (VNs) are segmented based on services (e.g., IoT, Guest Wi-Fi, Enterprise Wi-Fi).

Each VN has its own routing and forwarding instance (VRF).

Isolation Between Virtual Networks:

By default, different virtual networks are isolated.

If inter-VN communication is required, it must be manually configured using policy-based routing (PBR), inter-VRF routing, or firewall policies.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Virtual Networks and Segmentation

HCIE-Datacom Training Material – Policy-Based Inter-VN Communication

Huawei iMaster NCE-Campus Wi-Fi Location-Based Services (LBS) use HTTP/HTTPS to send location data (such as AP association, signal strength, timestamp, etc.) to an external LBS platform.

The standard format for such data exchange is JSON (JavaScript Object Notation).

JSON is lightweight, readable, and widely supported by modern web APIs and platforms.

Other options:

XML: Used in legacy systems, heavier format.

HTML: Used for page rendering, not data transfer.

YAML: Used mainly in configurations, not standard for HTTP APIs.

Correct answer: C. JSON

Comprehensive and Detailed In-Depth Explanation:

When configuring a virtualized campus network on iMaster NCE-Campus, the platform supports automatic delivery of routing policies when connecting to external networks, including the Internet.

This feature ensures that traffic destined for external networks is automatically directed to the appropriate egress points.

The NCE-Campus automatically creates and delivers the default route or specific routes, depending on the network topology and configuration.

This simplifies network management by eliminating the need for manual route configuration on each device.

Therefore, the statement is TRUE.

In OSPFv3, Link-LSA (Type 8) is generated by a router for each of its interfaces to advertise:

The router ' s link-local address on that interface.

The IPv6 prefixes associated with the interface.

Flags and options, such as router priority or loopback indicators.

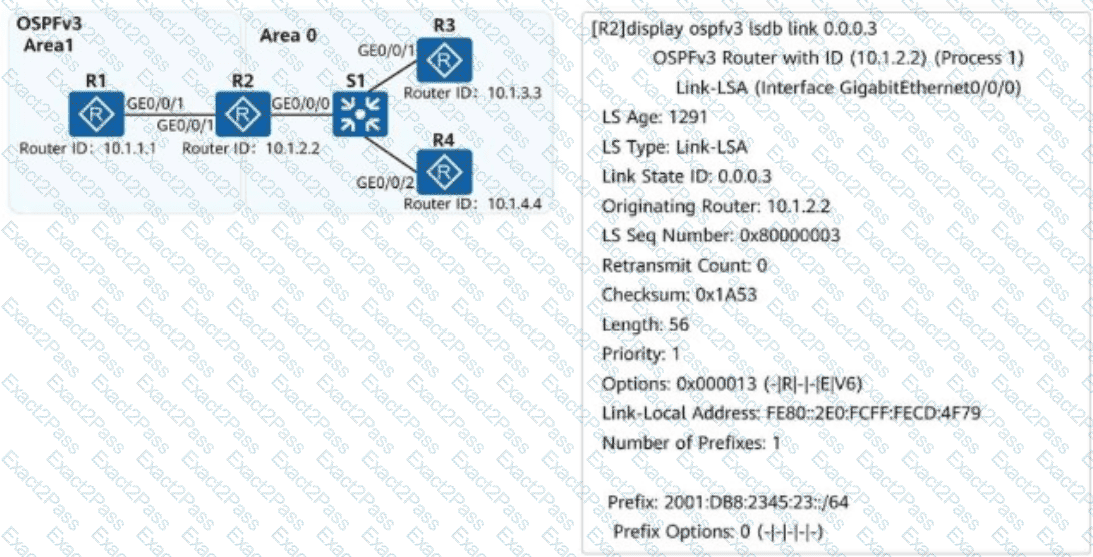

From the output:

Link-LSA (Interface GigabitEthernet0/0/0)

Originating Router: 10.1.2.2

Link-Local Address: FE80::2E0:FCFF:FECD:4F79

Prefix: 2001:DB8:2345:23::/64

A. The link-local address of R2’s GE0/0/0 is FE80::2E0:FCFF:FECD:4F79→ This matches the Link-Local Address field in the LSA. ✅

B. The IPv6 address prefix of R2’s GE0/0/0 is 2001:DB8:2345:23::/64→ This matches the Prefix field in the LSA. ✅

C. This LSA indicates that R2 does not support external routes but can participate in IPv6 route calculation→ ❌ Incorrect.

The Link-LSA does not provide any indication about external route capabilities.

It simply advertises interface-specific IPv6 and link-local info.

Whether R2 supports external routes depends on Type 5 (External) or Type 7 (NSSA) LSAs, not Link-LSAs.

D. This LSA is generated by R2→ The Originating Router: 10.1.2.2 is R2’s router ID, so this LSA is definitely generated by R2. ✅

Correct Answers: A, B, D

The Link-LSA in OSPFv3 contains:

The link-local address used by the originating router on the link.

A list of all IPv6 prefixes associated with the link.

Flags such as router priority and the Router-LSA options.

These LSAs are always generated by the router itself and are not flooded beyond the link.

Huawei’s OPS (Open Programmability System) enables programmable interactions with devices through Python-based templates. In Huawei ' s OPS Python environment:

The class OPSConnection is used to manage device interactions.

It includes methods like:

get()

post(self, uri, req_data) → used to create resources

put(), delete(), etc.

This aligns with RESTful API semantics, and the post() method in the context given is used correctly.

Correct answer: A. TRUE
