Analyzing the Routing Table Output:

The command display ipv6 routing-table protocol isis shows all IPv6 routes learned via IS-IS.

The output shows " Summary Count: 6 " , meaning R1 has six IS-IS IPv6 routes.

Explanation of Correct Answers:✅ A. R1 has six IS-IS IPv6 routes.

The " Summary Count: 6 " confirms that six IS-IS IPv6 routes exist in R1 ' s routing table.

✅ C. IS-IS IPv6 must have been enabled on GigabitEthernet0/0/1 of R1.

The interface GigabitEthernet0/0/1 is listed as the next-hop, meaning IS-IS IPv6 must be enabled on that interface.

✅ D. R1 is not a Level-1 device.

The protocol is listed as " ISIS-L2 " , indicating that R1 is an IS-IS Level-2 (backbone) router, not a Level-1 router.

Incorrect Answer Explanation:❌ B. R1 does not have IS-IS IPv6 routes.

Wrong! The output clearly shows six IS-IS IPv6 routes, proving this statement false.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IPv6 Routing Protocols Guide – IS-IS for IPv6

HCIE-Datacom Routing & Switching Training – IS-IS L1 & L2 Operations

Huawei IS-IS Configuration Guide – IPv6 Route Management

Comprehensive and Detailed In-Depth Explanation:

In the Label Distribution Protocol (LDP) session establishment process, the Initialization message is sent by the initiator to propose parameters for the session. If the responder finds that the proposed parameters are not acceptable, it responds with an Error Notification Message. This message indicates that the session could not be established due to incompatible or incorrect parameters.

The Error Notification Message typically includes details about why the session could not be established, such as parameter mismatch or unsupported features. If the parameters are acceptable, the responder would instead reply with a Keepalive Message to maintain the session.

From the output:

Tunnel destination IP address: Clearly shown as destination 10.0.1.1 → ✅

Tunnel interface MTU: Shown as The Maximum Transmit Unit is 1500 → ✅

Tunnel interface IP: Shown as Internet Address is 20.1.1.2/24 → ✅

Tunnel source: Tunnel source 10.0.3.3 (LoopBack0) → Not 10.0.1.1 → ❌

Therefore:

A — Correct

B — Correct

C — Correct

D — Incorrect (confuses destination as source)

Correct answers: A, B, C

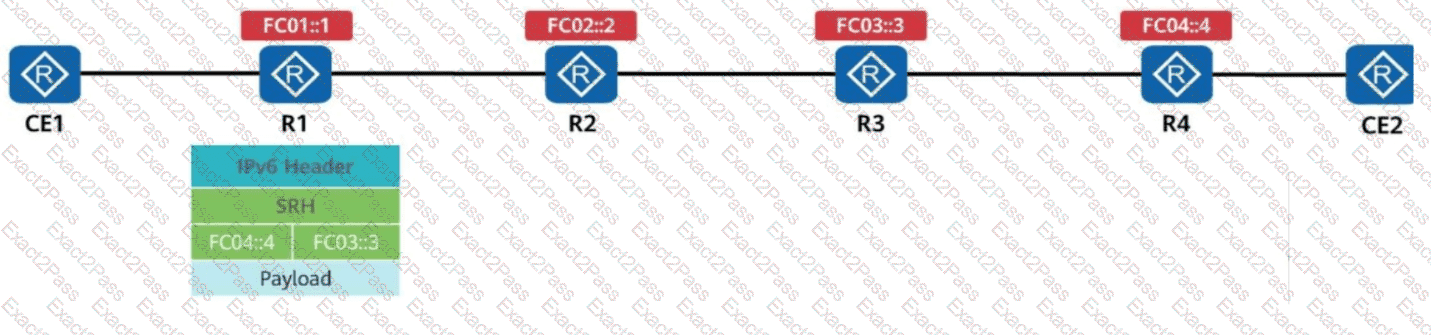

???? R1 – Headend

It receives a normal IPv6 packet from CE1.

It inserts the SRH (Segment Routing Header) with segment list.

Therefore, R1 is the Headend.

Huawei Reference:

“The SRv6 headend node receives a normal IPv6 packet and inserts an SRH, becoming the source of the SR path.”

(Source: HCIE-Datacom V1.0 – SRv6 Fundamentals)

???? R2 – Transit Node

R2 simply forwards the SRv6-encapsulated packet.

It does not process any segment SID.

Hence, R2 is a Transit node.

“Transit nodes in SRv6 just forward packets based on the active segment in the IPv6 destination address without processing SRH.”

(Source: HCIE-Datacom Study Guide – SRv6 Node Roles)

???? R3 – Endpoint

The first SID in SRH is FC03::3, which belongs to R3.

R3 processes the SID, pops it, and forwards the packet to the next segment FC04::4.

Thus, R3 is an Endpoint for one segment.

???? R4 – Endpoint

The final destination SID in the SRH is FC04::4, which belongs to R4.

R4 performs the final End behavior, handling the payload.

So, R4 is also an Endpoint.

Comprehensive and Detailed In-Depth Explanation:

The statement A is incorrect because enabling DHCP snooping in the VLAN view only takes effect on interfaces within that specific VLAN that have DHCP snooping configured. It does not automatically apply to all interfaces of the device. Each interface within the VLAN must individually be configured or marked as trusted/untrusted.

B: Correct, as DHCP snooping, when enabled globally without any additional specifications, defaults to processing DHCPv4 messages.

C: Correct, as DHCP snooping can protect against DHCP spoofing attacks by marking interfaces as trusted or untrusted.

D: Correct, enabling DHCP snooping on an interface means it will monitor all DHCP messages on that specific interface.

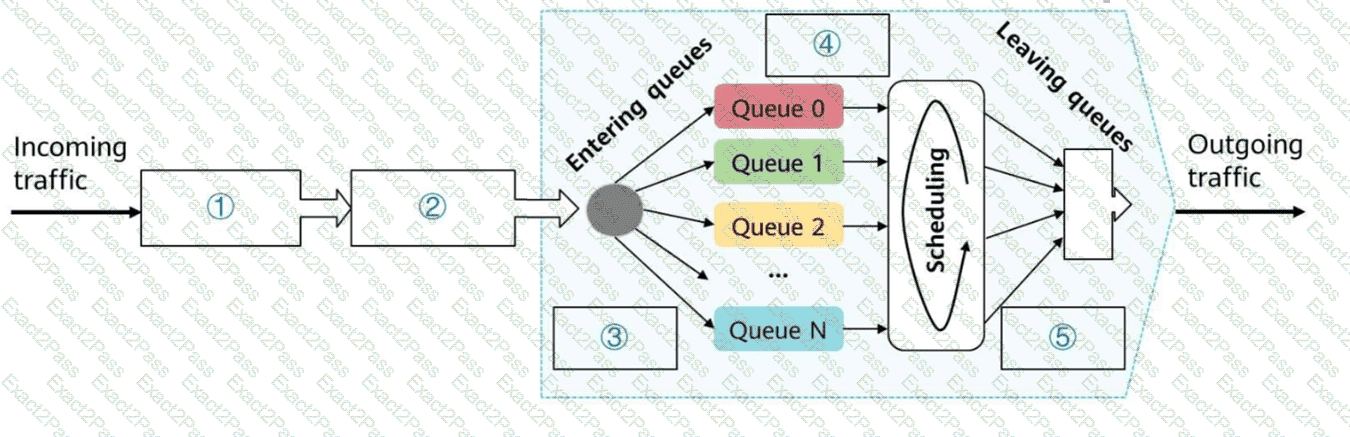

The Differentiated Services (DiffServ) model for Quality of Service (QoS) enables traffic management based on predefined priorities. This involves classifying, policing, queuing, and scheduling traffic to ensure efficient network resource utilization.

Breakdown of Each QoS Processing Step:

✅ Step 1: Traffic Classification and Marking

Purpose: Identifies and marks packets based on QoS attributes such as DSCP (Differentiated Services Code Point) or 802.1p priority bits.

Function: Assigns a QoS label to packets for further processing.

Example: Packets carrying voice traffic (EF - Expedited Forwarding) are marked for high-priority treatment.

✅ Step 2: Traffic Policing (CAR - Committed Access Rate)

Purpose: Enforces bandwidth limits on specific traffic flows to prevent excessive usage.

Function: Drops or re-marks packets exceeding the assigned bandwidth threshold.

Example: If a video stream exceeds 10 Mbps, excess packets may be dropped or re-marked.

✅ Step 3: Congestion Management (Queuing and Scheduling)

Purpose: Manages traffic flow through queues based on assigned QoS levels.

Function: Places packets in appropriate priority queues (e.g., Strict Priority, Weighted Fair Queuing - WFQ, CBWFQ).

Example: Voice packets are assigned to high-priority queues for low-latency forwarding.

✅ Step 4: Congestion Avoidance

Purpose: Prevents network buffer overflows and excessive packet drops.

Function: Uses mechanisms like WRED (Weighted Random Early Detection) to drop lower-priority packets before congestion occurs.

Example: If a queue reaches 80% capacity, WRED may drop low-priority packets to maintain QoS.

✅ Step 5: Traffic Shaping

Purpose: Smooths out traffic bursts to maintain a consistent transmission rate.

Function: Buffers and delays packets to prevent excessive packet drops.

Example: If outgoing traffic exceeds 50 Mbps, shaping ensures it does not exceed this limit while maintaining steady flow.

Node segments in SR-MPLS (Segment Routing over MPLS) are typically automatically generated and distributed via IGP protocols (such as IS-IS or OSPF) using SR extensions. There is no need to manually configure node segments on every router.

Exact Extract – Huawei HCIE-Datacom Study Guide – Segment Routing:

“Node SIDs are automatically generated and advertised by IGPs with SR extensions. Manual configuration is not required except in special cases like adjacency SIDs.”

In BGP/MPLS IP VPN, when OSPF is used as the PE-CE routing protocol, Domain IDs are used to determine whether the OSPF routes imported into the VPN instance belong to the same OSPF domain.

How Domain ID Works in OSPF and MPLS VPN:

Same Domain ID (OSPF Intra-domain routes)

If the PE router ' s Domain ID matches the OSPF Domain ID, routes are treated as intra-area routes.

The routes retain OSPF attributes when redistributed into the VPN.

Different Domain ID (OSPF Inter-domain routes)

If the Domain ID does not match, routes are treated as external routes (Type 3 or Type 5 LSAs).

The PE router redistributes these routes as OSPF external routes.

Example Huawei Configuration for Domain ID in OSPF VPN:

ospf 1 vpn-instance VPN1

domain-id 1.1.1.1

This ensures consistent OSPF route types when exchanging routes between PE and CE.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – OSPF Domain ID in PE-CE Routing

HCIE-Datacom Study Material – OSPF & MPLS VPN Route Redistribution

Comprehensive and Detailed Explanation:

Inter-AS MPLS L3VPN Option B requires ASBRs to exchange VPNv4 routes using eBGP with label information.

Analysis of Inter-AS VPN Solutions:

Option B uses eBGP to exchange labeled VPNv4 routes between ASBRs but does not require MPLS between ASBRs.

Option A does not exchange VPNv4 routes over ASBRs (uses IP routing instead).

Option C uses MP-BGP and requires full MPLS between ASBRs.

Since Option B requires ASBRs to exchange VPNv4 routes, the correct answer is B.

???? Reference: Huawei HCIE Datacom – MPLS Inter-AS VPNs
