In firewall hot standby (HRP - Hot Standby Routing Protocol) mode, certain data can be synchronized between the active and standby firewalls to ensure uninterrupted service.

The following data is backed up:

✅ Server mapping table: Contains information about NAT mappings and other session mappings.

✅ AAA user table (excluding the default user admin): Ensures that authenticated users do not need to re-authenticate in case of failover.

✅ Session table: Ensures that existing connections remain active when switching to the standby firewall.

❌ Dynamic MAC address table is NOT backed up because it is dynamically learned and not relevant to firewall session synchronization.

✅ Reference: Huawei HCIE-Datacom Guide - Firewall HRP Synchronization

Before performing a network cutover (migration or upgrade), it is essential to collect baseline data to ensure that services operate normally before and after the change.

Importance of Pre-Cutover Information Collection:

Identifies Network Baseline – Helps compare pre-cutover and post-cutover performance.

Detects Hidden Issues – Ensures that no existing network issues interfere with the cutover process.

Prevents Service Interruptions – Ensures all dependent services are accounted for.

Provides Rollback Plan – If issues arise, administrators can restore previous configurations.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Network Change Management Guide – Pre-Cutover & Post-Cutover Best Practices

HCIE-Datacom Training Material – Service Assurance & Risk Analysis

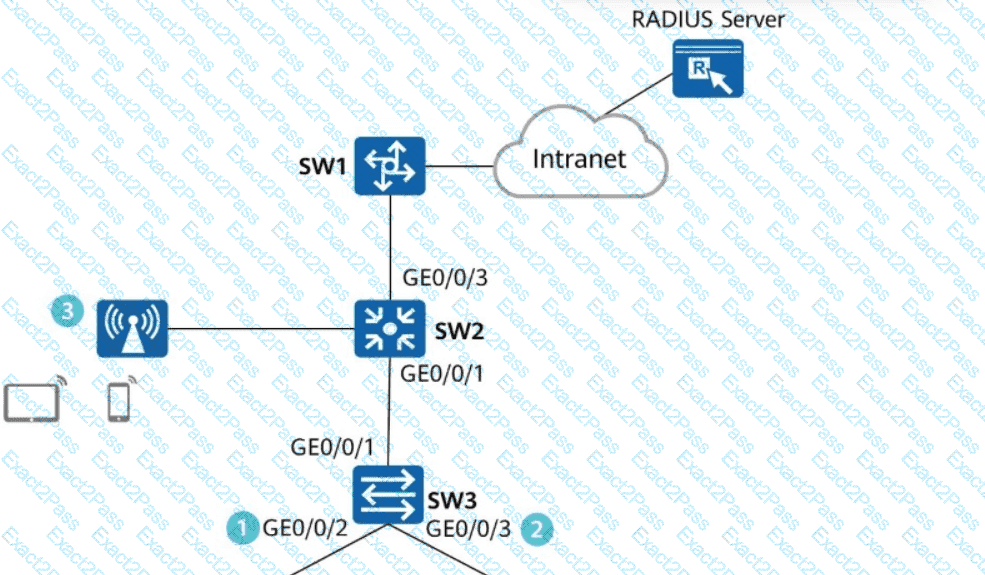

Correct Matching of Authentication Methods:

1️ 802.1X authentication → PC (GE0/0/2 on SW3)

2️ MAC address authentication → IP Phone (GE0/0/3 on SW3)

3️⃣ Portal authentication → Wireless Clients (Connected via SW2/AP)

Understanding Network Admission Control (NAC) Authentication Methods

???? Network Admission Control (NAC) enforces security policies before allowing devices onto the network.

???? Different types of devices require different authentication methods based on capabilities and security requirements.

Analysis of Each Authentication Type:

✅ 1️⃣ 802.1X Authentication (Used for PC on GE0/0/2 of SW3)

Best for devices that support user authentication (e.g., PCs, Laptops).

Requires supplicant software (e.g., Windows or macOS built-in 802.1X client).

Provides strong security using EAP (Extensible Authentication Protocol) over RADIUS.

✅ 2️⃣ MAC Address Authentication (Used for IP Phone on GE0/0/3 of SW3)

Best for devices that do not support username/password authentication (e.g., IP Phones, IoT devices).

Uses MAC addresses as identity credentials.

Suitable for VoIP networks, industrial IoT, and surveillance cameras.

✅ 3️⃣ Portal Authentication (Used for Wireless Clients on SW2/AP)

Best for guests or mobile users accessing Wi-Fi networks.

Redirects users to a web-based login page before granting access.

Used in public hotspots, campus Wi-Fi, and enterprise guest networks.

Why These Assignments Are Correct?

1️⃣ 802.1X for PC:

PCs support 802.1X authentication via supplicants (EAP-MD5, PEAP, etc.).

Ensures high security by verifying user credentials.

2️⃣ MAC Address Authentication for IP Phone:

IP Phones lack a username/password interface, so authentication is done via MAC addresses.

Simplifies authentication while maintaining security.

3️⃣ Portal Authentication for Wireless Clients:

Wireless users do not use 802.1X authentication directly; instead, they are redirected to a web login page.

Common in enterprise guest Wi-Fi and public hotspots.

Real-World Application:

Enterprise NAC Deployment: Ensures only authorized users and devices access the corporate network.

Campus & Hotel Wi-Fi Security: Uses Portal Authentication for guests, 802.1X for employees, and MAC-based for VoIP.

✅ Reference: Huawei HCIE-Datacom Guide – NAC Authentication Methods & Best Practices

Understanding VXLAN and BGP EVPN Control Plane

VXLAN (Virtual eXtensible LAN) is an overlay network technology that enables Layer 2 (L2) extension over an IP-based network using MAC-in-UDP encapsulation.

???? Traditional VXLAN Flooding Issue:

Without BGP EVPN, VXLAN uses flood-and-learn behavior for MAC address learning.

Broadcast, Unknown Unicast, and Multicast (BUM) traffic is flooded to all VTEPs, which is inefficient.

???? How Does BGP EVPN Solve Flooding?

BGP EVPN (Ethernet VPN) replaces the flood-and-learn model with a distributed control plane.

MAC/IP bindings are advertised through BGP EVPN Type 2 routes, eliminating the need for flooding ARP requests.

VXLAN routers learn MAC addresses proactively instead of relying on flooding.

Why is the Answer TRUE?

✅ BGP EVPN fully prevents ARP flooding by distributing MAC/IP bindings via control plane updates.

✅ VTEPs only send traffic to known destinations, reducing network congestion.

✅ BGP EVPN is the industry standard for large-scale data center and campus VXLAN deployments.

Real-World Application:

Data Centers: Avoids unnecessary ARP request flooding in large cloud networks.

Campus Networks: Reduces L2 broadcast storms, improving network efficiency.

Service Provider Networks: Enables scalable multi-tenant VXLAN solutions.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN BGP EVPN Control Plane Architecture

Authentication Header (AH) in IPsec

The Authentication Header (AH) protocol is part of IPsec and provides authentication, integrity, and replay protection but does NOT provide encryption.

✅ B. AH provides data origin authentication.

Ensures that packets come from a trusted source using cryptographic signatures.

✅ C. AH provides anti-replay protection.

Uses sequence numbers to prevent attackers from replaying old packets.

✅ D. AH provides data integrity authentication.

Ensures data integrity by verifying that packets have not been tampered with during transmission.

❌ A. AH provides packet encryption – Incorrect!

AH does not encrypt packet contents. It only authenticates headers.

ESP (Encapsulating Security Payload) is used for encryption in IPsec.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IPsec Configuration Guide – AH vs. ESP

HCIE-Datacom Training Material – IPsec Security Mechanisms

In MPLS Traffic Engineering (TE), Label Switched Paths (LSPs) can be established:

Statically: Manual configuration.

Dynamically: Typically via RSVP-TE.

Protocol roles:

RSVP-TE: Used to dynamically establish and signal TE LSPs → ✅

OSPF / IS-IS: Act as IGP protocols and provide TE-related link-state information (like bandwidth) but do not establish LSPs themselves → ❌

BGP: Used for route advertisement, not for LSP setup in MPLS TE → ❌

Correct answers: A, C, D

OSPF (Open Shortest Path First) Router-LSA (Type 1 LSA) describes all directly connected OSPF links of a router and their types. The following link types can appear in a Router-LSA:

Point-to-Point (P-2-P) (B) – Represents a direct connection between two routers.

Virtual Link (Vlink) (C) – Used to connect an area to the backbone (Area 0) when a direct connection is unavailable.

Stub Network (StubNet) (D) – Represents a network with only one exit point (e.g., a loopback interface or passive interface).

Incorrect Option:

TransNet (A) – Incorrect!

Transit networks appear in Network LSAs (Type 2), not Router LSAs.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPF Configuration Guide – Router-LSAs and Link Types

HCIE-Datacom Training Material – OSPF LSAs and Topology Advertisement

Comprehensive and Detailed Explanation:

✔ SR-MPLS Policy candidate paths are used for flexible path selection and load balancing in Segment Routing (SR-MPLS) networks.

✔ Correct Statements:

✅ (A) Each candidate path can have multiple segment lists, each with its own weight for load balancing.

✅ (B) Load balancing is supported both between candidate paths and within segment lists.

✅ (C) An SR-MPLS Policy can contain multiple candidate paths, each with a preference value.

✅ (D) The candidate path with the highest preference is selected as the primary path.

???? Reference: Huawei HCIE Datacom – SR-MPLS Policy Path Selection

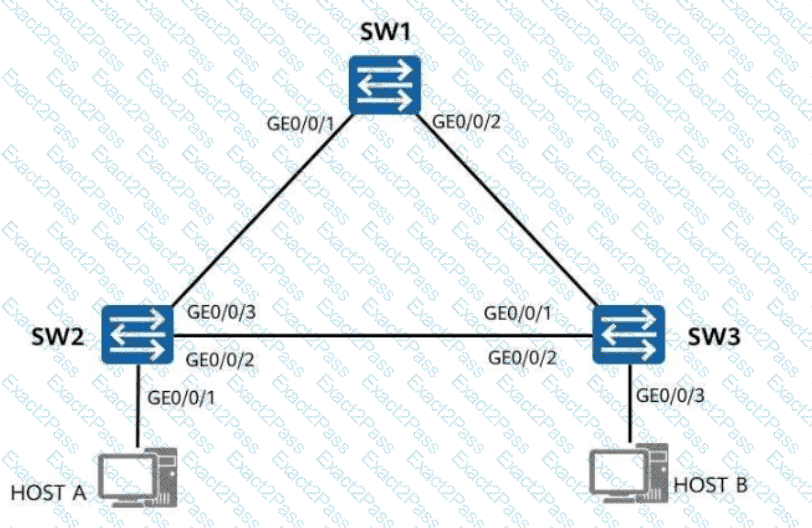

When Spanning Tree Protocol (STP) is not enabled on a network, loops can occur in Layer 2 Ethernet networks, leading to various network issues. STP is designed to prevent loops by blocking redundant paths, and its absence can cause broadcast storms, MAC address table instability, and resource exhaustion. Let’s analyze each option in the context of Huawei HCIE Datacom documentation and network behavior:

A. A loop alarm is generated on the LAN switch.

This option is incorrect. Huawei switches, as per HCIE Datacom standards, do not automatically generate a specific " loop alarm " unless configured with loop detection features (e.g., Huawei’s Loop Detection Protocol or similar mechanisms). Without STP or loop detection enabled, the switch may not explicitly generate an alarm for a loop; instead, it will exhibit symptoms like broadcast storms or flapping MAC entries. Therefore, this is not a direct symptom of an STP-less loop. Reference: Huawei HCIE Datacom V3.0 Training Materials, Section 4.2 – Spanning Tree Protocol and Loop Prevention.

B. CPU usage is too high.

This option is correct. When a loop occurs without STP, broadcast packets (and sometimes multicast or unknown unicast packets) circulate endlessly in the network. This leads to excessive processing by switches as they handle these packets, resulting in high CPU usage. Huawei switches, as described in HCIE Datacom documentation, can experience CPU overload due to continuous packet forwarding and processing in a looped environment. Reference: Huawei HCIE Datacom V3.0, Chapter 5 – Switch Performance and Loop Management.

C. MAC entries flap.

This option is correct. In a loop without STP, switches continuously receive frames from multiple ports, causing MAC address tables to update repeatedly as the same MAC address appears on different ports. This " flapping " of MAC entries destabilizes the network and can lead to incorrect frame forwarding. Huawei HCIE Datacom emphasizes MAC address table stability as a critical aspect affected by loops, as outlined in Section 4.3 – Ethernet Switching and Loop Mitigation. Reference: Huawei HCIE Datacom V3.0, Section 4.3.

D. Host receives a large number of broadcast packets.

This option is correct. A loop without STP causes broadcast packets to circulate indefinitely, creating a broadcast storm. Hosts connected to the network will receive an overwhelming number of these packets, potentially leading to performance degradation or even network timeouts. This is a well-documented symptom in Huawei HCIE Datacom training, specifically in discussions about loop prevention mechanisms. Reference: Huawei HCIE Datacom V3.0, Chapter 4 – Layer 2 Loop Prevention.

Thus, the correct symptoms of a loop occurring due to the absence of STP include high CPU usage, flapping MAC entries, and hosts receiving a large number of broadcast packets. Option A is incorrect as it requires specific loop detection configuration, which is not implied in the question.

IGP Metric Design in Enterprise WANs

In an enterprise bearer WAN, routing metrics determine path selection. The aggregation layer connects multiple access-layer devices to the core network, so it should have a lower metric to:

✅ Ensure traffic is forwarded through higher-capacity aggregation links instead of lower-bandwidth access links.

✅ Optimize traffic flow, reduce congestion, and improve network efficiency.

✅ Enhance reliability by preferring more stable aggregation links.

IGP Routing Protocols Considerations:

OSPF: Lower cost values indicate preferred paths.

IS-IS: Lower link metrics result in preferred forwarding paths.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IGP Design Guide – Enterprise WAN Routing Optimization

HCIE-Datacom Training Material – Metric Calculation and Path Selection in OSPF/IS-IS
