To determine R3’s role (Level-1, Level-2, or Level-1-2) based on the provided output of the display ipv6 routing-table protocol isis command on R3, we need to analyze the IS-IS routing information and understand IS-IS hierarchy and behavior, particularly in the context of IPv6 routing. Let’s break it down step by step:

Understanding the IS-IS Levels and Hierarchy:

IS-IS (Intermediate System to Intermediate System) is a link-state routing protocol that supports a two-level hierarchy:

Level-1: Routers within the same area, responsible for intra-area routing. Level-1 routers only maintain routing information for their area and rely on Level-1-2 routers to reach other areas.

Level-2: Routers that form the backbone, connecting different areas for inter-area routing. Level-2 routers maintain routing information across areas.

Level-1-2: Routers that operate both at Level-1 (within their area) and Level-2 (to connect to other areas). These routers act as boundary routers between Level-1 areas and the Level-2 backbone.

A router’s role (Level-1, Level-2, or Level-1-2) determines which types of adjacencies it can form and what routing information it advertises or receives.

Analyzing the Output:

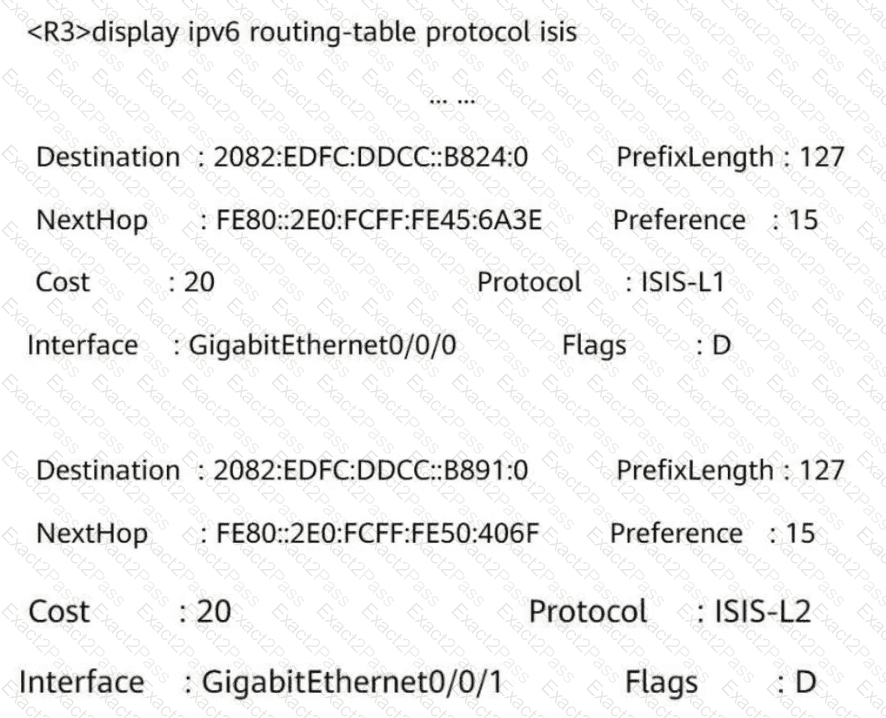

The output shows R3’s IPv6 routing table with routes learned via IS-IS, specifically:

Destination: 2082:EDFC:DDCC::B824:0/127, Protocol: ISIS-L1

This route is learned via IS-IS Level-1 (ISIS-L1), indicating that R3 has a Level-1 adjacency and is receiving or advertising routes within its area.

The next hop (FE80::2E0:FCFF:FE45:6A3E) and interface (GigabitEthernet0/0/0) suggest this route is intra-area.

Destination: 2082:EDFC:DDCC::B891:0/127, Protocol: ISIS-L2

This route is learned via IS-IS Level-2 (ISIS-L2), indicating that R3 has a Level-2 adjacency and is receiving or advertising routes for inter-area or backbone routing.

The next hop (FE80::2E0:FCFF:FE50:406F) and interface (GigabitEthernet0/0/1) suggest this route is for a different area or the backbone.

Both Level-1 and Level-2 routes are present in R3’s routing table, which provides critical insight into R3’s role.

Determining R3’s Role:

Level-1 Routers:

Level-1 routers only participate in Level-1 adjacencies and maintain routing information for their area. They do not have Level-2 routes or adjacencies unless connected to a Level-1-2 router. Since R3 has a Level-2 route (ISIS-L2), it cannot be exclusively a Level-1 router.

Level-2 Routers:

Level-2 routers focus on inter-area routing and typically do not maintain Level-1 routes unless they are also configured as Level-1-2. Since R3 has a Level-1 route (ISIS-L1), it cannot be exclusively a Level-2 router.

Level-1-2 Routers:

Level-1-2 routers operate both at Level-1 (for intra-area routing) and Level-2 (for inter-area routing). They can form adjacencies with both Level-1 and Level-2 neighbors and maintain both types of routes. The presence of both ISIS-L1 and ISIS-L2 routes in R3’s routing table indicates that R3 is participating in both Level-1 and Level-2 adjacencies, making it a Level-1-2 router.

Evaluating Each Option:

A. R3 must be a Level-2 device.

This is incorrect because R3 has ISIS-L1 routes, indicating it is also participating in Level-1 adjacencies, which Level-2-only devices do not do. Level-2 devices focus solely on inter-area routing and do not maintain Level-1 routes.

B. The device role of R3 cannot be determined.

This is incorrect because the presence of both ISIS-L1 and ISIS-L2 routes in the routing table clearly indicates R3’s role. The combination of Level-1 and Level-2 routes confirms R3 is a Level-1-2 router.

C. R3 must be a Level-1-2 device.

This is correct. The routing table shows both ISIS-L1 (Level-1) and ISIS-L2 (Level-2) routes, meaning R3 is operating as both a Level-1 and Level-2 router, which defines a Level-1-2 device.

D. R3 must be a Level-1 device.

This is incorrect because R3 has ISIS-L2 routes, indicating it is also participating in Level-2 adjacencies, which Level-1-only devices do not do. Level-1 devices only maintain intra-area routes and rely on Level-1-2 routers for inter-area reachability.

Additional Considerations:

The Flags: D in the output typically indicates a directly connected route or a route downloaded to the forwarding table, but it does not affect the determination of R3’s IS-IS level.

The preference (15) and cost (20) are standard for IS-IS routes and do not impact the level determination.

In Huawei’s IS-IS implementation, routers can be configured explicitly as Level-1, Level-2, or Level-1-2 using commands like isis level-1-2 under the IS-IS process. The presence of both Level-1 and Level-2 routes confirms R3’s configuration as Level-1-2.

Huawei HCIE-Datacom Context:

According to Huawei HCIE-Datacom documentation, IS-IS routers can operate at different levels, and the routing table’s protocol type (ISIS-L1 or ISIS-L2) indicates the level of adjacency. A router with both Level-1 and Level-2 routes is necessarily a Level-1-2 device, as it participates in both intra-area and inter-area routing.

The display ipv6 routing-table protocol isis command on Huawei devices shows routes learned via IS-IS, and the protocol type (L1 or L2) directly reflects the router’s role in the IS-IS hierarchy.

Conclusion:

Based on the presence of both ISIS-L1 and ISIS-L2 routes in R3’s IPv6 routing table, R3 must be a Level-1-2 device, as it is participating in both Level-1 (intra-area) and Level-2 (inter-area) adjacencies. Therefore, the correct answer is C.

References to Huawei HCIE-Datacom Documents:

Huawei HCIE-Datacom V1.0 Training Material, Chapter on IS-IS Configuration and Hierarchy.

Huawei NE Series Router Configuration Guide, IS-IS Section (Level-1, Level-2, and Level-1-2 Operations).

Huawei Technical Whitepaper on IS-IS Protocol, discussing IPv6 Routing and Level Determination.

Comprehensive and Detailed In-Depth Explanation:

In the Huawei iMaster NCE-Campus solution, when using a third-party Portal authentication application, the following process occurs:

After the Wi-Fi user connects to the network, any attempt to access a website for the first time triggers HTTP redirection.

The user is redirected to the login page provided by the third-party authentication application.

This mechanism ensures that the user authenticates before accessing external resources.

The redirection behavior is consistent with captive portal functionality, which is standard for user authentication on Wi-Fi networks.

Therefore, the statement is TRUE.

Comprehensive and Detailed In-Depth Explanation:

When invoking RESTful APIs in iMaster NCE-Campus, the client must include the ACCESS-TOKEN in the request header to authenticate the request.

The ACCESS-TOKEN is obtained through authentication and is required for API access control.

The correct format in the HTTP header is:

Authorization: Bearer ACCESS-TOKEN

Other formats like ACCEPT-TOKEN, X-ACCEPT-TOKEN, and X ACCESS TOKEN are not recognized or valid for iMaster NCE-Campus API requests.

Therefore, the correct answer is A.

6PE (IPv6 Provider Edge over MPLS) vs. 6VPE (IPv6 VPN Provider Edge over MPLS VPNs)

6PE (IPv6 over MPLS without VPNs):

Uses global IPv6 routing over MPLS.

No VPN instances (VRFs) are created on PEs.

IPv6 addresses cannot be reused across different CEs because all traffic is routed using a single global table.

6VPE (IPv6 over MPLS with VPNs):

Uses MPLS VPN (VRF instances) to provide IPv6 VPN services.

VPN instances (VRFs) are created on PEs to separate customer networks.

IPv6 addresses of CEs can be reused in different VPN instances because each VRF maintains separate routing tables.

Correct Answer Explanation:

✅ C. In 6VPE networking, IPv6 addresses of a CE can be reused.

Since each VPN instance (VRF) maintains its own IPv6 routing table, IPv6 addresses of CEs can be reused across different VPNs.

Incorrect Answer Explanations:

❌ A. In 6PE networking, VPN instances need to be created on PEs.

Wrong! 6PE does not use VPN instances (VRFs); it relies on a global IPv6 routing table.

❌ B. In 6PE networking, IPv6 addresses of a CE can be reused.

Wrong! Since 6PE uses a single IPv6 global routing table, IPv6 addresses cannot be reused.

❌ D. In 6VPE networking, no VPN instance needs to be created on PEs.

Wrong! 6VPE requires VPN instances (VRFs) on PEs to separate customer traffic.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – 6PE and 6VPE Deployment

HCIE-Datacom Training Material – IPv6 MPLS Solutions

Huawei’s OPS (Open Programmability System) enables programmable interactions with devices through Python-based templates. In Huawei ' s OPS Python environment:

The class OPSConnection is used to manage device interactions.

It includes methods like:

get()

post(self, uri, req_data) → used to create resources

put(), delete(), etc.

This aligns with RESTful API semantics, and the post() method in the context given is used correctly.

Correct answer: A. TRUE

The Protocol Trace function of iMaster NCE-CampusInsight allows O & M teams to analyze the full packet exchange process (e.g., DHCP, authentication, IP acquisition) between clients and the network. In this scenario, it helped pinpoint DHCP address pool exhaustion as the cause.

Exact Extract - Huawei iMaster NCE-CampusInsight Product Documentation:

“The Protocol Trace function visualizes packet-level interaction processes for DHCP, ARP, 802.1X, and others, allowing fast identification of root causes for network access issues.”

Comprehensive and Detailed In-Depth Explanation:

Prefix Segment:

Represents a destination prefix in the network.

A Prefix SID (Segment Identifier) is a globally unique SID that maps to an IP prefix and is within the SRGB (Segment Routing Global Block) range.

Therefore, C is correct.

A is incorrect because a prefix SID is within the SRGB range, not out of it.

Adjacency Segment:

Represents a link (adjacency) between two nodes.

An Adjacency SID is locally significant and typically allocated from the SRLB (Segment Routing Local Block) range.

It uniquely identifies a link between nodes in the source node’s local routing table.

Therefore, D is correct, while B is incorrect because an adjacency SID is not necessarily an offset within the SRGB.

Comprehensive and Detailed In-Depth Explanation:

By default, OSPF does not automatically associate a domain ID with a process ID. The concept of " domain ID " is primarily used when redistributing routes between OSPF and BGP, particularly in MPLS VPN scenarios. The domain ID in OSPF helps maintain loop prevention and correct route advertisement between different OSPF domains. You can manually configure the domain ID using the domain-id command within the OSPF process view, but it is not inherently set to the process ID.

Comprehensive and Detailed In-Depth Explanation:

In VXLAN encapsulation, the data frame is encapsulated as follows:

Original Ethernet Frame: The data packet to be encapsulated.

VXLAN Header: Contains the VXLAN Network Identifier (VNI) and other information.

UDP Header: VXLAN uses UDP (User Datagram Protocol) to transport the encapsulated data over an IP network.

Outer IP Header: Provides the source and destination IP addresses of the VTEPs.

Therefore, the UDP header (C) is encapsulated between the outer IP header and the VXLAN header.

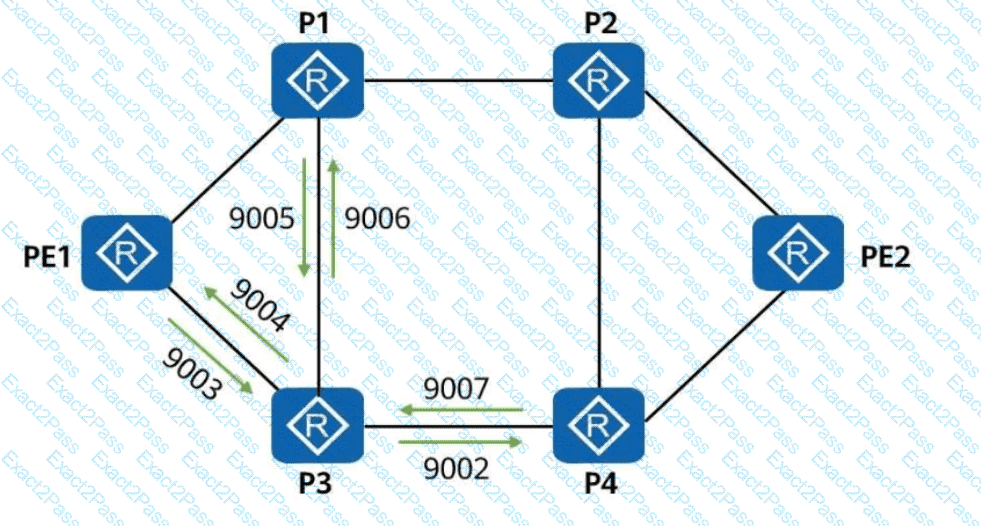

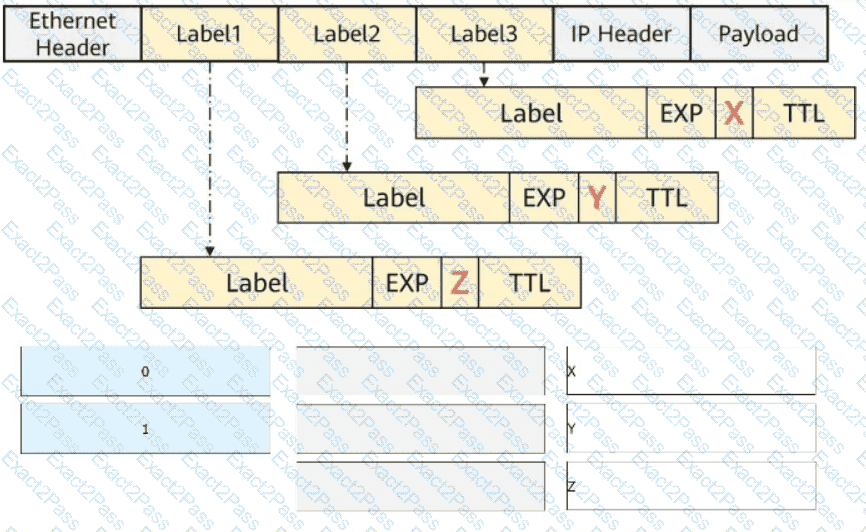

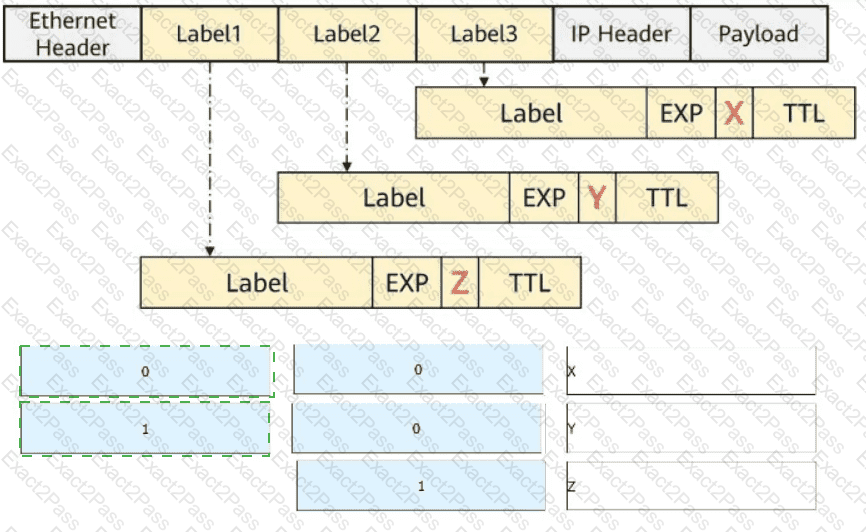

In OSPF-based SR-MPLS TE, Adjacency Segment Identifiers (Adj-SIDs) are locally assigned by each router for its directly connected interfaces. These labels are allocated from the Segment Routing Local Block (SRLB) configured on the router. By default, Huawei routers use an SRLB range starting at 9000, and Adj-SIDs are assigned sequentially (e.g., 9000, 9001, 9002, etc.) to each adjacency.

For P3, adjacency labels correspond to its outgoing interfaces. Assuming P3 has two adjacencies (e.g., to P2 and P4, as inferred from typical network topologies), it will allocate two unique Adj-SIDs from its SRLB. Based on Huawei’s implementation:

The first adjacency (e.g., to P2) is assigned the next available label in the SRLB (e.g., 9002).

The second adjacency (e.g., to P4) is assigned the subsequent label (e.g., 9003).

Analysis of Options:

Option B (9002): Likely assigned to P3’s first adjacency (e.g., link to P2).

Option C (9003): Likely assigned to P3’s second adjacency (e.g., link to P4).

Option A (9006) and D (9005): These labels are likely allocated by other routers (e.g., P4 or P5), as they fall outside the sequential range assigned by P3.

Key Points:

Adj-SIDs are local to the router and do not conflict with labels from other nodes.

The sequential allocation depends on the SRLB configuration. If the SRLB starts at 9000, labels 9000 and 9001 may be reserved for other purposes (e.g., node SIDs or reserved blocks), leaving 9002 and 9003 for adjacency labels.

Conclusion: P3 allocates 9002 and 9003 for its two adjacencies. Thus, B and C are correct.
