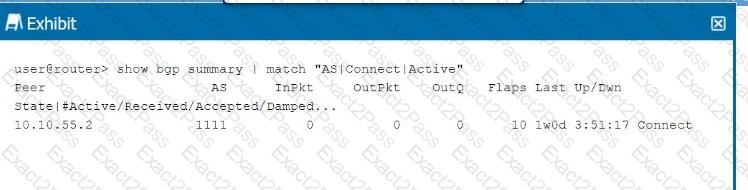

The BGP session in the exhibit shows the state as Connect , which indicates that the TCP session between the BGP peers has not been fully established.

Step-by-Step Breakdown:

BGP State "Connect" :

The Connect state is the second stage in the BGP finite state machine (FSM). At this stage, BGP is trying to establish a TCP session with the peer, but the session has not yet been successfully established.

A successful TCP three-way handshake (SYN, SYN-ACK, ACK) is required before BGP can progress to the OpenSent state, where the peers exchange BGP Open messages.

Possible Causes :

A firewall blocking TCP port 179 .

Incorrect IP addresses or network connectivity issues between the BGP peers.

Juniper Reference:

BGP Troubleshooting : In Junos, if a BGP session is stuck in the Connect state, the issue is likely due to a failure in establishing the underlying TCP connection.

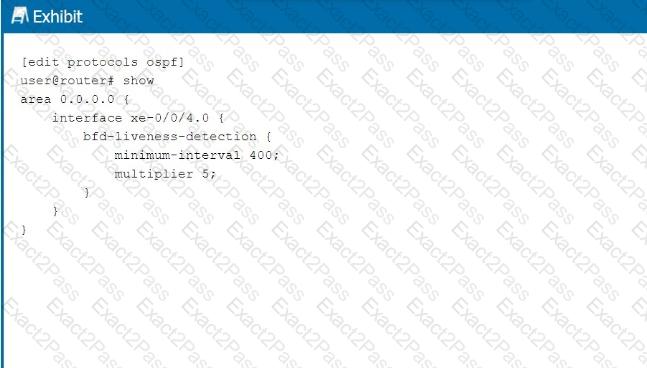

The exhibit shows the configuration of Bidirectional Forwarding Detection (BFD) for OSPF on interface xe-0/0/4.0, with the following parameters:

minimum-interval : 400 milliseconds

multiplier : 5

Step-by-Step Breakdown:

BFD Liveness Detection : BFD is used to detect link failures at sub-second intervals, providing faster convergence times for routing protocols like OSPF. The minimum-interval is the time between BFD control packets (in milliseconds), and the multiplier indicates how many missed BFD packets trigger a failure.

Calculating Failure Detection Time : The failure detection interval is calculated as:

Failure Interval=minimum-interval×multiplier\text{Failure Interval} = \text{minimum-interval} \times \text{multiplier}Failure Interval=minimum-interval×multiplier

In this case:

400 milliseconds×5=2000 milliseconds(2seconds)400 \, \text{milliseconds} \times 5 = 2000 \, \text{milliseconds} (2 seconds)400milliseconds×5=2000milliseconds(2seconds)

Conclusion : If no BFD control packets are received within 2000 milliseconds (2 seconds) , the interface will be considered down, triggering OSPF to recalculate routes.

Juniper Reference:

BFD Configuration : BFD parameters such as minimum-interval and multiplier are used to fine-tune the failure detection time for faster convergence.

A generated route in Junos OS is configured under the [edit routing-options] hierarchy.

Step-by-Step Breakdown:

Generated Routes : A generated route is created based on the presence of more specific routes in the routing table. It acts as a summary route and is generated when any of its contributing routes are active. This is commonly used to create aggregate routes in OSPF, BGP, or other protocols.

Configuration Hierarchy : The configuration for generated routes is placed under [edit routing-options] , where other static and routing policies are also defined.

Command Example :

set routing-options generate route 10.10.0.0/16

Juniper Reference:

Routing Options : Juniper routers use the routing-options hierarchy to configure generated routes and other static routing behaviors.

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is 172.25.11.254 , with no specified preference.

The second next hop is 172.25.11.200 , with a specified preference of 140 .

Step-by-Step Breakdown:

Default Static Route Preference : If no preference is explicitly set for a next hop in Junos, it defaults to 5 for static routes.

Determining Preference : In this case, the next hop 172.25.11.254 does not have an explicit preference defined, so it will use the default value of 5 . The second next hop has a preference of 140 , which is higher, meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference : In Junos, the default preference for static routes is 5 , and this value is applied unless overridden by the preference parameter.

Comprehensive Detailed Step by Step Explanation with all Juniper Data Center References

Layer 2 interfaces on a switch operate in two key modes: Access and Trunk .

Step-by-Step Breakdown:

Access Mode :

Access ports are used to connect end devices, like PCs or servers, and they are assigned to a single VLAN. These interfaces handle untagged traffic and do not pass VLAN tags.

Example: A port assigned to VLAN 10 will only handle traffic for that VLAN.

Trunk Mode :

Trunk ports are used to connect switches or other networking devices that need to handle traffic from multiple VLANs. Trunk interfaces carry tagged traffic, allowing multiple VLANs to traverse the same physical link.

Trunk ports typically use 802.1Q VLAN tagging to differentiate between VLANs.

Juniper Reference:

Access and Trunk Ports : Juniper switches use these modes to manage VLAN traffic at Layer 2, with access ports handling untagged traffic and trunk ports handling tagged traffic from multiple VLANs.

When an OSPF (Open Shortest Path First) neighborship is stuck in the ExStart state, it usually points to a mismatch in Maximum Transmission Unit (MTU) settings between two routers trying to establish the adjacency. The ExStart state is where OSPF routers negotiate the master-slave relationship and exchange DBD (Database Description) packets.

Step-by-Step Breakdown:

OSPF Neighbor States : OSPF goes through several states to establish an adjacency with a neighbor:

Down : No hello packets have been received.

Init : Hello packets are received, but bidirectional communication isn't confirmed.

2-Way : Bidirectional communication is established.

ExStart : The routers are negotiating who will be the master and who will be the slave, and begin to exchange DBD packets.

Exchange : The routers start exchanging the database information.

Loading : The routers process the Link-State Advertisements (LSAs).

Full : The adjacency is fully established.

MTU Mismatch Issue : During the ExStart state, both OSPF routers must agree on their MTU values. If there is an MTU mismatch between the two routers, OSPF neighbors will fail to move from the ExStart to the Exchange state. The router with the larger MTU setting will not accept DBD packets from the router with a smaller MTU because the packets may exceed the smaller MTU size.

In Juniper devices, this behavior can be identified by examining the MTU settings using the show interfaces command and ensuring both routers have matching MTU configurations. To resolve this issue, either match the MTU settings on both routers or configure OSPF to ignore MTU mismatches using the command set protocols ospf ignore-mtu.

Juniper Reference:

Junos Command : show ospf neighbor helps diagnose neighbor states.

MTU Adjustment : set interfaces < interface-name > mtu < size > can be used to set the MTU values correctly.

In Junos OS, the default route preference for a static route is 5. Route preference values are used to determine which route should be installed in the routing table when multiple routes to the same destination are available.

Step-by-Step Breakdown:

Static Route Preference:

A static route, by default, has a preference of 5, making it a highly preferred route. Lower preference values are more preferred in Junos, meaning static routes take precedence over most dynamic routing protocol routes, such as OSPF (preference 10) or BGP (preference 170).

Route Preference:

Route preference is a key factor in the Junos routing decision process. Routes with lower preference values are preferred and installed in the forwarding table.

Juniper Reference:

Static Routes: In Junos, the default preference for static routes is 5, making them more preferred than most dynamic routes.

MACsec (Media Access Control Security) provides data confidentiality, integrity, and origin authenticity at Layer 2, protecting against several types of threats.

Step-by-Step Breakdown:

Man-in-the-Middle Attack Protection : MACsec encrypts traffic at Layer 2, preventing man-in-the-middle attacks where an attacker intercepts and manipulates traffic between two communicating devices. Since the data is encrypted, any intercepted packets are unreadable.

Protection Against Playback Attacks : MACsec also protects against playback attacks by using sequence numbers and timestamps to ensure that old, replayed packets are not accepted by the receiver.

Juniper Reference:

MACsec Configuration : Juniper devices support MACsec for securing Layer 2 communications, ensuring protection against replay and man-in-the-middle attacks in sensitive environments.

In a three-stage IP fabric (also known as a Clos fabric), traffic between any two points (ingress to egress) in the fabric is only two hops away .

Step-by-Step Breakdown:

Three-Stage IP Fabric :

Leaf Layer : Leaf switches connect directly to servers and edge devices.

Spine Layer : Spine switches provide connectivity between leaf switches but do not connect to each other directly.

Two-Hop Communication : In this architecture, every leaf switch is connected to every spine switch. Therefore, when a packet enters the fabric via an ingress leaf switch, it is forwarded to a spine switch, which then directs the packet to the correct egress leaf switch. This path always involves exactly two hops:

Ingress leaf → Spine → Egress leaf.

Benefits : This consistent two-hop path ensures predictable latency and makes the network highly scalable while maintaining low complexity.

Juniper Reference:

IP Fabric Architecture : This two-hop property of Clos fabrics is a hallmark of spine-leaf designs, as supported by Juniper's QFX and EX switches in data centers.
