In a Juniper Networks environment, establishing a functional Multiprotocol Label Switching (MPLS) Label-Switched Path (LSP) requires synchronized control plane operations. According to Juniper technical documentation, the most common reason for an LSP to remain in the "Down" state at the ingress router is a failure of the Constrained Shortest Path First (CSPF) algorithm during the path computation phase.

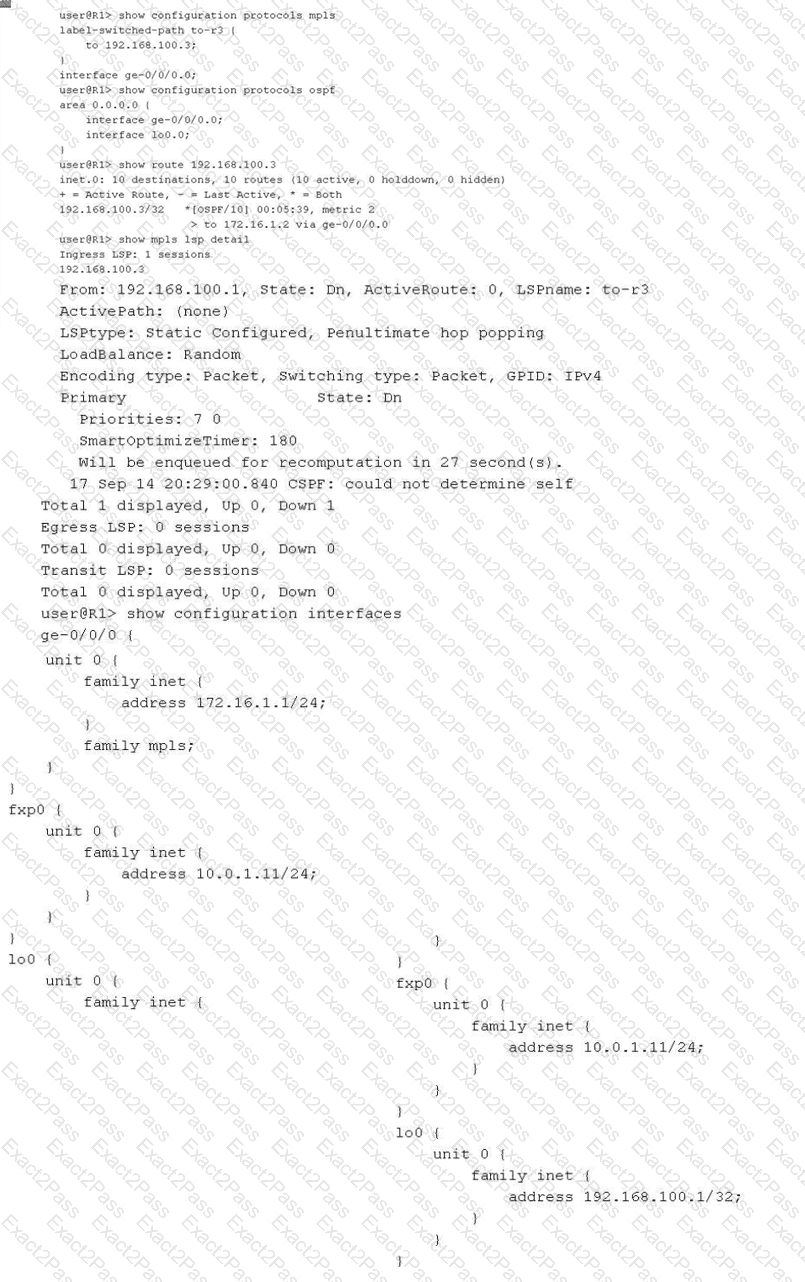

The provided exhibit for router R1 reveals a critical error in the show mpls lsp detail output: " CSPF: could not determine self ". This specific error indicates that the CSPF process is unable to find its own local router ID within the Traffic Engineering Database (TED) . For CSPF to build a valid TED, the underlying Interior Gateway Protocol (IGP), such as OSPF, must be configured to flood opaque link-state advertisements (Type 10 LSAs) that carry traffic engineering attributes. As seen in the OSPF configuration, traffic engineering is not enabled. Therefore, issuing the set protocols ospf traffic-engineering command (Option D) will allow R1 to populate the TED with its own local information and that of its neighbors, enabling CSPF to calculate a valid path.

Alternatively, an administrator can choose to bypass the requirement for a TED entirely by disabling CSPF on the specific LSP. By issuing the set protocols mpls label-switched-path to-r3 no-cspf command (Option B), the router will stop attempting to perform a constrained path calculation. Instead, the signaling protocol (RSVP) will rely on the standard inet.0 routing table to determine the hop-by-hop path to the egress destination (192.168.100.3), allowing the LSP to establish without traffic engineering constraints.

Regarding the other options, while family mpls is required on all transit interfaces, the ingress loopback interface (lo0) generally does not require it for standard LSP signaling unless it's used as a transit hop. Furthermore, adding a static route to inet.3 (Option A) is used for next-hop resolution of BGP routes over LSPs but does not assist in the signaling or establishment of the LSP itself.

The AS_PATH attribute is a "well-known mandatory" attribute in BGP, meaning it must be present in every BGP Update message exchanged between External BGP (eBGP) peers. It records the sequence of Autonomous System numbers that a route has traversed. Per Juniper Networks Service Provider documentation, this attribute serves two fundamental purposes:

1. Loop Prevention (Option B):

This is the most critical function of the AS_PATH. When a BGP router receives an update from an eBGP peer, it scans the AS_PATH attribute for its own AS number. If the router finds its local AS number already listed in the path, it concludes that the route has already passed through its network and has "looped" back. To prevent an infinite routing loop, the router will immediately discard the update. This mechanism is the cornerstone of BGP's stability as a path-vector protocol.

2. Path Selection / Shortest Path Determination (Option C):

BGP uses a complex "tie-breaking" algorithm to select the best path among multiple candidates. One of the highest-ranking criteria in this algorithm (after Weight, Local Preference, and AS_PATH length) is the length of the AS_PATH. A shorter AS_PATH (fewer AS numbers listed) is generally preferred over a longer one, as it typically represents a more direct path through the internet hierarchy.

Why other options are incorrect:

Option A: The "origin" of a route (IGP, EGP, or Incomplete) is determined by the ORIGIN attribute, which is a separate well-known mandatory attribute.

Option D: BGP does not count individual "next-hop devices" (which would be an IGP metric like hop count in RIP); it only tracks Autonomous Systems. A single AS in the path might contain hundreds of internal routers (next-hops), but BGP only sees it as one "hop" in the AS_PATH.

In a service provider environment, Q-in-Q tunneling (also known as 802.1ad or double-tagging) is the standard solution for transporting multiple customer VLANs over a shared provider backbone while maintaining total separation.

According to Juniper Networks documentation, Q-in-Q works by adding a second 802.1Q tag (the Service Provider tag or S-tag) to the customer’s already tagged frames (the Customer tag or C-tag). This creates a "tunnel" at Layer 2. This solution specifically addresses all the customer's requirements:

Transparent Layer 2 Connectivity: Because the provider simply encapsulates the customer's frames, the customer's internal BPDU traffic (like Spanning Tree) and VLAN tags are preserved and delivered transparently to the remote site.

Separation of Internal VLANs: The customer can run their own internal VLAN IDs (1-4094) without the provider needing to know or manage them.

Conflict Avoidance: Different customers on the same provider infrastructure are assigned unique S-tags. Even if two different customers both use "VLAN 10" internally, they remain isolated because their traffic is encapsulated in different provider S-tags.

Why other options are incorrect:

Layer 3 VPN (Option B): While MPLS L3VPNs are common, they provide Layer 3 (IP) connectivity, not the "transparent Layer 2" connectivity requested.

GRE Tunnels (Option C): GRE is a Layer 3 encapsulation and does not natively provide the transparent VLAN bridging required for a multi-site Layer 2 service.

NAT/Firewall (Option D): These are security and address-translation services for internet access and do not facilitate site-to-site Layer 2 bridging.

In Junos OS, understanding the distinction between the Routing Information Base (RIB) and the Forwarding Information Base (FIB) is fundamental to analyzing traffic patterns and load-balancing behavior. The RIB (show route) contains all prefixes learned via various protocols, while the FIB (show route forwarding-table) contains only the active next-hops that are actually programmed into the Packet Forwarding Engine (PFE).

According to Juniper Networks technical documentation, the default behavior for Junos OS when encountering Equal-Cost Multipath (ECMP) routes is to select only a single next-hop from the available candidates in the RIB and install that single path into the FIB. In a default state, even if the show route output displays multiple next-hops for a destination like 172.24.0.0/24, only one would have the active route symbol ( > ) and only that one would appear in the forwarding table.

In the provided exhibit, the show route output shows two next-hops for 172.24.0.0/24, but only the first one (172.20.0.2) is marked with the > symbol as the active selection. However, the subsequent show route forwarding-table output reveals that both next-hops (172.20.0.2 and 172.20.1.2) are currently present in the forwarding table for that same destination. This discrepancy indicates that the default load-balancing behavior has been modified (Option B) . This modification is typically achieved by creating a routing policy with the action then load-balance per-packet (which actually results in flow-based load balancing) and applying it to the forwarding table via the export statement under [edit routing-options forwarding-table].

Because the forwarding table now contains both next-hops, the router is no longer restricted to a single path. Therefore, the router will choose both next-hops in the routing table (Option D) for packet forwarding, distributing flows across the two available Gigabit Ethernet interfaces (ge-0/0/2.0 and ge-0/0/3.0). This ensures higher utilized bandwidth and provides redundancy at the data plane level.

In the world of BGP, controlling inbound traffic (traffic entering your network) is significantly more challenging than controlling outbound traffic because it requires influencing a decision made by an external Autonomous System (AS). According to Juniper Networks documentation, when you have multiple links to the same AS or even different ASes, the BGP path selection process is used by the upstream neighbor to decide which path to take to reach your prefixes.

AS-Path Prepending is the standard technique used to make a path appear less attractive to external peers. By artificially lengthening the AS_PATH attribute on the BGP advertisements sent over a specific link, you exploit the BGP best-path algorithm rule that prefers a shorter AS path. When you prepend your own AS number multiple times to the update sent to the "less preferred" peer, that peer’s BGP routers will see a longer path compared to the alternative link and will naturally prefer the shorter, unprepended route.

It is important to distinguish why other options are incorrect for this specific goal:

Local Preference (Option D): This is a well-known discretionary attribute used to influence outbound traffic. It is not advertised to EBGP peers; therefore, your upstream neighbor cannot see your local preference settings.

Origin Code (Option B): While the origin code (IGP, EGP, or Incomplete) is a tie-breaker in the selection process, it is rarely used for traffic engineering and lacks the granular control provided by prepending.

Route Reflector (Option A): This is an Internal BGP (IBGP) scaling mechanism used to reduce the need for a full mesh of peers within an AS; it does not directly influence external path selection by an upstream provider.

Junos OS allows you to easily implement prepending via routing policies applied as an "export" policy to the EBGP neighbor. By using the as-path-prepend action within a policy term, you can selectively degrade a path's attractiveness to manage your inbound bandwidth.

For OSPF routers to transition from the "Init" state to a full adjacency, they must agree on several parameters exchanged within their Hello packets . If these parameters do not match, the routers will refuse to form a neighbor relationship, a common point of failure in service provider networks.

According to Juniper Networks documentation, the following fields are mandatory matches:

Hello Interval (Option B): The frequency at which Hello packets are sent. Default is 10 seconds on broadcast networks.

Dead Interval (Option D): The time a router waits without receiving a Hello before declaring a neighbor down. Default is 4 times the Hello interval.

Network Mask (Option C): On broadcast and NBMA (Non-Broadcast Multi-Access) segments, the subnet masks must match because OSPF uses the mask to determine the network boundaries for the link-state advertisements.

Area ID: Routers must belong to the same logical OSPF area.

Authentication: If configured, the type and password/key must be identical.

Why other options are incorrect:

Router Priority (Option A): This is used to influence the election of the Designated Router (DR). It does not need to match; in fact, different priorities are often used to ensure a specific router becomes the DR.

Designated Router (Option E): The DR is the result of an election that happens after the initial Hello exchange. It is not a field that must match beforehand to start the process.

By ensuring the Hello/Dead timers and the Subnet Mask are synchronized, OSPF guarantees a stable and predictable environment for the subsequent exchange of Link-State Advertisements (LSAs).

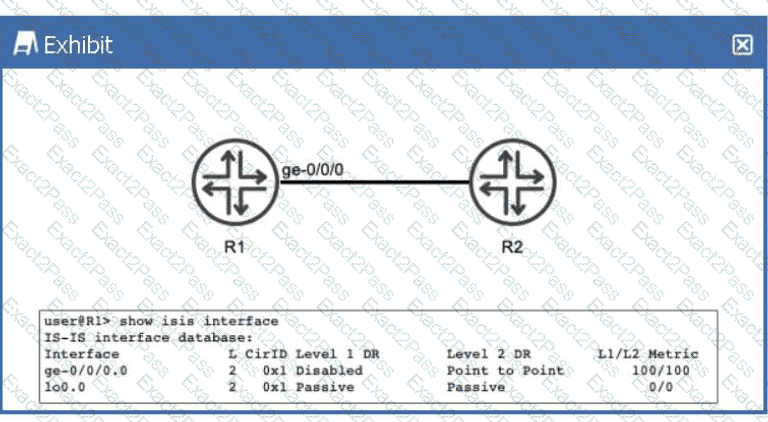

In Junos OS, the flow of routing information is managed by policies that sit between the protocol's database (the RIB-In/LSDB) and the main routing table (inet.0). Understanding the direction of these policies is critical for correct configuration.

An import policy (Option B) is used to control the movement of routes from a routing protocol into the routing table. According to Juniper Service Provider documentation, even though IS-IS is a link-state protocol that requires all routers in an area to have an identical Link-State Database (LSDB), an import policy can be used to filter which of those validated routes are actually placed into inet.0 for forwarding. For external routes (routes leaked into IS-IS from other areas or protocols), an import policy allows an administrator to selectively accept or reject prefixes based on specific criteria like prefix-lists or community tags.

It is important to distinguish this from an export policy (Option A) . In Junos, an export policy is used to take routes already in the routing table and push them out to a protocol to be advertised to neighbors. For example, you would use an export policy to redistribute static routes into IS-IS. Route preference (Option C) is a global value used to select between different protocols for the same prefix, and the interface metric (Option D) is used by the SPF algorithm to calculate the shortest path within the IS-IS database itself. Therefore, to specifically control which learned external routes are "installed" into the forwarding table, the import policy is the correct tool.

For Juniper platforms equipped with dual Routing Engines (REs) , the fundamental technology required to provide high availability during a hardware or software failure of the primary RE is Graceful Routing Engine Switchover (GRES) .

According to Juniper Networks technical documentation, GRES allows the backup RE to stay in a "hot" standby state. When GRES is enabled, the primary RE synchronizes critical state information with the backup RE, specifically the chassis state and the interface state . This synchronization includes the Packet Forwarding Engine (PFE) configuration.

When the primary RE fails, the backup RE takes over immediately. Because the PFE (which resides on the line cards) was already synchronized and is not restarted during the switchover, the router continues to forward packets that are already in flight or part of established flows. This prevents a complete network outage during an RE failover.

Comparison with other options:

NSB (Non-Stop Bridging - Option A): Focuses specifically on maintaining Layer 2 protocol states (like STP) during a switchover.

LAG (Link Aggregation - Option B): Provides redundancy for physical links, not the control plane or the RE.

BFD (Bidirectional Forwarding Detection - Option C): Is a protocol used for rapid detection of link or neighbor failures; it does not protect the RE or maintain forwarding during an internal switchover.

It is important to note that while GRES maintains the forwarding state, it does not by itself maintain the routing protocol state (adjacencies). To keep OSPF or BGP sessions from dropping during the switchover, GRES must be paired with Non-Stop Active Routing (NSR) . However, as the question focuses on the core requirement of continuing to forward packets, GRES is the foundational technology.

Multiple Spanning Tree Protocol (MSTP) , as defined in IEEE 802.1s and implemented in Juniper Networks Junos OS, allows for the grouping of VLANs into specific spanning tree instances. This provides significant scalability and load-balancing advantages over traditional STP or RSTP. To achieve this, switches must be grouped into logical "Regions."

According to Juniper documentation, for two or more switches to be considered part of the same MSTP Region , they must possess an identical MSTP Configuration Identifier . This identifier consists of three specific attributes that must match exactly across all participating switches:

MSTI Name (Region Name): A descriptive string (up to 32 characters) that identifies the region.

MSTI Revision Level: A numerical value (0–65535) used to track configuration changes.

VLAN-to-Instance Mapping: The specific table that defines which VLAN IDs are associated with which Multiple Spanning Tree Instances (MSTIs).

If even one of these parameters—such as the Region name (Option A)—differs, the switches will treat each other as being in separate regions. When switches are in different regions, they interact using the Common Spanning Tree (CST) , effectively seeing the other region as a single "virtual bridge," which limits the granularity of traffic engineering.

The Extended system ID (Option B) is a component of the Bridge ID used to carry VLAN information in PVST+ but is not a region-matching requirement. Root bridge priority (Option C) and Root bridge ID (Option D) are variables used during the STP election process to determine the topology's root, but they do not define the boundaries of an MSTP region itself.

In standard routing, a static route is typically considered valid only if the specified next-hop IP address is directly reachable on a local subnet. However, in complex service provider designs, the next-hop might be a "distant" IP address that is reachable through another route (such as a BGP route or another static route). This process of looking up a next-hop within another routing entry is called recursive lookup .

In Junos OS, the resolve (Option A) parameter is explicitly used to enable this behavior for static routes. According to Juniper technical documentation, when you append the resolve keyword to a static route configuration, you are instructing the Routing Engine to search the routing table to find a path to that distant next-hop.

For example:

set routing-options static route 10.1.1.0/24 next-hop 192.168.100.1 resolve

If 192.168.100.1 is not on a local interface but is reachable via an OSPF route, the router will "resolve" the path and install the 10.1.1.0/24 route into the forwarding table using the OSPF path's exit interface.

Why other options are incorrect:

Discard (Option B) and Reject (Option C) are "next-hop types" used to drop traffic, either silently (discard) or by sending an ICMP unreachable message (reject).

Next-table (Option D) is used for Inter-VRF routing , where the router is told to look up the destination in a completely different routing instance (like a VRF table), which is a different architectural function than a recursive next-hop lookup within the same table.
