In the IS-IS (Intermediate System to Intermediate System) protocol as implemented in Junos OS, routers can operate at two hierarchical levels: Level 1 (L1) for intra-area routing and Level 2 (L2) for inter-area backbone routing. By default, a Juniper router and its interfaces are configured to act as Level 1/2 , meaning they will attempt to form adjacencies at both levels simultaneously.

According to Juniper Networks technical documentation, the show isis interface command provides a granular view of how the protocol is interacting with specific local links. In the provided exhibit, we must examine the L (Level) column and the DR (Designated Router) status columns to understand R1's operational state.

Level Configuration: Under the L column for both the physical interface ge-0/0/0.0 and the loopback lo0.0, the value is strictly 2 . This indicates that these interfaces have been explicitly configured to operate only at Level 2.

Adjacency Capabilities: For the interface ge-0/0/0.0, the Level 1 DR field is marked as Disabled . This confirms that R1 is not participating in Level 1 operations on this link; it will not transmit Level 1 Hello PDUs, nor will it listen for them. Consequently, R1 is incapable of forming a Level 1 adjacency with R2 on this segment.

Metric Implications: The exhibit shows an L1/L2 Metric of 100/100 . In Junos, "narrow" metrics (the default) are limited to a maximum value of 63 per interface. A metric of 100 indicates that wide metrics (wide-metrics-only) have been enabled. Therefore, option A is incorrect because the router is using wide metrics.

Since the prompt states the adjacency is "up," and the interface is restricted to Level 2, we can conclude that R1 only forms a Level 2 adjacency with R2 (Option B) . Even though an L1 metric of 100 is displayed in the table as a configured value, it is not actually "advertised" in a Link-State PDU because the Level 1 protocol is disabled on that interface.

In the context of Juniper Networks Junos OS and the IS-IS (Intermediate System to Intermediate System) protocol, understanding the hierarchical relationship between router levels is critical for effective troubleshooting and design. IS-IS uses a two-level hierarchy to manage scalability: Level 1 (L1) , which represents intra-area routing, and Level 2 (L2) , which represents inter-area backbone routing.

When a router is configured as a Level 1/2 (L1/L2) device, it acts as a bridge between the two levels. According to Juniper technical documentation, an L1/L2 router maintains two completely separate Link-State Databases (LSDB) —one for Level 1 and one for Level 2. It does not merge these into a single topology. This separation ensures that local area topology changes (L1) do not necessarily flood into the backbone (L2) unless specific redistribution is configured, and vice versa. Therefore, statement C is correct because the L1/L2 router maintains distinct SPF (Shortest Path First) computations for each level.

Regarding the visibility of the Level 1 router, IS-IS is designed to keep L1 areas "stubby" by default. A Level 1 router only possesses the topology information for its own area (the Level 1 LSDB). It does not receive specific L2 routes or the L2 topology. Instead, the L1/L2 router sets the Attached (ATT) bit in its L1 Link-State PDUs (LSPs) to signal to L1-only routers that it has a connection to the backbone. The L1 router then generates a default route pointing to the L1/L2 router to reach inter-area destinations. This confirms that statement D is correct: the L1 router's knowledge is limited to its local L1 topology.

Conversely, statements A and B are incorrect because merging topologies would violate the hierarchical scaling principles of IS-IS, and L1 routers never learn the full L2 topology without explicit, non-standard route leaking.

In the context of Juniper Networks High Availability, Bidirectional Forwarding Detection (BFD) is a lightweight protocol designed to provide fast failure detection for the forwarding path. Unlike the slow "hello" mechanisms found in IGPs like OSPF or IS-IS, BFD can detect link or neighbor failures in sub-second intervals.

According to Juniper Networks technical documentation, BFD operates through a negotiation process. When two routers establish a BFD session, they exchange their locally configured Minimum Transmit Interval and Minimum Receive Interval within the BFD control packets. The fundamental rule of BFD negotiation is that the routers must agree on a common timing value that accommodates the slower of the two devices to ensure stability and prevent "false positives" (detecting a failure when none exists simply because one router cannot keep up with the processing speed).

In this scenario, R1 expects to send at 300ms, while R2 is configured for 400ms. During the handshake, R1 informs R2 it is capable of 300ms, but R2 informs R1 it can only support a minimum of 400ms. Consequently, the routers will negotiate to use the slowest of the two rates (400ms) . Specifically, the transmission interval of one router is matched to the receive interval of the other. By choosing the highest common denominator (the slowest rate), the BFD session ensures that both routers have sufficient time to process incoming control packets. This negotiation allows BFD to be highly flexible in heterogeneous environments where different hardware platforms may have varying CPU capabilities for handling rapid heartbeat packets.

When troubleshooting OSPF in a service provider environment, distinguishing between "stuck" adjacencies and "flapping" adjacencies is the first step. A session that transitions frequently between Full and Down indicates that the relationship can be established successfully (meaning parameters match), but it cannot be maintained.

According to Juniper Networks documentation, the most common cause for a session to drop from Full to Down is the expiration of the Dead Interval . If a router does not receive a Hello packet within the Dead Interval (usually 40 seconds), it tears down the adjacency. A physical interface flapping (Option A) is the primary trigger for this. If the physical link or the underlying transport (like a leased line or a microwave link) goes down even momentarily, the OSPF process immediately detects the interface failure, flushes the neighbors, and moves the state to Down. As soon as the interface comes back up, the routers perform the Hello exchange and reach the Full state again, creating the flapping cycle.

Analysis of other options:

MTU Mismatch (Option D): This typically causes the adjacency to get "stuck" in the Exchange or ExStart state. The routers can exchange small Hello packets, but when they try to send larger Database Description (DBD) packets that exceed the MTU, the packets are dropped, preventing the session from ever reaching "Full."

Area ID Mismatch (Option C): This prevents the adjacency from even reaching the Init state; the routers will never form a neighbor relationship.

Route Preference (Option B): This affects which route is chosen for the forwarding table but has no impact on the OSPF neighbor state machine itself.

In the context of the Label Distribution Protocol (LDP) , the method by which a router advertises labels to its neighbors is defined by its Label Advertisement Mode . According to Juniper Networks documentation and industry standards (RFC 5036), there are two primary modes: Downstream Unsolicited (DU) and Downstream on Demand (DoD) .

In Downstream Unsolicited (DU) mode, which is the default behavior for Junos OS and most service provider implementations, an LSR (Label Switching Router) does not wait for a specific request from its neighbors. Instead, as soon as the LSR learns a prefix through its Interior Gateway Protocol (IGP) and establishes an LDP session, it automatically generates a label for that prefix and advertises it to all of its LDP peers. This explains the scenario where labels appear for every loopback address in the IGP as soon as LDP is enabled. DU mode is highly efficient for fast convergence because the labels are alread y present in the neighbors' databases before they are even needed for traffic forwarding.

By contrast, Downstream on Demand (DoD) requires a router to explicitly request a label for a specific prefix from its next-hop neighbor. Ordered Control (Option B) and Independent Control refer to the timing of label creation (whether a router waits for the next-hop to provide a label before creating its own), while Conservative Retention (Option A) refers to how a router stores labels it receives but doesn't currently use for forwarding. In the Junos default environment, LDP utilizes Downstream Unsolicited advertisement combined with Ordered Control and Liberal Retention to ensure a robust and rapidly converging MPLS control plane.

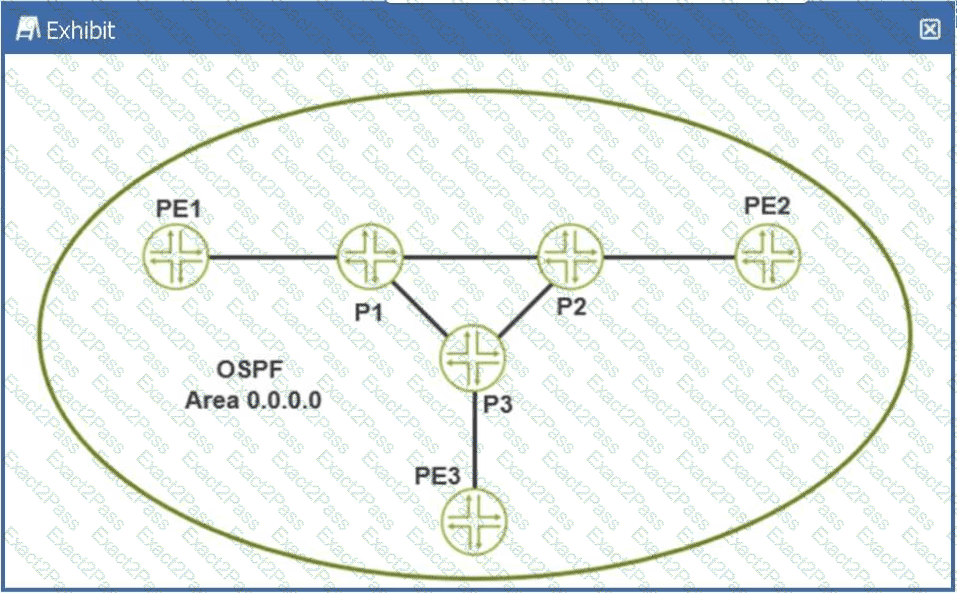

In Juniper Networks Junos OS, the Label Distribution Protocol (LDP) is specifically designed to automate the creation of Label Switched Paths (LSPs) based on the information provided by the underlying Interior Gateway Protocol (IGP), such as OSPF or IS-IS. When LDP is enabled on a set of interfaces within an OSPF area (as shown in the exhibit with Area 0.0.0.0), it automatically discovers neighbors and exchanges label mappings for all known unicast routes in the routing table.

The defining characteristic of LDP in this context is its "topology-driven" nature. Unlike RSVP (Resource Reservation Protocol), which typically requires the manual configuration of each LSP ingress point and destination, LDP follows the IGP's shortest path tree to automatically build a full mesh of LSPs between all participating routers. This means that every Provider Edge (PE) and Provider (P) router in the exhibit—PE1, PE2, PE3, P1, P2, and P3—will establish label-switched connectivity to every other router without the administrator having to define individual tunnels.

LDP accomplishes this through a downstream-unsolicited label distribution mode by default in Junos. Each router assigns a local label for its loopback address and other prefixes and advertises these to its neighbors. Because every router is performing this action for every reachable prefix in the OSPF domain, a complete fabric of label-switched paths is formed. While RSVP is more robust for traffic engineering and bandwidth reservation, LDP is the preferred protocol for creating a simple, scalable full mesh of LSPs for applications like Layer 3 VPNs or internal BGP tunneling where complex path manipulation is not required. BFD is a failure detection protocol, and BGP is used for service signaling, making LDP the only correct choice for automatic mesh creation.

Graceful Restart (GR) is a high-availability mechanism designed to minimize the impact of a routing protocol process (rpd) restart or a Routing Engine (RE) switchover. It allows a router to continue forwarding traffic while the control plane is recovering, provided that the data plane (Packet Forwarding Engine) remains intact.

According to Juniper Networks documentation, Graceful Restart operates in two distinct roles:

Restarting Mode: This is the role of the router that is actually undergoing the restart. In Junos OS, this mode is not enabled by default (Option A) . An administrator must explicitly configure graceful-restart under the [edit routing-options] hierarchy to allow the router to signal its neighbors that it is attempting a graceful recovery.

Helper Mode: This is the role of the neighboring routers. When a neighbor sees a router restart, if it is in "helper mode," it will continue to forward traffic toward the restarting router and will not flush the associated routes from its forwarding table for a specified period. In Junos, helper mode is enabled by default (Option B) for most protocols (OSPF, BGP, IS-IS). This means that even if you haven't configured GR on your own router, it will automatically assist its neighbors if they perform a graceful restart.

Why other options are incorrect:

Option C: While GRES (Graceful Routing Engine Switchover) is often used with Graceful Restart to handle hardware-level RE failures, they are independent features. GR can function during a simple software process restart without dual REs or GRES.

Option D: Nonstop Bridging (NSB) is a separate high-availability feature for Layer 2 protocols (like STP). While it shares a similar goal, Graceful Restart is specifically a Layer 3 protocol mechanism (Layer 2 does not use "helper" routers in the same way).

In a Juniper Networks environment, deploying RSVP-signaled LSPs requires a functional Traffic Engineering Database (TED) . This database is populated by the Interior Gateway Protocol (IGP) using specific extensions that carry link-state information beyond simple reachability, such as available bandwidth, administrative groups (link coloring), and Maximum Reservable Bandwidth.

The behavior of these extensions differs between OSPF and IS-IS in Junos OS:

OSPF (Option C): By default, OSPF is a "pure" routing protocol. To support RSVP-TE, it must carry Opaque LSAs (Type 10). According to Juniper documentation, you must explicitly configure traffic engineering within the OSPF protocol hierarchy using the set protocols ospf traffic-engineering command. Without this command, OSPF will not flood the TE information required by the Constrained Shortest Path First (CSPF) algorithm, and LSPs will fail to establish.

IS-IS (Option D): IS-IS was designed to be extensible through the use of TLVs (Type, Length, Value). In Junos OS, IS-IS traffic engineering extensions are enabled by default once the protocol is active. As soon as you enable IS-IS on an interface, it begins to advertise the wide metrics and TE TLVs (like TLV 22 and 135) necessary for building the TED.

This distinction is a common design consideration for network architects. While IS-IS simplifies the rollout of MPLS by having TE enabled "out of the box," OSPF requires that extra configuration step to transition from a standard IGP to a TE-aware protocol.

IS-IS is a link-state protocol that relies on the rapid and consistent flooding of Link-State PDUs (LSPs) to ensure that every router in an area has an identical view of the topology. To manage the "freshness" of information, IS-IS uses a Sequence Number —a 32-bit unsigned integer that increments every time the originating router makes a change to its LSP.

According to Juniper Networks technical documentation, when a router receives an LSP, it performs a comparison between the received LSP and the version it currently holds in its Link-State Database (LSDB) . If the received LSP has a higher sequence number , the router concludes that this is "newer" and more accurate information. The router will then perform two immediate actions:

Update: It replaces the older LSP in its LSDB with the newly received version.

Flood: It propagates the new LSP to all other neighbors (except the one that sent it) to ensure the entire area converges on the new data.

If the sequence numbers were equal, the router would ignore the incoming PDU as it already has the information. If the received sequence number were lower , the router would conclude its own database is more recent and would actually send its own "newer" version back to the neighbor to bring them up to date (a process called "poisoning" or refreshing the neighbor). Complete Sequence Number PDUs (CSNPs) (Option C) are used during initial database synchronization or periodic checks on broadcast links, but the primary response to a "newer" LSP is immediate database update and flooding.
