According to Juniper Mist documentation, Wired Service Level Expectations (SLEs) are designed to provide operational visibility into the wired experience by monitoring Juniper EX and QFX Series switches. These SLEs leverage pre-connection and post-connection performance metrics to ensure network reliability and performance.

Pre-connection metrics are specifically focused on the initial phase of a client ' s journey to join the network. These metrics show the total number and the time required for successful connects and authentication . By tracking 802.1X events and DHCP snooping data, Mist can identify if clients are failing to onboard due to RADIUS issues, authentication timeouts, or failures in the DHCP binding process. This allows administrators to proactively address onboarding hurdles before they impact the broader user base.

Post-connection metrics , conversely, measure the network experience once a client is already " on the wire " and attempting to pass data. These metrics primarily measure throughput and focus on detecting various network errors and operational anomalies. Specifically, post-connection monitoring detects issues such as Spanning Tree Protocol (STP) loops, interface errors, and congestion . Additional post-connection insights include identifying cable issues, negotiation failures, and MTU mismatches that might occur during active data transmission.

In summary, Juniper Mist divides its telemetry into these two distinct categories to simplify troubleshooting. Pre-connection metrics ensure that users can get on the network, while post-connection metrics ensure that the network can sustain their traffic requirements without errors. This combined approach enables the Mist AI-driven Predictive Analytics and Correlation Engine (PACE) to provide a holistic view of the end-user experience, moving beyond traditional " up/down " monitoring to a deeper understanding of the quality of the client experience.

Link Layer Discovery Protocol (LLDP)is a Layer 2 discovery protocol that allows network devices to advertise identity and capabilities to directly connected neighbors. While LLDP is useful for basic topology discovery, it has two key limitations inWired Assurance client identification:

“LLDP operates at Layer 2 between directly connected devices and must be explicitly enabled on all participating network elements to provide neighbor information. It cannot discover devices beyond the first physical hop.”

Option A:Correct— LLDP must beconfigured and enabledon each network device to function.

Option B:Incorrect — LLDP itself is scalable but limited to direct adjacency.

Option C:Correct— LLDP only worksbetween directly connected devices.

Option D:Incorrect — not all clients support LLDP; however, the question asks forlimitations of using LLDP, not lack of support.

According to Juniper Mist documentation, the brownfield adoption process is utilized when bringing existing Juniper switches—which already have a local configuration—under the management of the Mist cloud. This process differs significantly from the greenfield " claiming " method, as it requires manual interaction with the device ' s management interface to establish the initial connection 2 .

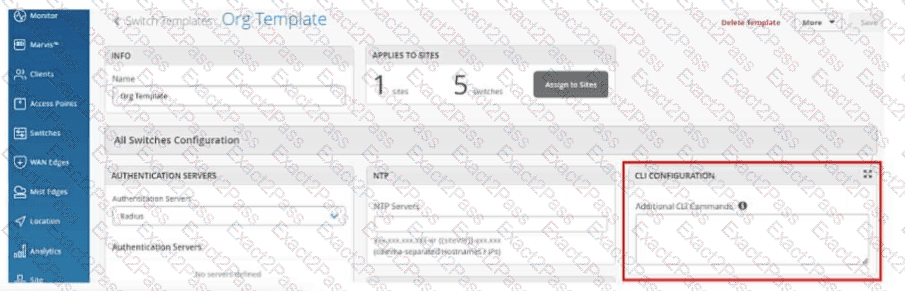

A critical requirement for this process is that CLI access to the Juniper cloud-ready switch is required 3 . To initiate adoption, the administrator must log in to the switch via console or SSH and enter a specific set of Junos OS configuration commands provided by the Mist portal. These commands include the necessary parameters for the switch to establish an outbound SSH connection to the Mist cloud, typically using either TCP port 2200 or 443. Without direct CLI access to paste and execute these adoption strings, the switch cannot register itself with the organization ' s inventory in the dashboard.

Furthermore, because this process involves modifying the switch ' s local configuration file to add the Mist management parameters, you must perform a commit on the switch after adding the switch adoption commands 7 . In the Junos operating system, configuration changes reside in a candidate configuration buffer and do not take effect until a commit operation is successfully executed 8 . Once committed, the switch initiates the connection to Mist 9 . If the connection is successful, the switch status in the Mist dashboard will transition from " Unassigned " to " Connected, " enabling AI-driven telemetry collection and Wired Assurance monitoring. This adoption method allows for a seamless transition of legacy infrastructure into a modern, cloud- managed environment without requiring a factory reset or the presence of a physical QR claim code .

In Juniper Mist campus fabric architectures, thelocation of the Layer 3 gateway (IRB interface)differentiatescentrally-routed bridging (CRB)fromedge-routed bridging (ERB):

InCRB, thegateway resides at the core layer— routing occurs centrally, and access/distribution layers perform Layer 2 bridging.

InERB, thegateway moves to the edge (distribution layer), enabling routing to occur closer to endpoints, improving performance and scalability.

“In a centrally-routed bridging (CRB) topology, Layer 3 gateways reside at the core. When transitioning to an edge-routed bridging (ERB) design, the Layer 3 gateways are moved to the distribution layer, closer to the access switches and clients.”

Therefore, when moving from acore-distribution CRBto anERBmodel, thegateway moves from the distribution to the access layerin campus terms (edge = access).

Option A:Incorrect — ERB gateways are not at the distribution layer only.

Option B:Incorrect — opposite direction.

Option C:Correct— the gateway movesfrom distribution to access (edge).

Option D:Incorrect — this describes CRB, not ERB.

According to Juniper Networks ' EVPN-VXLAN documentation, devices that perform the encapsulation and de-encapsulation of Ethernet frames into VXLAN UDP packets at the edge of the network are known as Virtual Tunnel Endpoints (VTEPs) 1111 . In the context of a campus fabric overlay, these devices often function as L2 gateways when they bridge traditional Layer 2 traffic from end-user devices across a Layer 3 IP fabric.

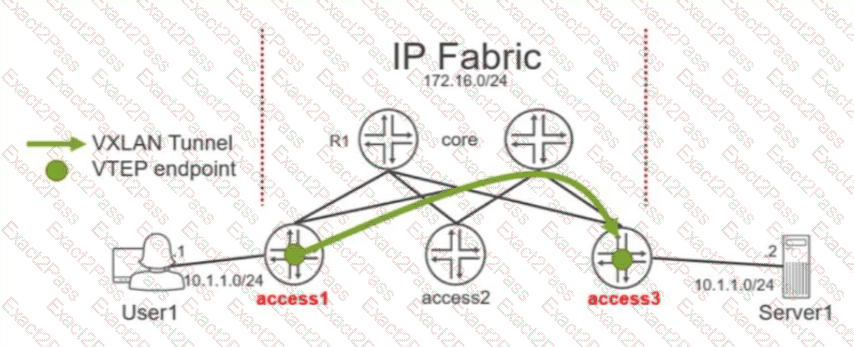

The exhibit demonstrates a 3-stage IP Clos architecture where access1 and access3 are explicitly identified as VTEP endpoints . A VXLAN tunnel is shown originating at access1 and terminating at access3, allowing " User1 " and " Server1 " —both located on the same 10.1.1.0/24 subnet—to communicate as if they were on the same physical Layer 2 segment despite being separated by a Layer 3 IP Fabric (172.16.0.0/24). In this scenario, access1 and access3 fulfill the L2 gateway role by mapping the local VLAN traffic to a specific VXLAN Network Identifier (VNI) for transport across the underlay 3 .

As L2 gateways, these switches maintain the bridge table for the overlay network, learning MAC addresses from local ports and via the EVPN control plane from remote VTEPs 4 . This architecture allows for seamless Layer 2 mobility and connectivity across complex routed infrastructures while eliminating the need for Spanning Tree Protocol (STP) in the core 5555 . In contrast, options like " VNI " refer to the segment ID itself rather than a device role, and " root bridge " refers to an STP-specific role that EVPN-VXLAN is designed to move away from in a modern fabric.
