In an EVPN-VXLAN architecture, the interaction between the control plane (EVPN) and the data plane (VXLAN) is defined by specific functional components:

VTEP (VXLAN Tunnel End Point): These are the entities responsible for the encapsulation and de-encapsulation of Layer 2 Ethernet frames into Layer 3 UDP/IP packets. A VTEP can be a physical switch (like a QFX or EX series) or a software-based entity. When traffic enters the fabric, the ingress VTEP wraps it in a VXLAN header; the egress VTEP removes this header before delivering it to the destination host. (Option B)

VNI (Virtual Network Identifier): The VNI is a 24-bit field in the VXLAN header that allows for up to 16 million unique identifiers. It is used to identify specific broadcast domains (or VLANs) within the overlay network. Each VNI effectively represents a virtualized Layer 2 segment that is stretched across the Layer 3 underlay. (Option D)

Incorrect statements: Option A is incorrect because VNIs are identifiers, not the " engine " that performs encapsulation—that is the VTEP ' s job. Option C is incorrect because VTEPs identify the endpoints of a tunnel, not the individual broadcast domains themselves.

When 802.1X server fail fallback is enabled with the vlan-name feature, the switch provides a specific survival mechanism for both existing and new sessions when the RADIUS server becomes unreachable.

Existing Clients (Statement B): Clients that have already successfully authenticated are unaffected by the server ' s unavailability in the short term. They maintain their current network access until their specific re-authentication timer expires. Only then will the switch attempt to contact the server again and trigger the fallback action if the server remains down.

New Clients (Statement D): For any new device attempting to connect while the RADIUS server is down, the switch cannot perform a standard authentication. Under the vlan-name fallback configuration, these new clients are automatically placed into the specified fallback VLAN and granted access based on the local policy defined for that VLAN.

Why others are incorrect: Statement A is incorrect because disconnecting active users would cause unnecessary service disruption. Statement C is incorrect because new clients cannot " request " a VLAN during the 802.1X handshake; the switch assigns it based on the fallback configuration.

To provide IP phones with geographic location details (such as civic addresses or coordinates) automatically, Juniper EX Series switches utilize the LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) protocol.

VoIP Specifics: While standard LLDP (C) is for general device discovery, LLDP-MED is an enhancement specifically designed for network-to-endpoint communication for VoIP devices.

Location Identification: LLDP-MED supports Location Identification TLVs (Type-Length-Values). These allow a switch to push geographic or civic location data to an IP phone, which is critical for E911 services and asset tracking.

Junos Implementation: On EX Series switches, this is typically configured under protocols lldp-med to ensure the switch advertises the necessary location information to connected endpoints.

Private VLANs (PVLANs) provide Layer 2 isolation between ports within the same broadcast domain. When a PVLAN spans multiple switches, a special type of trunk configuration is required to maintain the isolation and community logic across the inter-switch links.

Isolated VLAN Trunking (Option D): To extend an isolated VLAN across multiple switches, you must configure the trunk port on each switch to allow the isolated VLAN ID. In Junos OS, this is specifically achieved by configuring the interface as a trunk and associating it with the primary VLAN and the specific isolated VLAN. The correct syntax for enabling this inter-switch communication is to configure trunk ports that recognize the isolated VLAN tag (e.g., set interfaces < interface > unit 0 family ethernet-switching vlan members [ primary-vlan isolated-vlan ]).

Forwarding Rules: Traffic from an isolated port on Switch A must reach a promiscuous port (often on Switch B) to exit the PVLAN. The inter-switch trunk carries this traffic using the secondary (isolated) VLAN ID, ensuring that it remains isolated from other host ports on the remote switch.

Option A (inter-switch-link): In standard Junos switching, the inter-switch-link statement is used in Virtual Chassis or specific fabric designs, but for standard PVLAN extension, standard 802.1Q trunking with secondary VLAN IDs is the mechanism used.

Options B and C: These describe specific port roles (isolated vs. community) rather than the method used to enable trunking between switches.

VSTP (VLAN Spanning Tree Protocol) is designed for interoperability with environments running Cisco’s Per-VLAN Spanning Tree Plus (PVST+).

Per-VLAN Instances (Option E): The core function of VSTP is to maintain a separate spanning tree instance for every VLAN configured on the switch. This allows for different root bridges and different topologies per VLAN, enabling traffic load-balancing across various physical links.

BPDU Generation (Option A): Because each VLAN has its own instance, VSTP must send separate BPDUs for each VLAN. These BPDUs are tagged with the respective VLAN ID to ensure the receiving switch can process them for the correct instance.

Instance Limits (Option D): On many Juniper platforms, VSTP is limited to supporting a maximum of 253 unique spanning tree topologies (instances). If the number of VLANs exceeds this limit, additional VLANs will not have spanning tree protection unless migrated to a different protocol like MSTP.

Incorrect Statements: Option B is incorrect because VSTP is compatible with RSTP; it actually uses RSTP algorithms (Rapid-VSTP) by default in modern Junos versions to provide fast convergence. Option C is incorrect because STP or RSTP is usually the default spanning tree protocol on EX Series switches, not VSTP.

OSPF stub areas are used to reduce the size of the Link-State Database (LSDB) in routers with limited resources by restricting the flooding of external routes.

Virtual Links (Option C): According to OSPF standards (both v2 and v3), virtual links cannot pass through stub areas. A virtual link must transit a " transit area, " which must be a standard (non-stub) area with a full routing table.

Totally Stubby Areas (Option D): A stub area (which blocks Type 5 External LSAs) can be further restricted into a totally stubby area. In Junos OS, this is done by adding the no-summaries statement to the stub configuration. This blocks both Type 5 and Type 3 (Inter-area) LSAs, replacing them with a single default route.

Incorrect Statements: Option A is incorrect because standard stub areas cannot contain an ASBR; only Not-So-Stubby Areas (NSSA) allow for an ASBR. Option B is incorrect because an area is either a Stub or an NSSA; they are mutually exclusive configurations for the same area.

In Junos OS, particularly in BGP-based environments like EVPN-VXLAN or MPLS, the router often needs to perform a recursive lookup to resolve the BGP next-hop of a route.

Next-Hop Resolution (Option C): When an EVPN route (found in default-switch.evpn.0) is received, the protocol next-hop is typically the loopback IP of the remote VTEP. To actually forward traffic, the switch must know how to reach that loopback IP.

The inet.3 table is the default table in Junos used to store egress interface information for BGP next-hops.

While inet.0 handles standard unicast routing, inet.3 is specifically consulted for resolving the path toward BGP peers. In an EVPN context, this ensures that the VXLAN tunnel endpoint is reachable and properly resolved through the underlay.

Other Tables: * inet.2 (Option A) is used for Multicast RPF checks.

default-switch.evpn.0 (Option B) stores the EVPN routes themselves (MAC/IP), but it is the source of the lookup, not the table where the recursive resolution occurs.

vxlan.inet (Option D) is an internal table used to track active VXLAN tunnels but is not the primary table for recursive BGP next-hop validation.

In OSPF, the election of a Designated Router (DR) and a Backup Designated Router (BDR) is mandatory on broadcast and non-broadcast multi-access (NBMA) network types to manage link-state database synchronization efficiently.

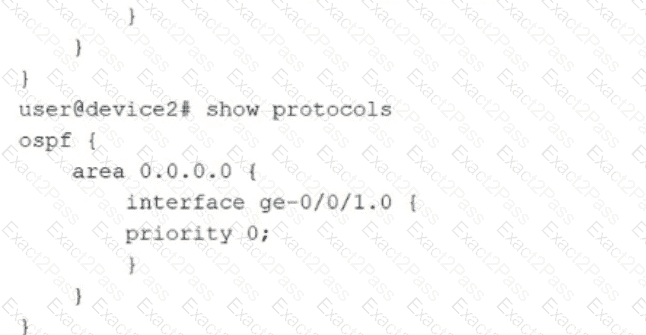

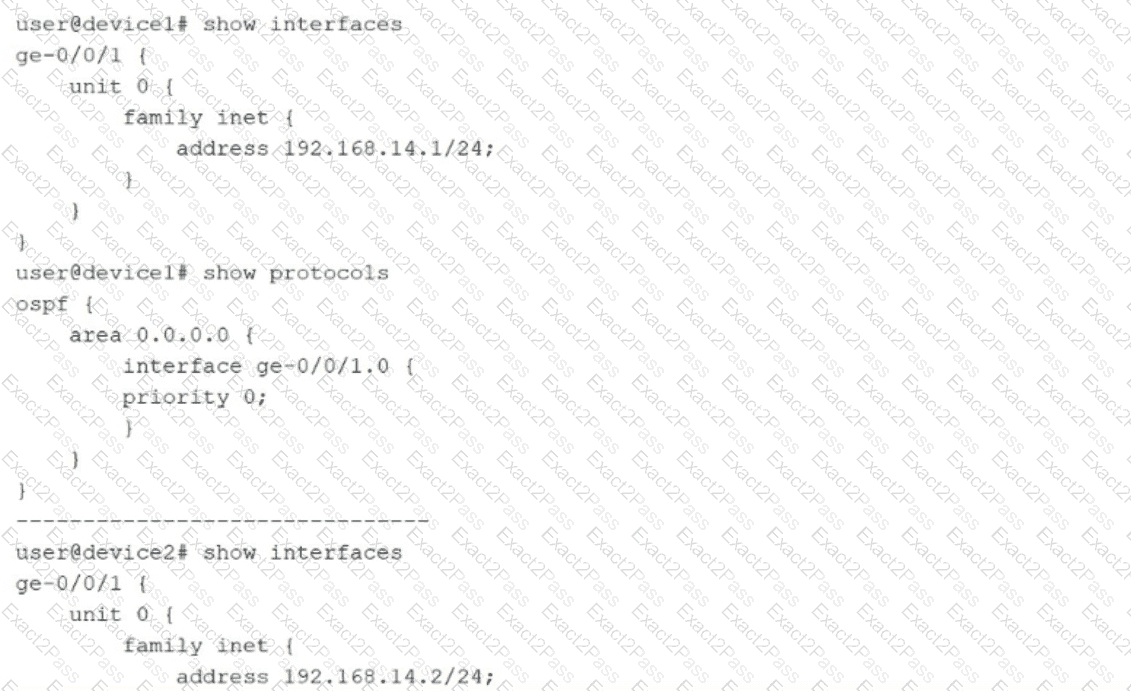

The exhibit shows that both device1 and device2 have their OSPF interface priority explicitly set to 0. According to the Junos OS 24.4 OSPF implementation:

Ineligibility (Priority 0): A router with a priority of 0 is strictly ineligible to be elected as a DR or BDR for that segment.

No Election Possible: When every router on a broadcast segment has a priority of 0, the election process cannot complete because there are no eligible candidates to fill the required roles.

State Behavior (Stuck in 2-Way): In OSPF adjacency formation, the 2-Way state indicates that bidirectional communication has been established (each router has seen itself in the other ' s Hello packets). However, to progress to the Exstart and Exchange states on a multi-access network, routers must first identify a DR and BDR.

Result: Since neither router can become the DR, they both wait indefinitely for a third party (with priority > 0) to take the lead. Consequently, the OSPF adjacency will be stuck in the 2-Way state. Adjacencies only reach the Full state with the DR and BDR; routers in a " DROther " role remain in 2-Way with each other.

Option A and D are incorrect because the router ID (IP address) only acts as a tiebreaker if priorities are equal and greater than 0. Option B is incorrect because routers cannot reach the Exstart state (where they negotiate master/slave for database exchange) without first having a DR/BDR elected.

The behavior described is the fundamental operational principle of OSPF ' s hierarchical area structure.

LSA Flooding Scope: In OSPFv2, Type-1 (Router) and Type-2 (Network) Link-State Advertisements (LSAs) are restricted to a local area flooding scope . They contain detailed topology information (such as which routers are connected to which links) that is only relevant for calculating the Shortest Path First (SPF) tree within that specific area.

ABR Functionality: Area Border Routers (ABRs), such as R1 in this scenario, act as the gateway between areas. The ABR does not forward Type-1 or Type-2 LSAs from one area to another. Instead, it extracts the prefix information (the network address and mask) from those LSAs and generates a Type-3 (Summary) LSA .

Interarea Reachability: This Type-3 LSA is then flooded into the backbone (Area 0) and subsequently into other non-backbone areas, such as Area 2. This explains why R2 sees an " interarea route " to R3’s network in its routing table and has the corresponding Type-3 LSA in its database, but cannot see the original Type-1 or Type-2 LSAs from Area 1.

Why other options are incorrect: Option A is incorrect because this is standard protocol behavior, not the result of a manual filter. Option B is incorrect as there is no such " disable " feature; the protocol design inherently prevents these LSAs from crossing boundaries. Option C is incorrect because OSPFv3 still uses Type-1 and Type-2 LSAs (renamed but functionally similar for topology), and the prompt specifically identifies the deployment as OSPFv2 .

To secure a Layer 2 network running Multiple VLAN Registration Protocol (MVRP) against unauthorized VLAN propagation from rogue devices, you must control the registration state of the ports.

Forbidden Registration Mode (Option D): This mode is specifically designed to prevent an interface from participating in the MVRP exchange.

When a port is set to forbidden, it will neither register nor declare VLANs (except those statically configured on the interface).

If a rogue device sends MVRP PDUs to this interface, the distribution switch will ignore those PDUs, preventing the rogue device from dynamically creating or learning VLANs through that port.

Registration Hierarchy: In Junos OS 24.4, this is configured at the [edit protocols mvrp interface < interface-name > registration forbidden] level.

Other Modes: normal (default) allows full participation, while restricted ignores joins for VLANs not already statically defined on the switch but still declares its own.
