A toner probe, often referred to as a toner and probe kit, is the easiest and most effective tool for identifying individual cables in a bundle, especially in situations where the patch panel is not labeled. The toner sends an audible tone through the cable, and the probe detects the tone at the other end, allowing the technician to quickly identify the correct cable.

Functionality: The toner generates a tone that travels along the cable. When the probe is placed near the correct cable, it detects the tone and emits a sound.

Ease of Use: Toner probes are straightforward to use, even in environments with many cables, making them ideal for identifying cables in unlabeled patch panels.

Efficiency: This method is much faster and more reliable than manual tracing, especially in complex setups.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Details tools used for cable identification and troubleshooting.

Cisco Networking Academy: Provides training on using toner probes and other cable testing tools.

Network+ Certification All-in-One Exam Guide: Explains the use of different tools for network cable identification and management.

This is an example of Multi-Factor Authentication (MFA) because it requires:

Something you know (username/password)

Something you have (a phone-generated passcode)

Breakdown of Options:

A. SSO (Single Sign-On) – Allows one login for multiple services, but does not add a second authentication factor.

B. LDAP (Lightweight Directory Access Protocol) – Used for directory authentication, not MFA.

C. MFA (Multi-Factor Authentication) – ✅ Correct answer. Uses multiple authentication factors for better security.

D. SAML (Security Assertion Markup Language) – Used for federated identity management, not multi-factor authentication.

The best answer is B. Elasticity . Quantum computing workloads are highly specialized and often require access to extremely expensive, limited, and on-demand processing resources. In cloud terms, elasticity is the ability to rapidly allocate and release resources as demand changes. That makes it a strong fit for environments where usage may spike for short periods and then drop off again.

A quantum host would not usually be designed around ordinary shared-office priorities. Instead, it would favor the ability to obtain powerful compute capacity exactly when needed, without keeping that level of capacity permanently assigned. That is the practical value of elasticity in a cloud model.

Scalability is close, but it usually describes the broader ability to increase capacity over time or as demand grows. Elasticity is more specific to dynamic, responsive adjustment of resources, which matches specialized compute workloads much better. Multitenancy refers to multiple customers sharing underlying infrastructure, and cost is always important, but neither is the main technical characteristic being highlighted here.

For exam purposes, when a scenario describes advanced or highly variable compute demand in the cloud, elasticity is usually the strongest answer because it focuses on rapid resource expansion and reduction as needed.

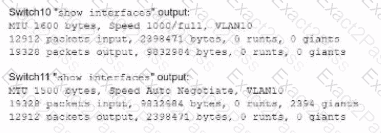

The most likely issue is a duplex mismatch, which is a well-documented cause of collisions and poor network performance, as outlined in the CompTIA Network+ N10-009 troubleshooting objectives. A duplex mismatch occurs when one end of a network link is configured for full duplex while the other end is operating in half duplex. In half-duplex mode, devices must take turns transmitting and receiving data, which inherently allows for collisions. When paired with a full-duplex device—which expects simultaneous send and receive—collisions and retransmissions occur frequently.

The presence of collisions on a switch interface is a key diagnostic clue. Modern Ethernet switches operating correctly in full duplex should not experience collisions at all. When collisions are observed, it almost always points to a duplex configuration issue, often caused by manual speed/duplex settings on one device and auto-negotiation on the other.

A wrong speed setting may prevent link establishment entirely or cause errors, but it does not typically result in collisions. Jumbo frames can cause packet drops or fragmentation issues, not collisions. An incorrect VLAN configuration affects logical segmentation and connectivity but operates at Layer 2 and does not generate collisions.

CompTIA Network+ emphasizes duplex mismatch as a classic and frequently tested troubleshooting scenario. Correcting it—usually by enabling auto-negotiation on both ends—restores normal, collision-free communication.

A Site-to-site VPN (Virtual Private Network) is the most cost-effective solution for establishing a persistent, secure connection between two facilities. It uses the public internet to create an encrypted tunnel, leveraging existing internet connections without requiring expensive dedicated infrastructure. This makes it ideal for organizations looking to securely connect remote sites while minimizing costs.

Why not GRE tunnel? Generic Routing Encapsulation (GRE) tunnels encapsulate traffic but do not provide encryption natively, requiring additional protocols (e.g., IPsec) for security. This adds complexity and is less cost-effective than a site-to-site VPN, which integrates encryption.

Why not VXLAN? Virtual Extensible LAN (VXLAN) is used for overlay networks in data centers to extend Layer 2 networks, not for secure site-to-site connectivity.

Why not Dedicated line? A dedicated line (e.g., leased line or MPLS) provides high reliability but is significantly more expensive due to the need for dedicated infrastructure.

Band Steering: This technology enables wireless devices to connect to the most optimal frequency band (2.4 GHz or 5 GHz) by encouraging capable devices to switch to the less congested 5 GHz band. This improves overall network performance and prevents overcrowding on the 2.4 GHz band.

Wireless LAN controller (B): This manages multiple access points in a network but does not handle frequency optimization.

Directional antenna (C): This focuses the signal in a specific direction but does not affect frequency selection.

Autonomous access point (D): This operates independently but lacks advanced features like band steering.

When multiple redundant links exist between switches, Spanning Tree Protocol (STP) is required to prevent switching loops. STP blocks redundant paths but can allow aggregation if configured with protocols like LACP.

B. SVIs provide Layer 3 interfaces, not loop prevention.

C. Native VLAN defines the untagged VLAN but does not manage loops.

D. FHRP (VRRP, HSRP, GLBP) provides gateway redundancy, not switch uplink management.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — STP, redundancy, loop prevention.

Understanding Tracert:

tracert (Traceroute in Windows) is a command-line tool used to trace the path that packets take from the source to the destination. It records the route (the specific gateways at each hop) and measures transit delays of packets across an IP network.

Output Analysis:

The output shows a series of IP addresses with corresponding round-trip times (RTTs) in milliseconds.

The asterisks (*) indicate that no response was received from those hops, which is typical for routers or firewalls that block ICMP packets used by tracert.

Comparison with Other Tools:

netstat: Displays network connections, routing tables, interface statistics, and more, but does not trace packet routes.

tcpdump: Captures network packets for analysis, used for detailed network traffic inspection.

nmap: A network scanning tool used to discover hosts and services on a network, not for tracing packet routes.

Usage:

tracert helps identify the path to a destination and locate points of failure or congestion in the network.

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

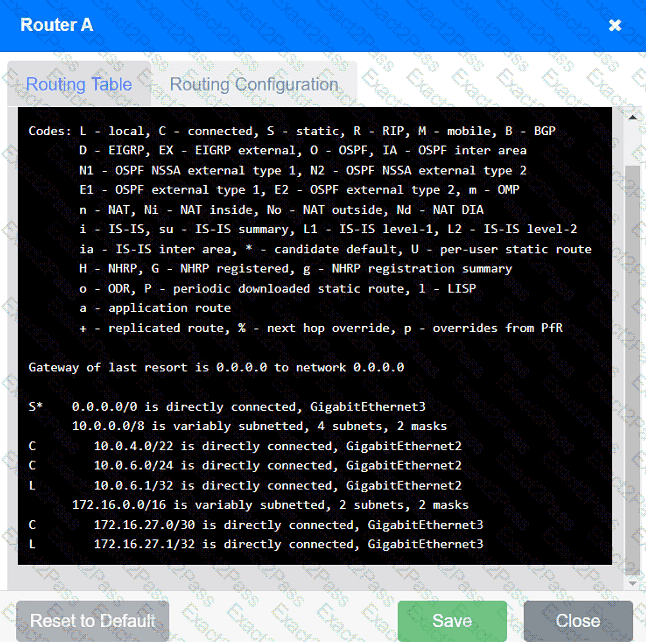

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

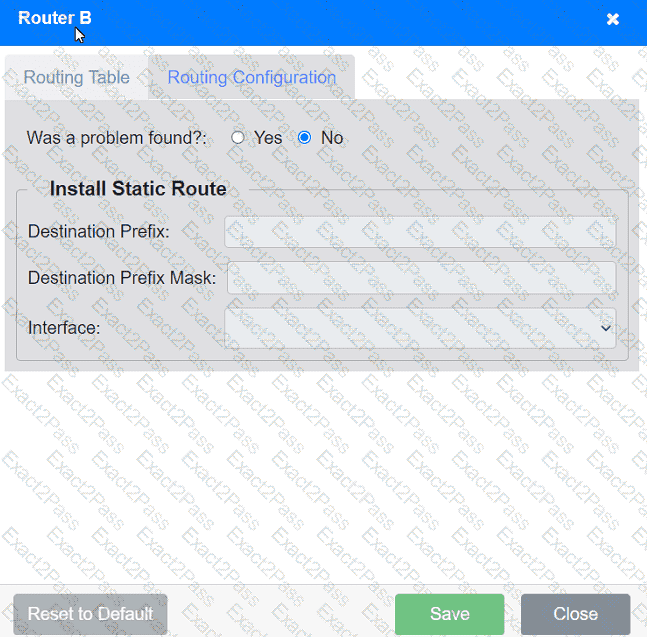

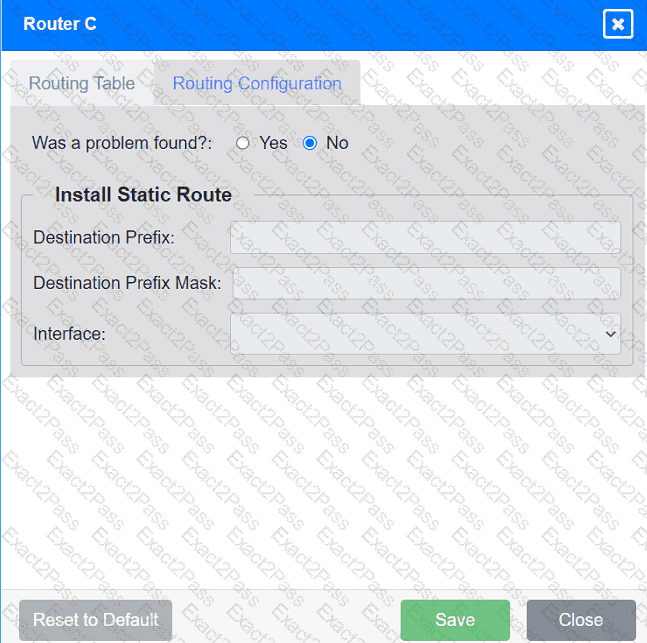

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C ' s IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A ' s IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

Tailgating is a physical security breach where someone follows an authorized person into a restricted area without proper credentials. Once inside, the attacker can install rogue devices like unauthorized APs.

A. Evil twin is a wireless attack where an attacker sets up a fake AP.

B. Honeytrap is used to attract attackers for analysis.

C. Wardriving involves scanning for unsecured Wi-Fi networks while driving, not physical intrusion.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 4.2 – Identify common security threats and vulnerabilities.

The channel width (20 MHz vs. 40 MHz vs. 80 MHz) directly impacts Wi-Fi throughput. If the AP is configured with a narrow channel width (e.g., 20 MHz), maximum data rates will be significantly lower than other APs using wider channels (e.g., 80 MHz). This matches the scenario where one AP achieves only ~75 Mbps, while others reach 500 Mbps.

B. DNS issues affect name resolution, not raw throughput.

C. Authentication failure would prevent connection, not reduce throughput.

D. DHCP issues would prevent obtaining an IP, not cause slower speeds.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Wireless throughput issues, channel width configuration.

A UPS (Uninterruptible Power Supply) and PDU (Power Distribution Unit) are installed to provide reliable, properly distributed electrical power to network equipment—especially in wiring closets such as an IDF and in main equipment rooms. In Network+ (N10-009) infrastructure objectives, a UPS protects against power loss and instability by supplying battery-backed power during outages and often providing conditioning to reduce the impact of sags, spikes, and brief interruptions. A PDU then distributes that power to multiple devices in a rack (switches, routers, firewalls, AP controllers), often offering organized outlets and, in managed models, monitoring/control features.

Option A is the best match because it reflects the practical purpose: ensuring network devices receive appropriate and continuous power in distribution frames/closets. Option B is partially related, but “managing power consumption in the MDF” is too narrow and not as accurate as the broader function of providing backup and distribution power. Option C describes a network switch, not power equipment. Option D refers to HVAC/environmental controls, not UPS/PDU functionality. Hence, A is correct.

When installing multiple Power over Ethernet (PoE) devices like security cameras, it is crucial to ensure that the total power requirement does not exceed the power budget of the PoE switch. Each PoE switch has a maximum power capacity, and exceeding this capacity can cause some devices to fail to receive power.

PoE Standards: PoE switches conform to standards such as IEEE 802.3af (PoE) and 802.3at (PoE+), each with specific power limits per port and total power capacity.

Power Calculation: Adding up the power requirements of all connected PoE devices can help determine if the total power budget of the switch is exceeded.

Symptoms: When the power budget is exceeded, some devices, typically those farthest from the switch or connected last, may not power up or function correctly.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers PoE standards and troubleshooting power issues.

Cisco Networking Academy: Discusses PoE technologies, power budgeting, and managing PoE devices.

Network+ Certification All-in-One Exam Guide: Provides information on PoE setup, including power budget considerations.

Single-mode fiber is best suited for long-distance communication, often exceeding 10 km (6.2 miles). It ' s immune to EMI and offers high bandwidth — making it the ideal choice for connecting buildings across a city.

Coaxial (A) and Twinaxial (B) are used for shorter distances and specific use cases (e.g., storage or legacy systems).

Cat 5 (D) is limited to 100 meters and is not suitable for city-level interconnects.

✅ For long-distance, high-speed, and reliable communication between buildings, Single-mode fiber is the professional choice.

In a fiber patch panel, the SC (Subscriber Connector or Standard Connector) is commonly used because of its push-pull design and reliability in enterprise environments.

Breakdown of Options:

A. F-type – Used for coaxial cables (e.g., cable TV), not fiber.

B. RJ11 – Used for telephone lines, not fiber.

C. BNC – Used for coaxial connections, not fiber.

D. SC – ✅ Correct answer. A standard fiber optic connector used in patch panels.
