To change where the outside DNS records are hosted, the network administrator needs to update the NS (Name Server) records at the domain registrar. NS records specify the authoritative name servers for a domain, directing where DNS queries should be sent.

NS (Name Server) Records: These records indicate the servers that are authoritative for a domain. Changing the NS records at the registrar points DNS resolution to the new hosting provider.

SOA (Start of Authority): Contains administrative information about the domain, including the primary name server.

PTR (Pointer) Records: Used for reverse DNS lookups, mapping IP addresses to domain names.

CNAME (Canonical Name) Records: Used to alias one domain name to another, not relevant for changing DNS hosting.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses DNS records, their purposes, and how to manage them.

Cisco Networking Academy: Provides training on DNS management and the role of different DNS record types.

Network+ Certification All-in-One Exam Guide: Explains DNS records and their configuration for domain management.

The correct answer is Identify the problem, which is always the first step in the CompTIA Network+ N10-009 troubleshooting methodology. Before forming theories, creating action plans, or documenting outcomes, technicians must clearly understand what is happening, who is affected, and what symptoms are present.

In this scenario, the symptoms—inaccessible files and a changed wallpaper—are serious and potentially indicative of a security incident such as ransomware. However, at this stage, there is disagreement between the network administrator and the security analyst regarding the nature of the issue. That reinforces the need to begin with problem identification, which includes gathering information, determining the scope of impact, identifying recent changes, and assessing whether the incident is isolated or widespread.

Establishing a theory comes after the problem has been clearly defined. Creating a plan of action and documenting findings occur later in the process, once the issue has been confirmed and remediation steps are determined. Jumping ahead without properly identifying the problem could result in delayed containment or an incorrect response—especially critical in potential security incidents.

The Network+ objectives emphasize following the structured troubleshooting process precisely to reduce risk, prevent escalation, and ensure accurate resolution—particularly when malware or ransomware may be involved.

Unshielded cables (D) are more prone to interference and may not be suitable for certain environments, especially after a fire where interference could be heightened.

Using the wrong transceiver (E) for new terminations can lead to compatibility issues, causing network failures.

=================

The correct answer is Ad hoc because it allows wireless devices to communicate directly with one another without requiring a centralized access point or additional infrastructure. According to CompTIA Network+ (N10-009) objectives under wireless networking concepts, an ad hoc network (also known as an Independent Basic Service Set, or IBSS) enables peer-to-peer wireless communication.

This type of network is ideal for temporary or quick setups where only a small number of devices need to connect. In an ad hoc configuration, each device connects directly to others, making it simple and fast to deploy without requiring switches, routers, or wireless access points.

Spine and leaf (Option B) is a data center architecture designed for high scalability and redundancy, not small wireless setups. Point-to-point (Option C) refers to a direct connection between two devices only, which would not support five devices efficiently. Mesh (Option D) allows multiple nodes to interconnect and provide redundancy, but it is more complex and typically requires compatible infrastructure devices.

Therefore, for a quick setup with five wireless devices, an ad hoc network is the most appropriate choice.

Understanding the 169.254.x.x Address:

An IPv4 address in the range of 169.254.x.x is an Automatic Private IP Addressing (APIPA) address, assigned when a DHCP server is unavailable.

DHCP Server Offline:

APIPA Assignment: When a device cannot obtain an IP address from a DHCP server, it assigns itself an APIPA address to enable local network communication. This allows communication with other devices on the same local subnet but not with external networks.

Resolution: Ensure the DHCP server is operational. Check for connectivity issues between the virtual machine and the DHCP server, and verify the DHCP server settings.

Comparison with Other Options:

The subnet mask is incorrect: The subnet mask 255.255.0.0 is appropriate for the 169.254.x.x range and does not prevent external access by itself.

The IP address is an RFC1918 private address: RFC1918 addresses are private IP ranges (10.x.x.x, 172.16.x.x-172.31.x.x, 192.168.x.x) but 169.254.x.x is not one of them.

The DNS server is unreachable: While this could affect name resolution, it would not prevent the assignment of a non-APIPA address or local network communication.

Troubleshooting Steps:

Verify the DHCP server’s status and connectivity.

Restart the DHCP service if necessary.

Renew the IP lease on the virtual machine using commands such as ipconfig /renew (Windows) or dhclient (Linux).

Power over Ethernet (PoE) allows devices such as cameras, access points, and VoIP phones to receive both power and data over the same Ethernet cable. If only eight out of twelve cameras turn on, the most likely issue is that the PoE switch has exceeded its power budget (total wattage capacity).

PoE Budget Limitation: PoE switches have a maximum power output, which can limit the number of devices they support simultaneously.

Voltage Check: Different PoE standards exist:

802.3af (PoE): Supplies up to 15.4W per port

802.3at (PoE+): Supplies up to 30W per port

802.3bt (PoE++): Supplies up to 60-100W per port

Power Draw Calculation: If each camera requires 15W and the switch can only provide 120W, then only 8 cameras (8 × 15W = 120W) will turn on.

Incorrect Options:

A. Ethernet Cable Type: Most PoE devices work with Cat5e and above. Cable type could be an issue, but power limitation is the more immediate concern.

C. Transceiver Compatibility: Only relevant if fiber transceivers or modules are in use, but not likely the root cause for power-related issues.

D. DHCP Addressing: DHCP issues affect network connectivity, not power delivery.

For 45 hosts, the minimum subnet size must allow at least 46 usable addresses (1 each for network and broadcast addresses).

A /26 subnet provides 64 addresses, 62 usable — suitable.

A /27 subnet gives only 30 usable — insufficient.

A /25 offers 126 usable — more than needed.

A /28 provides just 14 — too small.

So, the most efficient subnet with minimal wastage is /26.

From Andrew Ramdayal’s guide:

“When designing subnets, always choose the smallest subnet mask that still accommodates all hosts. A /26 provides 62 usable host addresses, suitable for networks with about 50 hosts.”

The correct answer is D. Use a cable tester. Even though the technician sees that the cable is terminated, the note about the incorrect color code suggests there may be a wiring issue such as crossed pairs, reversed pairs, split pairs, or another pinout problem. The proper next troubleshooting step is to test the cable rather than assume immediately that it must be replaced.

A cable tester helps verify continuity, pin mapping, and whether the conductors are in the correct order. That gives the technician evidence about whether the cable is actually faulty and what type of fault may exist. In troubleshooting, testing first is the best practice because it confirms the problem before taking corrective action.

The other choices are less appropriate as the next step. Implementing fiber is unnecessary and unrelated to the current copper issue. Replacing the Ethernet cable may eventually be needed, but it skips the diagnostic step the question is asking for. Changing the switchport speed does not address incorrect pair termination.

Network+ often emphasizes using the correct diagnostic tool before replacing hardware. Since the issue centers on cable termination and color sequence, the technician should use a cable tester to validate the wiring and identify the fault accurately.

A load balancer is designed to distribute user requests across multiple servers to ensure high availability and performance.

Breakdown of Options:

A. Router – Directs traffic between networks, not between web servers.

B. Switch – Works at Layer 2, does not distribute web traffic.

C. Firewall – Secures network traffic, but does not distribute load.

D. Load balancer – ✅ Correct answer. Optimizes web traffic distribution across multiple servers.

Ascreened subnet, also known as aDMZ (Demilitarized Zone), is aboundary networkthat separates an organization ' s internal network from external-facing systems. It is used to host public services like web or email servers while protecting internal systems from exposure.

Definition of a Rogue DHCP Server:

A rogue DHCP server is an unauthorized DHCP server on a network, which can assign IP addresses to devices without proper control, leading to IP address conflicts.

Impact of a Rogue DHCP Server:

IP Address Conflicts: Multiple devices may receive the same IP address from different DHCP servers, causing network connectivity issues.

Network Disruption: Devices may be assigned incorrect network configuration settings, disrupting network services and connectivity.

Comparison with Other Attacks:

DNS poisoning: Alters DNS records to redirect traffic to malicious sites, but does not cause IP address conflicts.

Social engineering: Involves manipulating individuals to gain unauthorized access or information, not directly related to IP address conflicts.

Denial-of-service (DoS): Floods a network or service with excessive traffic to disrupt operations, but does not cause duplicate IP addresses.

Prevention and Detection:

Implement network access control measures to prevent unauthorized devices from acting as DHCP servers.

Use DHCP snooping on switches to allow DHCP responses only from authorized DHCP servers.

An SVI (Switched Virtual Interface) is a logical interface on a Layer 3-capable switch used to route traffic between VLANs. This is particularly useful in environments where voice and data traffic need to be separated, as each type of traffic can be assigned to different VLANs and routed accordingly.

SVI (Switched Virtual Interface): A virtual interface created on a switch for inter-VLAN routing.

VLAN Routing: Enables the routing of traffic between VLANs on a Layer 3 switch, allowing for logical separation of different types of traffic, such as voice and data.

Use Case: Commonly used in scenarios where efficient and segmented traffic management is required, such as in VoIP implementations.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses VLANs, SVIs, and their applications in network segmentation and routing.

Cisco Networking Academy: Provides training on VLAN configuration and inter-VLAN routing using SVIs.

Network+ Certification All-in-One Exam Guide: Covers network segmentation techniques, including the use of SVIs for VLAN routing.

The correct answer is Question the user because the first step in the CompTIA Network+ (N10-009) troubleshooting methodology is to identify the problem. Identifying the problem involves gathering information, asking clarifying questions, determining if anything has changed, and establishing the scope of the issue.

Even though the user states they have “checked everything,” the administrator should not assume that all relevant troubleshooting steps were properly performed. The technician must ask specific questions such as: Are other users affected? Is the issue limited to certain websites? Are there any error messages? When did the issue start? Were there recent updates or configuration changes?

Only after gathering sufficient information should the administrator move to the next steps, such as establishing a theory of probable cause (Option B) or using divide-and-conquer methods (Option A). Documentation (Option D) occurs after resolving and verifying the issue.

Therefore, questioning the user to clearly define and scope the problem is the correct first action according to the structured troubleshooting process.

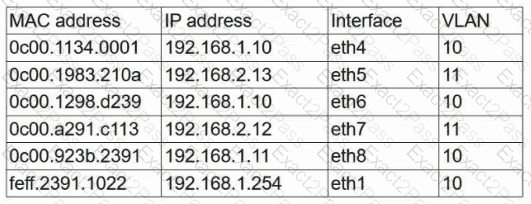

This scenario describes a duplicate IP address. The ARP table shows two different MAC addresses (0c00.1134.0001 and 0c00.1298.d239) associated with the same IP address (192.168.1.10), which leads to ARP table conflicts and intermittent connectivity.

From Andrew Ramdayal’s guide:

“Duplicate IP addresses occur when two devices on the same network are assigned the same IP address, causing network conflicts. Common issues include manual configuration errors or DHCP lease issues. Resolution includes using IP management tools and avoiding overlaps in DHCP and static IP assignments.”
