The correct answer is C. Compatibility. A SIEM is only effective if it can successfully collect, normalize, and analyze data from the systems the organization relies on. Since the question specifically says the department wants the SIEM to ingest and analyze logs from all core devices, the most important factor is whether the SIEM is compatible with those devices, their log formats, and their supported methods of exporting events.

This includes support for common logging methods such as syslog, SNMP traps, API integrations, agent-based collection, and vendor-specific event formats. Even a SIEM with excellent features will not deliver value if it cannot properly receive and interpret logs from firewalls, routers, switches, servers, and security appliances already in use.

The other choices matter, but they come after compatibility. Ease of management is helpful for daily operations. Cost is always a practical concern. Features can improve visibility and automation. However, none of those benefits matter much if the SIEM cannot integrate with the organization’s actual environment.

For Network+ exam purposes, when log ingestion across many device types is the requirement, the top selection criterion is compatibility. Without that foundation, correlation, alerting, and security analysis will be incomplete.

Wi-Fi 6E is the best choice for high-density environments, such as a university campus. It:

Supports more devices with OFDMA (Orthogonal Frequency-Division Multiple Access)

Uses the 6GHz band, reducing congestion

Provides faster speeds and lower latency

This makes Wi-Fi 6E ideal for large networks with high-bandwidth demands, like those in a university setting.

Breakdown of Options:

A. Bluetooth – Used for short-range, low-power connections, not large-scale wireless networks.

B. Wi-Fi 6E – ✅ Correct answer. Designed for high-density environments, improving speed and efficiency.

C. 5G – Used for mobile networks, but not ideal for campus-wide local wireless infrastructure.

D. LTE – Used for cellular data, not for campus-wide Wi-Fi.

Infrastructure as a Service (IaaS) provides scalable compute power, storage, and networking resources on demand. It is the best choice for a company that needs to customize its cloud solution based on size, compute capacity, and storage needs.

IaaS Benefits:

Provides virtual machines, storage, and networking resources.

Scalable based on company needs.

Reduces the need for physical infrastructure.

Incorrect Options:

A. SaaS (Software as a Service): Delivers software applications (e.g., Google Docs, Microsoft 365) but does not provide compute/storage infrastructure.

B. PaaS (Platform as a Service): Provides a development environment for application deployment but not full infrastructure control.

D. IaC (Infrastructure as Code): A methodology for automating infrastructure, not a cloud deployment model.

The correct solution is a Data Center Interconnect (DCI). DCIs extend Layer 2 networks across geographically dispersed data centers, enabling seamless replication of services such as SAN storage, backup synchronization, or VM migrations. This ensures workloads and data can move between sites while maintaining the same VLANs and addressing.

A. Security Service Edge (SSE) provides cloud-delivered security functions like secure web gateways and CASB, not Layer 2 extension.

C. Infrastructure as code (IaC) automates deployment and management of network infrastructure but is unrelated to extending Layer 2 domains.

D. Zero Trust architecture is a security framework ensuring strict access control but doesn’t address network connectivity between sites.

In scenarios where backups need replication between sites, Layer 2 extension is often required so systems can communicate as if they are in the same broadcast domain. DCI is specifically designed to provide this functionality reliably and securely.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — WAN technologies, data center interconnect, backup replication.

The correct answer is B. EOL documentation. If a network engineer wants to confirm whether a device is still receiving updates, patches, or vendor support, the first thing to review is the vendor’s End-of-Life (EOL) and often related End-of-Support (EOS) documentation. These documents show whether the device is still actively supported, whether firmware and security updates are still being issued, and when that support is scheduled to stop.

This is important in network operations because devices that are no longer supported can become security risks and operational liabilities. Once a vendor declares a product end-of-life or end-of-support, future bug fixes, feature releases, and security updates may no longer be available. That directly affects patch management, lifecycle planning, and risk assessment.

The other choices do not answer the question as directly. A baseline configuration shows the intended device settings, not the support status. Asset inventory licensing helps track ownership, software entitlements, or subscriptions, but it does not prove that updates are still being released. Software development life cycle refers to the process of building software, not the support state of a deployed network device.

For Network+ exam purposes, when the question asks whether updates are still being released, the best source is the vendor’s EOL documentation.

HTTP is an application-layer protocol, so the OSI layer that manages the exchange of HTTP information is Layer 7 (Application). In the Network+ (N10-009) objectives, the OSI model is used to map common protocols to the layers where they operate. HTTP defines how web clients and servers format and exchange requests and responses (methods like GET/POST, headers, status codes, and message bodies). Those behaviors are part of the application services provided to end-user software such as web browsers, APIs, and web servers.

While HTTP relies on lower layers to function (for example, TCP at the Transport layer for reliable delivery and IP at the Network layer for addressing and routing), the protocol logic and meaning of the web transactions exist at the Application layer. The distractors do not fit: the Network layer handles IP routing, the Data Link layer handles frames and MAC addressing on local links, and the Session layer is associated with session establishment/management concepts but is not where HTTP is categorized for Network+ mapping. Therefore, Application is the correct answer.

===========

The correct answer is Integrity because a hashing algorithm ensures that data has not been altered. According to CompTIA Network+ (N10-009) security objectives, hashing is a cryptographic process that takes input data of any size and produces a fixed-length output known as a hash value or digest. If even a single bit of the original data changes, the resulting hash value will be significantly different.

Hashing is commonly used to verify file integrity, validate message authenticity, and securely store passwords. For example, when downloading software, the vendor may publish a hash value so users can calculate the hash of the downloaded file and confirm it matches, ensuring the file was not tampered with.

Non-repudiation (Option A) typically requires digital signatures that combine hashing with asymmetric encryption to verify the sender’s identity. Confidentiality (Option C) is achieved through encryption, which protects data from unauthorized access. Availability (Option D) refers to ensuring systems and data are accessible when needed and is not related to hashing functions.

Therefore, hashing primarily provides data integrity verification.

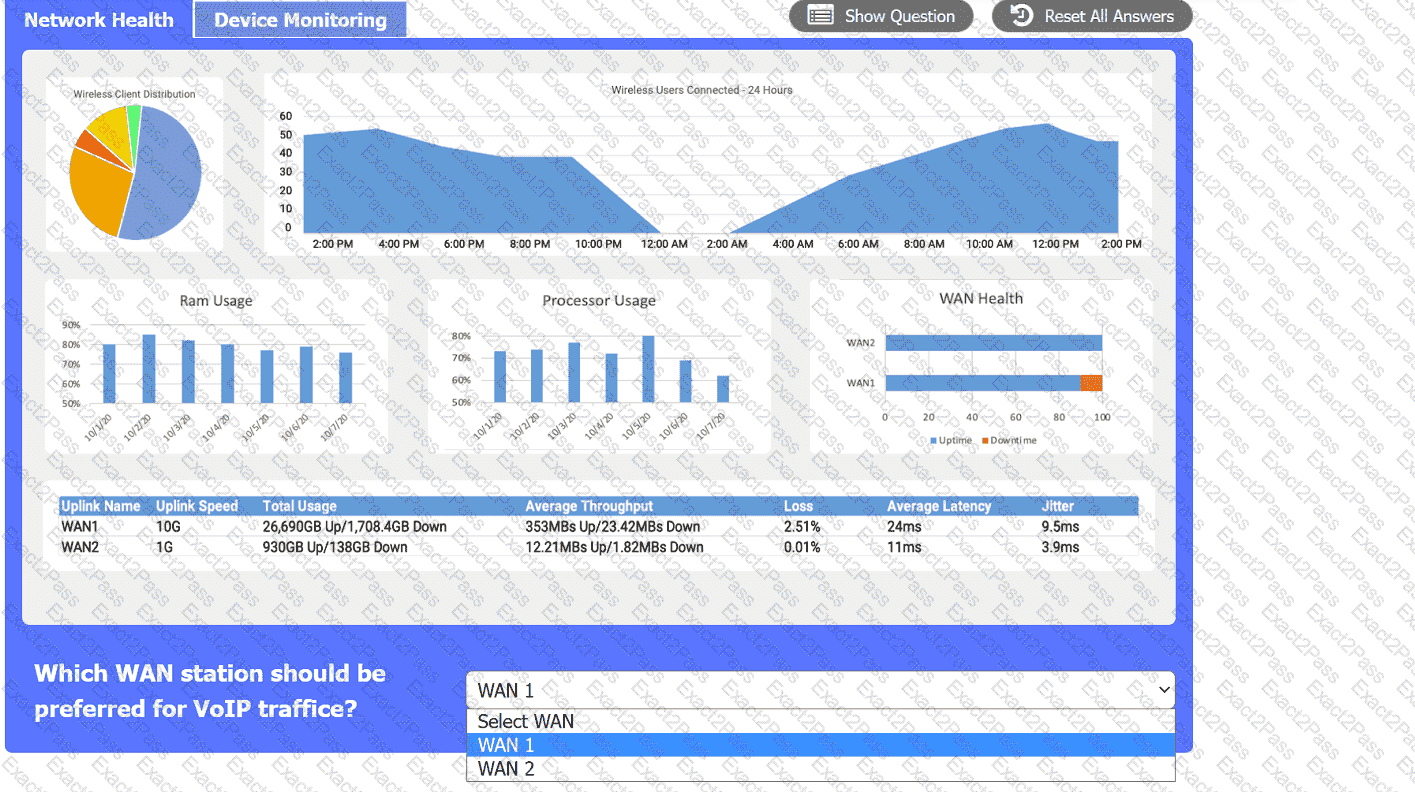

Network Health:

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here ' s the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

Device Monitoring:

the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

A screenshot of a computer AI-generated content may be incorrect.

Malware refers to any malicious software that can exfiltrate confidential data, including spyware, trojans, and rootkits. This fits the scenario where unauthorized data transfer is occurring.

Breakdown of Options:

A. Adware – Displays ads, does not typically steal data.

B. Ransomware – Encrypts files but does not exfiltrate data.

C. Darkware – Not a real cybersecurity term.

D. Malware – Correct answer. Malicious software is responsible for unauthorized data exfiltration.

TLS (Transport Layer Security) is the protocol that provides encryption in transit for HTTPS. It ensures data is encrypted between the client (browser) and the web server, protecting it from interception or tampering.

A. SSH is used for secure terminal access, not HTTPS.

C. SCADA refers to control systems, not encryption protocols.

D. RADIUS is an authentication protocol, not for encrypting HTTPS traffic.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 4.2 – Identify common security threats and vulnerabilities.

CompTIA Network+ N10-009 Official Objectives: 4.6 – Explain authentication and access controls.

Shielded twisted pair, or STP, is the best choice because the problem is related to electromagnetic interference, and the requirement is to keep costs low. STP cabling includes shielding around the twisted pairs or cable bundle to reduce the effects of external interference from electrical equipment, appliances, fluorescent lighting, microwave ovens, motors, and other sources. Since the cable is routed near a break room with known interference, replacing unshielded cabling with shielded twisted pair is the most practical and cost-effective solution.

The CompTIA Network+ N10-009 objectives require understanding copper cabling types, interference, and appropriate media selection. Fiber-optic cabling, including single-mode and multimode fiber, is immune to electromagnetic interference and could solve the issue, but it is generally more expensive than copper due to optics, termination, installation, and equipment requirements. Unshielded twisted pair is inexpensive but provides less protection against interference. Because the issue is caused by interference and the organization wants to control cost, STP provides the best balance of performance, protection, and affordability.

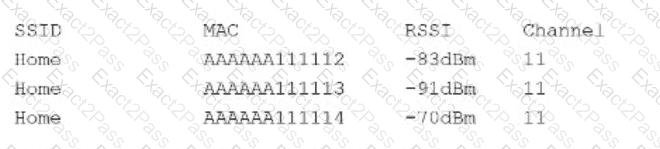

•Too much overlap on the same channel (all devices on channel 11) causes interference, leading to retransmissions and high latency.

•Same SSIDs (A) are expected in mesh networks.

•Device compatibility (C) would show different symptoms.

•Node power (D) affects coverage, not congestion.

???? Reference: CompTIA Network+ N10-009 Official Documentation – Wireless Troubleshooting & Signal Interference.

The most likely reason is that the switch port is misconfigured. The scenario states that the switch port is configured for half duplex. In modern Ethernet environments, especially when connecting through fiber media converters or higher-speed switch links, duplex and speed settings must be compatible between devices. A mismatch or unsupported duplex setting can prevent the link from establishing correctly or cause serious connectivity problems. Since the cables have already been successfully tested, the connectors are seated properly, and the media converter is powered on, the configuration of the switch port becomes the most likely cause.

The CompTIA Network+ N10-009 objectives include troubleshooting physical connectivity, interface configuration, speed and duplex mismatch, and media converter issues. A transposed TX/RX fiber pair can also cause a no-link condition, but the question provides a specific suspicious configuration detail: the switch port is set to half duplex. One of the cables having a short is unlikely because both cables tested successfully. Interface errors usually occur after a link is established and traffic is passing; they would not be the best explanation for no link light. Therefore, the switch port misconfiguration is the best answer.

X.509 certificates are most commonly associated with Public Key Infrastructure (PKI). These certificates are used for a variety of security functions, including digital signatures, encryption, and authentication.

PKI: X.509 certificates are a fundamental component of PKI, used to manage encryption keys and authenticate users and devices.

Digital Certificates: They are used to establish secure communications over networks, such as SSL/TLS for websites and secure email communication.

Authentication and Encryption: X.509 certificates provide the means to securely exchange keys and verify identities in various applications, ensuring data integrity and confidentiality.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers PKI and the role of X.509 certificates in network security.

Cisco Networking Academy: Provides training on PKI, certificates, and secure communications.

Network+ Certification All-in-One Exam Guide: Explains PKI, X.509 certificates, and their applications in securing network communications.
