From the exhibits:

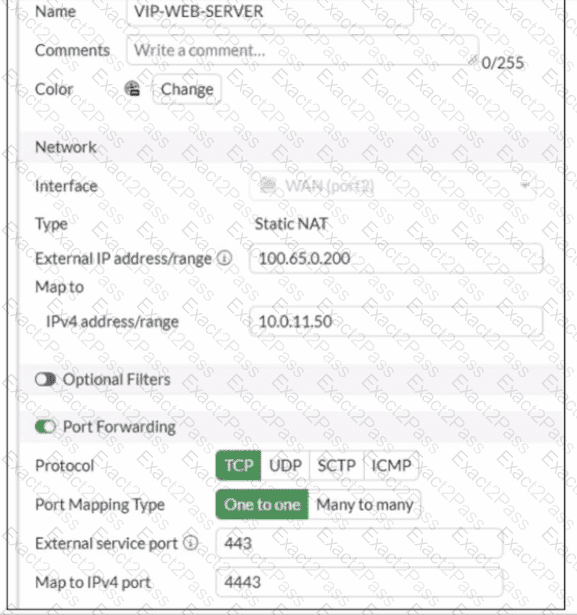

A VIP named VIP-WEB-SERVER is configured on WAN (port2) with:

External IP: 100.65.0.200

Mapped (internal) IP: 10.0.11.50

Port forwarding enabled (TCP)

External service port: 443

Map to IPv4 port: 4443

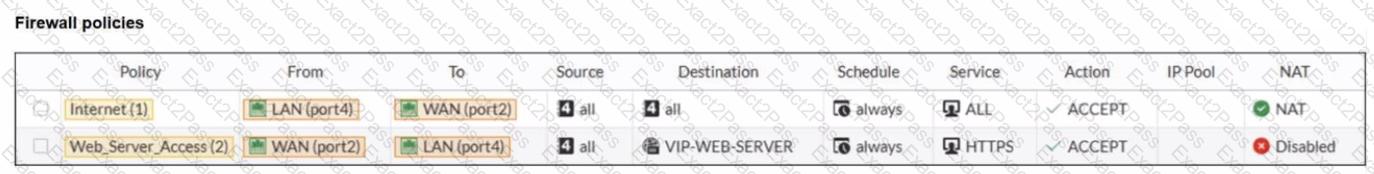

The inbound firewall policy Web_Server_Access is:

From WAN (port2) to LAN (port4)

Destination: VIP-WEB-SERVER

Service: HTTPS

NAT: Disabled (meaning no source NAT is applied)

What happens to the packet

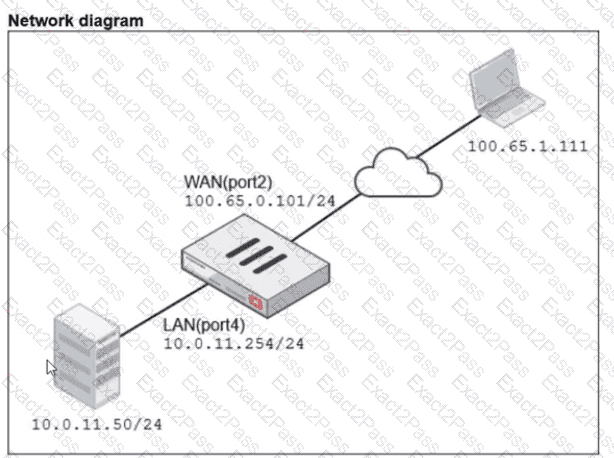

A host 100.65.1.111 sends TCP SYN dst-port 443 to 100.65.0.200.

When FortiGate matches the VIP and forwards traffic to the internal server, FortiGate performs destination NAT (DNAT) based on the VIP:

Source IP is unchanged because policy NAT is disabled:

Source remains 100.65.1.111

Destination IP is translated by the VIP:

Destination becomes 10.0.11.50

Destination port is translated by the VIP port-forward:

Destination port becomes 4443

Therefore, at the time FortiGate forwards the packet to the destination (internal server), it will be:

Source address: 100.65.1.111

Destination address: 10.0.11.50

Destination port: 4443

In FortiOS 7.6, when a FortiGate is operating in NAT mode, physical interfaces that participate in traffic forwarding (such as LAN and DMZ) must meet certain fundamental requirements.

Correct statements

D. Both interfaces must have IP addresses assigned.

Correct

In NAT mode, FortiGate operates as a Layer-3 device.

Every interface that forwards traffic must have an IP address.

Without an IP address:

The interface cannot participate in routing

Firewall policies cannot be applied correctly

This is a mandatory requirement.

C. Both interfaces must have directly connected routes on the routing table.

Correct

When an IP address is assigned to an interface, FortiGate automatically installs a connected route for that subnet in the routing table.

These connected routes are required so FortiGate:

Knows how to reach the locally attached networks

Can forward traffic between LAN and DMZ

While administrators do not manually create these routes, their presence is required for correct operation.

Why the other options are incorrect

A. Both interfaces must have DHCP enabled and roles assigned.

Incorrect

DHCP is optional; interfaces can use static IPs.

Interface roles (LAN, DMZ, WAN) are administrative/GUI aids, not functional requirements.

B. Both interfaces must have the interface role assigned.

Incorrect

Interface roles affect GUI grouping and some default behavior.

They are not required for NAT mode operation or traffic forwarding.

“Authentication-wise, both versions support PSK and certificate signature . Although only IKEv1 supports XAuth ...”

“Now, you will learn about the Authentication section in phase 1 configuration:

• Method: FortiGate supports two authentication methods: Pre-shared Key and Signature. When you select Pre-shared Key, you must configure both peers with the same pre-shared key. When you select Signature, phase 1 authentication is based on digital certificate signatures.”

“The purpose of phase 1 is to authenticate peers and set up a secure channel... To authenticate each other, the peers use two methods: pre-shared key or digital signature . You can also enable an additional authentication method, XAuth, to enhance authentication. ”

“A common use of the IPsec wizard is for configuring a remote access VPN for FortiClient users. The wizard enables IKE mode config, XAuth , and other appropriate settings for FortiClient users.”

Technical Deep Dive:

The correct answers are C and D .

D is correct because FortiGate supports the two primary IKEv1 authentication methods: pre-shared key and certificate signature . That is explicitly stated in the study guide.

C is also correct because FortiGate supports XAuth with IKEv1 as an additional authentication mechanism. In practice, XAuth is used to request extra user credentials such as a username and password , especially in remote-access VPN deployments such as FortiClient.

Why the other options are incorrect:

A is incorrect because when using Signature , certificate-based authentication is in use. The study guide states that digital signature validation depends on the relevant certificates and CA trust chain being present. It is not a certificate-free method.

B is incorrect because “fewer packets are exchanged” is a characteristic of aggressive mode , not XAuth. XAuth enhances authentication; it is not the feature that makes IKE negotiation faster.

So the two supported IKEv1 authentication features are:

Extended authentication (XAuth) to request the remote peer to provide a username and password

Pre-shared key and certificate signature as authentication methods

According to FortiOS 7.6 High Availability documentation, the FortiGate Cluster Protocol (FGCP) provides robust mechanisms for both link monitoring and stateful data synchronization. Link failover is a primary trigger for cluster renegotiation; if a monitored interface goes down—including when an administrator manually sets the interface to administratively down —the primary unit ' s priority is effectively reduced, triggering a failover to a secondary unit to ensure path continuity. 5 This is a standard method for testing HA failover behavior.

Furthermore, to achieve a seamless stateful failover where active sessions are not dropped, the FortiGate performs incremental synchronization of critical runtime data. 6 This specifically includes Forwarding Information Base (FIB) entries, which represent the compiled routing table, and IPsec Security Associations (SAs) . 7 By synchronizing IPsec SAs, the secondary unit 8 can resume encrypted tunnels immediately after a failover without requiring a f 9 ull IKE re-negotiation. 10 Statement A is incorrect because in-band and out-of-band management can coexist using reserved management interfaces and management-ip settings. 11 Statement C is incorrect because while heartbeat interfaces use link-local IPs in the 169.254.0.x range, the specific IP .2 is not universally required for all heartbeats and depends on the number of cluster members and serial numbers.

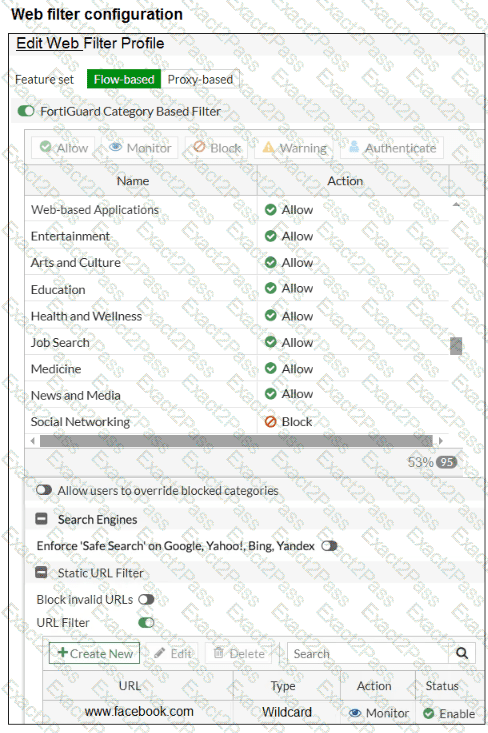

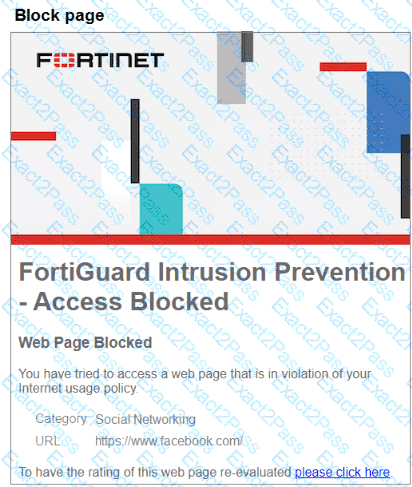

The issue occurs because Facebook still belongs to the Social Networking category, and that category is configured with a Block action. A static URL filter entry with Monitor or Allow does not fully bypass later FortiGuard category filtering. In FortiOS web filtering, static URL filtering is evaluated before FortiGuard category filtering. The Exempt action is specifically used for trusted URLs that must bypass the remaining security inspections and category-based web filtering decisions. Therefore, to allow only Facebook while keeping the Social Networking category blocked, the administrator must configure the static URL filter entry for www.facebook.com with the action Exempt. Changing the entire Social Networking category to Warning would weaken the intended policy, and changing the URL type or feature set does not directly override the category block.

In FortiOS 7.6, GUI session inactivity timeout behavior for administrators is controlled by admin profiles, not by general access permissions or profile ordering.

How GUI idle timeout works in FortiOS 7.6

FortiGate has a global admin timeout (admintimeout), but

Admin profiles can override this value using the Override idle timeout setting.

When Override idle timeout is enabled in an admin profile, the timeout value defined inside that profile takes precedence over the global setting.

The exhibit shows that the NOC team logs in using the NOC_Access admin profile. Therefore, to prevent their GUI sessions from disconnecting too quickly during inactivity, the timeout must be adjusted within that specific admin profile.

Why option B is correct

B. Increase the value of the Override Idle Timeout parameter in the NOC_Access admin profile.

This directly controls how long GUI sessions remain active when users assigned to NOC_Access are idle.

It affects only the NOC team, which matches the requirement precisely.

This is the recommended and documented approach in FortiOS 7.6.

Why the other options are incorrect

A. Increase admintimeout under config system accprofileIncorrect. admintimeout is a global admin setting, not configured under accprofile, and it would affect all administrators, not just NOC users.

C. Move NOC_Access to the top of the listIncorrect. Admin profile order has no impact on session timeout behavior.

D. Assign super_admin roleIncorrect and insecure. Super_admin does not control idle timeout and would unnecessarily grant full privileges.

NetAPI: Polls temporary sessions created on the DC when a user logs on or logs off and calls the NetSessionEnum function on Windows. It’s faster than the WinSec and WMI methods; however, it can miss some logon events if a DC is under heavy system load. This is because sessions can be quickly created and purged form RAM, before the agent has a chance to poll and notify FG.

From the exhibits:

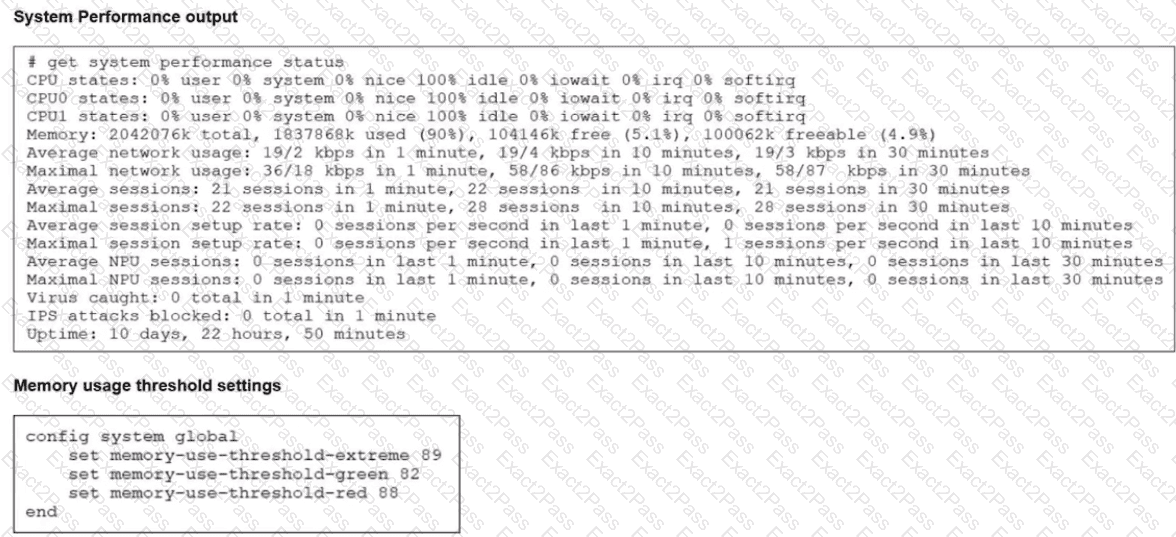

System performance output

Memory used: 90%

Free memory: ~5%

Default memory thresholds (FortiOS 7.6)

memory-use-threshold-green 82%

memory-use-threshold-red 88%

memory-use-threshold-extreme 89%

Because memory usage (90%) exceeds the extreme threshold (89%), the FortiGate enters conserve mode.

Effects of conserve mode (FortiOS 7.6 – verified)

B. FortiGate has entered conserve mode.

Correct

When memory usage exceeds the red/extreme threshold, FortiGate automatically enters conserve mode.

This is exactly the condition shown in the system performance output.

D. Administrators can change the configuration.

Correct

Even in conserve mode:

Administrators can still log in (GUI, SSH, console)

Configuration changes are allowed

FortiGate does not lock configuration access during conserve mode.

This behavior is explicitly documented in the FortiOS 7.6 Conserve Mode section.

Why the other options are incorrect

A. Administrators can access FortiGate only through the console port.

Incorrect

Network access (GUI/SSH) is still available in conserve mode unless otherwise restricted.

Console-only access is not a conserve-mode requirement.

C. FortiGate drops new sessions.

Incorrect (as a general statement)

FortiGate may drop or bypass new inspection-required sessions depending on fail-open/fail-close settings.

It does not universally drop all new sessions, so this statement is not always true.
