“The only security features you can apply using SSL certificate inspection mode are web filtering and application control... certificate inspection does not allow FortiGate to inspect the flow of encrypted data.”

“For antivirus or IPS control, you should use a deep-inspection profile.”

“Within the full SSL inspection profile, you can also specify which SSL sites, if any, you want to exempt from SSL inspection.”

Technical Deep Dive:

The correct answers are A and B .

A is correct because if the firewall policy uses certificate inspection , FortiGate can inspect certificate/SNI metadata only. It cannot decrypt the HTTPS payload, so the antivirus engine never sees the EICAR file contents. That means HTTPS malware scanning fails even though HTTP scanning works.

B is also correct because if the destination site is exempt from SSL inspection , FortiGate intentionally skips decryption for that HTTPS session. Again, no payload decryption means no antivirus content scan.

Why the others are wrong:

C is not the likely reason here, especially for EICAR, which is a very small test file.

D would usually cause browser certificate warnings or connection issues during deep inspection, not a clean download that bypasses AV inspection.

Operationally, HTTPS antivirus requires this chain to be true:

firewall policy match → SSL deep inspection active → site not exempted → AV profile applied .

If either certificate-inspection is used or the site is exempted, FortiGate cannot inspect the encrypted file body.

In FortiOS 7.6, firewall policies can be displayed in multiple views to help administrators understand and manage rules more effectively. The difference in ordering between Interface Pair View and By Sequence View is intentional and documented.

Why the policy order is different

Interface Pair View

Groups firewall policies based on the incoming (From) and outgoing (To) interfaces.

Policies are organized under interface pairs such as:

LAN → WAN

WAN → LAN

Within each interface pair, policies may appear reordered compared to the global list.

This view is designed for readability and troubleshooting, not to show execution order.

By Sequence View

Displays firewall policies in their actual evaluation (processing) order.

This is the top-down order FortiGate uses when matching traffic.

It reflects the real rule sequence that determines which policy is hit first.

Why option C is correct

C. Interface Pair View sorts policies based on matching interfaces, while By Sequence View shows the actual processing order of rules.

This statement exactly matches FortiOS behavior as documented in the FortiOS 7.6 Firewall Policy Views section of the Administrator Guide.

Why the other options are incorrect

A: Interface Pair View does not follow traffic logs, and By Sequence View is not based on “rule priority” grouping.

B: FortiGate does not dynamically reorder policies based on traffic patterns.

D: Security levels do not affect policy ordering in Interface Pair View.

From the exhibits:

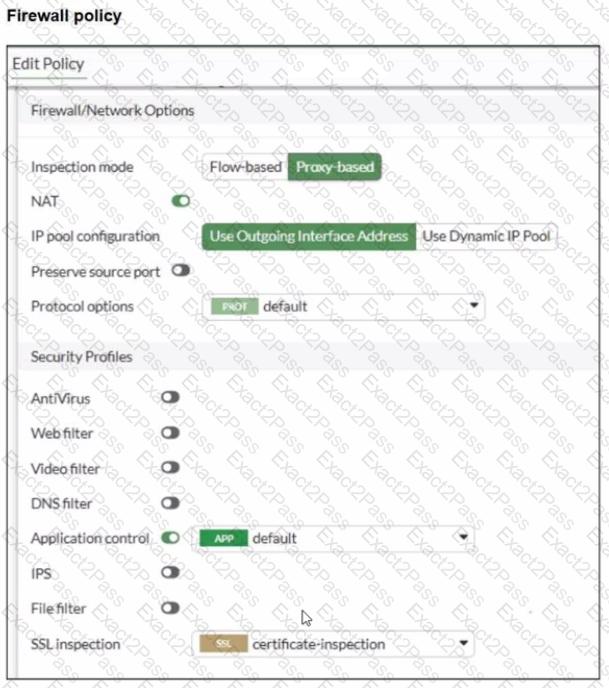

The firewall policy has Application Control enabled and uses certificate-inspection for SSL inspection.

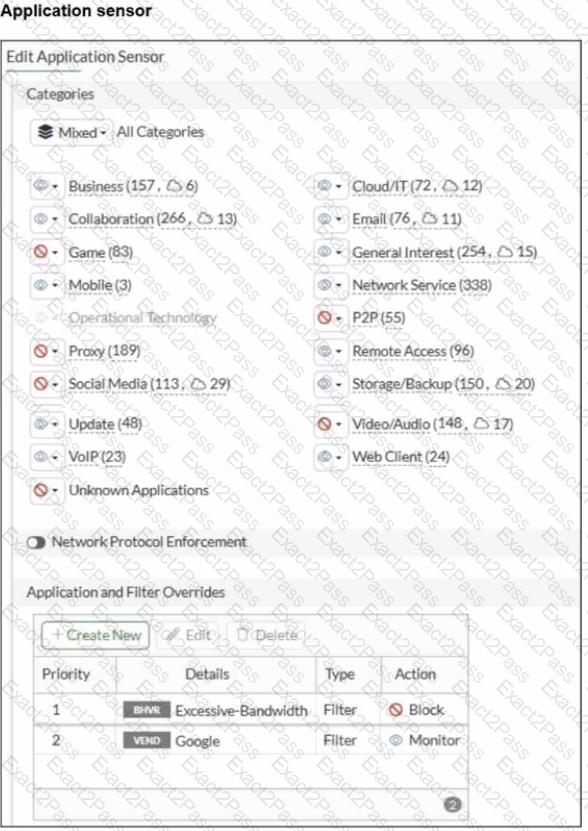

The application sensor has Application and Filter Overrides with the following order (priority):

Excessive-Bandwidth with action Block

Google (vendor filter) with action Monitor

In FortiOS, Application and Filter Overrides are evaluated by priority (top-down). The first matching override is applied. If traffic matches an earlier override with Block, it will be blocked even if a later override would Monitor/Allow it.

Why Google apps fail while www.fortinet.com works:

Many Google applications can be detected as (or can trigger) the Excessive-Bandwidth behavior/signature depending on the specific service and traffic pattern.

Because Excessive-Bandwidth (Block) is above Google (Monitor), Google-related traffic may match the first rule and be blocked before the Google override is evaluated.

Access to www.fortinet.com works because that traffic is not matching the Excessive-Bandwidth override.

Therefore, to resolve:

B. Move up Google in the Application and Filter Overrides section to set its priority higher

This ensures Google matches the Google override before any broader blocking override is applied.

E. Set the action for Google in the Application and Filter Overrides section to Allow

This explicitly permits Google applications once the higher-priority match occurs (stronger than Monitor for troubleshooting and ensuring access).

Why the other options are not the best fit here:

A (deep-content inspection) can help identify more HTTPS applications, but the exhibit already shows a specific Google override configured; the immediate issue is the override evaluation order and action.

C relates to Web Filter URL categories, but the problem is occurring under Application Control behavior/vendor overrides.

D (flow-based) is not required to fix an override priority/action conflict.

“ Rate-based IPS signatures also allows you to detect anomalies, which are unusual behaviors in the network...”

“There are two ways to add predefined signatures to an IPS sensor. One way is to select the signatures individually... The second way to add a signature to a sensor is using filters.”

“ You can also add rate-based signatures to block specific traffic when the threshold is exceeded. On the CLI, If you set the command rate-mode to periodical, FortiGate triggers the action when the threshold is reached during the configured Duration time period. ”

Technical Deep Dive:

The correct answer is C. Use IPS signatures, rate-mode periodical option.

The guide is explicit that this behavior belongs to rate-based IPS signatures . The question asks for blocking traffic when a signature is triggered a certain number of times within a defined interval. That is exactly what rate-mode periodical does: it evaluates the trigger count over the configured duration window and then applies the configured IPS action when the threshold is met.

Why the other options are wrong:

A is wrong because rate-mode 60 is not the documented syntax or method.

B is wrong because packet logging records packets; it does not implement threshold-based blocking logic.

D is wrong because the guide ties rate-mode periodical to rate-based signatures , not to IPS filters as the mechanism for this threshold behavior.

Operationally, this is used for anomaly-style detection, similar in concept to lightweight rate-based protection. A typical CLI pattern is along these lines:

config ips sensor

edit " custom-ips "

config entries

edit 1

set rule < signature_id >

set rate-mode periodical

set rate-count < threshold >

set rate-duration < seconds >

set action block

next

end

next

end

This works best when applied only to relevant protocols and signatures, because broad use of rate-based signatures can consume more resources and increase false-positive risk.

In FortiOS 7.6 Application Control, security logs are generated primarily for actions such as Block or Monitor, not for Allow actions.

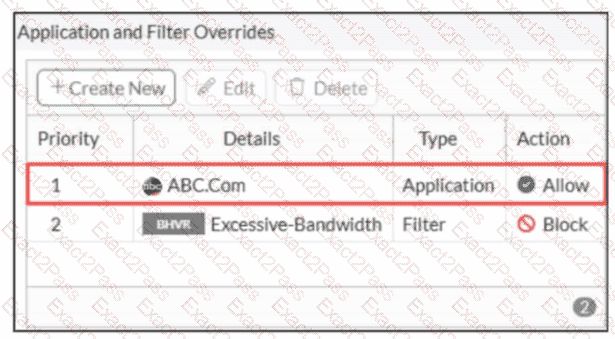

What is happening in the exhibit

An Application Override is configured for ABC.Com

Type: Application

Action: Allow

The application control profile is applied to a firewall policy

Logging is enabled on the firewall policy

Traffic to ABC.Com is successfully allowed

However, no security logs appear for ABC.Com.

Why no logs are generated

In FortiOS 7.6:

Application Control logs are written to Security Logs when:

An application is Blocked

An application is Monitored

When an application action is set to Allow:

The traffic is permitted silently

No application control security log is generated

Even if policy logging is enabled

This is expected and documented behavior.

To generate logs for allowed applications, the action must be set to Monitor, not Allow.

Why the other options are incorrect

A. ABC.Com is hitting the category Excessive-BandwidthIncorrect. ABC.Com has a higher-priority explicit override (priority 1), so it is not evaluated against the Excessive-Bandwidth filter.

B. The ABC.Com Type is set as Application instead of FilterIncorrect. Application-type overrides are valid and commonly used; this does not suppress logging.

C. The ABC.Com must be configured as a web filter profileIncorrect. This traffic is being evaluated by Application Control, not Web Filter.

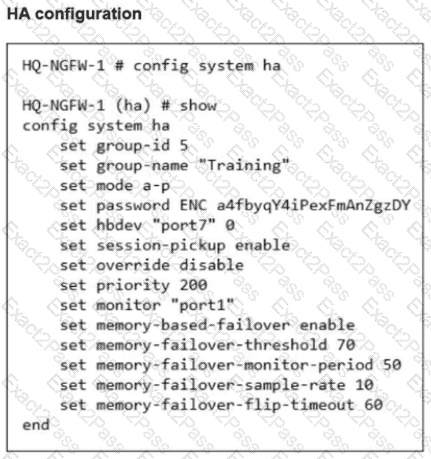

From the HA configuration shown for HQ-NGFW-1:

set memory-based-failover enable

set memory-failover-threshold 70

set memory-failover-monitor-period 50

set memory-failover-sample-rate 10

set memory-failover-flip-timeout 60

set override disable

set priority 200

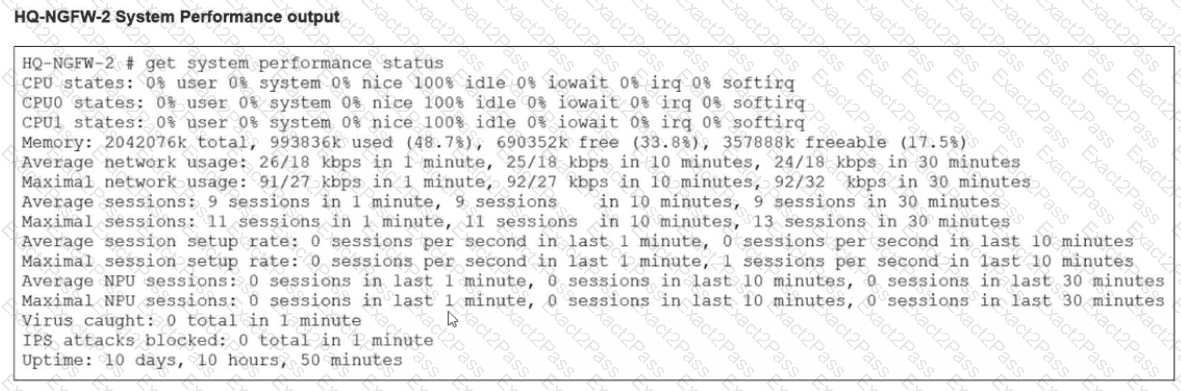

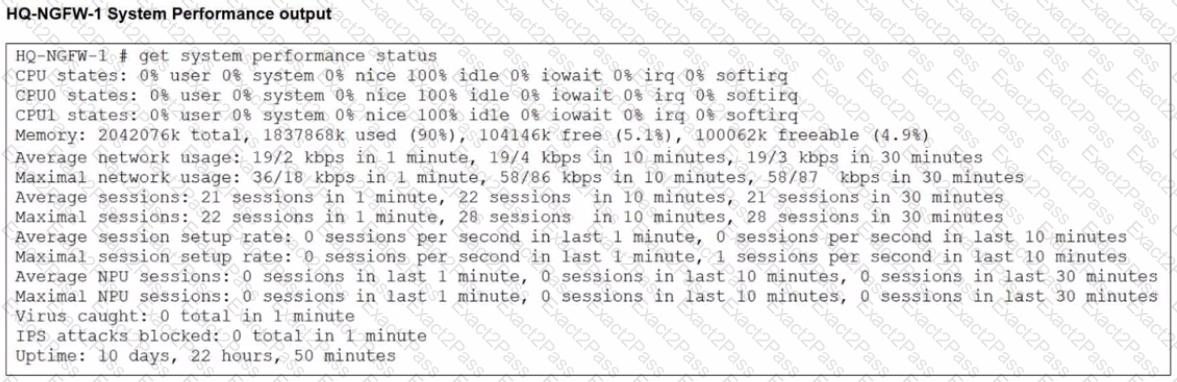

From the performance status outputs:

HQ-NGFW-1 memory used is 90% (well above the configured threshold of 70%)

HQ-NGFW-2 memory used is about 48.7% (well below the threshold)

What happens in FortiOS 7.6 with memory-based failover

When memory-based failover is enabled, FortiGate monitors memory utilization. If the unit’s memory usage stays above the configured memory-failover-threshold for the configured memory-failover-monitor-period, the cluster triggers a failover away from the unit under memory pressure.

Threshold = 70%

HQ-NGFW-1 is at 90%, so it violates the threshold.

Monitor period = 50 seconds.

The administrator observed for 55 seconds, which is longer than 50 seconds, so the condition is met for long enough to trigger failover.

The memory-failover-flip-timeout 60 is used to prevent rapid back-and-forth role changes (flapping) after a failover decision; it does not prevent the initial failover from occurring once the threshold breach persists for the monitor period.

In FortiOS 7.6, the Antivirus scan master switch in an antivirus profile becomes available only after at least one supported protocol is enabled for inspection.

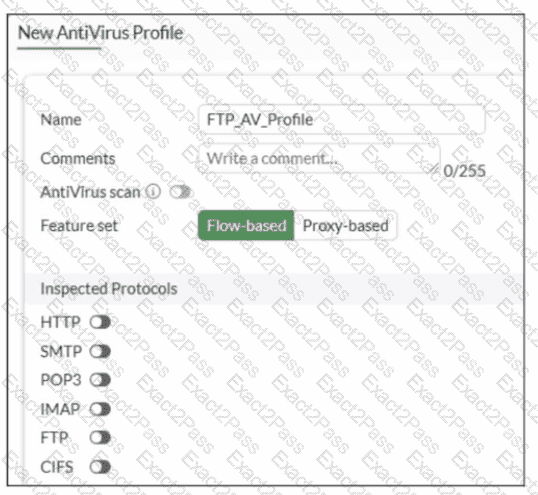

What the exhibit shows

A new antivirus profile named FTP_AV_Profile

Feature set: Flow-based

Antivirus scan switch is grayed out

All Inspected Protocols (HTTP, SMTP, POP3, IMAP, FTP, CIFS) are currently disabled

Why the Antivirus scan switch is grayed out

In FortiOS antivirus profiles:

The Antivirus scan toggle is a dependent control

It cannot be enabled unless at least one inspected protocol is selected

This prevents enabling AV scanning when there is no traffic type to scan

This behavior is documented in the FortiOS 7.6 Antivirus Profile configuration section.

Once you enable a protocol (for example, FTP), the Antivirus scan switch becomes active and configurable.

Why option B is correct

B. None of the inspected protocols are active in this profile.

All protocol toggles are OFF

Therefore, FortiGate disables (grays out) the Antivirus scan option

This is expected and correct behavior

Why the other options are incorrect

A. Antivirus scan is disabled under Feature visibilityIncorrect. Feature Visibility controls whether Antivirus appears in the GUI, not whether the scan switch is enabled inside a profile.

C. Feature set must be Proxy-basedIncorrect. Antivirus scanning is supported in both flow-based and proxy-based modes.

D. Less than 2 GB RAM does not support Antivirus scanIncorrect. Memory size affects performance and offloading, not basic AV scan availability.

According to the FortiOS 7.6 Administration Guide, the firewall policy ID is a unique numerical identifier assigned to each policy for internal database tracking and management purposes. It is important to distinguish the policy ID from the policy sequence . While the FortiGate processes traffic based on a top-down approach (the sequence), the policy ID itself does not determine the order of execution (Statement A is incorrect).

In FortiOS, once a policy is committed to the configuration, the policy ID cannot be modified (Statement B). If an administrator needs to change a policy ID, they must either delete and recreate the policy or use the clone command in the CLI to copy the settings to a new ID.

Furthermore, the CLI provides a specific shortcut for policy creation: you can create a policy with ID 0 (Statement C). When the command edit 0 is used within the config firewall policy context, the FortiOS kernel automatically assigns the next available integer as the policy ID. This is a standard practice for efficient configuration via the command line. Statement D is incorrect because, while every policy must have an ID, the GUI automatically generates this value without requiring the user to manually provide or even see it during the initial creation process.
