The cumulative cost baseline typically forms an " S " curve, reflecting slow initial expenditures, accelerating progress during peak activities, and tapering off as the project concludes.

Option A, B, and D do not represent the characteristic shape of a project ' s cost curve.

The PSP Stu dy Guide highlights the " S " curve as a standard graphical representation of cumulative project costs over time​.

 Key to Duration Accuracy :

A sp ecialized industry handbook offers standardized and validated task durations tailored to the specific context of petrochemical plants.

 Analysis of Options :

Option A : General industry publications may lack specificity.

Option B : Past project schedules pr ovide insight but may not reflect the specific context or updated methodologies.

Option C : The handbook is most relevant as it is tailored to the specific project type.

Option D : Cost estimates are useful for budget alignment but not as precise for duratio n calculation.

 PSP Study Guide References :

The guide advises leveraging validated industry resources for project-specific accuracy in duration estimation​.

 Conclusion : The correct answer is C , as a specialized industry handbook provides the most reliable and context-specific data for duration estimation.

 Activity-specific costs in CPM schedules typically include direct expenses like materials (C), field-related overhead (D), and specific schedule management tasks (B).

 Home office expenses are classified as indirect costs and are not associated with any specific activity within the project schedule. They are accounted for in broader financial stat ements rather than in the activity-based budget.

 References: PSP Study Guide, Section 1.3.10 – Cost Estimate Development , explains how costs are categorized and assigned in schedules.

 Delay Analysis :

Analyzing delays contemporaneously ensures accurate understanding of their causes and effec ts, helping stakeholders mitigate impacts in real time.

Waiting until after the project introduces risks of incomplete or inaccurate records.

 PSP Study Guide References :

Contemporary delay analysis is highlighted as a best practice for effective delay r esolution and management​.

 Conclusion : The correct answer is B , as contemporaneous analysis is the most effective way to address project delays.

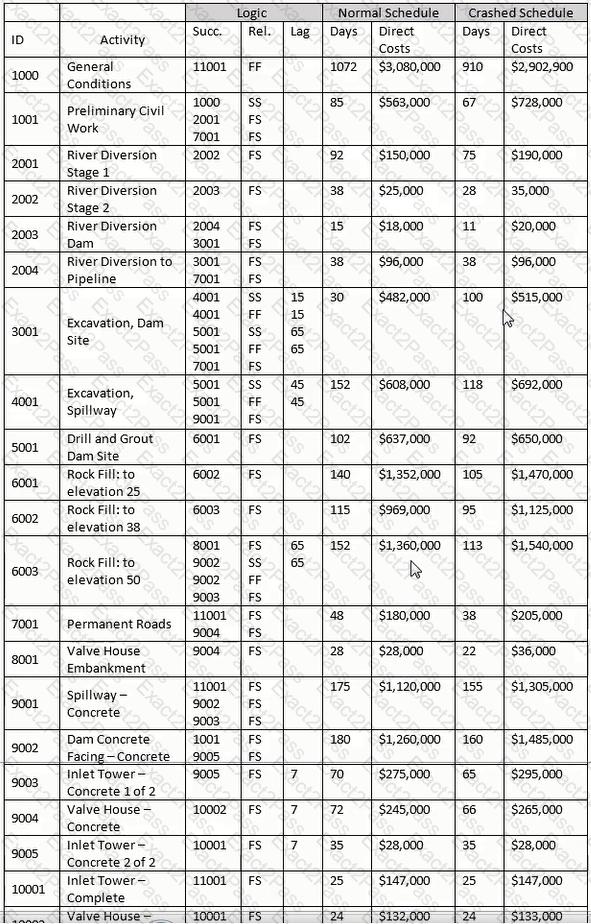

Analyze the Relationship Details : The table shows that Activity 3001 ( " Excavation, Dam Site " ) and Activity 4001 ( " Excavation, Spillway " ) have a Start-to-Start (SS) relationship with a lag of 15 days . A Start-to-Start relationship indicates that the successor activity (4001) can only start after a s pecified lag period once the predecessor activity (3001) begins.

Understand the Concept of Lag : In scheduling terminology, lag refers to a delay or waiting period between the start (or finish) of one activity and the start (or finish) of a dependent activi ty. Here, the 15-day lag means that Activity 4001 will commence 15 days after Activity 3001 has started.

Interpret the Relationship : The SS relationship combined with a lag indicates that the two activities (3001 and 4001) are not starting exactly at the s ame time but are still overlapping or concurrent . This concurrency happens after the lag period elapses.

Verify PSP Study Guide and Relevant Terminology : According to AACE International’s Recommended Practices and the PSP Certification Study Guide:

Start-t o-Start relationships are widely used to model overlapping work in schedules where one activity can start before its predecessor is fully complete (PSP Study Guide, Chapter on Scheduling Relationships and Constraints).

Lags provide flexibility to model rea listic conditions where tasks start partially overlapping or with delays (PSP Study Guide, Section 2.2.4 Relationships).

Cross-Check the Answer Options :

Option A (Correct) : Matches the described logic – " These activities are concurrent with Activity 4001 s tarting 15 days after the start of Activity 3001. "

Option B : Incorrect – Lag is applied to the successor activity, meaning 4001 cannot start earlier than 3001.

Option C : Incorrect – This relationship (SS with a lag) indicates concurrency, not series.

Optio n D : Incorrect – Though concurrent, the lag makes the start times offset by 15 days, so they do not start at the same time.

 Mitigating Late Completion:

A procurement agent could monitor and expedit e long-lead equipment, reducing delivery delays that often affect project timelines.

 Evaluation of Other Options:

A: Hiring a senior project manager may not address the specific issue.

B: Self-performing may not resolve procurement delays.

D: Better str uctural steel drawings relate to design, not equipment delays.

 Verification with PSP Guidelines:

PSP emphasizes early identification and mitigation of procurement risks (Ref: PSP Study Guide, Chapter 2B: Procurement and Supply Chain Management).

A driving relationship is the dependency link where the predecessor activity directly governs the dates of the successor activity.

Option A confuses " driving " with critical path relationships.

Option B oversimplifies by focusing on one type of relationship.

Option C is vague and does not specify the control aspect.

The driving relationship determines schedule flow and is essential for maintaining logical dependencies in CPM scheduling​.

 Crashed Schedule Predecessors to Activity 2004:

Activity 2004 (River Diversion to Pipeline) depends on completion of:

1001 (Preliminary Civil Work) .

2001 (River Diversion Stage 1) .

2002 (River Diversion Stage 2) .

2003 (River Diversion Dam) .

 Exclusion of Other Activities:

Activity 2007 is not part of the crashed schedule ' s direct predecessor ch ain.

Other options include duplicated or incorrect entries.

 PSP Study Guide Reference:

Logical sequence analysis confirms these predecessors (Ref: PSP Study Guide, Chapter 2A: Activity Sequencing and Critical Path Analysis).
