Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In an enterprise architecture, LAN interface connections on a FortiGate (particularly for Internal Segmentation Firewalls or Data Center Firewalls) typically utilize two key technologies for connectivity and management:

802.3ad (Aggregate Interfaces): To provide redundancy and high-speed data transfer, firewalls connect to multiple physical switches using 802.3ad link aggregation, combining multiple physical interfaces into a single logical interface.

FortiLink: This is the proprietary protocol used for the management of FortiSwitch units by the FortiGate unit. When the LAN connection is to a FortiSwitch, FortiLink is used to extend the FortiGate ' s control over the switch ports as if they were local ports on the firewall itself.

==============

According to the FortiManager central management documentation, pre-run CLI templates are specifically designed for provisioning tasks on Low-Touch Provisioning (LTP) or Zero-Touch Provisioning (ZTP) model devices. Once the installation is performed for the first time and the real device is successfully linked to FortiManager, the template is automatically unassigned (auto-unassigned) from the firewall. This is distinct from standard CLI templates, which remain assigned to the device until an administrator manually removes them.

==============

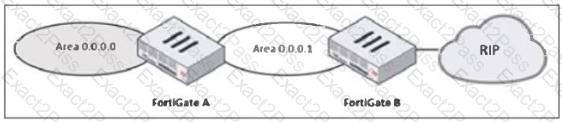

From the OSPF status output, the key information is:

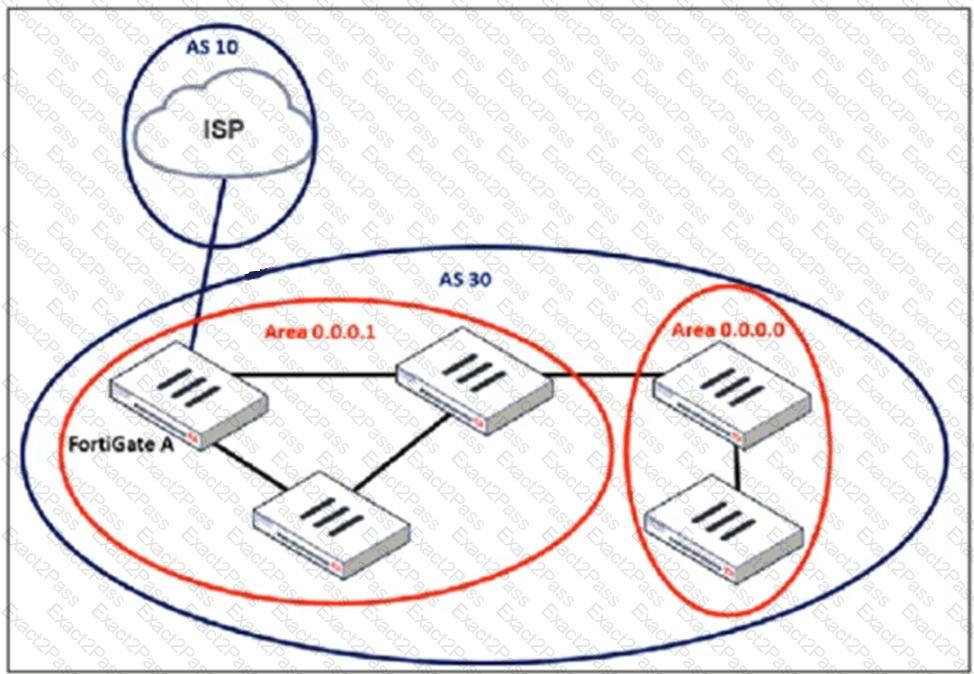

● " This router is an ASBR " → This means the FortiGate is acting as an Autonomous System Boundary Router (ASBR).

● An ASBR is responsible for injecting external routing information into OSPF from another routing protocol (such as BGP, static routes, or connected networks).

The diagram shows a FortiGate connected to two FortiSwitches, which suggests the use of FortiLink, Fortinet ' s protocol for managing switches directly from a FortiGate. Since multiple connections are being used, the LAN interface must be set to 802.3ad (LAG) mode to aggregate the links for redundancy and load balancing.

This setup allows FortiGate to handle VLAN assignments dynamically, as seen with VLAN 10 (192.168.15.1/24). FortiLink ensures seamless integration between FortiGate and FortiSwitches, making STP unnecessary because Fortinet ' s MCLAG prevents loops at Layer 2. SD-WAN, on the other hand, is used for WAN interfaces and does not apply to switch connectivity in this scenario.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

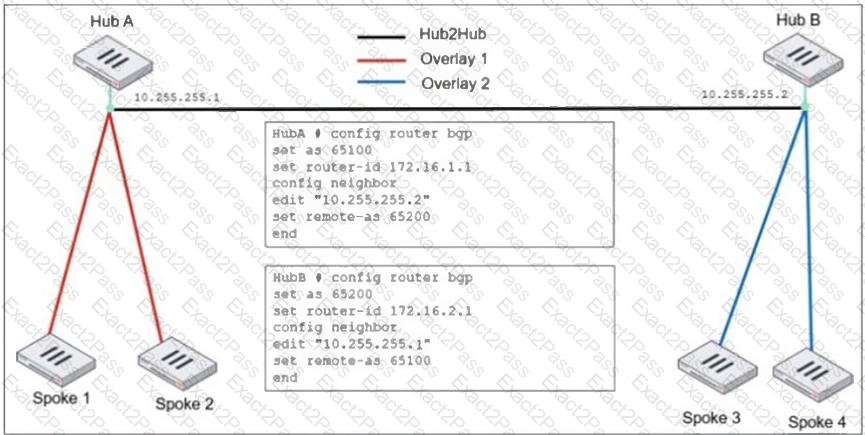

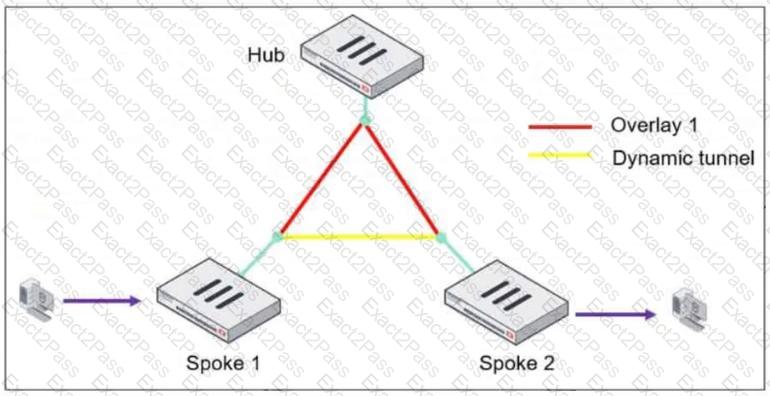

To deploy ADVPN (Auto-Discovery VPN) efficiently across an enterprise, Fortinet recommends centralized orchestration and standardized provisioning:

VPN Manager (A): Within FortiManager, the VPN Manager is the primary tool for orchestrating complex VPN topologies. It allows administrators to define a Hub-and-Spoke community and enable ADVPN features (like shortcuts) globally across all participating devices from a single interface.

IPsec templates (D): These templates (found under Provisioning Templates in FortiManager) allow administrators to define standard Phase 1 and Phase 2 settings once and apply them to multiple model devices or device groups. This ensures consistency across the enterprise and significantly reduces the manual configuration required for each spoke.

==============

Encapsulation (such as IPsec, VXLAN, or FGSP synchronization) adds overhead to standard packets, often causing them to exceed the standard MTU of 1500 bytes and leading to fragmentation or dropped packets. The Enterprise Firewall curriculum notes that while " jumbo packets " can be detected as possible attacks by IPS, adjusting MTU and MSS values to account for encapsulation should ideally be performed in a controlled environment . This allows administrators to accurately measure the required overhead and verify that the adjustments do not cause unintended network instability or performance degradation across the entire infrastructure.

==============

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

VXLAN (Virtual Extensible LAN) is an encapsulation protocol that adds significant overhead due to the addition of outer Ethernet, IP, and UDP headers. Handling this encapsulation and decapsulation in software can lead to high CPU utilization and performance bottlenecks.

The latest generations of Fortinet ' s network processors, specifically the NPU7 , include dedicated hardware support for VXLAN offloading . Hardware acceleration via NPU7 allows the FortiGate to perform VXLAN encapsulation and decapsulation at wire speed within the network processor hardware. This drastically improves performance compared to processing the packets in the CPU (Option A). CP10 (Option C) is a content processor designed for offloading UTM and SSL tasks, while NTurbo (Option B) is a software optimization for offloading flow-based IPS, neither of which are designed for VXLAN header processing.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Infrastructure study guide and Hardware Acceleration documentation, the Network Processor 7 (NP7) is the flagship hardware component designed to offload high-performance network traffic from the system CPU. A critical advancement of the NP7 over previous generations (such as the NP6) is its native support for Virtual eXtensible LAN (VXLAN) hardware acceleration.

In enterprise environments where VXLAN is used to extend Layer 2 segments over a Layer 3 network, the encapsulation and decapsulation of VXLAN headers can be computationally expensive. The NP7 provides specialized circuitry to perform these operations at line rate, significantly reducing latency and preventing CPU saturation. This allows the FortiGate to maintain high throughput even when handling complex overlay tunnels.

While the CP9 (Content Processor) (Option C) provides acceleration for SSL/TLS inspection and IPsec encryption, it does not handle network layer encapsulation like VXLAN. NTurbo (Option D) is a software feature that offloads firewall sessions to the network processors but is not a hardware chip itself. The SP5 (Option B) also supports VXLAN offloading in newer mid-range models, but the NP7 is the primary " specialized acceleration hardware " referenced for high-end enterprise performance in the 7.6 curriculum.

According to the FortiGate security profile documentation, standard certificate inspection (which uses SNI) only examines the certificate header and does not allow the firewall to see the actual payload of an encrypted session. To identify attacks such as PHP code injection or malware hidden within HTTPS traffic, the FortiGate must be configured with full SSL inspection (also known as deep SSL inspection). This process requires the FortiGate to act as a man-in-the-middle, decrypting the traffic using a trusted CA certificate, inspecting the cleartext content for threats, and then re-encrypting it before sending it to the destination.

==============

Network segmentation is a critical security practice used to divide a larger network into smaller, isolated sub-networks to improve security and performance.

VDOM (Virtual Domain): A FortiGate unit can be partitioned into multiple virtual domains (VDOMs) that act as independent units. This provides complete virtualization of the security configuration and network segmentation within a single physical device.

VLAN (Virtual Local Area Network): A VLAN is a logical subdivision of a network at Layer 2 that segregates devices into separate broadcast domains. The study guide explicitly lists " VLANs, VDOMs, zone-based interfaces, and micro-segmentation " as key features for internal segmentation firewalls (ISFW).

==============
