When two BGP peers negotiate the Hold Time, the shorter value between the two configured Hold Time values is selected. This ensures compatibility and maintains the stability of the BGP session ​.

 IS-IS Overview: Intermediate System to Intermediate System (IS-IS) is a link-state routing protocol. Routers exchange Link State Packets (LSPs) to maintain a synchronized link-state database. These LSPs are categorized into Level-1 LSPs (intra-area routing) and Level-2 LSPs (inter-area routing). Both types share the same packet format.

HCIP-Datacom-Core Technology Training Material (IS-IS LSPs and Packet Structure)​​.

 LSP ID Format: The LSP ID uniquely identifies each LSP and ensures accurate routing information. It comprises the following components:

System ID (C): A 6-byte identifier assigned to each router, derived from the router's NET (Network Entity Title). This identifier ensures unique identification of routers within the IS-IS domain.

Pseudonode ID (B): Assigned when a router acts as a Designated Intermediate System (DIS) on a broadcast network. It differentiates LSPs generated by the DIS from other routers.

LSP Number (A): A 1-byte field indicating the sequence number of the LSP. It helps distinguish multiple LSPs generated by the same router for the same level.

BGP does not advertise all routes learned from peers to other peers. By default, only the best (optimal) routes selected by BGP are advertised to other peers. Additionally, routes learned from IBGP peers are not forwarded to other IBGP peers unless a route reflector or confederation setup is used. The statement claiming all learned routes are advertised is false ​.

Understanding the LSDB and Level-2 DIS Election in IS-IS:

In IS-IS, the Designated Intermediate System (DIS) is elected for both Level-1 and Level-2 on broadcast networks to manage the link-state database (LSDB) and reduce the number of LSAs exchanged.

The election of the DIS is based on the highest priority. If the priority is the same, the router with the highest System ID becomes the DIS.

HCIP-Datacom-Core Technology Training Material (IS-IS DIS Election)​​.

Analyzing the LSDB:

From the LSDB of R1, the Level-2 link-state database includes the following entries:

LSPID 0100.0000.3003.00-00: This is R3, and it is present in the Level-2 LSDB with the sequence number and checksum details.

Other routers (R1, R2, R4) are present but do not have the characteristics of the Level-2 DIS in this topology.

Based on the System IDs, R3 (0100.0000.3003) has the highest System ID, making it the Level-2 DIS.

Conclusion:

The Level-2 DIS on the network is R3, based on the election rules and the LSDB information shown in the figure.

Comprehensive and Detailed Step-by-Step Explanation:

IS-IS Three-Way Handshake:

IS-IS uses a three-way handshake to establish neighbor relationships.

This process is applied on both point-to-point (P2P) and broadcast network types to confirm bidirectional communication.

P2P Networks:

Routers directly exchange IS-IS Hello (IIH) packets to establish adjacency.

Broadcast Networks:

IS-IS also uses the three-way handshake on broadcast networks to ensure that the Designated Intermediate System (DIS) election and adjacency formation are correct.

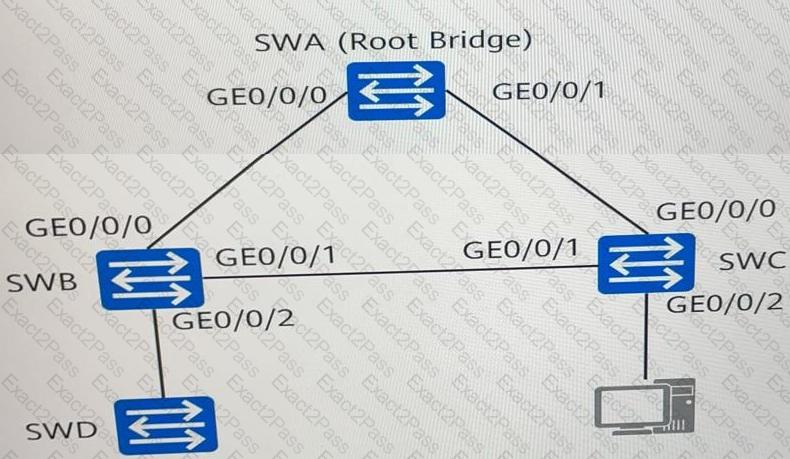

Root protection ensures that a designated port does not become a root port by discarding superior BPDUs. However, if superior BPDUs are no longer received, the port can return to its original forwarding state, meaning its role can change. This makes option B incorrect, while the other options correctly describe RSTP behavior ​.

In inter-AC roaming scenarios, an AC (Access Controller) can serve as the mobility server for multiple mobility groups, enabling it to manage roaming among multiple groups. However, an AC can only belong to one specific mobility group. This constraint ensures that mobility management remains streamlined and avoids conflicts. Huawei WLAN mobility configuration guides validate this setup ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the Prefix List Configuration:

The command ip ip-prefix test index 10 permit 10.0.0.0 8 less-equal 32 defines the following:

The prefix base is 10.0.0.0 with a mask length of 8 bits.

The less-equal 32 condition allows routes with mask lengths ranging from 8 to 32 bits to match.

2. Analysis of Each Route:

Option A: 10.1.1.1/32

Correct.

The prefix 10.1.1.1/32 falls within the 10.0.0.0/8 network range and has a mask length of 32 bits, which satisfies the less-equal 32 condition.

Option B: 10.1.1.0/6

Incorrect.

The prefix 10.1.1.0/6 has a mask length of 6 bits, which is shorter than the base prefix length of 8. It does not satisfy the condition.

Option C: 10.1.1.0/24

Correct.

The prefix 10.1.1.0/24 falls within the 10.0.0.0/8 network range and has a mask length of 24 bits, which satisfies the less-equal 32 condition.

Option D: 10.0.0.0/16

Correct.

The prefix 10.0.0.0/16 falls within the 10.0.0.0/8 network range and has a mask length of 16 bits, which satisfies the less-equal 32 condition.

3. Summary:

The prefixes that match the configuration are 10.1.1.1/32, 10.1.1.0/24, and 10.0.0.0/16.

Huawei HCIA-Datacom Study Guide, Chapter "IP Prefix Lists."

Huawei Configuration Examples for ACL and Prefix Lists.

 Notification Message Purpose

BGP Notification messages are used to report errors or terminate a connection. They do not request peers to resend routing information after routing policies are changed.

Routing updates following policy changes require manual resynchronization, not Notification messages.

 HCIP-Datacom-Core Reference

The purpose and usage of Notification messages are discussed in the BGP operation chapters​​.
