ARP spoofing is a Layer 2 attack, as it targets ARP tables in switches or end devices. All other attacks, including IP spoofing, ICMP attacks, and Smurf attacks, are network layer (Layer 3) attacks ​.

Router LSAs (Type 1) and Network LSAs (Type 2) are advertised only within a single OSPF area, as they describe the topology within the area. In contrast, Summary LSAs (Type 3) and AS External LSAs (Type 5) are used for inter-area and external routing, respectively ​.

The Origin attribute in the display bgp routing-table output is marked as i , indicating that the route was injected into the BGP routing table using the network command. The other options are incorrect because the AS path is not displayed, the MED is 0 , and the route is marked as the best ( > ), meaning it is the optimal route ​.

Comprehensive and Detailed In-Depth Explanation:

Type 1 LSAs (Router LSAs) are generated by every OSPF router to describe its directly connected links and their states.

The Router ID (RID) must be unique in an OSPF domain; otherwise, OSPF calculations will fail due to ambiguous paths .

If two routers in the same area have the same Router ID , OSPF will fail to calculate Shortest Path First (SPF) correctly, leading to routing inconsistencies.

To prevent this, Huawei routers automatically detect duplicate Router IDs and prevent OSPF from functioning properly until the issue is resolved.

???? Reference: Huawei HCIA-Datacom Study Guide, Chapter on OSPF LSAs and Router ID Uniqueness.

The DHCPNAK message is sent by the DHCP server to the client to indicate that the requested configuration is not valid. Messages like DHCPDiscover , DHCPRequest , and DHCPRelease are initiated by the client in the DHCP process ​.

Comprehensive and Detailed Step-by-Step Explanation:

Default OSPF Hello Timer:

The OSPF Hello timer is used to send periodic Hello packets and maintain neighbor relationships.

Default Hello timers:

Broadcast and P2P: 10 seconds

NBMA and P2MP: 30 seconds

Network Types Using 30s Hello Time:

P2MP (C): OSPF sends Hello packets every 30 seconds by default.

NBMA (D): OSPF also uses 30 seconds for NBMA networks.

Based on the MSTP configuration shown, the role of the switch in MSTI 1 cannot be determined without additional details about the topology or priority values of other switches in the instance. The role could be a root switch, secondary root, or non-root, depending on these factors ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Overview of PBR (Policy-Based Routing):

Policy-Based Routing (PBR) allows you to override traditional routing decisions by defining user-specific policies.

Interface-Based PBR : Applied to packets arriving at a specific interface and affects traffic being forwarded through the device.

Local PBR : Applied to traffic generated by the local router itself (e.g., locally originated packets such as management traffic).

2. Analysis of Each Statement:

Option A: Interface-based PBR takes effect only for forwarded packets.

Correct (True Statement) .

Interface-based PBR applies only to packets arriving at a specific interface and being forwarded through the router. It does not affect locally originated traffic.

Option B: Local PBR takes effect only for locally originated packets.

Correct (True Statement) .

Local PBR specifically applies to traffic generated by the router itself, such as pings, SNMP requests, or routing protocol updates.

Option C: Interface-based PBR is configured on an interface and takes effect only for incoming packets on the interface.

Correct (True Statement) .

Interface-based PBR is applied directly on the interface using commands like policy-based-route. It only affects traffic entering the specified interface.

Option D: Local PBR is configured in the protocol view.

Incorrect (False Statement) .

Local PBR is not configured in the protocol view. It is typically configured using the command local-policy in the system view to handle traffic generated by the router.

3. Summary:

Correct Answer: D (Local PBR is NOT configured in the protocol view).

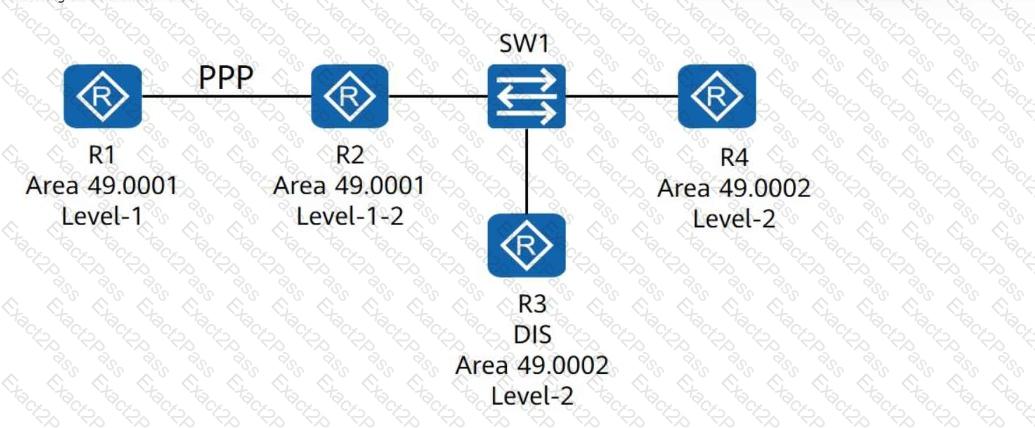

 R3, as the DIS in the Level-2 domain, periodically sends Complete Sequence Number Protocol Data Units (CSNPs) to ensure LSDB synchronization among Level-2 routers.

 R1 and R2 are in a Level-1 domain, and IS-IS requires the receiving router (R2) to acknowledge an LSP from R1 by sending a Partial Sequence Number Protocol Data Unit (PSNP).

 IS-IS LSPs in a broadcast network are sent using multicast, not unicast, making option C incorrect.

 For Level-2 LSPs, acknowledgments are not provided using PSNP by R3; CSNPs are sufficient for synchronization ​.

Comprehensive and Detailed Step-by-Step Explanation:

Overview of IGMP Versions:

IGMPv1: The simplest version, supports basic group membership management using Report messages but lacks Leave messages.

IGMPv2: Adds features like Leave messages and Group-Specific Queries.

IGMPv3: Supports specifying multicast sources for Source-Specific Multicast (SSM).

Feature Supported by All Versions:

Report messages are fundamental to IGMP functionality and are supported in all three versions.

Features Not Supported by All Versions:

Group-Specific Queries (A): Supported in IGMPv2 and IGMPv3.

Leave Messages (B): Introduced in IGMPv2.

Specifying Multicast Sources (D): Introduced in IGMPv3.
