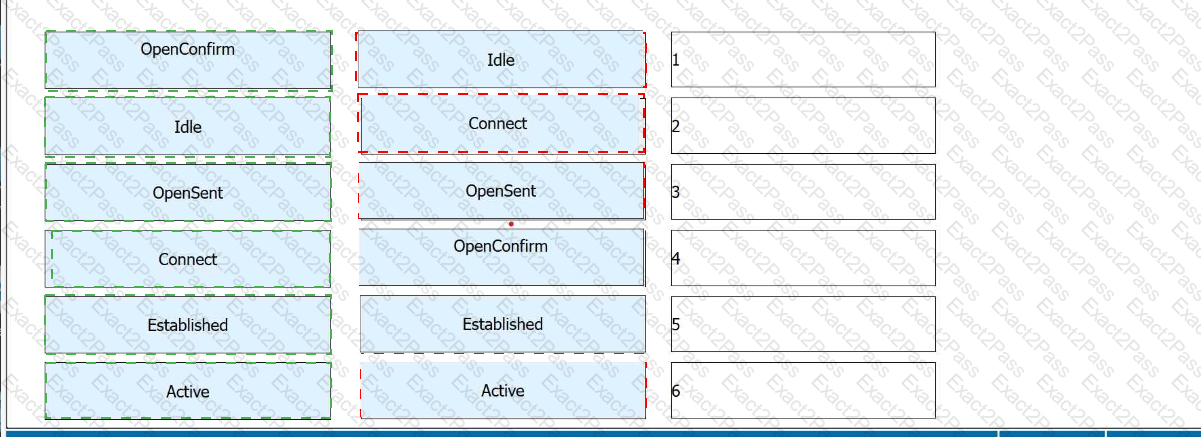

1 – Idle

2 – Connect

3 – OpenSent

4 – OpenConfirm

5 – Established

6 – Active

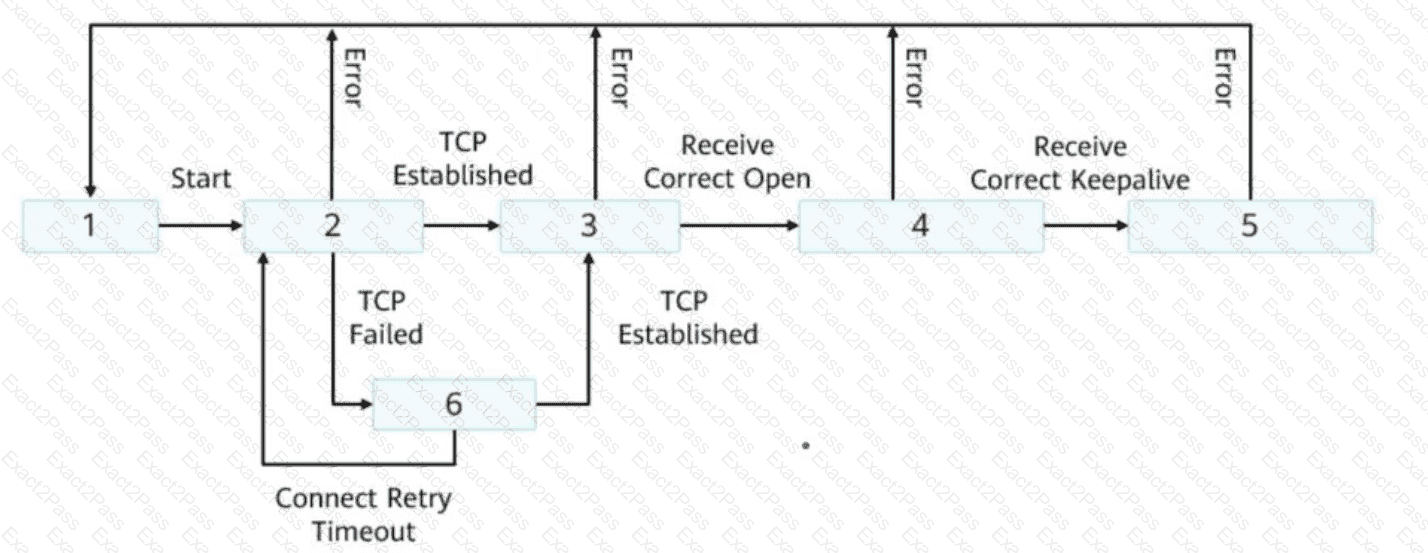

The BGP finite state machine defines how a BGP speaker transitions through various states when establishing and maintaining a BGP session. Below is the role of each state:

Idle (1) – BGP is waiting to start a connection. Initial state of the BGP process.

Connect (2) – BGP initiates a TCP connection to the peer.

OpenSent (3) – TCP connection is established; BGP sends an OPEN message and waits for one from the peer.

OpenConfirm (4) – BGP has received a valid OPEN message and is now expecting a KEEPALIVE.

Established (5) – BGP session is fully established; UPDATE messages can now be exchanged.

Active (6) – If the TCP connection fails in Connect state, BGP transitions to Active and will retry connection.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BGP goes through the following states in order: Idle → Connect → Active → OpenSent → OpenConfirm → Established. The transition depends on the success or failure of TCP connection setup and BGP message exchanges.”

(Chapter: BGP Principles – Section: BGP State Machine)

OSPF process IDs are locally significant and do not need to match between routers to form neighbor relationships. The other statements correctly describe the behavior of OSPF multi-instances, making Option C false ​.

Routing Entries in PIM

(S, G) entries: Represent the shortest path tree (SPT) from a specific source (S) to a specific multicast group (G). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

In PIM-DM, multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

In PIM-SM, multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters​​.

Comprehensive and Detailed In-Depth Explanation:

The Flag field in a routing table entry provides specific information about the route.

G (Gateway flag): This flag indicates that the next hop is a gateway (another router) rather than a directly connected destination.

S (Static flag): This flag indicates that the route was manually configured as a static route.

H (Host flag): This flag means that the destination is a directly connected host, not a network.

D (Dynamic flag): This flag is used for dynamically learned routes from protocols like OSPF, EIGRP, or BGP.

Since we are looking for the flag that indicates the next hop is a gateway, the correct answer is G.

???? Reference: Huawei HCIA-Datacom Study Guide, Chapter on Routing Table and FIB Entries.

By default, a router interface sends PIM (Protocol Independent Multicast) Hello messages every 30 seconds to maintain neighbor relationships. This interval can be adjusted using configuration commands ​.

 Export Routing Policy Changes

When an export routing policy is modified, BGP does not automatically resend affected routes. Manual intervention, such as a clear ip bgp command, is required to resend Update messages reflecting the new policy.

 Incorrect Options

B. IGP routes can also be advertised into BGP using redistribution, not just the network command.

C. A router can be configured with multiple BGP processes using different AS numbers (multi-instance BGP).

D. Open messages carry additional parameters such as AS number, Hold Time, and Router ID, not just the header.

 HCIP-Datacom-Core Reference

BGP policy and update behavior are detailed in the route control and redistribution chapters​​.

Comprehensive and Detailed Step-by-Step Explanation:

Portal Authentication:

Portal authentication uses a web-based mechanism where clients are redirected to a login page.

Communication between the access device and Portal server uses HTTP or HTTPS protocols.

Correct Statements:

Option A: HTTP or HTTPS is used for Portal authentication.

Option D: Portal protocol packets are transmitted over TCP for reliable communication.

Incorrect Statements:

Option B: Port 2000 is not the default for processing Portal packets.

Option C: The default destination port for communication with the Portal server is not 50100.

In OSPF, Database Description (DD) packets are used during the database synchronization process. In the first DD packet a router sends during neighbor establishment, three control bits are set:

I bit (Initial) = 1 → This indicates that the DD packet is the first in the sequence.

M bit (More) = 1 → This means more DD packets will follow.

MS bit (Master/Slave) = 1 → Set by the router assuming the master role in the exchange process.

Setting all three bits to 1 is a standard part of the DD exchange initiation.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“In the initial DD packet, the I, M, and MS bits are set to 1 by the master router initiating database exchange.”

(Chapter: OSPF Operation Mechanism – Section: Neighbor State Machine)

 GMP Snooping Proxy

IGMP snooping proxy allows the switch to substitute for upstream Layer 3 devices and downstream hosts, reducing unnecessary bandwidth consumption by consolidating IGMP messages.

 HCIP-Datacom-Core Reference

The IGMP snooping proxy functionality is described in multicast optimization and IGMP configuration chapters​​

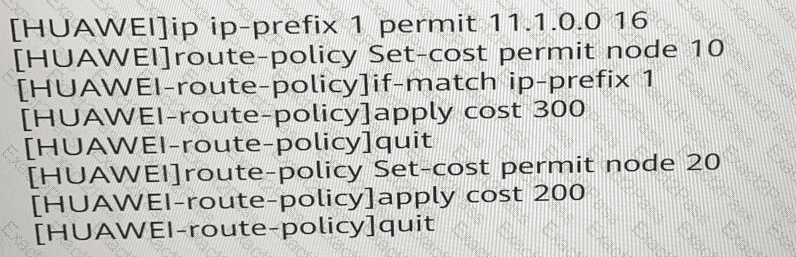

The route-policy configuration specifies that node 10 matches the IP prefix 11.1.0.0/16 and applies a cost of 300 to this route. Once a route matches a node, it is no longer processed by subsequent nodes, making option D incorrect. Option B is also incorrect because only specific matching routes have their costs changed ​.
