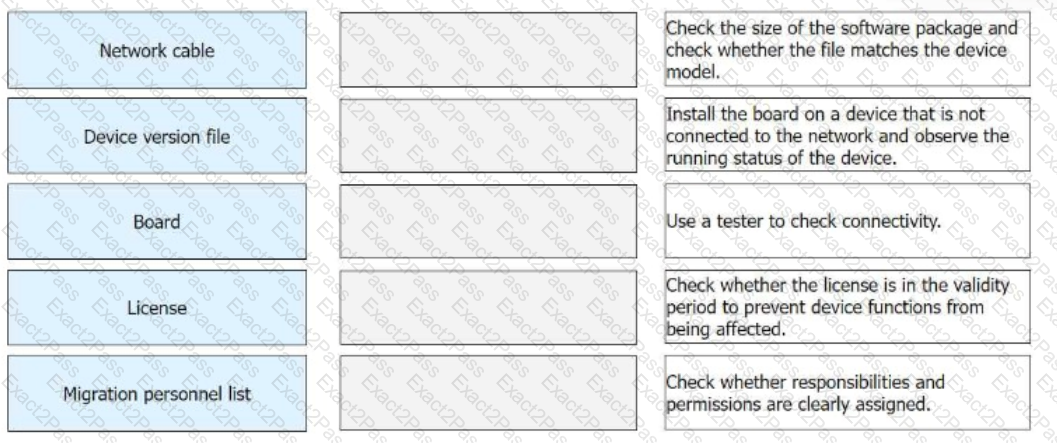

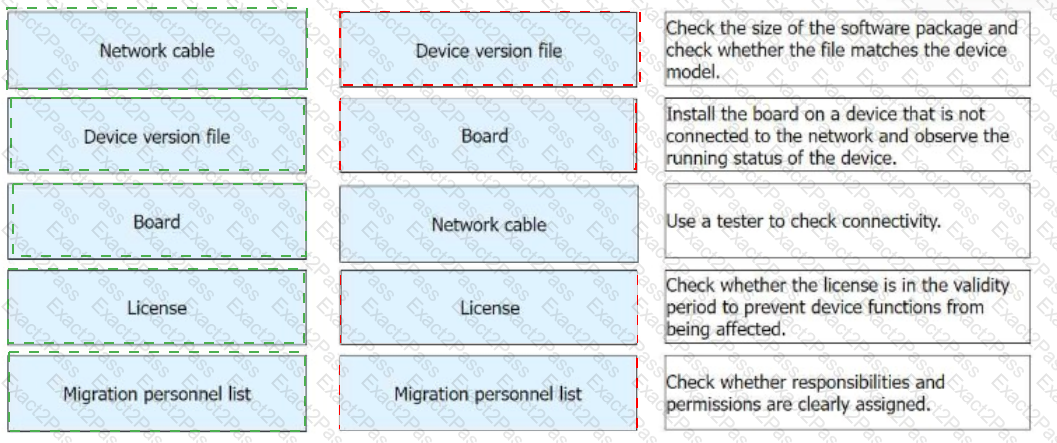

 Network cable → Use a tester to check connectivity.

 Device version file → Check the size of the software package and check whether the file matches the device model.

 Board → Install the board on a device that is not connected to the network and observe the running status of the device.

 License → Check whether the license is in the validity period to prevent device functions from being affected.

 Migration personnel list → Check whether responsibilities and permissions are clearly assigned.

Comprehensive and Detailed In-Depth Explanation:

1. Network Cable - Connectivity Testing:

Before starting a migration project, all network cables should be tested for physical connectivity issues .

Network testers can be used to detect any breaks, shorts, or incorrect wiring.

Ensuring proper connectivity avoids delays and troubleshooting issues during the migration.

2. Device Version File - Software Compatibility Check:

Firmware and software versions must be verified before upgrading or migrating network devices.

The device version file should match the model and hardware specifications to avoid compatibility issues.

If incorrect software is used, the device may not function properly or could become inoperable.

3. Board - Installation and Hardware Verification:

Before installing new hardware modules (boards, line cards, etc.) into a production environment, they should be tested in isolation .

Testing ensures the board is operational and does not introduce faults into the system.

If a board is faulty, it can cause device failure or unexpected behavior in the migration.

4. License - Validity and Activation Check:

Some network devices require licenses for full functionality (e.g., advanced routing, security features).

If a license is expired or missing, critical functions may be disabled after migration.

Checking license status in advance prevents unexpected downtime or service disruptions.

5. Migration Personnel List - Roles and Responsibilities Assignment:

Large network migrations require clear responsibility assignments for each team member.

A migration personnel list ensures that everyone knows their role, tasks, and permissions .

Proper coordination avoids miscommunication, errors, and project delays.

Key Takeaways:

✅ Network cables should be tested for connectivity. ✅ Software versions should match the hardware model to prevent incompatibility. ✅ Hardware boards should be tested before installing into production. ✅ Licenses should be verified to prevent service disruptions. ✅ Migration personnel roles should be clearly defined for smooth execution.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide , Chapter on Network Migration Best Practices .

Huawei Enterprise Networking Whitepapers , Guidelines on Software & Hardware Pre-checks for Migration .

Huawei Technical Documentation , License Management in Huawei Datacom Devices .

Comprehensive and Detailed In-Depth Explanation:

1. Understanding the Network Topology

R1 and R2 are OSPF-enabled routers connected via the 10.0.12.0/24 subnet (Area 0) .

PC1 (192.168.1.2/30) is connected to R1 via GE0/0/1 .

PC2 (192.168.1.22/30) is connected to R2 via GE0/0/1 .

OSPF ensures that R1 and R2 know about each other ' s directly connected networks .

2. Analyzing Connectivity

Can R1 ping 192.168.1.22 (PC2)?

Yes, if routing is properly configured.

OSPF ensures that R1 learns about 192.168.1.22 from R2.

Since R1 has a route to 192.168.1.22 via R2 , it can ping PC2 successfully .

✅ Option A is correct.

Can R1 ping 192.168.1.21 (R2 ' s interface)?

Yes, since R1 and R2 are OSPF neighbors.

R1 learns 192.168.1.21 via OSPF and can reach it directly.

✅ Option B is correct.

Can R2 ping 192.168.1.2 (PC1)?

Yes, since OSPF ensures that R2 learns about 192.168.1.2 from R1.

Since R2 has a route to 192.168.1.2 via R1 , it can ping PC1 successfully .

✅ Option C is correct.

Can PC1 and PC2 ping each other?

Yes, if default gateways and routing are configured correctly.

If R1 and R2 can ping each other and forward packets, PC1 and PC2 should be able to communicate.

❌ Option D is incorrect because PC1 and PC2 should be able to ping each other .

Final Answer:

✅ A, B, and C are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPF Inter-Router Communication and Route Advertisement

Default Gateway and Routing in Multi-Router Networks

Troubleshooting End-to-End Connectivity in Routed Networks

Comprehensive and Detailed In-Depth Explanation:

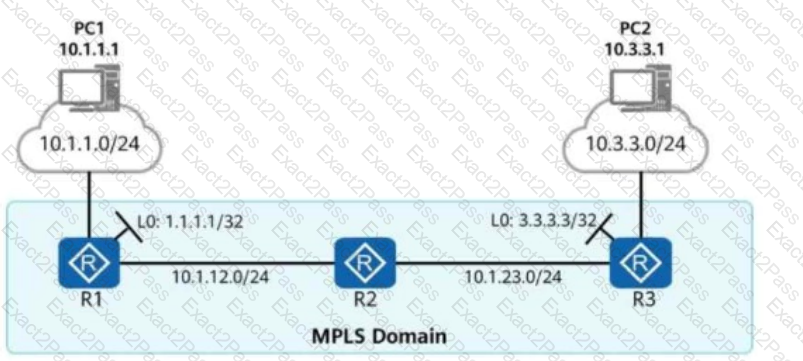

This question is based on MPLS (Multiprotocol Label Switching) and its interaction with routing protocols . The goal is to ensure PC1 (10.1.1.1) can communicate with PC2 (10.3.3.1) over MPLS . Let ' s analyze each option carefully.

1️ ⃣ Understanding MPLS Routing Requirements

To forward traffic using MPLS and LDP , we need:

An IGP (Interior Gateway Protocol) like OSPF or IS-IS to advertise network reachability.

Loopback interfaces advertised in OSPF to establish LDP neighbor relationships.

Consistent MPLS LDP enablement on all links in the MPLS domain.

End-to-end IP reachability between loopbacks (since LDP uses the loopback for label distribution).

2️ ⃣ Option A (Correct Answer) Analysis

This configuration enables OSPF on all routers (R1, R2, and R3) across the MPLS domain :

✅ All networks are advertised in OSPF area 0 , ensuring IP reachability. ✅ Loopback interfaces (1.1.1.1, 2.2.2.2, 3.3.3.3) are included , which is required for MPLS LDP peer establishment. ✅ PC1 ' s network (10.1.1.0/24) and PC2 ' s network (10.3.3.0/24) are properly advertised , ensuring end-to-end connectivity. ✅ R1, R2, and R3 have OSPF neighbor relationships , meaning LDP can use OSPF routes for label switching.

???? Conclusion: Option A meets all MPLS forwarding requirements and is the correct answer.

3️ ⃣ Why Other Options Are Incorrect

???? Option B (Incorrect)

Uses BGP instead of OSPF , which is not optimal for MPLS forwarding in a simple MPLS domain.

LDP requires an IGP like OSPF or IS-IS to work efficiently.

BGP alone does not establish LDP label bindings between R1, R2, and R3.

???? Option C (Incorrect)

Mixes OSPF and BGP , causing routing inconsistency.

Uses ip ip-prefix and recursive lookup , which is unnecessary in a standard MPLS domain.

BGP does not distribute labels dynamically like an IGP with LDP.

???? Option D (Incorrect)

R1 does not advertise the 10.1.1.0/24 network , meaning PC1’s network is not reachable .

R3 does not advertise the 10.3.3.0/24 network , meaning PC2’s network is not reachable .

Missing essential routing entries for full end-to-end reachability.

References:

✅ HCIP-Datacom Advanced Routing & Switching Technology ✅ Huawei Official MPLS and LDP Configuration Guide ✅ Huawei Enterprise Networking Documentation

Comprehensive and Detailed In-Depth Explanation:

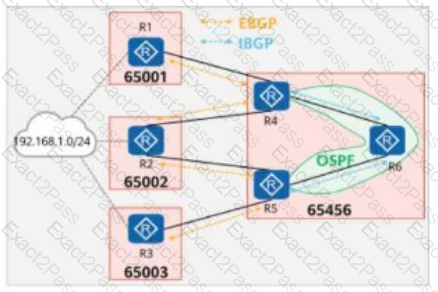

Understanding the BGP and OSPF Network Topology in the Question:

External Route Importation

R1, R2, and R3 import 192.168.1.0/24 into BGP from an external source.

This means R1, R2, and R3 will advertise this route to their EBGP and iBGP peers .

BGP Route Selection Criteria

BGP follows specific rules to determine the best path for a route. The most relevant factors here are:

Highest Local Preference (LOCAL_PREF) → Preferred

Shortest AS Path → Preferred

Lowest Origin Type (IGP <</b> EGP <</b> Incomplete) → Preferred

Lowest MED (Multi-Exit Discriminator) → Preferred

Oldest eBGP route (if paths are equal) → Preferred

Route Selection Analysis for Each Statement:

A. For 192.168.1.0/24, R5 preferentially selects the route received from R2. ✅ (Correct)

R5 is in AS 65456 and peers with R6 using iBGP.

Since R2 is a central router with direct connectivity to R5 , it is the most preferred path compared to indirect paths from R1 or R3.

By default, R5 will prefer the path from R2 over others unless explicitly influenced by BGP attributes.

✅ Statement A is correct.

B. For 192.168.1.0/24, R4 preferentially selects the route received from R1. ❌ (Incorrect)

R4 and R5 use Loopback0 to establish iBGP with R6 , meaning they receive BGP routes from multiple sources.

BGP prefers the shortest AS path , and there is no specific information indicating that R1’s path is the shortest for R4 .

R4 may actually prefer another router ' s advertisement (e.g., R2 or R3) depending on AS path length and other attributes.

❌ Statement B is incorrect.

C. For 192.168.1.0/24, if the default local-preference 150 command is configured on R3, R5 preferentially selects the route received from R3. ✅ (Correct)

By default, BGP assigns a local-preference of 100.

If R3 sets local-preference to 150, it is higher than other routes (R1, R2).

BGP prefers the highest local-preference value , so R5 will prefer the route received from R3 if this attribute is set.

✅ Statement C is correct.

D. For 192.168.1.0/24, R6 preferentially selects the route received from R4. ❌ (Incorrect)

R6 is an iBGP peer of both R4 and R5.

BGP best-path selection depends on attributes like local-preference, AS-path, and MED.

There is no explicit information suggesting that R4’s advertisement is preferred over R5’s .

R6 may prefer R5’s route depending on attributes.

❌ Statement D is incorrect.

Final Conclusion:

✅ A. R5 preferentially selects the route received from R2. ❌ B. R4 does not necessarily prefer R1’s route. ✅ C. If R3 sets local-preference 150, R5 will prefer the route from R3. ❌ D. R6 does not necessarily prefer R4’s route.

Thus, the correct answers are: A, C .
