Comprehensive and Detailed In-Depth Explanation:

Understanding the OSPF Network Structure in the Question:

OSPF Areas & Routers:

Area 3 : Contains R5 (which has loopback 10.0.5.5/32).

Area 1 : Contains R6 .

Area 2 : Contains R4 .

Area 0 (Backbone Area) : Contains R1, R2, and R3 (which interconnect the other areas).

ACL 2000 Filtering Rule:

The ACL rule 2000 explicitly denies 10.0.5.5/32 from being imported.

The filter 2000 import command applies this filter to Area 0 , preventing routes from Area 3 (including R5 ' s loopback) from being learned by Area 0 routers (R1, R2, and R3) .

Route Distribution Analysis:

R5 (Area 3) :

R5 has 10.0.5.5/32 configured on its Loopback0.

Since OSPF is enabled, R5 advertises the route to R6 in Area 1 .

R6 (Area 1) → R2 (Area 0, Backbone Router) :

Without filtering , R6 would normally propagate 10.0.5.5/32 to R2 (since R2 is a backbone router in Area 0).

However, since ACL 2000 is applied in Area 0, R2 blocks this route from being imported.

Therefore, R2 does not learn 10.0.5.5/32 .

R2 → R1 and R3 (Both in Area 0):

R2 would typically share any learned routes with R1 and R3 in Area 0.

But since R2 itself does not have 10.0.5.5/32 , neither R1 nor R3 can receive it.

Thus, R1 and R3 also do not have 10.0.5.5/32 in their routing tables.

R4 (Area 2) is Unaffected:

Since R4 is in Area 2 , it is not directly impacted by the filter applied in Area 0.

It can still receive the route via another path if redistribution is configured properly .

Final Conclusion:

R1, R2, and R3 do not have the 10.0.5.5/32 route due to the filter 2000 import command applied in Area 0 .

R4 may still have the route since it is not affected by the filtering in Area 0.

Thus, the correct answer is: ✅ R1, R3, R2 do not have the route 10.0.5.5/32 in their routing tables.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding MPLS Label Forwarding Information

The output of the display mpls lsp command shows the Label Forwarding Information Base (LFIB) used by the router to forward MPLS packets.

Each entry consists of:

FEC (Forwarding Equivalence Class): The destination IP prefix.

In Label / Out Label: Incoming label (received) and outgoing label (sent).

In IF / Out IF: Incoming and outgoing interfaces.

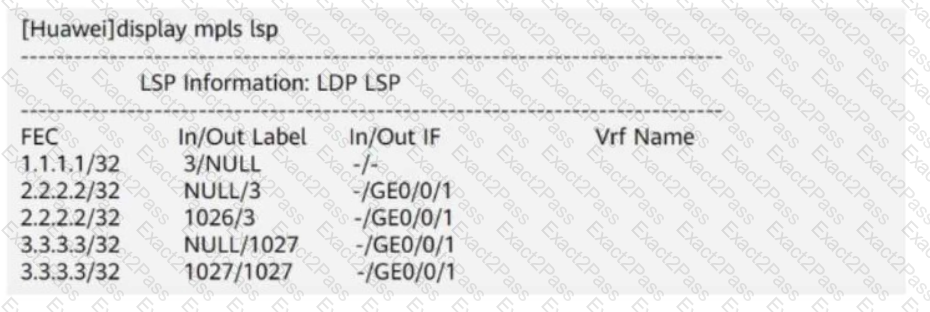

2. Analyzing the Given LSP Table

FEC (Destination IP)

In Label

Out Label

Outgoing Interface

1.1.1.1/32

3

NULL

-

2.2.2.2/32

NULL

3

GE0/0/1

2.2.2.2/32

1026

3

GE0/0/1

3.3.3.3/32

NULL

1027

GE0/0/1

3.3.3.3/32

1027

1027

GE0/0/1

Key Observations:

NULL means the label is removed (Penultimate Hop Popping - PHP).

Label 3 is the implicit null label, meaning the label is removed before sending to the next router.

For destination 3.3.3.3, the router adds label 1027 before forwarding it to GE0/0/1.

3. Evaluating Each Answer Option

Option A: " Before forwarding a packet destined for 2.2.2.2, the device adds label 3 to the packet. " → Incorrect.

The output shows that packets destined for 2.2.2.2 have the NULL (label 3) entry , which means the label is removed before forwarding, not added.

Option B: " Before forwarding a packet destined for 1.1.1.1, the device adds label 3 to the packet. " → Incorrect.

The entry 1.1.1.1 → 3/NULL means the label is removed (PHP) , so the device does not add label 3.

Option C: " Before forwarding a packet destined for any IP address, the device removes labels from the packet. " → Incorrect.

The device removes labels only for some destinations (e.g., 1.1.1.1 and 2.2.2.2), but it adds label 1027 for 3.3.3.3 .

Not all IPs have their labels removed.

Option D: " Before forwarding a packet destined for 3.3.3.3, the device adds label 1027 to the packet. " → Correct.

The entry 3.3.3.3 → NULL/1027 means that the router adds label 1027 before forwarding packets to GE0/0/1 .

Final Answer:

Answer: D (Before forwarding a packet destined for 3.3.3.3, the device adds label 1027 to the packet).

HCIP-Datacom-Advanced Routing & Switching Technology References:

Understanding MPLS LDP (Label Distribution Protocol) and LFIB

Implicit Null (Label 3) and Penultimate Hop Popping (PHP)

MPLS Label Swapping and Forwarding Process

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Network and IPv6 Route Summary Behavior

IS-IS Areas and Router Roles:

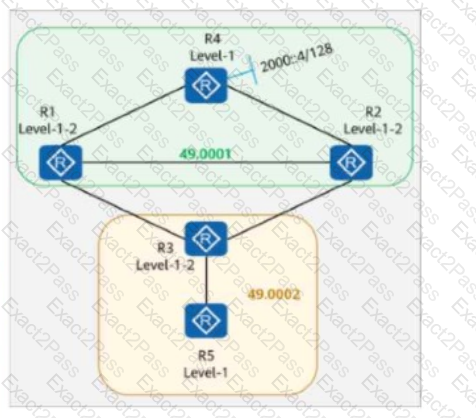

Area 49.0001 (Level-1-2): R1, R2, R4

Area 49.0002 (Level-1-2 & Level-1): R3 (Level-1-2), R5 (Level-1 only)

Effect of ipv6 summary 2000::/64 level-2 Command

This command on R1 and R2 summarizes the 2000::/64 prefix for Level-2 routers.

Instead of advertising the detailed 2000::4/128 prefix, R1 and R2 advertise only the summarized 2000::/64 route to other Level-2 routers.

Effect of ipv6 import-route isis level-2 into level-1 Command

This command allows Level-1 routers (like R3) to learn Level-2 routes (like 2000::/64).

R1 and R2 redistribute the 2000::/64 summary route into Level-1 IS-IS areas, making it available to Level-1 routers.

Route Distribution Analysis for Each Router

R4 (Does Not Have 2000::/64) ❌

R4 only advertises its Loopback0 (2000::4/128).

It does not need to install the summarized 2000::/64 route, as it originates from its own loopback.

✅ R4 does NOT have the 2000::/64 route.

R5 (Does Not Have 2000::/64) ❌

R5 is a Level-1-only router in Area 49.0002.

It does not have a Level-2 connection to learn the summarized 2000::/64 route.

Because R5 is Level-1 only, it can only receive routes if a default route is provided, which is not mentioned in the question.

✅ R5 does NOT have the 2000::/64 route.

R3 (Has 2000::/64) ✅

R3 is a Level-1-2 router, meaning it can learn both Level-1 and Level-2 routes.

Since R1 and R2 advertise the summarized 2000::/64 route into Level-2 and R3 has ipv6 import-route isis level-2 into level-1, R3 will install 2000::/64 in its routing table.

✅ R3 has the 2000::/64 route.

R2 (Has 2000::/64) ✅

R2 is a Level-1-2 router and has the ipv6 summary 2000::/64 level-2 command enabled.

This means R2 advertises the summarized 2000::/64 route to other Level-2 routers and installs it in its own routing table.

✅ R2 has the 2000::/64 route.

Final Conclusion:

✅ R3 has the route 2000::/64. ✅ R2 has the route 2000::/64. ❌ R4 does NOT have the route 2000::/64. ❌ R5 does NOT have the route 2000::/64.

Thus, the correct answers are: C. R3, D. R2 .

1. Understanding Router-LSAs in OSPFv3

Router-LSA (Type 1 LSA) is generated by every OSPFv3 router to describe its own links and connected networks within the same area.

Each router in an OSPF area generates exactly one Router-LSA to advertise its own topology information.

Router-LSAs are flooded throughout the area but do not cross area boundaries.

2. Analyzing the Given OSPFv3 Network

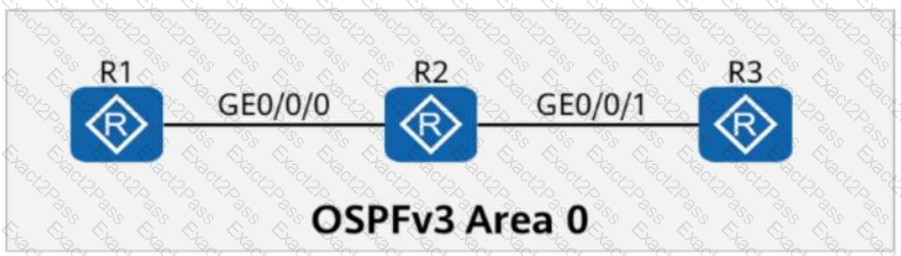

The topology consists of three routers: R1, R2, and R3 , all connected in OSPFv3 Area 0 .

Since all three routers participate in OSPFv3 , each router generates its own Router-LSA (Type 1 LSA) .

R2, as an OSPF router, will have its own Router-LSA and also receive the Router-LSAs from R1 and R3 .

3. Counting the Number of Router-LSAs in R2’s LSDB

R1 generates 1 Router-LSA (for itself).

R2 generates 1 Router-LSA (for itself).

R3 generates 1 Router-LSA (for itself).

Total Router-LSAs in R2’s LSDB = 3 (one from each router).

Final Answer:

Answer: 3

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPFv3 LSA Types and Their Roles

Understanding Router-LSA (Type 1) and Its Function in LSDB

Comprehensive and Detailed In-Depth Explanation:

To determine the correct answers, we need to analyze OSPFv3 behavior and Inter-Area-Prefix LSAs (Type 3 LSAs).

1. Understanding OSPFv3 Inter-Area-Prefix LSAs (Type 3 LSAs)

Type 3 LSAs (Inter-Area-Prefix LSAs) are generated by an ABR (Area Border Router) to advertise networks between areas.

If a router in one area learns a prefix from another area, it generates a Type 3 LSA to advertise it further.

Stub areas (Area 1) do not allow external LSAs, including Type 3 LSAs for external routes.

NSSA areas (Area 3) accept external routes but redistribute them as Type 7 LSAs before being converted to Type 5 LSAs by an NSSA ABR.

2. Analyzing Each Answer Option:

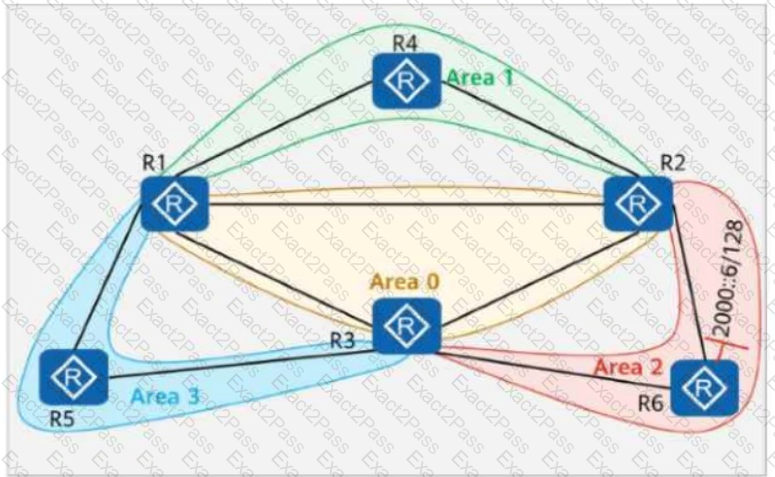

✅ A. " The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 0. " → TRUE

R6 has 2000::6/128 in Area 2.

R2 is the ABR that brings this prefix into Area 0 as a Type 3 LSA.

R1, being in Area 0, learns this LSA from R2.

Thus, this statement is correct.

❌ B. " The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 3. " → FALSE

R1 is not an ABR for Area 3 , so it does not generate an LSA for 2000::6/128 in Area 3 .

Instead, R3 (the ABR between Area 0 and Area 3) would be responsible for propagating routes.

This statement is false.

❌ C. " The Inter-Area-Prefix-LSA that is generated by R2 and describes 2000::6/128 exists in Area 1. " → FALSE

Area 1 is a stub area and does not accept external LSAs (including Type 3 LSAs from other areas).

R2 cannot generate and send a Type 3 LSA for 2000::6/128 into Area 1.

This statement is false.

✅ D. " The Inter-Area-Prefix-LSA that is generated by R3 and describes 2000::6/128 exists in Area 2. " → TRUE

R3 is an ABR and learns 2000::6/128 from R2 (which originally learned it from R6 in Area 2).

Since Area 2 is a normal (non-stub, non-NSSA) area, Type 3 LSAs are allowed.

R3 generates and advertises this Inter-Area-Prefix-LSA for 2000::6/128 into Area 2.

Thus, this statement is correct.

Comprehensive and Detailed In-Depth Explanation:

The Link Layer Discovery Protocol (LLDP) is used for discovering neighboring devices. The given LLDP output contains key details about the neighboring device (R2) , including its system name, interface, and management IP address. Let ' s analyze each option carefully:

Option A: " The sysname of the peer device is R2. " ✅ Correct

The output clearly shows System name: R2, which confirms that the neighbor ' s system name is indeed R2 .

Option B: " The interface number of the peer device is GE0/0/0. " ✅ Correct

The Port ID in the LLDP output is GE0/0/0 , which matches the statement in Option B.

Option C: " The VLAN ID of the peer device is 1. " ❌ Incorrect

The given LLDP output does not mention any VLAN ID information . Therefore, this option is false.

Option D: " The management IP address of the peer device is 192.168.1.1. " ✅ Correct

The Management address field in the LLDP output confirms the IP address as 192.168.1.1 , making this statement true.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide , Chapter on LLDP and Network Device Discovery .

HCIA/HCIP Datacom Training Materials – LLDP Neighbor Discovery Commands .

Huawei Datacom Configuration Guide – Section on display lldp neighbor interface .

Comprehensive and Detailed In-Depth Explanation:

OSPFv3 (for IPv6) packets are directly encapsulated in IPv6 without using UDP or TCP.

The Next Header field in IPv6 is similar to the Protocol field in IPv4 , indicating the protocol type of the payload .

IANA (Internet Assigned Numbers Authority) has assigned protocol number 89 to OSPF.

OSPFv3 packets always use Next Header value = 89 inside IPv6 headers.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPFv3 Packet Encapsulation

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Levels and Default Route Advertisement:

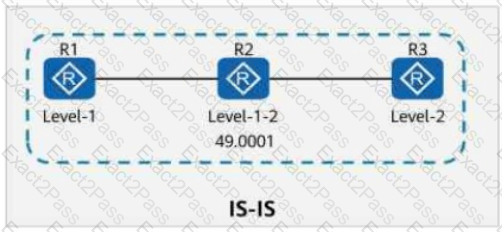

R1 is a Level-1 router

R2 is a Level-1-2 router (meaning it connects both Level-1 and Level-2 areas)

R3 is a Level-2-only router

Step 1: What Does " default-route-advertise always level-1 " Do?

This command forces R1 to advertise a default route (0.0.0.0/0) to all its Level-1 IS-IS neighbors , regardless of whether R1 has a default route in its routing table.

Since R1 is a Level-1 router, it does not participate in Level-2 routing , meaning it relies on R2 (a Level-1-2 router) for external connectivity.

Step 2: Checking the Routing Tables

R1: Since it is only a Level-1 router and does not receive a default route from any higher-level router, it does not have a default route in its own routing table . ✅ ( D is correct )

R2: Since R1 advertises the default route at Level-1, R2 (a Level-1-2 router) receives this default route in its Level-1 database . ✅ ( B is correct )

R3: R3 is a Level-2-only router , and default routes are not automatically leaked between Level-1 and Level-2 unless explicitly configured .

Since no explicit route leaking configuration is mentioned, R3 will not have the default route ❌ ( C is incorrect ).

A is incorrect because the command successfully advertises a default route from R1 to Level-1 neighbors like R2.

Final Answer: ✅ B, D

References:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 – IS-IS Default Route Advertisement

IS-IS Routing Level-1 and Level-2 Behavior

IS-IS Route Leaking and Default Route Propagation
