In Junos OS, the Packet Forwarding Engine (PFE) determines the next hop for a packet by performing a lookup in the forwarding table and identifying all valid matches for the destination IP address. When multiple routes encompass the same destination, the router strictly follows the Longest Prefix Match (LPM) rule to select the most specific entry.

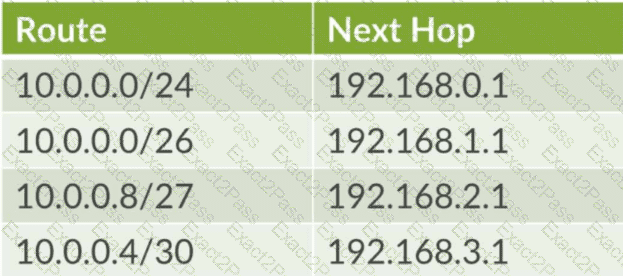

For the destination address 10.0.0.9 , the following evaluation occurs based on the exhibit:

10.0.0.0/24 : This route matches, as the address falls within the 10.0.0.0–10.0.0.255 range.

10.0.0.0/26 : This route matches, as the address falls within the 10.0.0.0–10.0.0.63 range.

10.0.0.8/27 : This route matches, as the address falls within the 10.0.0.8–10.0.0.39 range.

10.0.0.4/30 : This route does not match, as its range ends at 10.0.0.7.

Among the matching entries, the prefix lengths are /24, /26, and /27. The longest prefix match is /27 , as it specifies the most granular network segment. Because 10.0.0.8/27 is the most specific match for the destination 10.0.0.9 , the router selects its associated next hop, which is 192.168.2.1 . This deterministic behavior ensures that traffic follows the most precise path calculated by the routing protocols or defined by the administrator, overriding broader routes like the default or summary advertisements.

Understanding the distinction between collision and broadcast domains is fundamental to Layer 2 and Layer 3 networking. In a modern Ethernet switching environment, a switch effectively eliminates collisions by creating a separate collision domain for each of its physical ports. This is achieved through micro-segmentation and the support of full-duplex communication, which allows for simultaneous transmission and reception of data on a per-port basis.

However, while a switch segments collision domains, it does not inherently segment broadcast domains. By default, all ports on a switch reside within the same broadcast domain, meaning that a broadcast frame (such as an ARP request) received on one port will be flooded to all other ports within that specific VLAN or bridge domain. Segmenting broadcast domains requires either the configuration of Virtual LANs (VLANs) or the use of a Layer 3 device like a router, which does not forward broadcast traffic by default between its interfaces. It is a common misconception that broadcast domains are absent in IPv6; while IPv6 utilizes multicast (via NDP) instead of traditional Layer 2 broadcasts, the concept of the " link-local " scope where these packets are distributed remains functionally equivalent to a broadcast domain. For the JNCIA-Junos standard, the core takeaway is that switches provide per-port collision isolation while maintaining a unified broadcast environment unless explicitly partitioned. Reference: Networking Fundamentals, Collision and Broadcast Domains.

==========

In the IPv4 addressing architecture, a /24 prefix length (standard Class C subnet mask of 255.255.255.0) signifies that the first 24 bits of the 32-bit address are reserved for the network portion, leaving 8 bits for the host portion. To calculate the total number of available IP addresses within this range, the formula $2^n$ is applied, where $n$ represents the number of host bits. For a /24 mask, $2^8$ results in 256 total addresses.

However, standard networking conventions—which Junos OS adheres to for interface configuration and routing—require the reservation of two specific addresses within any given subnet. The first address in the range is the network address (where all host bits are 0), used to identify the subnet itself in the routing table. The last address in the range is the directed broadcast address (where all host bits are 1), utilized to communicate with all hosts on that segment simultaneously. Therefore, the number of " usable " hosts that can be assigned to device interfaces, such as ge-0/0/0.0 or a workstation, is calculated as $2^n - 2$. In this instance, $256 - 2 = 254$. Understanding this calculation is fundamental for an architect when performing IP address management (IPAM) and ensuring that the Packet Forwarding Engine is configured with valid, assignable host addresses within a defined broadcast domain.

Creating a new user account in Junos OS involves several specific steps within the [edit system login] configuration hierarchy. To establish a functional and secure user account, an administrator must first define the username and assign that user to a login class. Login classes are essential because they define the permissions and access levels for the user, such as super-user, read-only, or operator. Without a login class, a user would have no permissions to perform tasks within the CLI.

The second mandatory task is to configure an authentication method for the user, most commonly a password. This is typically done using the authentication plain-text-password command, which prompts the administrator to enter and confirm the secret string that the system then hashes and stores. While Junos also supports public-key authentication for SSH, a local password remains the standard for basic access control. It is important to note that SSH access is generally controlled at the system level under [edit system services] and does not need to be enabled on a per-user basis individually. Furthermore, allowing a user to bypass authentication is contrary to the Junos security model and is not a standard task in user account creation. Reference: User Interfaces, User Management, Login Classes.

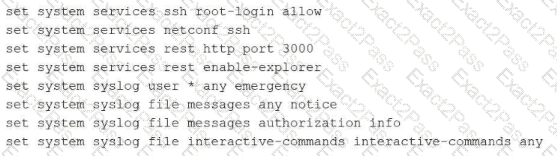

The architecture of a Junos device is bifurcated into two primary functional planes: the Control Plane, managed by the Routing Engine (RE), and the Data Plane, managed by the Packet Forwarding Engine (PFE). The Routing Engine serves as the " brain " of the device. One of its primary responsibilities is the processing of management traffic, which includes handling CLI sessions (SSH, Telnet), SNMP requests, and system logging. Because the RE runs the Junos OS kernel, it provides the environment for all administrative tasks and system management utilities.

Additionally, the Routing Engine is responsible for the intelligence of the network, which involves running routing protocols (such as OSPF, BGP, or IS-IS) and maintaining the master routing tables. It populates the Routing Information Base (RIB) with all learned paths and then calculates the best paths to build the Forwarding Information Base (FIB). This FIB is then pushed to the PFE for hardware-level packet switching. It is a common misconception that the RE handles transit traffic; however, the RE only handles " exception traffic " or traffic destined for the device itself. This separation ensures that the control plane remains stable and responsive even during periods of heavy transit load on the forwarding plane. Reference: Junos OS Fundamentals, Architectural Overview, Control Plane vs. Forwarding Plane.

Junos OS provides several predefined login classes to implement Role-Based Access Control (RBAC) efficiently. For an auditor who needs to verify the current state of the device without the risk of altering it, the read-only class is the ideal choice.

The read-only class allows a user to log in and execute show commands to view the running configuration and operational statistics. However, it strictly prohibits the user from entering configuration mode (using the configure command) or executing any " impactful " operational commands that could reset counters, clear log files, or affect traffic flow.

It is important to distinguish this from the operator class. While the operator class also cannot change the configuration, it does have permissions to clear interface statistics, reset routing protocol neighbors, and perform other " clear " or " reset " actions. For a pure auditing role where even resetting a counter would be considered a breach of policy, read-only provides the necessary " look but don ' t touch " environment. The super-user class, conversely, has full unrestricted access, and unauthorized is not a standard functional class. Using the read-only class ensures compliance with security best practices by granting the minimum necessary privileges required for the auditing task.

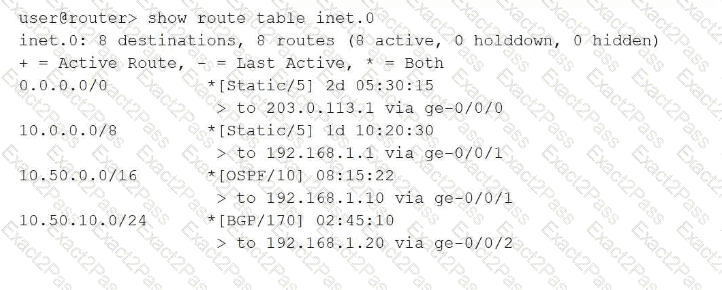

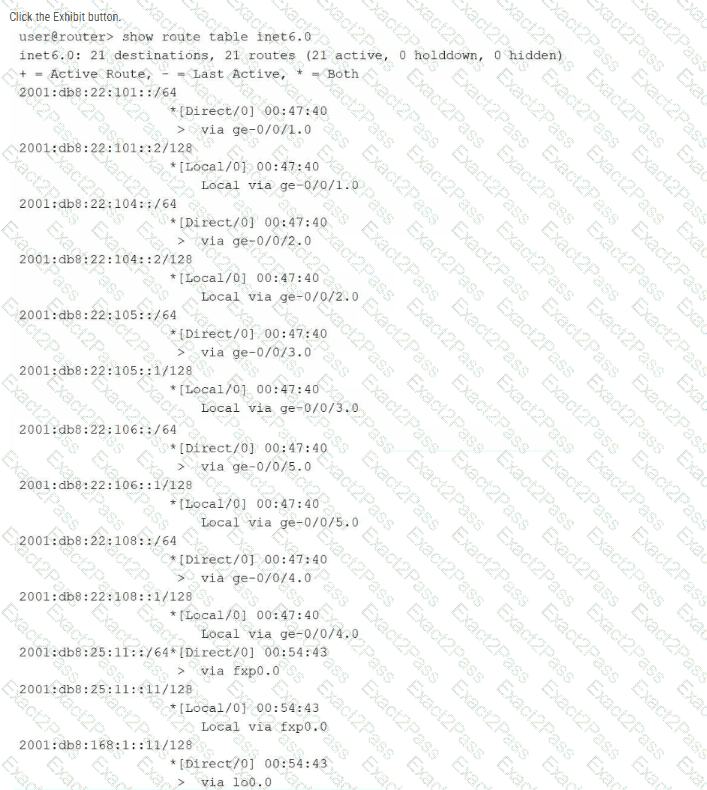

In Junos OS, the Routing Information Base (RIB) selection process follows a strict hierarchy where the Longest Prefix Match (LPM) is the absolute primary tie-breaker. When a packet is destined for 10.50.10.55 , the Routing Engine searches the inet.0 table for all matching entries. In this exhibit, four routes match: the default route ( 0.0.0.0/0 ), a general static route ( 10.0.0.0/8 ), an OSPF route ( 10.50.0.0/16 ), and a BGP route ( 10.50.10.0/24 ).

The LPM rule dictates that the router must select the most specific route available, which is defined as the entry with the highest number of matching bits in the subnet mask. The 10.50.10.0/24 route matches 24 bits of the destination address, making it more specific than the 16-bit, 8-bit, or 0-bit alternatives. It is critical to understand that route preference (e.g., Static at 5, OSPF at 10, or BGP at 170) is only evaluated if there are multiple paths to the exact same prefix and length. Because these prefixes vary in length, the length takes precedence over the protocol preference. Therefore, the BGP-learned route via 192.168.1.20 is selected as the active path, ensuring traffic follows the most granular routing information provided to the device. Reference: Routing Fundamentals, Routing Table Selection, Longest Prefix Match.

==========

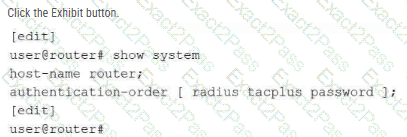

In the Junos OS architecture, the authentication-order statement within the [edit system] hierarchy defines the sequence in which the device attempts to validate user credentials against external and internal databases. The order specified in the exhibit is [ radius tacplus password ] , meaning the device first queries the RADIUS server, followed by the TACACS+ server, and finally the local password database.

A critical distinction in Junos authentication logic is the difference between a server being " unavailable " and a server " rejecting " a user. If an authentication server responds with an explicit access-reject (meaning it received the request but the credentials were invalid), the authentication process terminates immediately to maintain security integrity. However, if the server is unreachable or fails to respond within the configured timeout period (unavailable), the Junos Control Plane automatically falls back to the next method in the defined sequence. In this specific scenario, since the RADIUS server is unavailable, the device will proceed to attempt authentication using the TACACS+ server. If that were also unavailable, it would finally check the local password database. This fallback mechanism ensures that administrators can still access the device even during external server outages, provided they have a local account configured as the final method in the list.

Junos OS routing policies are evaluated using a sequential, " first-match " logic. When a route is compared against a policy, the system evaluates the terms in the order they are defined. Once a route meets all the match criteria (the from statement) in a term, the router executes the associated action (the then statement).

If the action is a terminating action —such as accept or reject—the evaluation of that specific route for that specific policy ends immediately. In this scenario, since the route matched the first term and the action was accept, the route is successfully processed and the policy evaluation is complete. The system will not proceed to evaluate the second or third terms. This behavior is critical for network architects to understand when ordering terms; more specific " exceptions " must be placed at the top of the policy, while broader " catch-all " terms must be placed at the bottom. If the administrator wanted the evaluation to continue to the next term despite a match, they would need to explicitly include the next term action, which is a non-terminating action. Without it, a match on an accept action signifies the final decision for that route within that policy context.

In Junos OS, the Routing Engine (RE) performs a validation check on every entry in the Routing Information Base (RIB). For a static route to be considered valid and transition to an active state in the inet.0 table, its designated next hop must be resolvable . A next-hop address is resolvable only if the router has an existing route (typically a directly connected route) to that specific IP address.

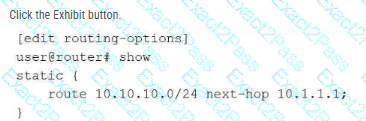

According to the exhibit, the static route for 10.10.10.0/24 has been configured with a next hop of 10.1.1.1 . However, the scenario states that the actual gateway router is located at 10.10.1.1 . If the local interface (ge-0/0/1) is configured with an IP in the 10.10.1.0/x subnet, the router will have a direct route to 10.10.1.1, but it will likely have no path to the 10.1.1.1 address provided in the exhibit.

Because the router cannot resolve the next hop 10.1.1.1 , the static route is placed in an " inactive " or " hidden " state. It will not be installed in the forwarding table pushed to the Packet Forwarding Engine (PFE), and standard show route commands will not display it unless specific flags like hidden or all are used. This logic ensures that the router does not attempt to forward packets into a " black hole " where the gateway is logically unreachable. To fix this, the administrator must modify the configuration to point to the correct, reachable next-hop address of 10.10.1.1.
