Junos OS incorporates a robust configuration versioning and recovery system designed to protect against configuration errors and human oversight. A key feature of this system is that rollback files are stored automatically by the device after each successful commit. These files represent a historical record of previous active configurations. By default, the system maintains a set number of these files, allowing an administrator to revert to a previous state (e.g., rollback 1) if the most recent changes result in unexpected network instability.

Another critical safety mechanism is the behavior associated with the commit confirmed command. If an administrator issues this command but fails to provide a subsequent confirmation within a designated timeframe (defaulting to 10 minutes), the system assumes a loss of management connectivity. Consequently, the rollback configurations are applied automatically after the commit confirmed timeout to restore the previous known-good state. This is an essential best practice for remote configuration management. It is important to note that rollback 0 refers to the currently active configuration, not the factory default, and that while Junos supports maintaining a large number of rollback files, the primary operational benefit lies in the automated storage and confirmation-based recovery processes that ensure the device remains reachable and stable. Reference: Configuration Basics, Rollback Configurations, Commit Confirmed Logic.

==========

The Routing Engine (RE) is the control-plane component of a Junos OS device. Its primary responsibilities include routing protocol processing, system management, maintaining routing tables, running Junos OS processes, and providing administrative access. Consequently, management traffic and control traffic are processed by the Routing Engine. Juniper specifically describes the Routing Engine as controlling routing updates and system management , while routing protocol packets from the network are directed to the Routing Engine.

Management traffic includes traffic associated with services such as SSH, Telnet, SNMP, and other traffic whose destination is the device itself. Control traffic includes routing protocol communications such as OSPF, BGP, and other protocol packets required to establish and maintain the device ' s control-plane state. Juniper categorizes these as local packets , which are handled by the Routing Engine.

By contrast, transit traffic enters one physical interface and is forwarded toward another destination. This forwarding operation is normally handled by the Packet Forwarding Engine (PFE) rather than the Routing Engine. The separation of forwarding and control functions is fundamental to Junos OS architecture.

Study Guide Reference Topics: Junos OS Fundamentals — Routing Engine and Packet Forwarding Engine; control plane versus forwarding plane; management and protocol traffic.

===============

Transit traffic represents the primary " workload " of a Junos device; it is the data that enters one network interface and exits another, destined for a remote host. Unlike exception traffic, transit traffic is forwarded exclusively by the Packet Forwarding Engine (PFE) . The PFE uses specialized Application-Specific Integrated Circuits (ASICs) or programmable NPUs to perform lookups in the hardware-based forwarding table (FIB) at wire speed.

A defining characteristic of transit traffic is that it does not require control plane processing . Once the Routing Engine (RE) has populated the PFE with the necessary forwarding instructions, the RE steps out of the way. The packets pass through the PFE ' s ingress processing, lookups, and egress queuing without ever consuming CPU cycles on the Routing Engine. This bypass is what allows Junos devices to maintain massive throughput and low latency, even if the RE is busy recalculating a complex BGP table. Routing protocol packets (like OSPF updates) and traffic destined for the router ' s own management IP address are explicitly not transit traffic; they are control plane traffic because they terminate at the device ' s " brain. " Transit traffic is strictly " pass-through " data.

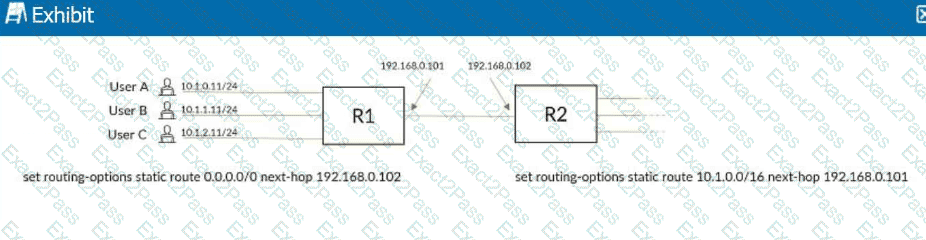

Comprehensive and Detailed 150 to 250 words of Explanation From: In a routed environment like the one shown in the exhibit, traffic forwarding involves a constant interaction between Layer 3 (Network) and Layer 2 (Data Link) addressing. When User A generates a packet destined for User B, the source and destination IP addresses remain static throughout the entire journey across the network (assuming no Network Address Translation is performed). However, the Layer 2 Ethernet headers must be rewritten at every hop because MAC addresses have only local significance on a physical segment.

As Router R1 receives the packet from User A, it performs a lookup in its Forwarding Information Base (FIB) and identifies that the path to User B requires forwarding the packet to Router R2. R1 decapsulates the incoming frame, stripping away the original Ethernet header that contained User A ' s source MAC and R1 ' s own destination MAC. To forward the packet to the next hop, R1 creates a new Ethernet header. The source MAC address becomes the MAC address of R1’s egress interface, and the destination MAC address is replaced with the MAC address of Router R2 . R1 cannot use User B ' s MAC address at this point because User B is not on a directly connected segment. This hop-by-hop MAC address replacement is essential for the Packet Forwarding Engine to successfully deliver the frame to the next Layer 3 device in the path. Reference: Networking Fundamentals, Packet Forwarding, Layer 2 and Layer 3 Addressing.

Understanding the distinction between collision and broadcast domains is fundamental to Layer 2 and Layer 3 networking. In a modern Ethernet switching environment, a switch effectively eliminates collisions by creating a separate collision domain for each of its physical ports. This is achieved through micro-segmentation and the support of full-duplex communication, which allows for simultaneous transmission and reception of data on a per-port basis.

However, while a switch segments collision domains, it does not inherently segment broadcast domains. By default, all ports on a switch reside within the same broadcast domain, meaning that a broadcast frame (such as an ARP request) received on one port will be flooded to all other ports within that specific VLAN or bridge domain. Segmenting broadcast domains requires either the configuration of Virtual LANs (VLANs) or the use of a Layer 3 device like a router, which does not forward broadcast traffic by default between its interfaces. It is a common misconception that broadcast domains are absent in IPv6; while IPv6 utilizes multicast (via NDP) instead of traditional Layer 2 broadcasts, the concept of the " link-local " scope where these packets are distributed remains functionally equivalent to a broadcast domain. For the JNCIA-Junos standard, the core takeaway is that switches provide per-port collision isolation while maintaining a unified broadcast environment unless explicitly partitioned. Reference: Networking Fundamentals, Collision and Broadcast Domains.

==========

Prefix lists in Junos OS are named collections of IP addresses or network prefixes defined under the [edit policy-options] hierarchy. One of their most powerful features is their versatility and reusability. Because they are defined as independent objects, a single prefix list can be referenced in multiple different routing policies across the device. This modularity ensures consistency; for instance, if a set of " internal " prefixes changes, an administrator only needs to update the list in one location for those changes to propagate to every policy that utilizes it.

Furthermore, prefix lists are designed to be used across different functional areas of the Junos architecture. They are equally valid for use in routing policies (to control the import or export of routes between protocols like BGP or OSPF) and in firewall filters (to match source or destination addresses for transit or management traffic). When used in a routing policy, the prefix list typically performs an exact match on the prefix length unless modified by a match type like orlonger. In a firewall filter, it acts as a high-speed lookup table for the Packet Forwarding Engine. This dual-purpose capability makes prefix lists a foundational tool for architects seeking to implement scalable, automated security and routing logic within a unified configuration framework.

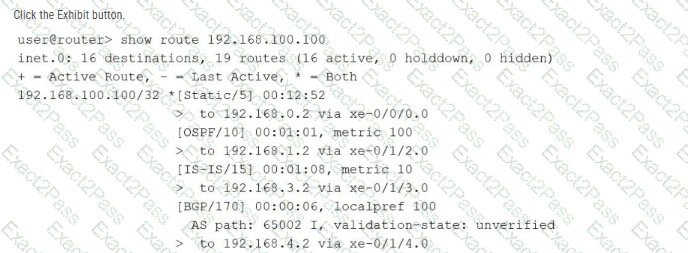

In the Junos OS architecture, the Routing Engine (RE) manages path selection by evaluating multiple potential routes to a specific destination found within the Routing Information Base (RIB). When multiple routing sources (such as static configuration, OSPF, IS-IS, and BGP) provide information for the exact same destination prefix—in this case, 192.168.100.100/32 —the device utilizes route preference as the primary tie-breaker to determine which entry becomes the " active " route.

The provided exhibit displays the default preference values for each protocol: Static is 5 , OSPF is 10 , IS-IS is 15 , and BGP is 170 . Junos OS follows a " lower is better " logic for preference; therefore, the Static route is selected as the most trustworthy path. In the command output, the active route is explicitly identified by the asterisk (*) and plus sign (+) symbols located next to the [Static/5] entry. Looking at the specific next-hop information for this active static route, the output indicates the traffic is sent to 192.168.0.2 via xe-0/0/0.0 . Consequently, the Packet Forwarding Engine (PFE) will install this specific path into the forwarding table, causing all traffic destined for 192.168.100.100 to be egressed over the xe-0/0/0.0 interface.

The Junos Command Line Interface (CLI) is structured into two primary hierarchical modes: operational mode and configuration mode. Operational mode is the default entry point when a user logs into the device, signified by the > prompt. This mode is designed for monitoring the health of the device, troubleshooting network issues, and executing system-level maintenance tasks. Specifically, an administrator uses operational mode to verify the version of Junos OS currently active on the device using the show version command.

Additionally, system-level administrative actions that do not involve modifying the device ' s persistent configuration logic are performed within the operational mode. This includes requesting the system to reboot or halt via the request system hierarchy of commands. In contrast, tasks that involve manipulating the configuration database—such as committing proposed changes or rolling back to a previous configuration version—require the user to transition into configuration mode, indicated by the # prompt. Understanding this distinction is vital for efficient navigation of the Junos CLI; while operational mode provides the tools to observe the system and manage its physical state, configuration mode is reserved for altering the logical parameters and routing policies that govern device behavior. Reference: User Interfaces, CLI Modes, Operational Mode Commands.

==========

The primary and most critical rule used by Junos OS (and routers in general) to determine the next hop for a specific packet is the Longest Prefix Match (LPM) algorithm. When the Routing Engine or Packet Forwarding Engine looks up a destination IP address in the routing or forwarding table, it may find several entries that technically encompass that address. The LPM rule dictates that the router must select the most specific route available—that is, the entry with the highest number of matching bits in its subnet mask (the longest prefix).

For example, if a router has a route for 10.1.1.0/24 and another for 10.1.1.0/28, a packet destined for 10.1.1.1 will always be forwarded according to the /28 route, as it is more specific. Longest prefix match takes precedence over all other selection criteria, including route preference (administrative distance) and metrics. Preference and metrics are only evaluated when the router has multiple entries for the exact same prefix length (e.g., two different paths to 10.1.1.0/24). This logic ensures that traffic is guided along the most precise path defined in the network topology. Routers never choose paths at random or based on the most recent update as their primary selection mechanism, as doing so would result in non-deterministic and inefficient routing behavior. Reference: Routing Fundamentals, Routing Table and Forwarding Table Selection.

==========
