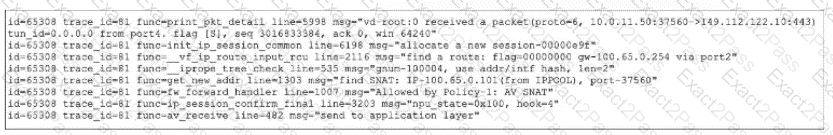

The correct answer is A. This behavior is dictated by the configuration command set snat-route-change enable shown in Exhibit 1 under config system global.

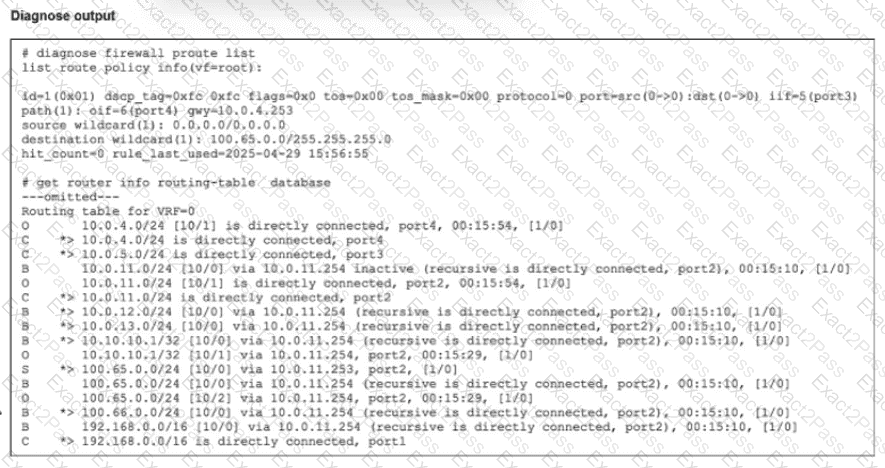

Routing Change: By changing the priority of route ID 2 from 10 to 0, it becomes lower than route ID 1 (priority 5). In FortiOS, a lower priority value indicates a more preferred route. Consequently, the active route for the destination changes from port1 to port2.

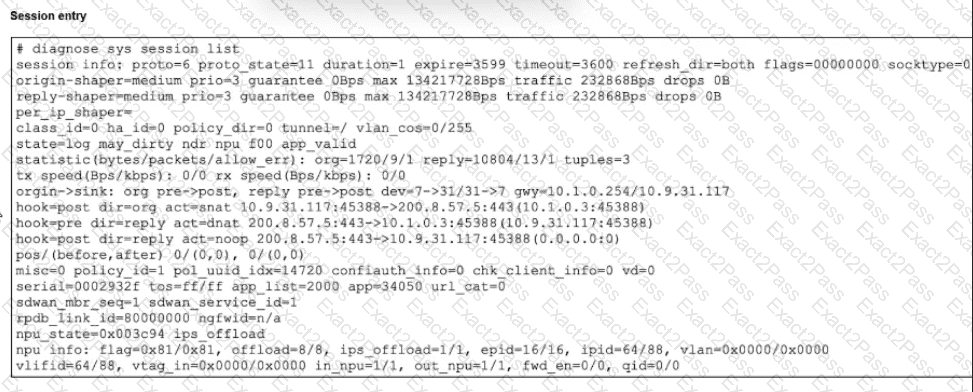

SNAT Implication: The existing session (shown in Exhibit 2) is using Source NAT (SNAT) with the IP address associated with port1 (10.200.1.1). If the traffic were simply switched to port2, the source IP would be incorrect for that interface and the return traffic would likely fail or be dropped.

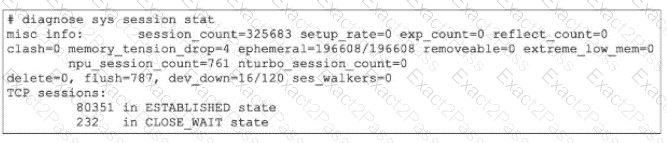

snat-route-change enable: This specific setting instructs the FortiGate on how to handle established SNAT sessions when a routing change occurs that alters the preferred outgoing interface. When enabled, if a route change forces an SNAT session to a new interface, FortiGate flushes (deletes) the session from the session table. This is necessary because a live TCP session cannot survive a change in its source IP address. The client must initiate a new session, which will then be created using the new correct route (port2) and the corresponding new SNAT IP.

If this setting were disabled, the session would likely remain " sticky " to the original interface (port1) until it closed, provided the route still existed. However, the explicit configuration forces the deletion.

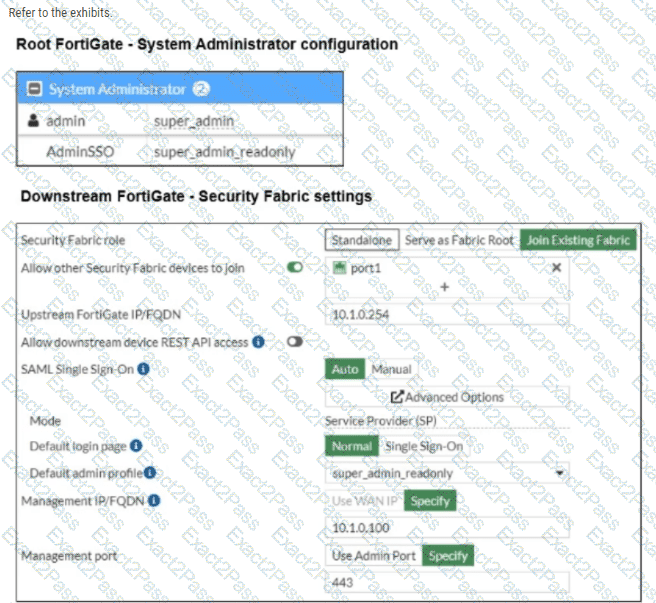

The correct answers are B and D.

The study guide explains that in the SP Login Dump section, FortiGate is acting as the service provider (SP), and that you should read these fields:

“The IdP SSO URL, from the setting idp-single-sign-on-url in the FortiGate configuration”

“The SP SSO URL, from the setting single-sign-on-url in the FortiGate configuration”

“The IdP Entity ID, from the setting id-entity-id in the FortiGate configuration”

“The SP Entity ID, from the setting entity-id setting in the FortiGate configuration”

In the exhibit:

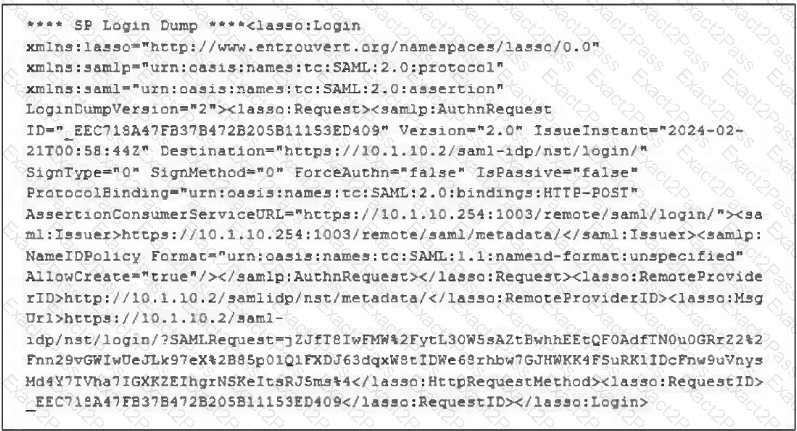

Destination= " https://10.1.10.2/saml-idp/nst/login/ " → this is the IdP SSO URL

< lasso:RemoteProviderID > http://10.1.10.2/samlidp/nst/metadata/ < /lasso:RemoteProviderID > → this is the IdP Entity ID

AssertionConsumerServiceURL= " https://10.1.10.254:1003/remote/saml/login/ " → this is the SP SSO URL

< saml:Issuer > https://10.1.10.254:1003/remote/saml/metadata/ < /saml:Issuer > → this is the SP Entity ID

The same study-guide example shows this exact mapping pattern, where:

Destination points to the IdP

AssertionConsumerServiceURL and Issuer point to the SP

Therefore:

10.1.10.2 is the IdP → D

10.1.10.254 is the SP → B

So the verified answers are: B, D.

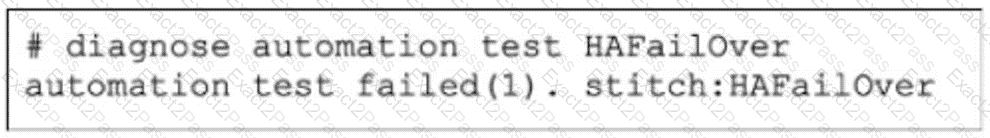

FortiGate HA Troubleshooting and Synchronization Guides

Fortinet Admin Guide: HA Primary Role Retention, Cluster Break-up Due to Out-of-Sync Status

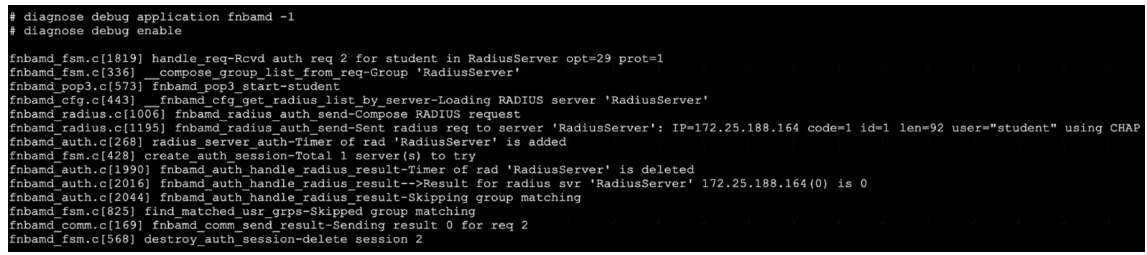

The exhibit includes these key debug lines:

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explains that in regular bind, LDAP authentication has four steps, and that during step 2, FortiGate searches the LDAP tree to find the user’s DN:

“During the second step, FortiGate does a search query in the LDAP database to find the user’s location—in other words, the user’s DN. If the user is found, the server replies with the user’s DN.”

It also states for the real-time debug of step 2:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user’s full DN.”

That directly proves:

D is correct because the debug is showing step 2: Search Request

A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com

Why the other options are wrong:

B is wrong because binding with the user’s credentials is step 3, not the step shown here. The study guide says: “Step 3 – Bind user credentials” and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... '

C is wrong because collecting user group information is step 4, not the step shown in the exhibit. The study guide says: “The last step is to get the user group information” and shows step 4 with Attr query / memberOf search

The exhibit configures the health check in passive mode and enables passive measurement for an SD-WAN rule that identifies Facebook and YouTube applications. Passive WAN health measurement derives latency, jitter, and packet-loss information from live TCP session information rather than generating conventional active probes. Therefore, A is correct.

Because application-specific identifiers are configured in the SD-WAN rule, FortiGate can maintain passive performance information for the relevant Facebook and YouTube traffic and calculate the member metrics from those observations. This makes B correct. Fortinet ' s FortiOS 7.6 passive-measurement documentation confirms this behavior.

A lack of matching application traffic does not automatically declare the member dead, eliminating C. Encryption also does not inherently prevent passive measurement because the mechanism relies on TCP/session performance information rather than decrypted application payloads, eliminating D.

================

The correct answers are C and D.

The study guide’s get vpn ipsec tunnel details example shows:

replay: enabled

inbound and outbound sections with separate SPIs

NPU acceleration: encryption(outbound) decryption(inbound)and it labels these as “Phase 2 SAs for each direction” and “Hardware acceleration”

This directly proves D. Anti-replay is enabled, because the output explicitly says replay: enabled

For the NPU status, the study guide explains the exact npu_flag meanings:

npu_flag=00 = both IPsec SAs loaded to the kernel

npu_flag=01 = outbound IPsec SA copied to NPU

npu_flag=02 = inbound IPsec SA copied to NPU

npu_flag=03 = both outbound and inbound IPsec SAs copied to NPU

Because the exhibit shows hardware acceleration in both directions — encryption(outbound) and decryption(inbound) — the matching npu_flag is 03, not 02. That makes C correct and A incorrect.

Why B is wrong:

The same study guide output labels the tunnel as having Phase 2 SAs for each direction, so different inbound and outbound SPIs are normal for the two SAs. Also, the FortiOS administration guide explains that auto-negotiate controls whether phase 2 SA negotiation is initiated automatically, not whether inbound and outbound SPIs are different: “By default the phase 2 security association (SA) is not negotiated until a peer attempts to send data… Auto-negotiate initiates the phase 2 SA negotiation automatically…”

So the verified answers are: C, D.

The configuration enables network-overlay and assigns a different network-id to each overlay. The SD-WAN 7.6 Enterprise Administrator Study Guide explains that these settings distinguish overlays and prevent shortcut establishment across incompatible overlay networks. Consequently, the valid objective is preventing cross-overlay shortcuts.

The additional auto-discovery-shortcuts dependent setting controls shortcut lifetime: a shortcut is brought down when its parent tunnel goes down. It does not convert an existing ADVPN deployment to ADVPN 2.0. It also does not prevent multiple legitimate shortcuts from using the same overlay. Although network-overlay enable identifies an IPsec tunnel as an overlay, the combination of network-overlay with distinct network-id values specifically provides overlay separation. Therefore, C is the correct answer.

================

From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode. Let ' s break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:

For Option B:

The very first line of the debug output shows:

comes 10.0.0.2:500- > 10.0.0.1:500, ifindex=7.

This indicates the traffic direction—from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet ' s documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.

For Option D:

You see the statement:

negotiation result " remote "

and

received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000

Official debug documentation describes that the " peer identifier " or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing " remote " as the peer ID for its connection.

Why Not A or C:

Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.

Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there’s no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.

This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide ' s VPN section and the official debug command output samples published in Fortinet’s documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.

The correct answer is D. IKE_AUTH.

The study guide explicitly states:

“IKE_Auth exchange:

• Performs the mutual authentication of two IKE endpoints.

• Configures settings like IP/mask, DNS, and so on.

• Sets up the piggyback of a child SA. Negotiates IP flow and security settings for the IPsec SA.”

It also says:

“By default, a piggyback child (IPsec) SA is negotiated along with the IKEv2 SA during IKE_AUTH. If additional IPsec SAs are needed … they are negotiated during subsequent CREATE_CHILD_SA exchanges.”

Why the other options are wrong:

A. IKE_SA_INIT is incorrect because this exchange negotiates the security settings to protect the IKE traffic, not the first CHILD_SA.

B. INFORMATIONAL is incorrect because it is used to convey control messages between IKE endpoints.

C. CREATE_CHILD_SA is incorrect for the first CHILD_SA, because it is used to create new additional child SAs or rekey existing ones after the initial exchange.
