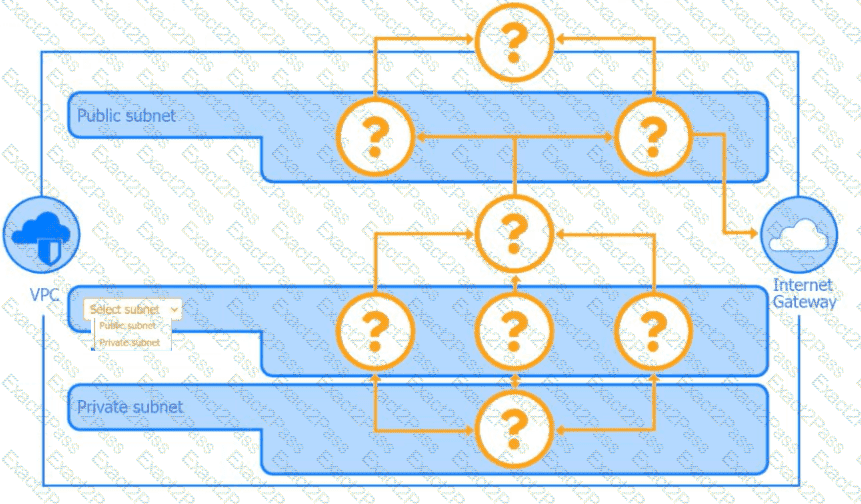

A diagram of a computer AI-generated content may be incorrect.

Step 1: Understand Requirements & Security Principles

Requirements:

Customer-facing payment application (PCI DSS compliance applies)

Hosted on third-party cloud (e.g., AWS)

Must segment public-facing and internal resources

Needs to be scalable and resilient

Must have strong security controls

Step 2: Design the High-Level Network Layout

Core Components:

VPC (Virtual Private Cloud): Isolates your environment from other tenants in the cloud.

Subnets:

Public subnet: For resources that must communicate with the internet.

Private subnet: For internal resources, NOT directly exposed to the internet.

Step 3: Place Resources in Appropriate Subnets

Public Subnet:

Internet-facing Load Balancer (LB): Distributes traffic to application servers.

Web Application Firewall (WAF): Protects against web exploits.

Autoscaling Instances: EC2 (or VM) servers running your web front-end, automatically scaling as traffic grows.

Private Subnet:

Application servers: Back-end logic, not exposed to internet directly.

Database: Sensitive data storage, only accessible by application servers.

Internal Load Balancer: Manages traffic among app servers.

WAF: Can be used internally as well for defense-in-depth.

Step 4: Add Connectivity and Security Controls

Internet Gateway: Allows resources in public subnet to communicate with the internet.

NAT Gateway: Allows outbound internet traffic from private subnet without exposing private IPs.

Security Groups: Firewalls at the instance level; allow only necessary traffic (e.g., LB to web server, web server to DB).

Network ACLs: Subnet-level firewalls for additional control.

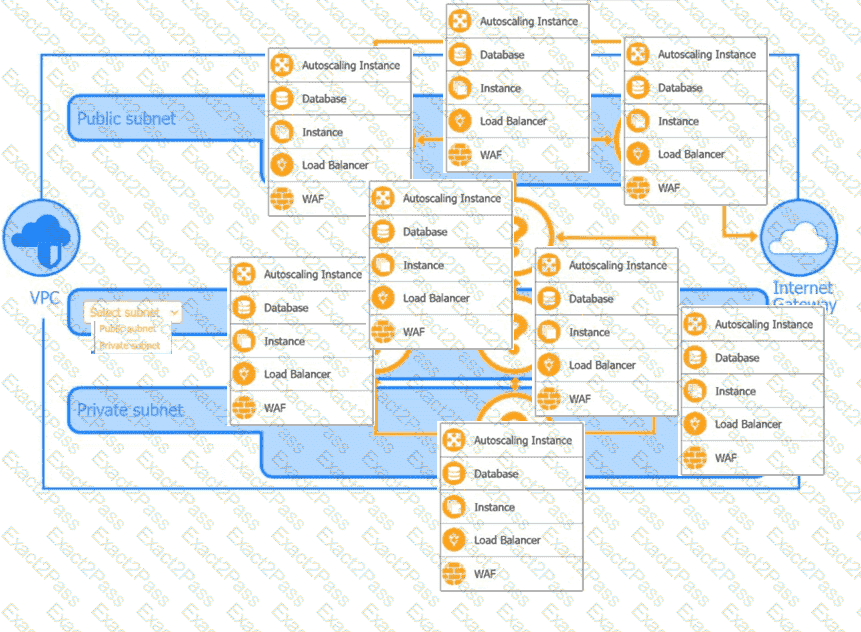

Step 5: Network Diagram Explanation (Based on Your Images)

Public Subnet (Top Layer)

Load Balancer

Accepts HTTPS traffic from customers.

Sends only necessary HTTP/HTTPS to web servers in public subnet.

WAF (Web Application Firewall)

Sits in front of Load Balancer.

Filters malicious requests (SQLi, XSS, etc.).

Autoscaling Group

Multiple web servers for redundancy and scalability.

Placed in public subnet to respond to traffic spikes.

Private Subnet (Bottom Layer)

Application Servers

Receive requests from public subnet’s load balancer.

Not directly exposed to the internet.

Database

Only accessible from application servers, never public.

Security groups restrict all inbound traffic except from app servers.

Internal Load Balancer

Balances requests to application servers.

Step 6: Flow of Data (Step-by-Step)

Client - > Internet Gateway - > WAF - > Load Balancer (Public Subnet):Customers initiate connections to your app over the internet.

Load Balancer - > Autoscaling Web Servers (Public Subnet):Load balancer routes requests to available web servers.

Web Servers - > Application Logic (Private Subnet):Web servers pass necessary requests to the internal application servers.

App Servers - > Database (Private Subnet):Application servers query/update customer payment data in the database.

Outbound (NAT Gateway):App servers may need to access updates or external APIs—use NAT Gateway for secure outbound connections.

Step 7: Security Best Practices

Security Groups: Only allow necessary ports (e.g., 443 for HTTPS to LB, 3306 for MySQL between app server and DB).

Network ACLs: Add another layer of subnet-level restrictions.

Encryption: Use HTTPS for all external connections, encrypt data at rest and in transit (TLS, disk encryption).

IAM Roles/Policies: Principle of least privilege for accessing resources.

Monitoring/Logging: Enable VPC flow logs, cloud service logs, and application logging.

Patch Management: Automate patching for OS and applications.

Backups: Regular, secure backups of critical data.

Step 8: Compliance Considerations

For payment applications (PCI DSS):

Isolate cardholder data environment (CDE).

Strong access controls (multi-factor authentication, role separation).

Regular vulnerability assessments and penetration testing.

Retain logs for auditing.

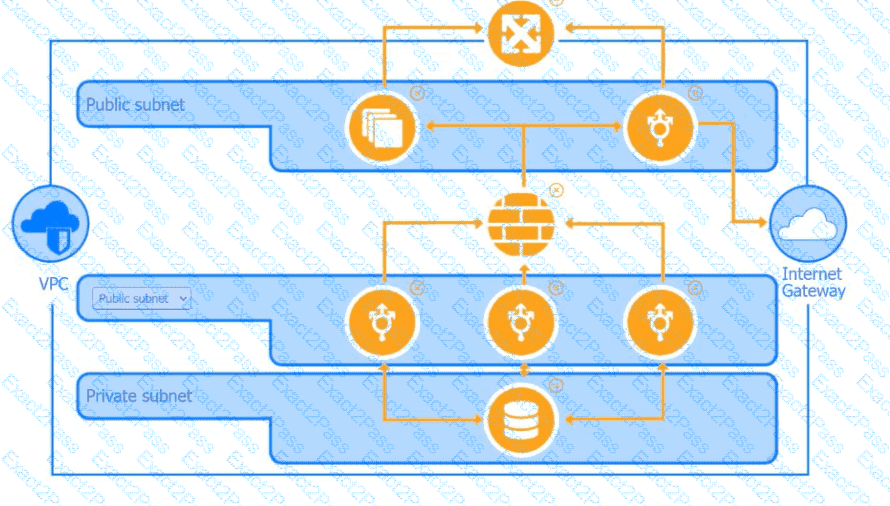

Step 9: Draw the Architecture (Summary)

Internet Gateway: Allows inbound/outbound internet access.

Public Subnet: WAF, Load Balancer, Autoscaling group.

Private Subnet: App servers, DB, internal LB.

NAT Gateway: Outbound access for private resources.

Security Groups/ACLs: Control all traffic flows.

Monitoring/Logging: Enabled at all levels.

Bonus: Sample Security Group Rules

Web Server (Public Subnet):

Inbound: 443 (HTTPS) from Internet

Outbound: 80/443 to App Servers

App Server (Private Subnet):

Inbound: 80/443 from Web Servers

Outbound: 3306 (MySQL) to Database

Database (Private Subnet):

Inbound: 3306 from App Servers

Outbound: None (unless replication required)

References to Security+ Domains

1.0 General Security Concepts: Principle of least privilege, defense in depth.

2.0 Threats, Vulnerabilities, Mitigations: WAF, segmentation, patching.

3.0 Security Architecture: Network segmentation, secure design.

4.0 Security Operations: Monitoring, logging, response.

5.0 Security Program Management: Compliance, policy.

A bastion host is a hardened system placed at a network boundary to absorb attacks and limit exposure. When deployed to mitigate risks from zero-day vulnerabilities, it acts as a compensating control. CompTIA Security+ SY0-701 defines compensating controls as alternative safeguards used when primary controls are insufficient or unavailable—such as when no patch exists for a zero-day.

Detective controls (B) identify issues but do not reduce exposure. Operational controls (C) refer to procedural or human-driven processes. Physical controls (D) secure physical environments (e.g., locks, cameras).

Because a bastion host compensates for the lack of a patch, the correct answer is A: Compensating.

Application allow listing is the most effective technique to prevent bloatware, unauthorized software, or unnecessary applications from running on devices. Allow lists work by permitting only pre-approved, trusted applications to execute, blocking everything else by default. This is a recommended best practice in Security+ SY0-701 for reducing attack surface, preventing malware, and maintaining lean, hardened system images.

Bloatware often comes pre-installed on devices or is unintentionally installed by users. An allow list ensures only authorized applications required for business functions can run, thereby eliminating bloatware risks.

Disabling ports/protocols (A) hardens network access but does not prevent software installation. Default password changes (C) improve authentication security but are unrelated to software control. Access control permissions (D) restrict who can access what but do not prevent installation of unnecessary apps.

Thus, the correct answer is B: Application allow list.

A self-signed certificate is generated internally without involving an external Certificate Authority (CA). In a self-signed certificate, the certificate issuer and certificate subject are the same entity. Security+ SY0-701 explains that organizations frequently use self-signed certificates for internal systems, lab environments, or testing scenarios where external trust chains are unnecessary.

A digital signature (A) is a cryptographic function, not a certificate. Asymmetric keys (B) are used in public-key cryptography but do not constitute a certificate by themselves. Symmetric keys (D) are encryption tools, not certificates.

Therefore, the example of a certificate generated internally is C: Self-signed.

Risk tolerance is the correct answer because the organization is defining an acceptable threshold for deployment. The system is allowed onto the network only after Category 1 vulnerabilities are reduced to zero. That means the organization is not saying all risk must be eliminated; it is saying a specific level of risk is unacceptable, while deployment is permitted once the risk falls within the approved threshold. Risk avoidance would mean not deploying the system or eliminating the activity entirely. Risk transference would shift financial or operational risk to another party, such as through insurance or outsourcing. Risk reporting is communication of risk status, not the decision threshold itself. This is a classic example of risk tolerance criteria.

===============

A partially known environment is a type of penetration test where the tester has some information about the target, such as the IP address, the operating system, or the device type. This can help the tester focus on specific vulnerabilities and reduce the scope of the test. A partially known environment is also called a gray box test1.

Detailed Explanation:

A software development life cycle (SDLC) policy outlines responsibilities, best practices, and standards for developing, deploying, and maintaining secure systems and software. Reference: CompTIA Security+ SY0-701 Study Guide, Domain 5: Security Program Management, Section: " Policies and Standards " ​​.

Detailed Explanation:

Time-of-day restrictions limit access to corporate systems based on predefined schedules. This ensures employees can only access resources during their assigned work hours. Reference: CompTIA Security+ SY0-701 Study Guide, Domain 3: Security Architecture, Section: " Access Control Models " ​​.

An endpoint detection and response (EDR) system is a security tool that monitors and analyzes the activities and behaviors of endpoints, such as computers, laptops, mobile devices, and servers. An EDR system can detect, prevent, and respond to various types of threats, such as malware, ransomware, phishing, and advanced persistent threats (APTs). One of the features of an EDR system is to block the automatic execution of downloaded programs, which can prevent malicious code from running on the endpoint when a user clicks on a link in a phishing message. This can reduce the impact of a phishing attack and protect the endpoint from compromise. Updating the EDR policies to block automatic execution of downloaded programs is a technical control that can mitigate the risk of phishing, regardless of the user’s awareness or behavior. Therefore, this is the best answer among the given options.

The other options are not as effective as updating the EDR policies, because they rely on administrative or physical controls that may not be sufficient to prevent or stop a phishing attack. Placing posters around the office to raise awareness of common phishing activities is a physical control that can increase the user’s knowledge of phishing, but it may not change their behavior or prevent them from clicking on a link in a phishing message. Implementing email security filters to prevent phishing emails from being delivered is an administrative control that can reduce the exposure to phishing, but it may not be able to block all phishing emails, especially if they are crafted to bypass the filters. Creating additional training for users to recognize the signs of phishing attempts is an administrative control that can improve the user’s skills of phishing detection, but it may not guarantee that they will always be vigilant or cautious when receiving an email. Therefore, these options are not the best answer for this question. References = Endpoint Detection and Response – CompTIA Security+ SY0-701 – 2.2, video at 5:30; CompTIA Security+ SY0-701 Certification Study Guide, page 163.

Full-disk encryption (FDE) protects the contents of storage media, which is a classic data-at-rest control. The Study Guide explains the “three situations” relevant to confidentiality—at rest, in transit, and in use—and then specifically ties disk encryption/FDE to protecting stored data: “Data at rest, or stored data, is that which resides in a permanent location awaiting access… Examples… hard drives…” It then describes FDE as an encryption method applied to disks: “Full-disk encryption (FDE) is a form of encryption where all the data on a hard drive is automatically encrypted, including the operating system and system files… In the case of loss or theft, FDE can prevent unauthorized access to all data on the hard drive.”

That is exactly the definition of protecting data at rest—it is intended to prevent disclosure if a laptop/workstation is lost, stolen, or the drive is removed. This is not masking (hiding parts of fields), not data in transit (network encryption like TLS/VPN), not obfuscation (making code hard to understand), and not data sovereignty (jurisdiction/location requirements). Therefore, deploying FDE on workstations is a data-at-rest protection strategy.

Cross-site scripting (XSS) occurs when a web application fails to properly validate or sanitize user input, allowing attackers to inject malicious scripts into web pages viewed by other users. The most effective remediation is input validation, which ensures that only safe, expected data is accepted by the application.

Security+ SY0-701 highlights input validation as a primary defense against:

XSS

SQL injection

Command injection

Path traversal attacks

By validating and sanitizing input at both the client and server layers, organizations can strip harmful characters, block script tags, enforce strict data types, and ensure proper encoding.

A NGFW (B) or WAF (D) can mitigate attacks by blocking malicious payloads, but they do not fix the root cause within the web application. A vulnerability scan (C) identifies the issue but does not remediate it.

Therefore, only input validation (A) directly resolves the underlying coding flaw responsible for XSS.

To limit the potential impact on the log-in database in case of a breach, the security team would most likely recommend hashing. Hashing converts passwords into fixed-length strings of characters, which cannot be easily reversed to reveal the original passwords. Even if the database is breached, attackers cannot easily retrieve the actual passwords if they are properly hashed (especially with techniques like salting).

Tokenization is used to replace sensitive data with a token, but it is more common for protecting credit card data than passwords.

Obfuscation is the process of making data harder to interpret but is weaker than hashing for password protection.

Segmentation helps isolate data but doesn ' t directly protect the contents of the login database​​.

Confidentiality is primarily improved by preventing unauthorized parties from viewing data while it travels across untrusted networks. A Virtual Private Network (VPN) addresses this by creating a protected tunnel between endpoints, commonly using tunneling technologies such as IPSec or TLS for secure communications. The Study Guide explains the purpose of VPNs for remote access as: “A virtual private network (VPN) is a way to create a virtual network link across a public network that allows the endpoints to act as though they are on the same network.” It also notes the practical security value of full-tunnel VPNs when traversing untrusted networks: “A full-tunnel VPN sends all network traffic through the VPN tunnel, keeping it secure as it goes to the remote trusted network… [and] is a great way to ensure that traffic sent through an untrusted network… remains secure.”

Why the other options are less correct for confidentiality: Firewalls control traffic flow but do not inherently encrypt remote communications end-to-end; extensive logging improves detection/forensics, not confidentiality; and IDS detects suspicious activity but doesn’t prevent eavesdropping on the connection. For confidentiality of remote connections, VPNs (implemented with secure tunneling like TLS/IPSec) are the best answer.

If cadets are using company phone numbers to make unsolicited calls, and the logs confirm the numbers are not being spoofed, it suggests that the SIP (Session Initiation Protocol) server ' s security settings might be weak. This could allow unauthorized access or exploitation of the company ' s telephony services, potentially leading to misuse by unauthorized individuals.

References = CompTIA Security+ SY0-701 study materials, especially on SIP security and common vulnerabilities​​.

A warm site offers a compromise between cost and recovery speed. It includes hardware and network infrastructure partially configured, allowing quicker recovery than a cold site but at lower cost than a hot site.

Hot sites (A) enable rapid recovery but at high cost. Cold sites (B) are low cost but slow to recover. Manual (C) refers to manual processes, typically slower.

Warm sites balance recovery time and cost in disaster recovery planning【6:Chapter 9†CompTIA Security+ Study Guide】.

This describes a time-of-use issue, commonly associated with time-of-check to time-of-use race conditions. The key clue is that the user authenticates, but the unauthorized write operation occurs seconds later when the website is under heavy load. In a race condition, the application checks a security condition at one point in time but uses the result later, after the state may have changed. Heavy load can widen this timing gap and make exploitation more likely. CSRF tricks an authenticated user’s browser into submitting an unwanted request. SQLi injects malicious SQL into database queries. XSS injects scripts into web pages viewed by users. Because the issue is caused by timing between authentication and write execution, TOU is the best answer.

================

Within an organization ' s Software Development Life Cycle (SDLC), an Information Security Policy is a vital component. It outlines the rules and procedures for ensuring that the organization’s IT assets and data are protected throughout the development process. Ensuring secure coding practices, access controls, and regular security testing is fundamental in preventing vulnerabilities in applications.

Other options like service-level agreements and branch protection requirements are less likely to be integral to SDLC processes. Penetration testing methodology, while useful, is generally considered outside the scope of the SDLC​​.

Mobile Device Management (MDM) is a security solution that allows organizations to enforce policies on employee-owned or company-issued mobile devices. It can restrict the installation of unauthorized applications, ensuring that only company-approved apps are used.

Containerizationisolates work applications from personal applications but does not enforce app restrictions.

Data Loss Prevention (DLP)focuses on preventing sensitive data leaks rather than managing app installations.

File Integrity Monitoring (FIM)tracks changes to files and system configurations but does not control app installations.

Therefore,MDMis the best solution for restricting unauthorized applications on personal devices.

Virtual Desktop Infrastructure (VDI) allows a company to host desktop environments on a centralized server. Offshore teams can access these virtual desktops remotely, ensuring that sensitive data stays within the company’s infrastructure without the need to provide physical devices to the team. This solution is ideal for maintaining data security while enabling remote work, as all data processing occurs on the company ' s secure servers.

References =

CompTIA Security+ SY0-701 Course Content: VDI is discussed as a method for securely managing remote access to company resources without compromising data security​​.
