SNMP traps are initiated by the network management system, and network devices initiate SNMP polling.. IP services questions are about the supporting protocols that make a network manageable and usable: DHCP supplies addressing information, DNS resolves names, NAT translates address spaces, NTP synchronizes time, syslog records events, SNMP monitors devices, and QoS classifies or prioritizes traffic. Cisco IOS commands are precise; a similar-looking command can configure a client, a relay, a pool, or a server role depending on context. The incorrect options typically name real services but solve a different operational problem. Cisco CCNA 200-301 v1.1 includes these topics because production networks fail just as often from broken services as from broken routing. The chosen answer is the one that performs the exact function in the scenario, whether that is file transfer, address assignment, logging level selection, monitoring security, or traffic treatment.

collection of actions to perform on target devices, expressed in YAML format. Cisco wireless design separates RF behavior, client authentication, encryption, AP operating mode, and controller management. A WLC centralizes WLAN configuration and AP control, while lightweight APs use CAPWAP to register and exchange control/data information with the controller. Security choices such as WPA2/AES and WPA3/SAE are not interchangeable with older mechanisms such as WEP, TKIP, or RC4. RF questions also depend on channel planning: adjacent cells should avoid overlapping channels, and 5-GHz preference features reduce congestion in the 2.4-GHz band. The incorrect options generally confuse AP mode, authentication, encryption, or controller responsibilities. Cisco CCNA 200-301 v1.1 includes these items because wireless failures often come from using the right-looking feature in the wrong part of the WLAN design. The selected answer is the Cisco-consistent configuration or behavior for this wireless scenario.

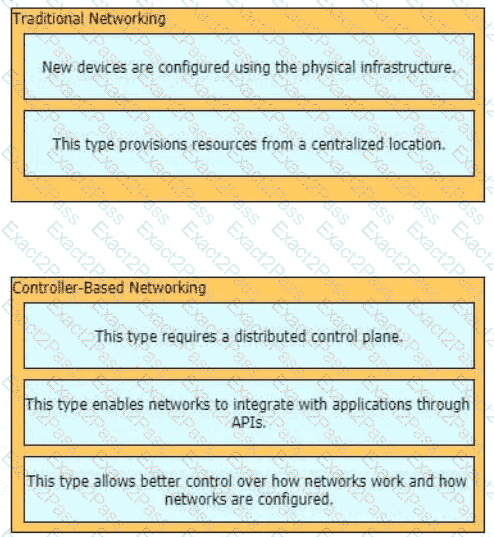

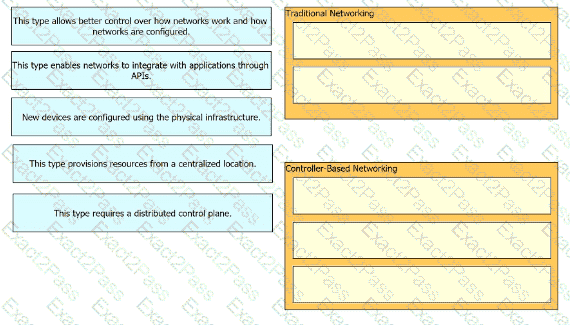

8. Automation and programmability questions test whether the engineer can separate data format, transport method, controller role, and API direction. REST commonly uses HTTP methods such as GET, POST, PUT, and DELETE. JSON represents structured data with objects, arrays, strings, numbers, Booleans, and null values. Northbound APIs allow applications to interact with a controller, while southbound APIs allow the controller to communicate with network devices. NETCONF and RESTCONF are configuration/management protocols, not generic forwarding behaviors. The incorrect choices often mix controller-to-device communication with application-to-controller communication or confuse a data format with a protocol. Cisco CCNA 200-301 v1.1 includes this area because modern network operations increasingly rely on APIs and centralized controllers. The selected answer matches the correct API direction, data representation, or HTTP operation for the scenario.

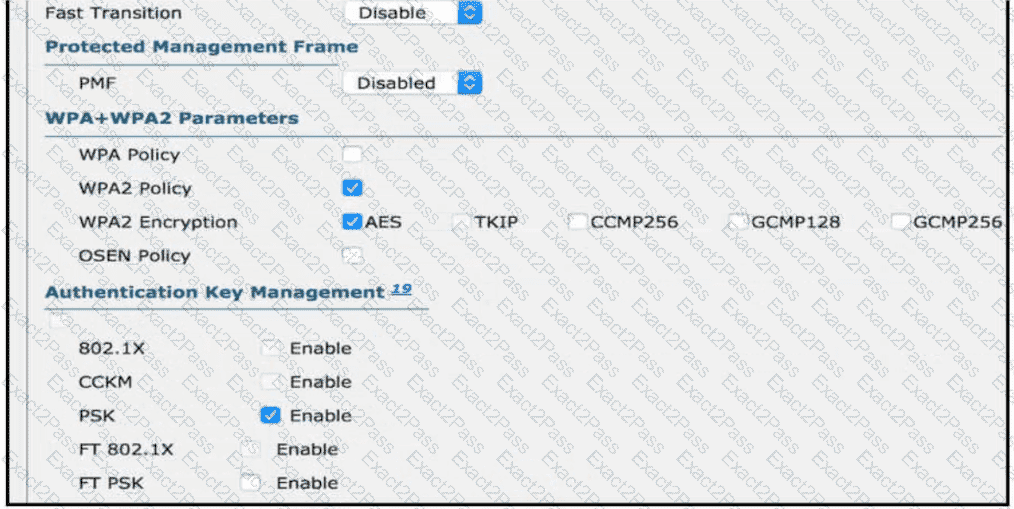

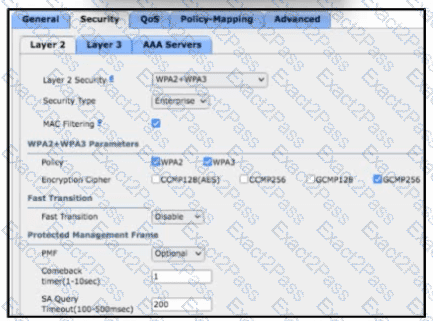

autonomous AP. Cisco wireless design separates RF behavior, client authentication, encryption, AP operating mode, and controller management. A WLC centralizes WLAN configuration and AP control, while lightweight APs use CAPWAP to register and exchange control/data information with the controller. Security choices such as WPA2/AES and WPA3/SAE are not interchangeable with older mechanisms such as WEP, TKIP, or RC4. RF questions also depend on channel planning: adjacent cells should avoid overlapping channels, and 5-GHz preference features reduce congestion in the 2.4-GHz band. The incorrect options generally confuse AP mode, authentication, encryption, or controller responsibilities. Cisco CCNA 200-301 v1.1 includes these items because wireless failures often come from using the right-looking feature in the wrong part of the WLAN design. The selected answer is the Cisco-consistent configuration or behavior for this wireless scenario.

Option D. The answer follows from standard Cisco behavior and the operational clue in the scenario. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is selecting the feature that actually produces the requested network behavior. The wording normally gives the clue: protocol family, address scope, trunk state, route preference, security mode, API method, or controller role. The other choices are adjacent technologies or commands, but they do not meet the stated requirement. In production, choosing the wrong option would typically cause failed client access, a broken route, insecure management, or an automation workflow that targets the wrong interface. The selected answer is the Cisco-consistent behavior for this item.

TCP sends an acknowledgment for every packet that is received, and UDP operates without acknowledgments.. Network fundamentals questions require careful attention to address scope, media type, cabling limits, topology design, virtualization, cloud service models, and the difference between TCP and UDP. The CCNA 200-301 v1.1 blueprint expects candidates to identify not only definitions but also the operational consequence of each choice. For example, public and private addressing have different routing behavior; fiber and copper use different physical media; TCP and UDP make different reliability tradeoffs; and virtualization abstracts physical resources through a hypervisor. The wrong answers are usually plausible terms from the same area, but they do not match the exact condition described in the question. The selected answer is correct because it is the only option that fits the stated network behavior, design requirement, or physical/logical property. That is the level of precision needed for Cisco troubleshooting and implementation work.

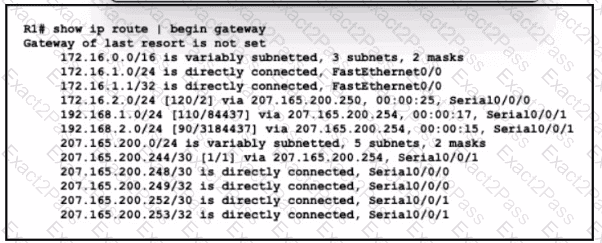

VRRP. Cisco routing logic is deterministic: a router first matches the most specific destination prefix, then uses administrative distance when competing route sources advertise the same prefix, and finally evaluates the protocol metric when multiple paths remain inside the same routing protocol. First-hop redundancy protocols add a separate default-gateway resiliency function for hosts on a LAN. The other choices in this question either point to the wrong route-selection rule, confuse a protocol metric with administrative distance, or apply a Layer 2 concept where a Layer 3 forwarding decision is required. In production, that mistake would create blackholing, asymmetric routing, or a backup path that never activates. Cisco CCNA 200-301 v1.1 tests this because route selection is fundamental to troubleshooting reachability. The selected answer matches the behavior Cisco routers use when forwarding traffic or maintaining gateway redundancy.

There is strong mutual authentication used between NAC and the network devices using X.509 standard. Cisco wireless design separates RF behavior, client authentication, encryption, AP operating mode, and controller management. A WLC centralizes WLAN configuration and AP control, while lightweight APs use CAPWAP to register and exchange control/data information with the controller. Security choices such as WPA2/AES and WPA3/SAE are not interchangeable with older mechanisms such as WEP, TKIP, or RC4. RF questions also depend on channel planning: adjacent cells should avoid overlapping channels, and 5-GHz preference features reduce congestion in the 2.4-GHz band. The incorrect options generally confuse AP mode, authentication, encryption, or controller responsibilities. Cisco CCNA 200-301 v1.1 includes these items because wireless failures often come from using the right-looking feature in the wrong part of the WLAN design. The selected answer is the Cisco-consistent configuration or behavior for this wireless scenario.

crossover. Cisco routing logic is deterministic: a router first matches the most specific destination prefix, then uses administrative distance when competing route sources advertise the same prefix, and finally evaluates the protocol metric when multiple paths remain inside the same routing protocol. First-hop redundancy protocols add a separate default-gateway resiliency function for hosts on a LAN. The other choices in this question either point to the wrong route-selection rule, confuse a protocol metric with administrative distance, or apply a Layer 2 concept where a Layer 3 forwarding decision is required. In production, that mistake would create blackholing, asymmetric routing, or a backup path that never activates. Cisco CCNA 200-301 v1.1 tests this because route selection is fundamental to troubleshooting reachability. The selected answer matches the behavior Cisco routers use when forwarding traffic or maintaining gateway redundancy.

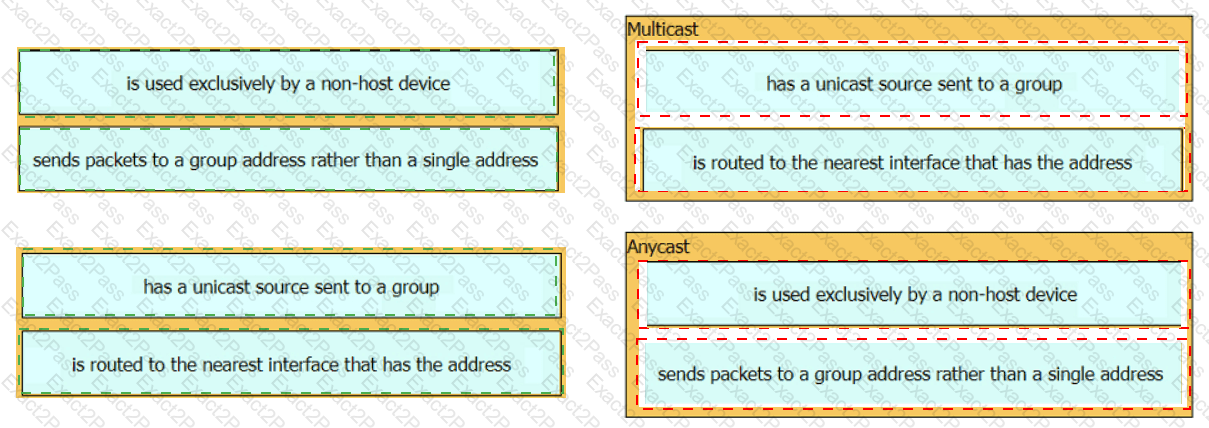

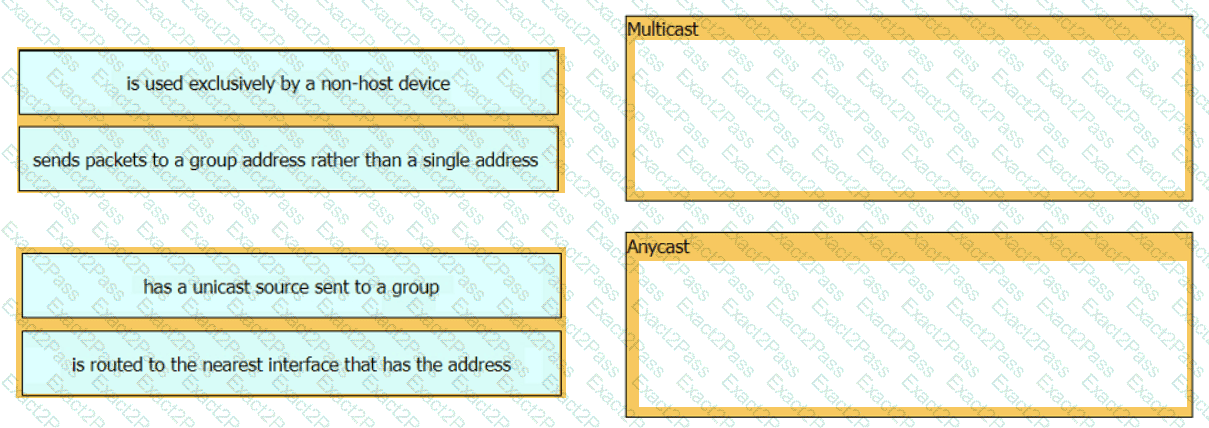

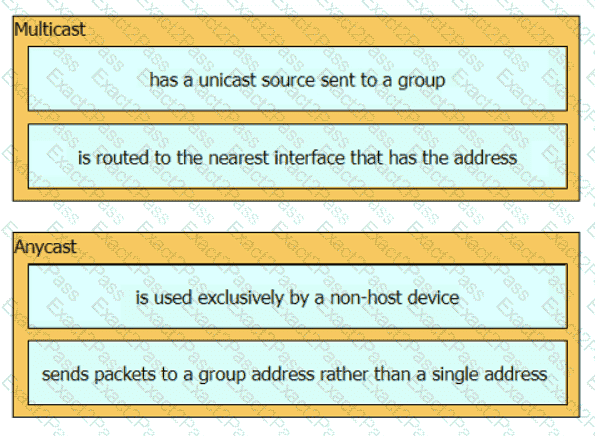

Cisco CCNA 200-301 v1.1 Network Fundamentals drag-and-drop items test whether each protocol, address type, API action, or infrastructure component is matched to its real function. The correct way to solve these is to classify every item by layer, scope, and operational behavior before matching it. Several distractors are legitimate networking terms, but they are wrong when placed under the wrong protocol family or management model. The retained mapping preserves the Cisco distinctions between TCP and UDP behavior, AAA functions, IPv6 address scopes, device-management approaches, and REST operations. In implementation work, these distinctions matter because applying a feature at the wrong layer or associating a control with the wrong service creates broken configurations and wasted troubleshooting effort. The shown mapping is therefore retained as the verified response.

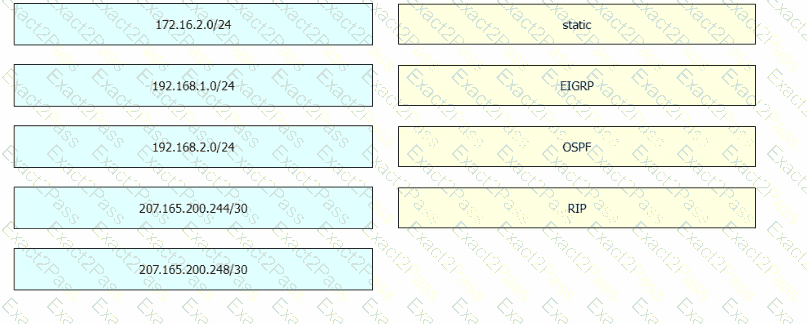

Cisco CCNA 200-301 v1.1 Network Fundamentals drag-and-drop items test whether each protocol, address type, API action, or infrastructure component is matched to its real function. The correct way to solve these is to classify every item by layer, scope, and operational behavior before matching it. Several distractors are legitimate networking terms, but they are wrong when placed under the wrong protocol family or management model. The retained mapping preserves the Cisco distinctions between TCP and UDP behavior, AAA functions, IPv6 address scopes, device-management approaches, and REST operations. In implementation work, these distinctions matter because applying a feature at the wrong layer or associating a control with the wrong service creates broken configurations and wasted troubleshooting effort. The shown mapping is therefore retained as the verified response.

switchport mode dynamic desirable. Cisco wireless design separates RF behavior, client authentication, encryption, AP operating mode, and controller management. A WLC centralizes WLAN configuration and AP control, while lightweight APs use CAPWAP to register and exchange control/data information with the controller. Security choices such as WPA2/AES and WPA3/SAE are not interchangeable with older mechanisms such as WEP, TKIP, or RC4. RF questions also depend on channel planning: adjacent cells should avoid overlapping channels, and 5-GHz preference features reduce congestion in the 2.4-GHz band. The incorrect options generally confuse AP mode, authentication, encryption, or controller responsibilities. Cisco CCNA 200-301 v1.1 includes these items because wireless failures often come from using the right-looking feature in the wrong part of the WLAN design. The selected answer is the Cisco-consistent configuration or behavior for this wireless scenario.

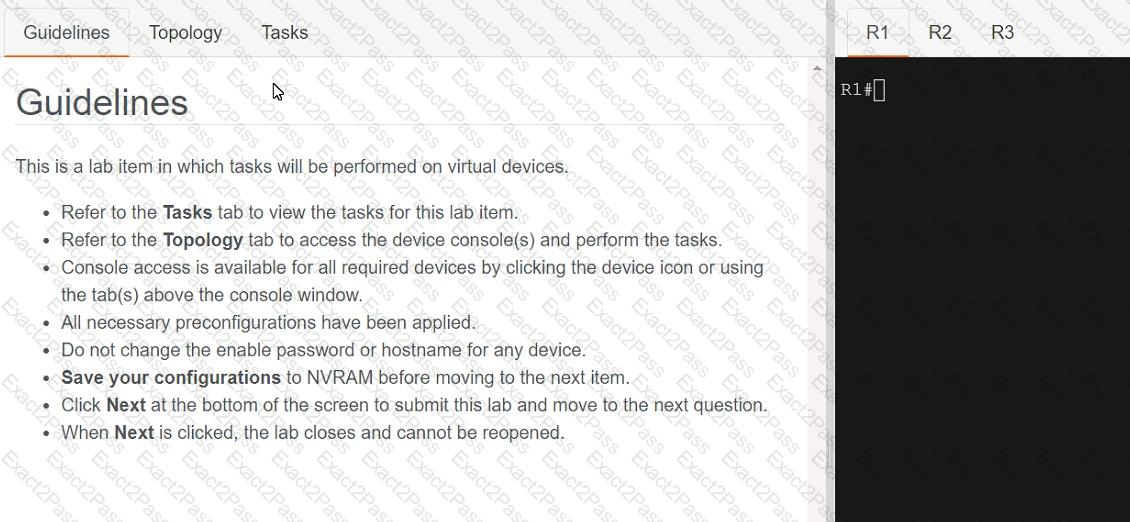

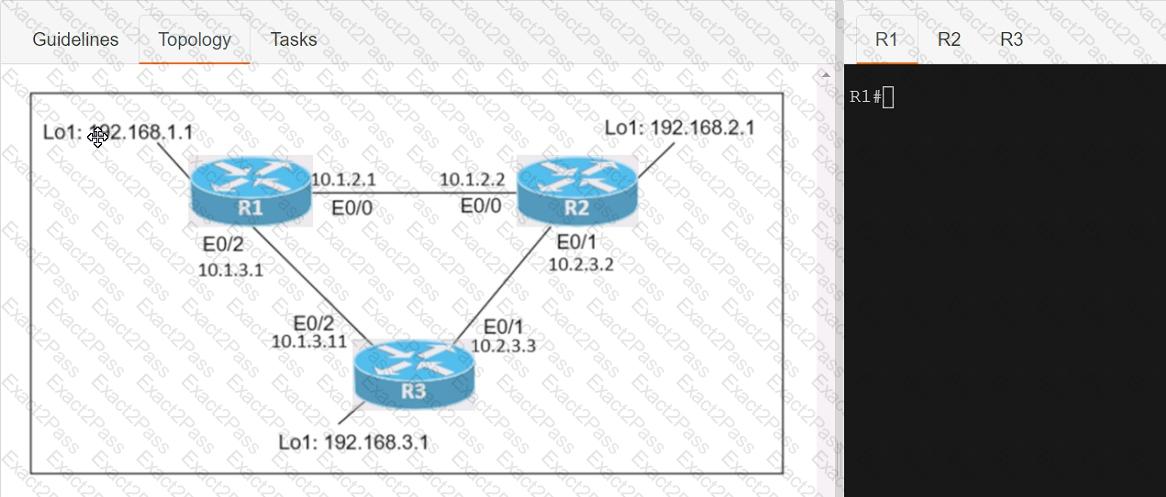

Answer as below configuration:

conf t

R1(config)#ntp master 1

R2(config)#ntp server 10.1.2.1

Exit

Router#clock set 00:00:00 jan 1 2019

ip dhcp pool TEST

network 10.1.3.0 255.255.255.0

ip dhcp exluded-address 10.1.3.1 10.1.3.10

R3(config)#int e0/3

R3(config)#int e0/2

ip address dhcp

no shut

crypto key generate RSA

1024

Copy run start

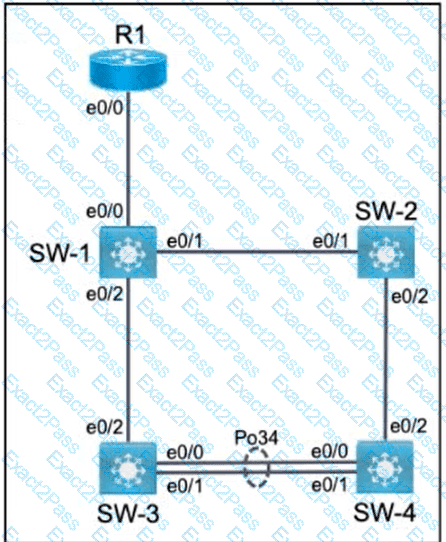

SW-1

SW-1# configure terminal

SW-1(config)# interface Ethernet0/0

SW-1(config-if)# switchport trunk allowed vlan 5,6

SW-1(config-if)# exit

SW-1(config)# interface Ethernet0/1

SW-1(config-if)# switchport trunk native vlan 77

SW-1(config-if)# end

SW-1# copy running-config startup-config

SW-2

SW-2# configure terminal

SW-2(config)# interface Ethernet0/1

SW-2(config-if)# switchport trunk native vlan 77

SW-2(config-if)# exit

SW-2(config)# interface Ethernet0/2

SW-2(config-if)# switchport trunk allowed vlan 6

SW-2(config-if)# end

SW-2# copy running-config startup-config

SW-3

SW-3# configure terminal

SW-3(config)# interface range Ethernet0/0 - 1

SW-3(config-if-range)# channel-group 34 mode active

SW-3(config-if-range)# end

SW-3# copy running-config startup-config

SW-4

SW-4# configure terminal

SW-4(config)# interface range Ethernet0/0 - 1

SW-4(config-if-range)# channel-group 34 mode passive

SW-4(config-if-range)# end

SW-4# copy running-config startup-config

Verification commands:

SW-1# show interfaces trunk

SW-2# show interfaces trunk

SW-3# show etherchannel summary

SW-4# show etherchannel summary

SW-3# show interfaces port-channel 34

SW-4# show interfaces port-channel 34

The command switchport trunk allowed vlan 5,6 replaces the default allowed-VLAN list on SW-1 Ethernet0/0 so that only VLANs 5 and 6 can cross that trunk. The same command with VLAN 6 restricts SW-2 Ethernet0/2 to VLAN 6. Cisco documents that all VLANs are permitted on a trunk by default and that switchport trunk allowed vlan vlan-list defines the permitted list. The native VLAN must match at both ends of an 802.1Q trunk, so VLAN 77 is configured on Ethernet0/1 of both SW-1 and SW-2.

For LACP, active initiates negotiation and passive only responds. Therefore, SW-3 must use channel-group 34 mode active, while SW-4 must use channel-group 34 mode passive. Cisco confirms that active-to-passive forms an EtherChannel, whereas passive-to-passive does not. Because the physical interfaces are already identically configured as trunks, no trunk commands should be replaced during channel creation. The channel-group command creates and binds the physical members to logical Port-Channel 34.

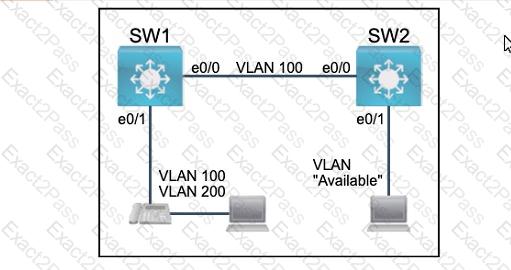

Answer as below configuration:

on sw1

enable

conf t

vlan 100

name Compute

vlan 200

name Telephony

int e0/1

switchport voice vlan 200

switchport access vlan 100

int e0/0

switchport mode access

do wr

on sw2

Vlan 99

Name Available

Int e0/1

Switchport access vlan 99

do wr

Use A for this item. A switch added to an existing VTP domain must not have a higher revision number than the production database. A lower revision number prevents the old switch from overwriting current VLAN information. In Cisco CCNA 200-301 v1.1, Network Access questions frequently test the practical boundary between similar features: what the feature does, where it is configured, and what problem it is meant to solve. Dynamic trunking settings do not protect the VLAN database, and a higher revision number is exactly the dangerous condition. A clean way to validate the answer is to map the wording of the scenario to the actual device function. If the feature supplies addressing, forwarding, authentication, trunking, route selection, or controller communication, the answer must match that function exactly rather than a nearby protocol name.

Frame flooding is a Layer 2 switch behavior used when the switch does not know the destination MAC address, or when the frame is a broadcast or certain multicast frames. The switch sends the frame out all other ports in the same VLAN, excluding the port on which the frame arrived. It does not send the frame into other VLANs, because VLANs define separate broadcast domains. It also does not send the frame only to ports that already match the MAC table; that would be normal unicast forwarding, not flooding. The distinction is important in Cisco CCNA 200-301 v1.1 Network Access: switches learn source MAC addresses from ingress frames, then use the MAC address table to forward known unicasts. If the destination is unknown, the switch must flood within the VLAN to try to reach the destination. The best description is therefore A: frames are sent to every port on the switch in the same VLAN except the originating port.

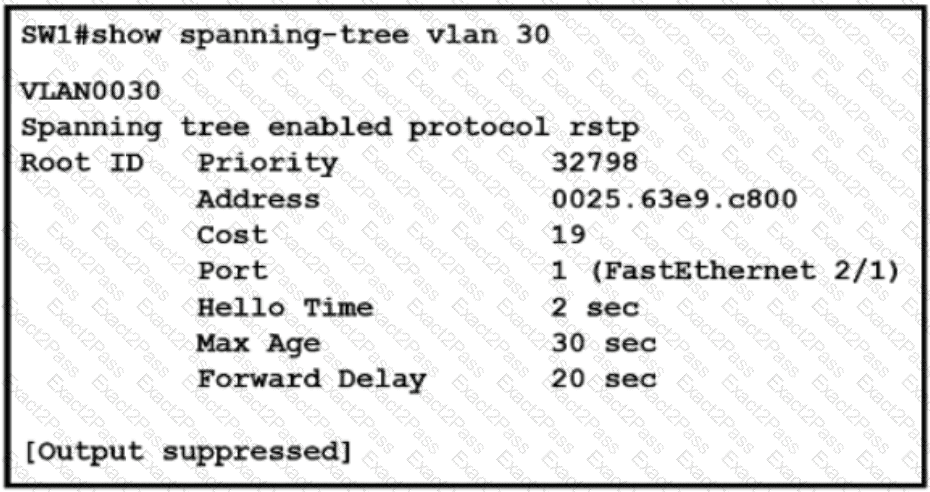

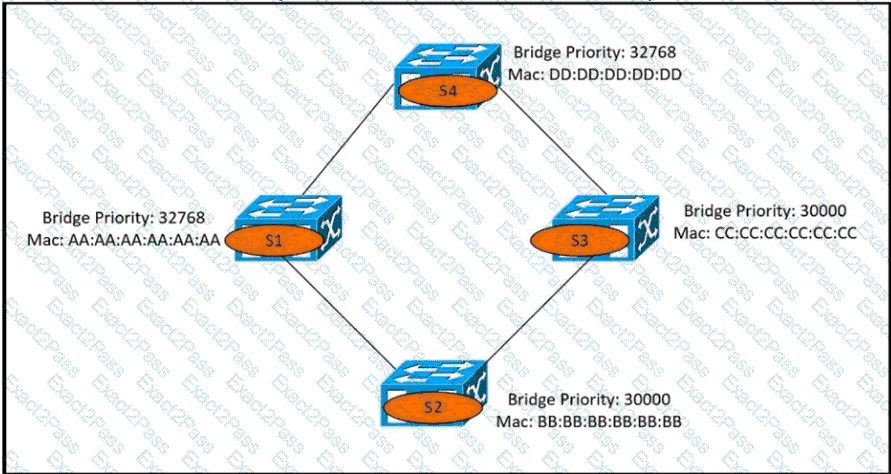

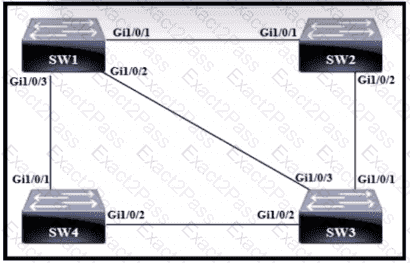

The root bridge is the switch with the lowest bridge ID in the spanning-tree instance. The bridge ID comparison starts with priority. If priorities tie, the lower MAC address wins. In many exam exhibits, the correct root is not the switch drawn at the top or center of the topology; it is the switch with the numerically lowest STP identifier. For this exhibit, S2 has the lowest resulting bridge ID, so it becomes the root bridge. Cisco CCNA 200-301 v1.1 Network Access expects engineers to calculate this cleanly because root selection determines which links forward and which links block. Once S2 is elected, all other switches calculate their lowest-cost path back to S2 and choose root ports accordingly. Design practice is to place the root bridge deliberately, normally near the distribution layer, rather than leaving the outcome to MAC address tie-breakers. In this question, the election result is S2, which maps to answer B.

A First Hop Redundancy Protocol protects the default gateway function for hosts on a subnet. Without FHRP, a host typically points to one router interface as its default gateway. If that router or interface fails, the host loses off-subnet connectivity even if another router is available. FHRP solves that by allowing multiple routers to present a single virtual gateway to the LAN. Depending on the protocol, routers elect active and standby roles or share forwarding. Cisco technologies in this space include HSRP, while VRRP is standards-based and GLBP adds gateway load-balancing behavior. The exam answer is not about sharing configuration data, bridge priorities, or OSPF equal-cost routing. Those are separate functions. Cisco CCNA 200-301 v1.1 tests FHRP under IP Connectivity because a working default gateway is essential to end-to-end routing. The primary purpose is to reduce routing failures by allowing more than one router to represent itself as the default gateway for a network.

Private IPv4 address ranges allow different organizations to reuse the same internal address space without creating global internet conflicts. RFC 1918 reserves 10.0.0.0/8, 172.16.0.0/12, and 192.168.0.0/16 for private use. These addresses are not meant to be routed on the public internet. That reuse is one reason enterprises, homes, labs, and cloud networks can all use addresses such as 10.1.1.0 internally. When private hosts need internet access, NAT or another translation design is normally required. Cisco CCNA 200-301 v1.1 includes private addressing and NAT under IP Services because these concepts appear constantly in enterprise networks. The wrong answers imply that private addressing provides direct external reachability or removes the need for NAT, which is exactly backwards. Private addressing conserves public IPv4 space and avoids the need for every internal host to consume a globally unique address. Therefore, A correctly states the function.
