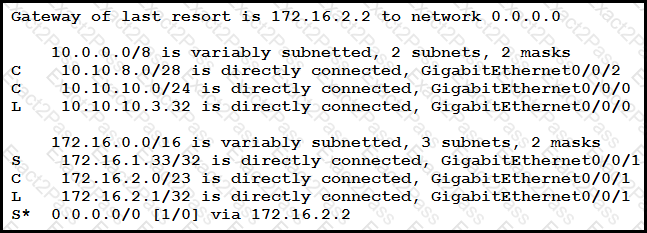

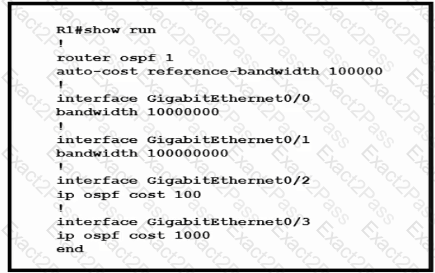

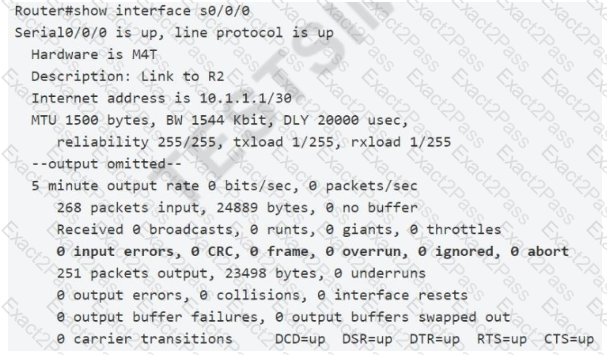

Refer to the exhibit.

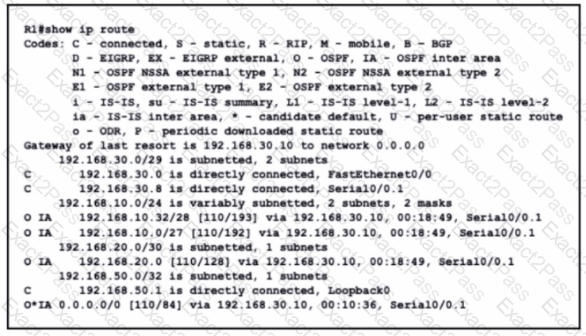

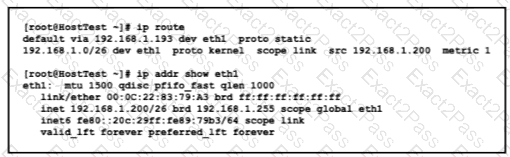

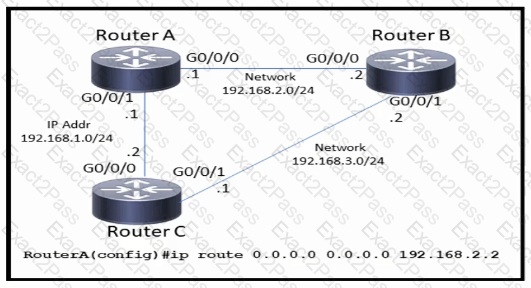

Which interface is chosen to forward traffic to the host at 192.168.0.55?

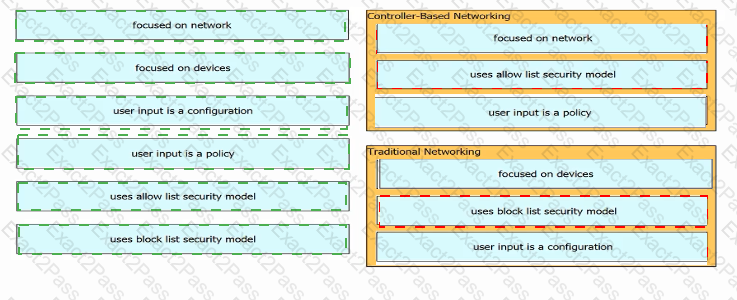

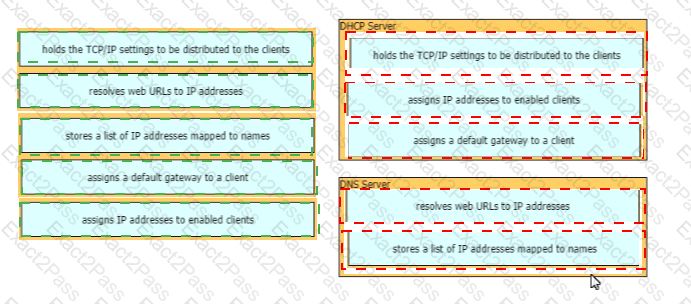

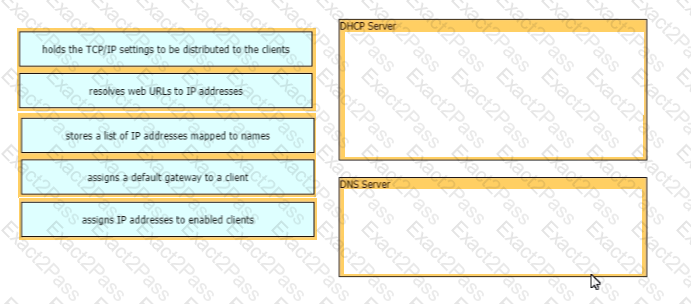

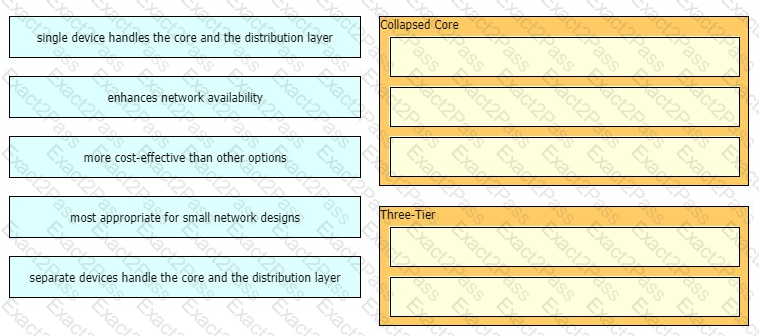

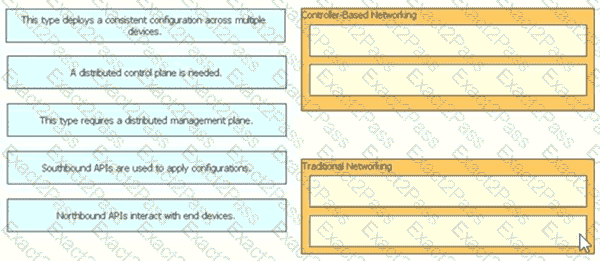

Drag and drop the statements about networking from the left onto the corresponding networking types on the right. Not all statements are used.
Refer to the exhibit.

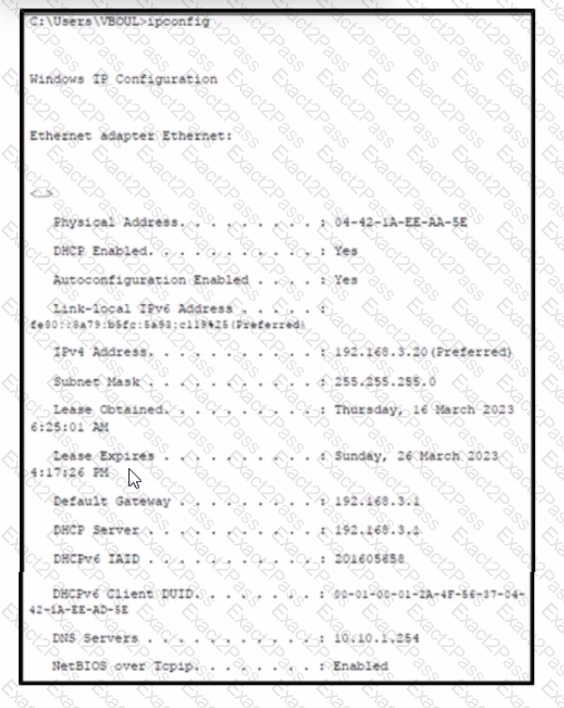

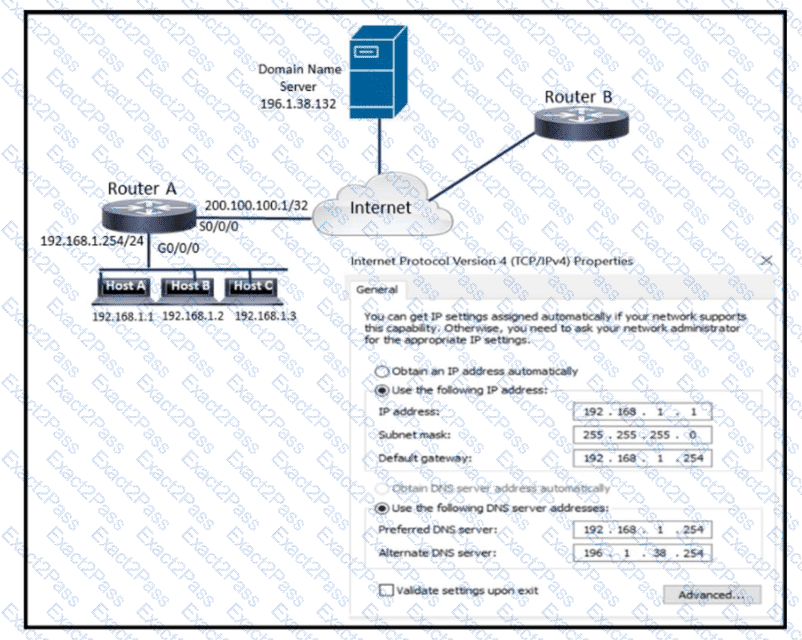

The given Windows PC is requesting the IP address of the host at www.cisco.com. To which IP address is the request sent?

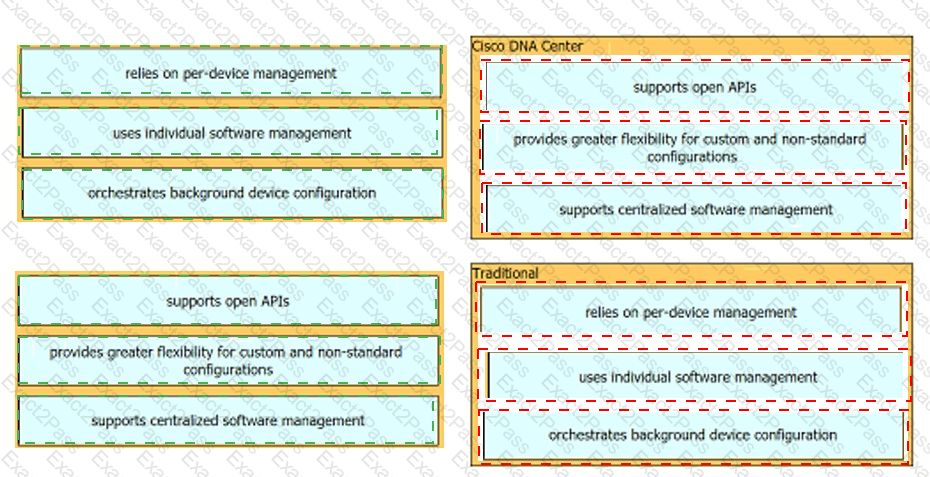

Which two capabilities of Cisco DNA Center make it more extensible as compared to traditional campus device management? (Choose two.)

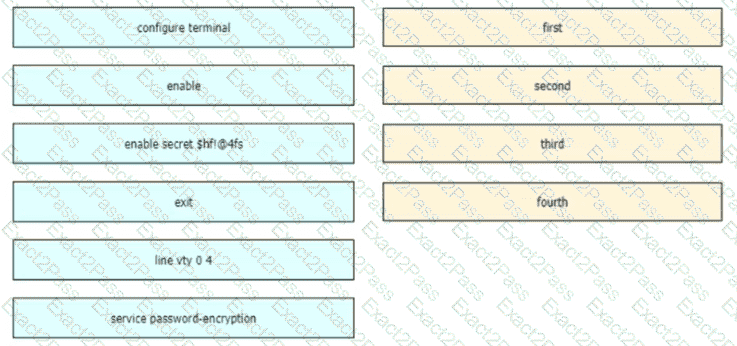

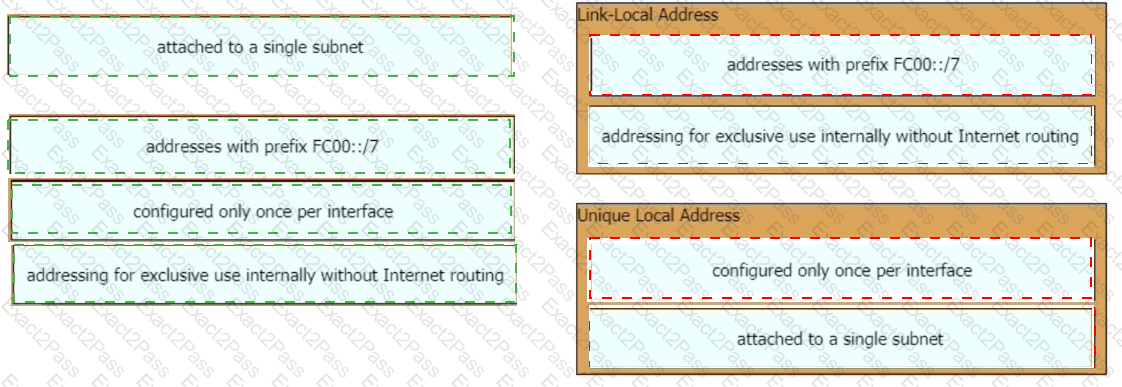

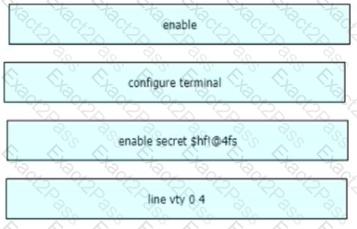

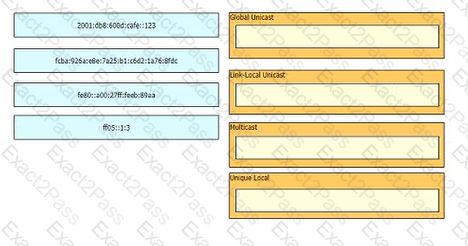

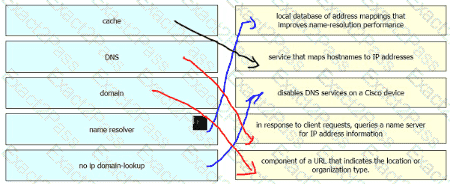

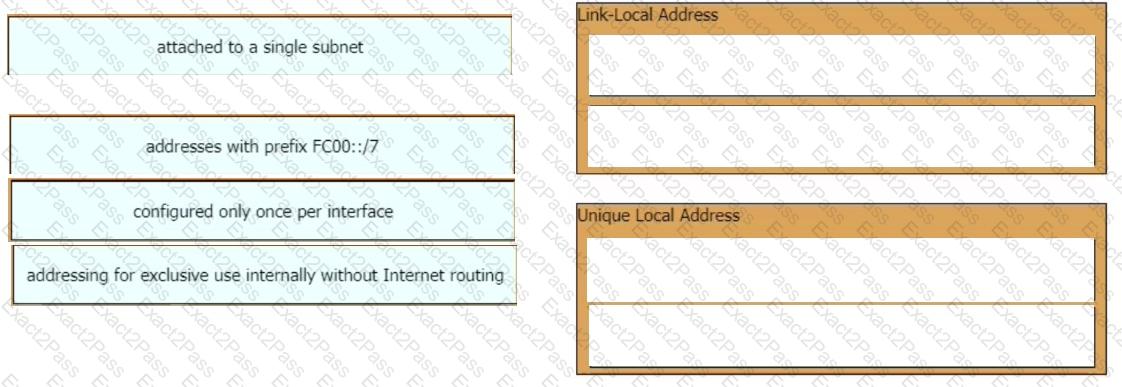

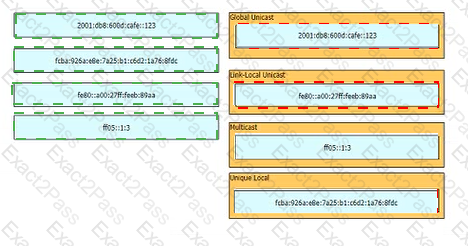

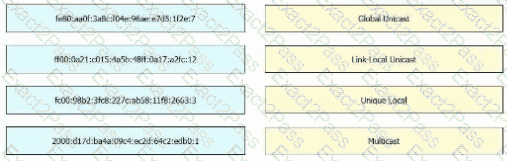

Drag and drop the characteristic from the left onto the IPv6 address type on the right.
Refer to the exhibit.
Traffic from R1 to the 10.10.2.0/24 subnet uses 192.168.1.2 as its next hop. An network engineer wants to update the R1 configuration so that traffic with destination 10.10.2.1 passes through router R3, and all other traffic to the 10.10.20/24 subnet passes through r2. Which command must be used?

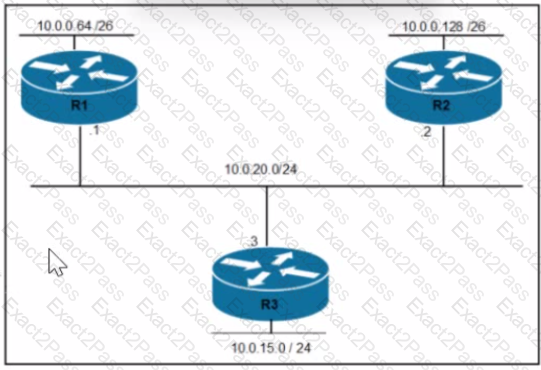

Refer to the exhibit.

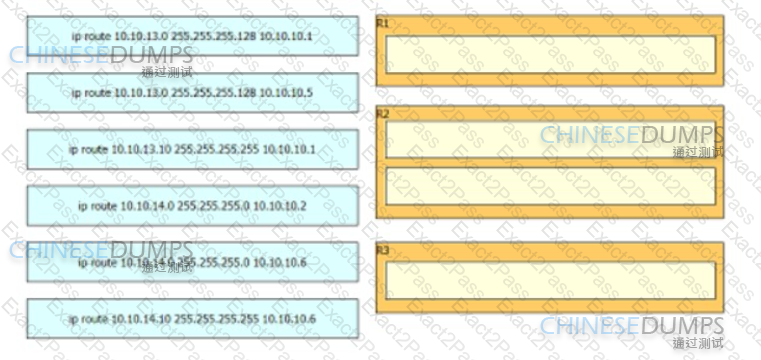

Drag and drop the destination IPs from the left onto the paths to reach those destinations on the right.
Drag and drop the virtualization concepts from the left onto the matching statements on the right.
Which two protocols are used by an administrator for authentication and configuration on access points?

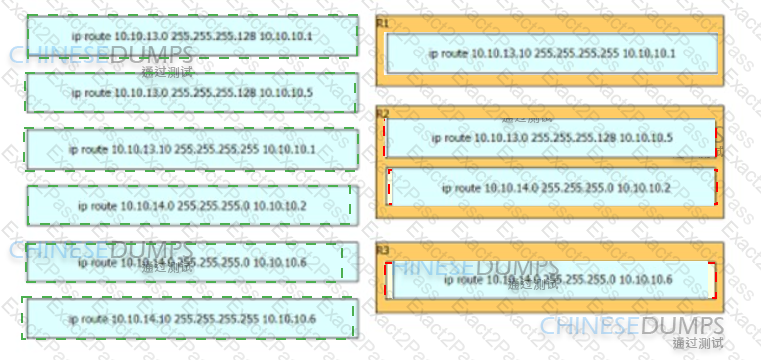

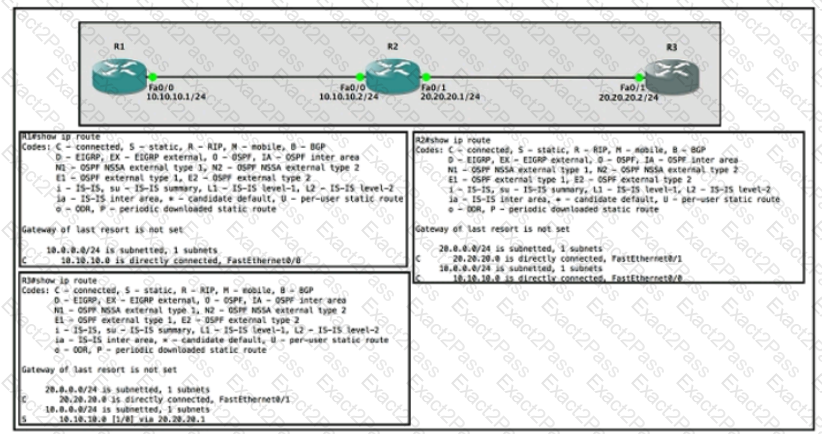

Refer to the exhibit. An engineer must configure a static network route between two networks so that host A communicates with host B. Drag and drop the commands from the left onto the routers where they must be configured on the right. Not all commands are used.

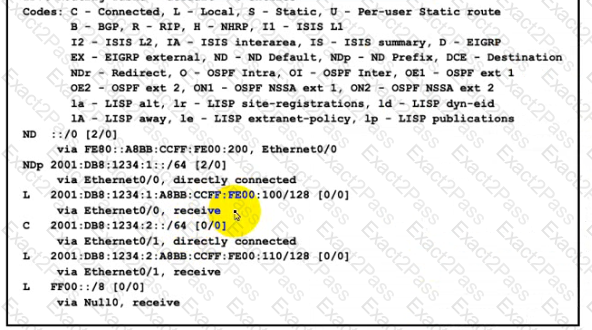

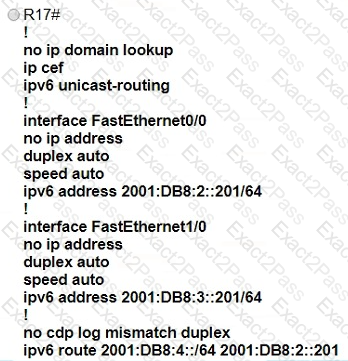

Refer to the exhibit.

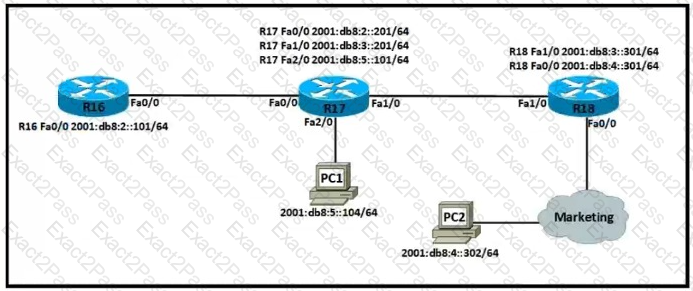

The administrator must configure a floating sialic default route that points to 2001:db8:1234:2::1 and replaces the current default route only if it fails. Which command must the engineer configure on the CPE?
What provides connection redundancy increased bandwidth and load sharing between a wireless LAN controller and a Layer 2 switch?
What are two characteristics of a small office / home office connection environment? (Choose two.)

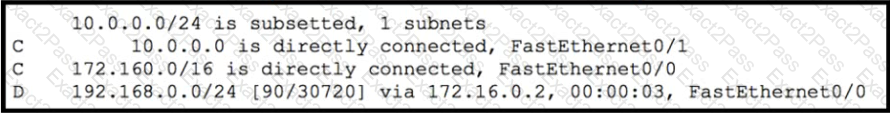

Refer lo the exhibit. What is the next-hop P address for R2 so that PC2 reaches the application server via ElGRP?

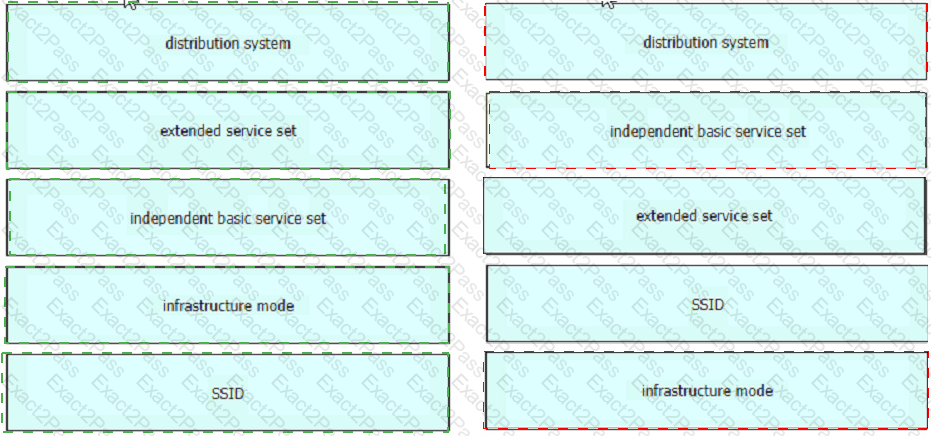

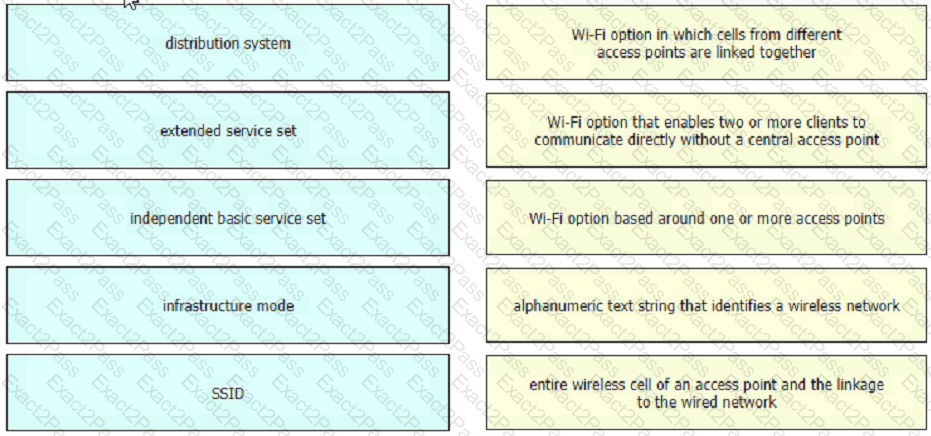

Drag and drop the Wi-Fi terms from the left onto the descriptions on the right.
Drag and drop the steps in a standard DNS lookup operation from the left into the order on the right.

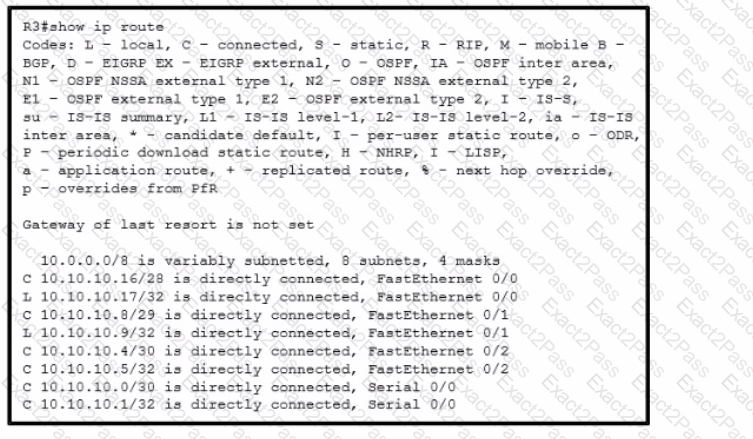

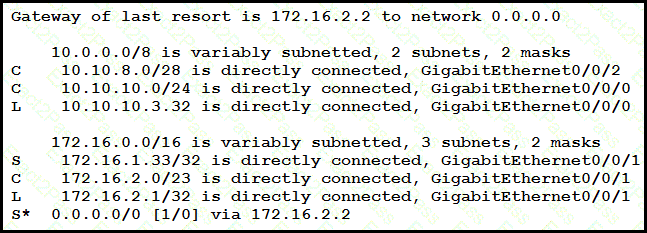

Refer to the exhibit.
A packet sourced from 10.10.10.32 is destined for the internet.

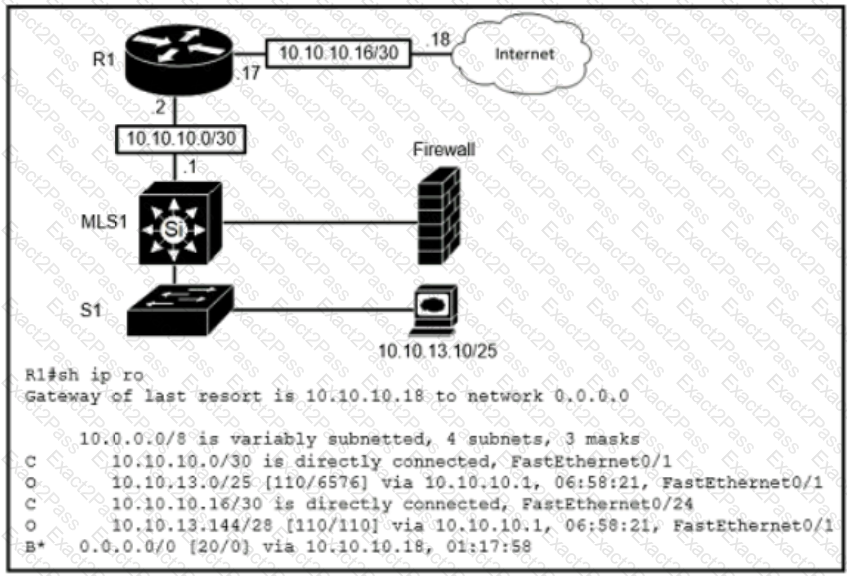

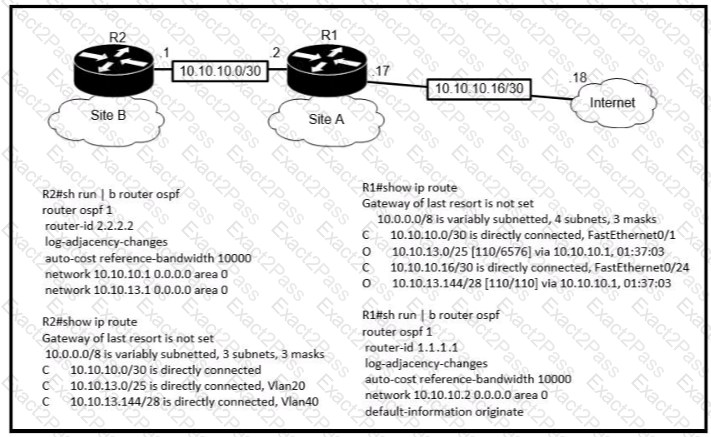

Refer to the exhibit.

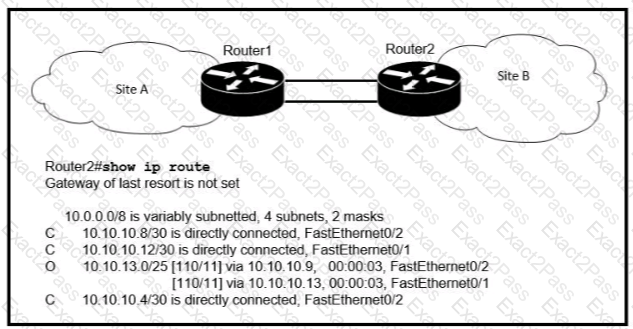

What is the subnet mask of the route to the 10.10.13.160 prefix?

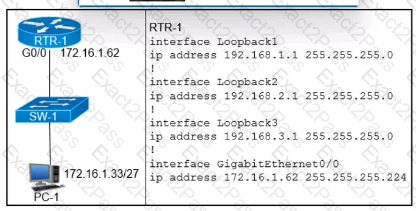

Refer to the exhibit.
A newly configured PC fails to connect to the internet using TCP port 80 to www cisco com Which setting must be modified for the connection to work?
Which IPv6 address range is suitable for anycast addresses for distributed services such DHCP or DNS?

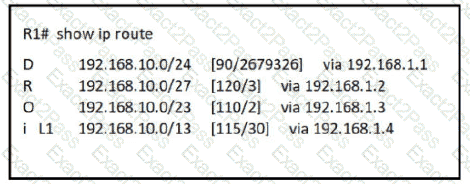

Refer to the exhibit.
What is the prefix length for the route that router1 will use to reach host A?

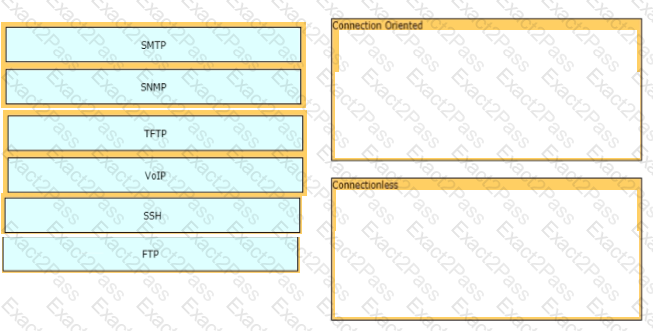

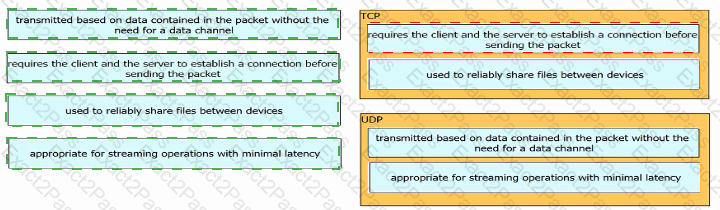

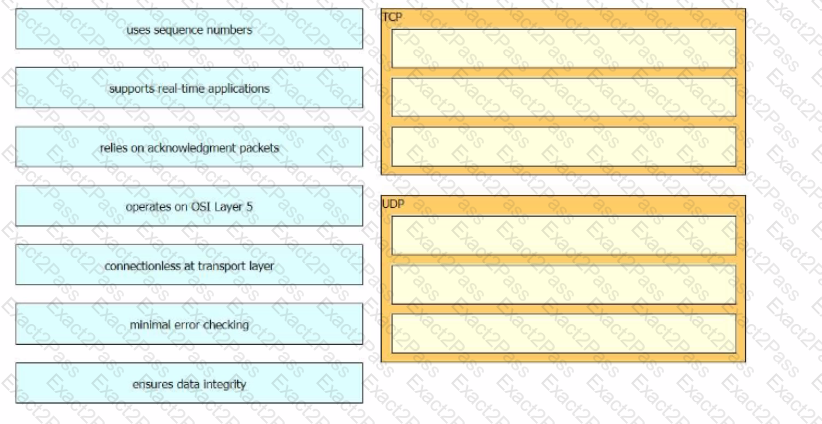

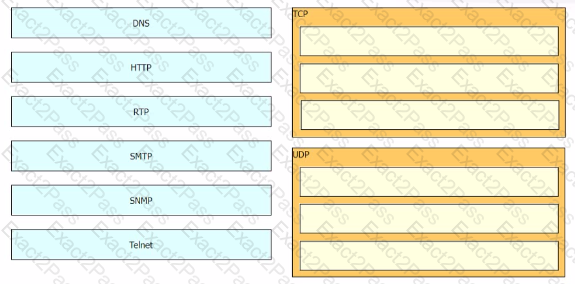

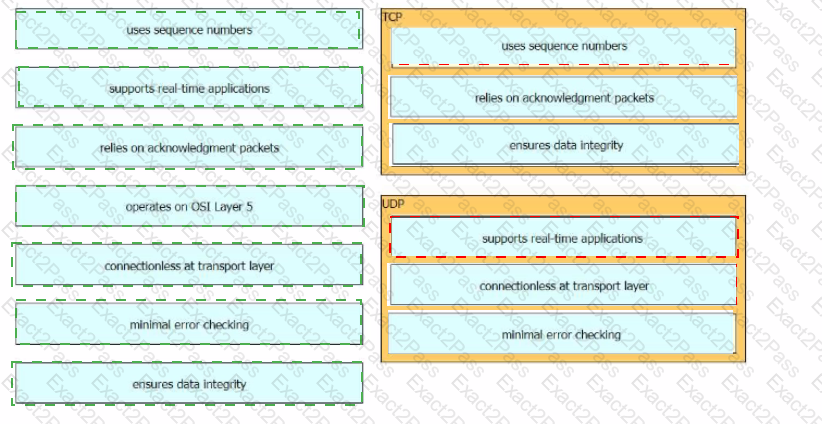

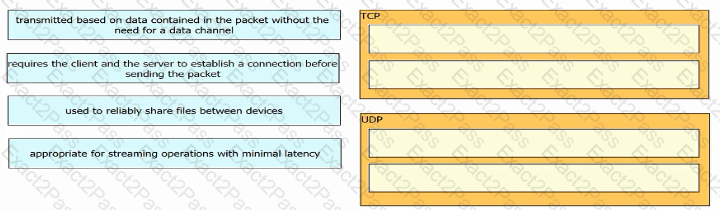

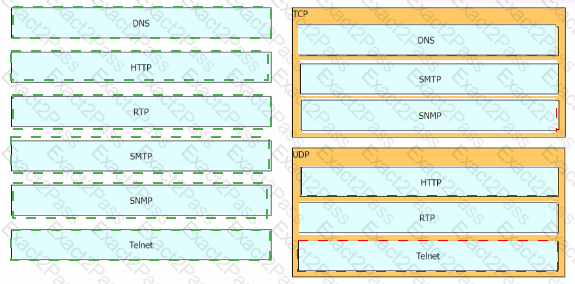

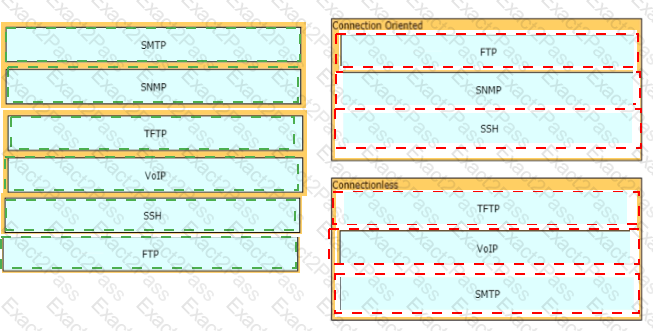

Drag and drop the TCP or UDP details from the left onto their corresponding protocols on the right.

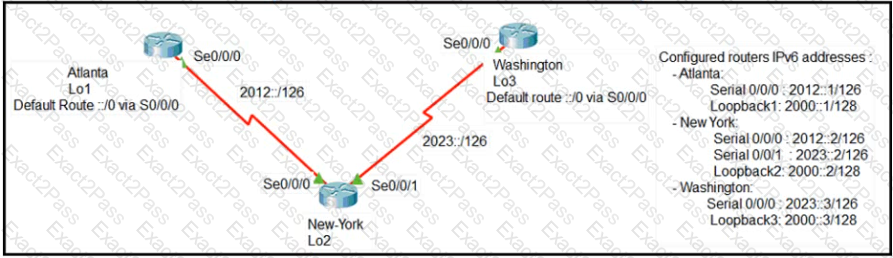

Refer to the exhibit.

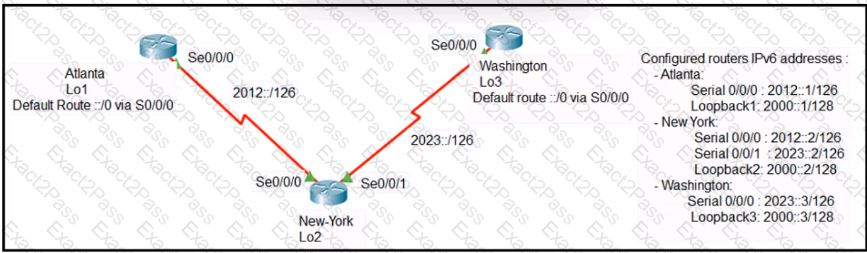

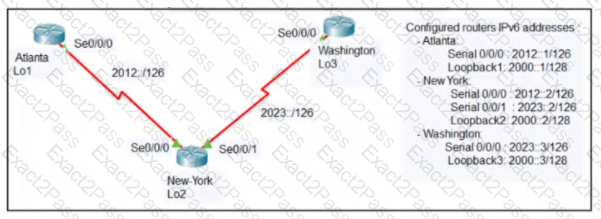

The loopback1 interface of the Atlanta router must reach the lookback3 interface of the Washington router.
SIP-based Call Admission Control must be configured in the Cisco WLC GUI. SIP call-snooping ports are configured. Which two actions must be completed next? (Choose two.)

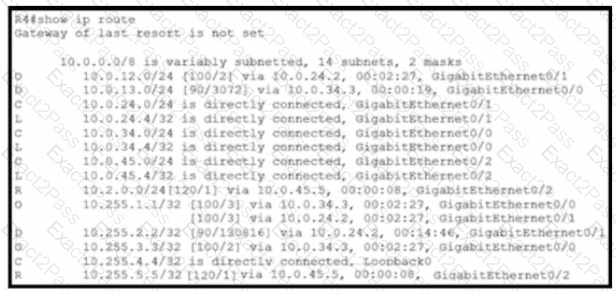

Refer to the exhibit.
Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
Which Windows command is used instead of the route print command to display the contents of the IP routing table?
Which channel-group mode must be configured when multiple distribution interfaces connected to a WLC are bundled?
What does the implementation of a first-hop redundancy protocol protect against on a network?
A wireless access point is needed and must meet these requirements:
• "zero-touch" deployed and managed by a WLC
• process only real-time MAC functionality
• used in a split-MAC architecture. Which access point type must be used?
When the LAG configuration is updated on a Cisco WLC which additional task must be performed when changes are complete?
A router has two static routes to the same destination network under the same OSPF process. How does the router forward packets to the destination if the next-hop devices are different?

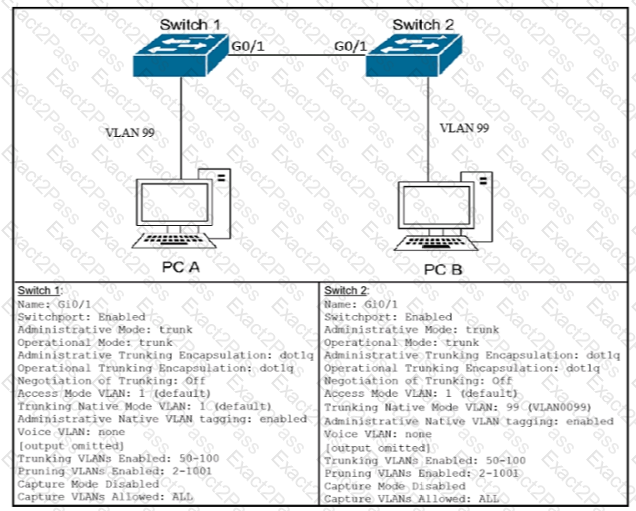

Refer to the exhibit.
A network engineer must update the configuring on switch2 so that it sends LLDP packets.
A)
B)
C)
D)
What is a reason why an administrator would choose to implement an automated network management approach?
Refer to the exhibit.
What does the host do when using the IPv4 Preferred function?
Which interface or port on the WLC is the default for in-band device administration and communications between the controller and access points?
What is the advantage of separating the control plane from the data plane within an SDN network?
Which advantage does the network assurance capability of Cisco DNA Center provide over traditional campus management?
What is an expected outcome when network management automation is deployed?
An engineer must configure R1 for a new user account. The account must meet these requirements:
* It must be configured in the local database.
* The username is engineer.
* It must use the strongest password configurable. Which command must the engineer configure on the router?
What is a function of Opportunistic Wireless Encryption in an environment?
What are two advantages of implementing a controller-based architecture instead of a traditional network architecture? (Choose two.)
Which two spanning-tree states are bypassed on an interface running PortFast? (Choose two.)
Which value is the unique identifier that an access point uses to establish and maintain wireless connectivity to wireless network devices?
Refer to the exhibit.
Which plan must be Implemented to ensure optimal QoS marking practices on this network?
Refer to the exhibit.

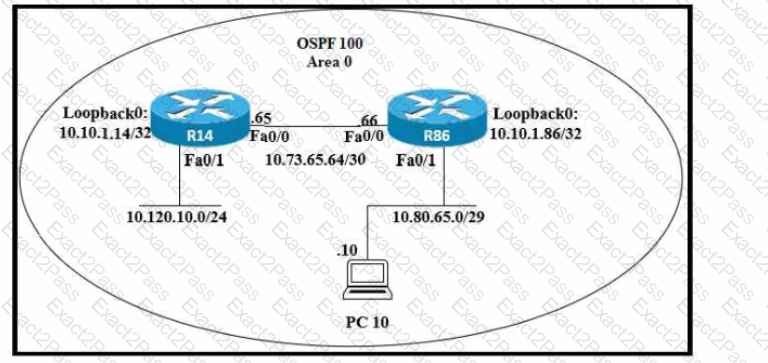

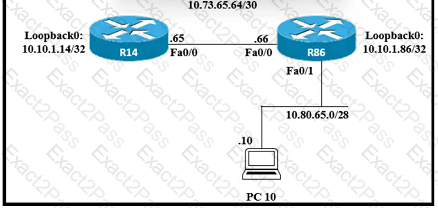

A static route must be configured on R14 to forward traffic for the 172 21 34 0/25 network that resides on R86 Which command must be used to fulfill the request?
Refer to the exhibit.
Which command configures OSPF on the point-to-point link between routers R1 and R2?

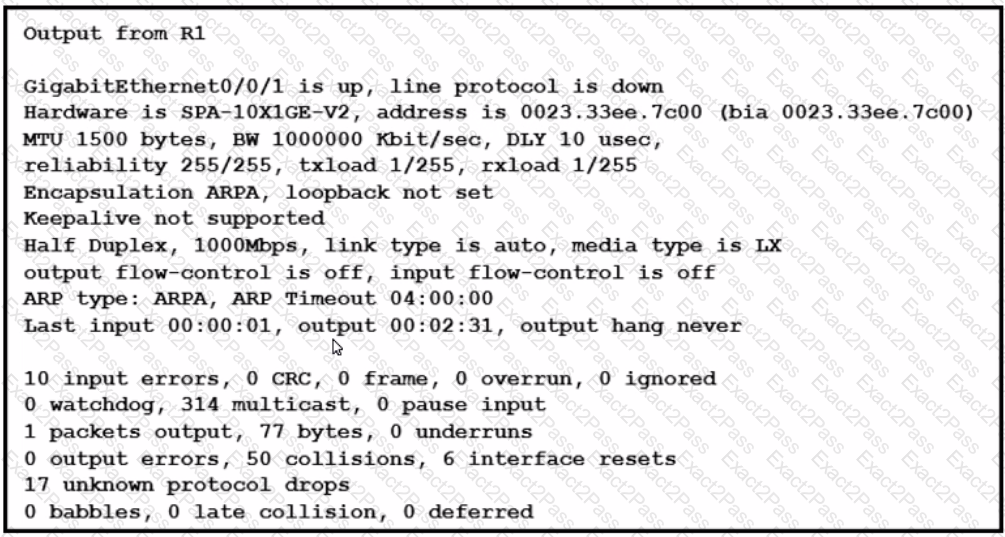

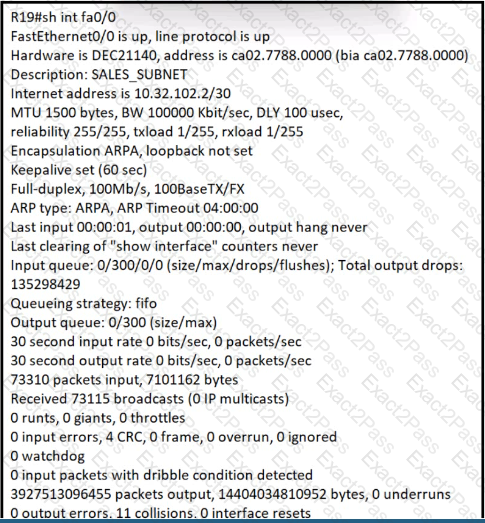

Refer to the exhibit.
Site A was recently connected to site B over a new single-mode fiber path. Users at site A report Intermittent connectivity Issues with applications hosted at site B. What is the reason for the problem?

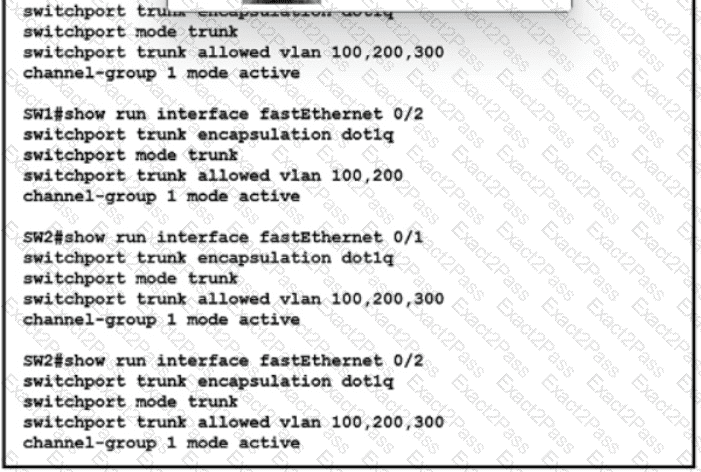

Refer to the exhibit.
An engineer has started to configure replacement switch SW1. To verify part of the configuration, the engineer issued the commands as shown and noticed that the entry for PC2 is missing. Which change must be applied to SW1 so that PC1 and PC2 communicate normally?
A)
B)
C)
D)
Drag and drop the descriptions of AAA services from the left onto the corresponding services on the right.
An engineer is configuring remote access to a router from IP subnet 10.139.58.0/28. The domain name, crypto keys, and SSH have been configured. Which configuration enables the traffic on the destination router?
A)
B)
C)
D)

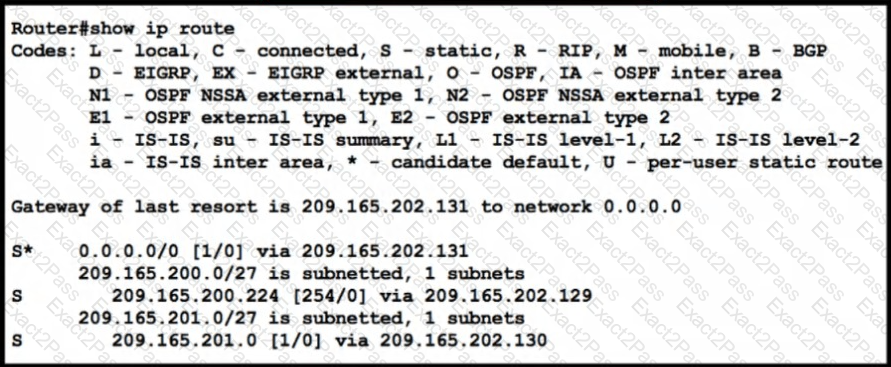

Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
Refer to the exhibit.
Traffic that is flowing over interface TenGigabitEthernet0/0 experiences slow transfer speeds. What is the reason for the issue?

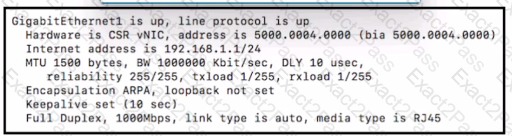

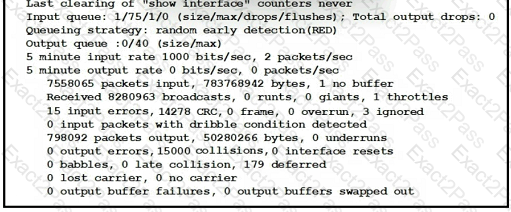

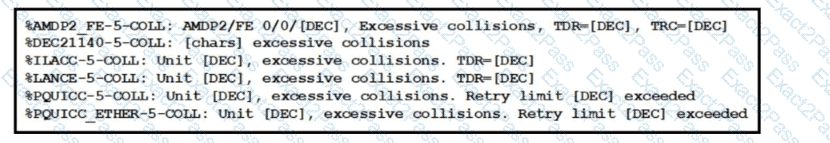

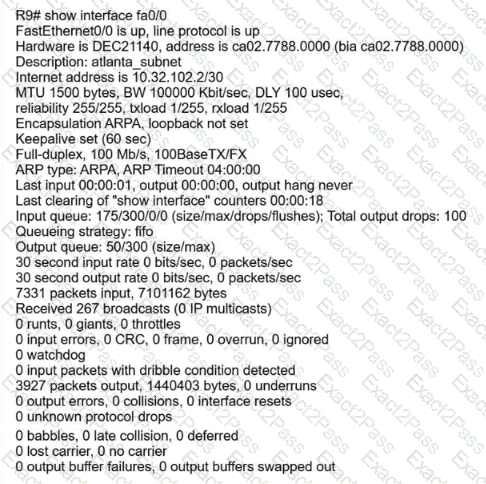

Refer to the exhibit.
The link between PC1 and the switch is up. but it is performing poorly. Which interface condition is causing the performance problem?
A network engineer is installing an IPv6-only capable device. The client has requested that the device IP address be reachable only from the internal network. Which type of IPv6 address must the engineer assign?

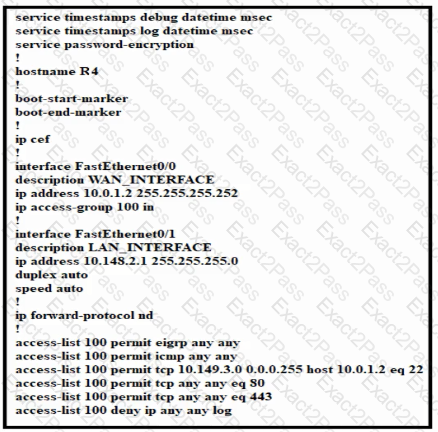

Refer to the exhibit.
Which configuration enables DHCP addressing for hosts connected to interface FastEthernetO/1 on router R4?
Refer to the exhibit.
Switch A is newly configured. All VLANs are present in the VLAN database. The IP phone and PC A on Gi0/1 must be configured for the appropriate VLANs to establish connectivity between the PCs. Which command set fulfills the requirement?
A)
B)
C)
D)
Refer to the exhibit.

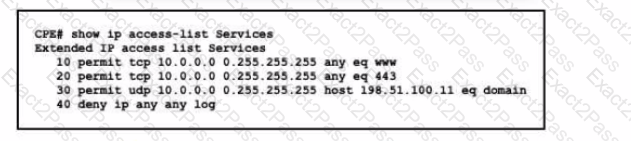

All traffic enters the CPE router from interface Serial0/3 with an IP address of 192 168 50 1 Web traffic from the WAN is destined for a LAN network where servers are load-balanced An IP packet with a destination address of the HTTP virtual IP of 192 1681 250 must be forwarded Which routing table entry does the router use?
Refer to the exhibit.
A network engineer must update the configuration on Switch2 so that it sends LLDP packets every minute and the information sent via LLDP is refreshed every 3 minutes Which configuration must the engineer apply?
A)
B)
C)
D)

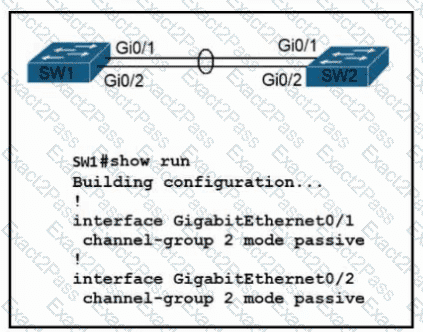

Refer to the exhibit.
An engineer is configuring an EtherChannel using LACP between Switches 1 and 2 Which configuration must be applied so that only Switch 1 sends LACP initiation packets?
Which type of IPv6 address is similar to a unicast address but is assigned to multiple devices on the same network at the same time?

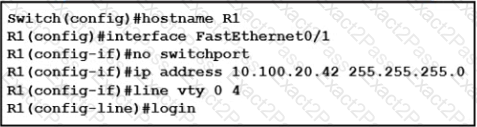

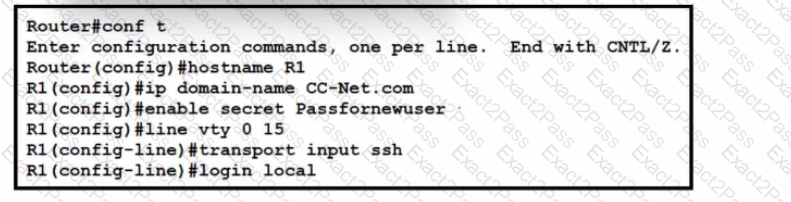

Refer to the exhibit.

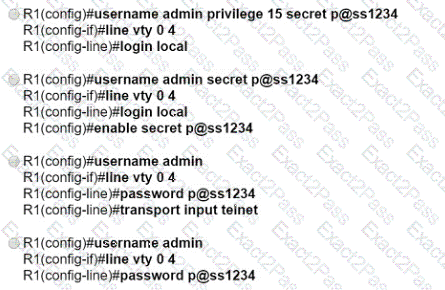

Which two commands must be configured on router R1 to enable the router to accept secure remote-access connections? (Choose two)
Refer to the exhibit.
Which action must be taken to ensure that router A is elected as the DR for OSPF area 0?

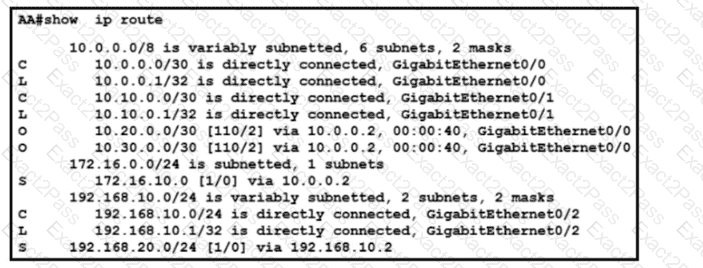

Refer to the exhibit.
Which command must be issued to enable a floating static default route on router A?
A network engineer is configuring a switch so that it is remotely reachable via SSH. The engineer has already configured the host name on the router. Which additional command must the engineer configure before entering the command to generate the RSA key?
Refer to the exhibit.
Which minimum configuration items are needed to enable Secure Shell version 2 access to R15?
A)
B)
C)
D)
Which interface mode must be configured to connect the lightweight APs in a centralized architecture?

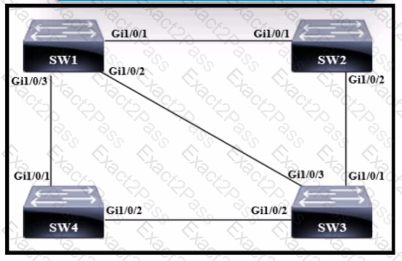

Refer to the exhibit.
Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?

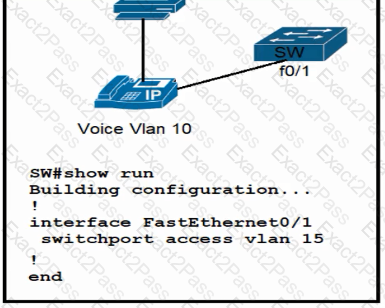

Refer to the exhibit.

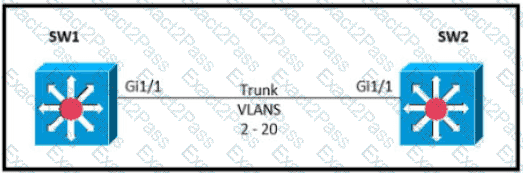

All VLANs are present in the VLAN database. Which command sequence must be applied to complete the configuration?
Refer to the exhibit.
Router R1 currently is configured to use R3 as the primary route to the Internet, and the route uses the default administrative distance settings. A network engineer must configure R1 so that it uses R2 as a backup, but only if R3 goes down. Which command must the engineer configure on R1 so that it correctly uses R2 as a backup route, without changing the administrative distance configuration on the link to R3?

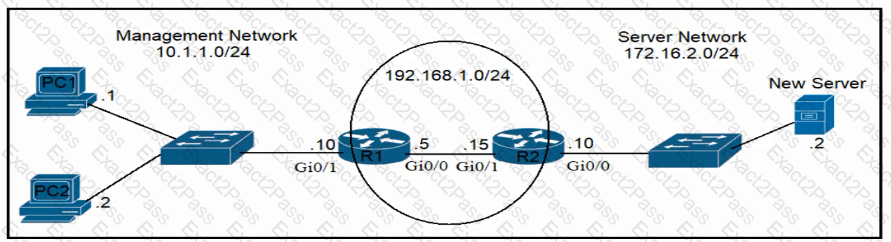

Refer to the exhibit.
An engineer is updating the R1 configuration to connect a new server to the management network. The PCs on the management network must be blocked from pinging the default gateway of the new server. Which command must be configured on R1 to complete the task?
Which PoE mode enables powered-device detection and guarantees power when the device is detected?

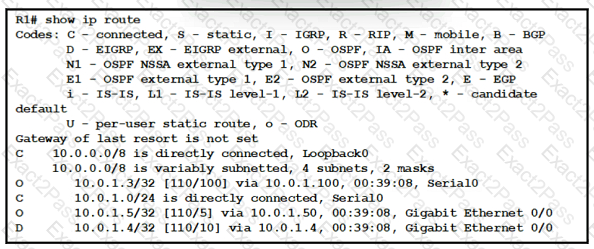

Refer to the exhibit.
Traffic sourced from the loopback0 Interface is trying to connect via ssh to the host at 10.0.1.15. What Is the next hop to the destination address?
Refer to the exhibit.

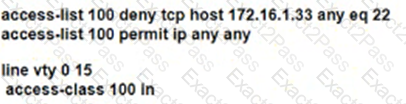

Which two commands must be added to update the configuration of router R1 so that it accepts only encrypted connections? (Choose two )

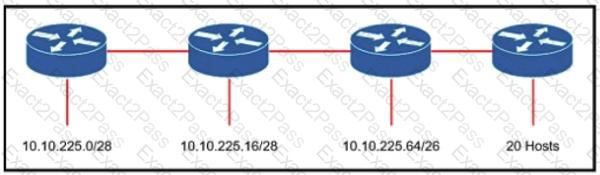

Refer to the exhibit.
An IP subnet must be configured on each router that provides enough addresses for the number of assigned hosts and anticipates no more than 10% growth for now hosts. Which configuration script must be used?
A)
B)
C)
D)
Refer to the exhibit.
The following must be considered:
• SW1 is fully configured for all traffic
• The SW4 and SW9 links to SW1 have been configured
• The SW4 interface Gi0/1 and Gi0/0 on SW9 have been configured
• The remaining switches have had all VLANs adde d to their VLAN database
Which configuration establishes a successful ping from PC2 to PC7 without interruption to traffic flow between other PCs?
A)
B)
C)
D)

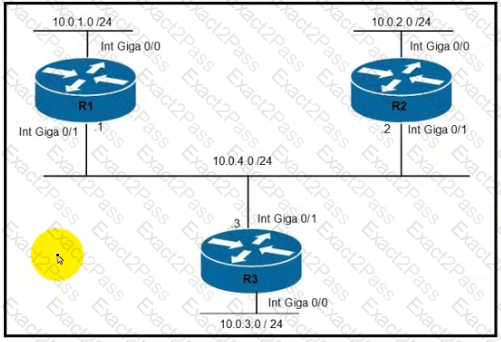

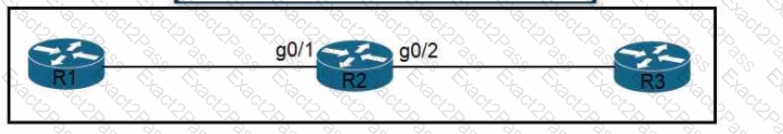

Refer to the exhibit.
Routers R1 and R3 have the default configuration The router R2 priority is set to 99 Which commands on R3 configure it as the DR in the 10.0 4.0/24 network?
Refer to the exhibit.
The router has been configured with a supernet to accommodate the requirement for 380 users on a subnet The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?
A)
B)
C)
D)
Which action implements physical access control as part of the security program of an organization?
Which type of network attack overwhelms the target server by sending multiple packets to a port until the half-open TCP resources of the target are exhausted?
Refer to the exhibit.
Which route must be configured on R1 so that OSPF routing is used when OSPF is up. but the server is still reachable when OSPF goes down?
An engineer is tasked to configure a switch with port security to ensure devices that forward unicasts multicasts and broadcasts are unable to flood the port The port must be configured to permit only two random MAC addresses at a time Drag and drop the required configuration commands from the left onto the sequence on the right Not all commands are used.
Refer to the exhibit.
Users need to connect to the wireless network with IEEE 802. 11r-compatible devices. The connection must be maintained as users travel between floors or to other areas in the building What must be the configuration of the connection?
OSPF must be configured between routers R1 and R2. Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?

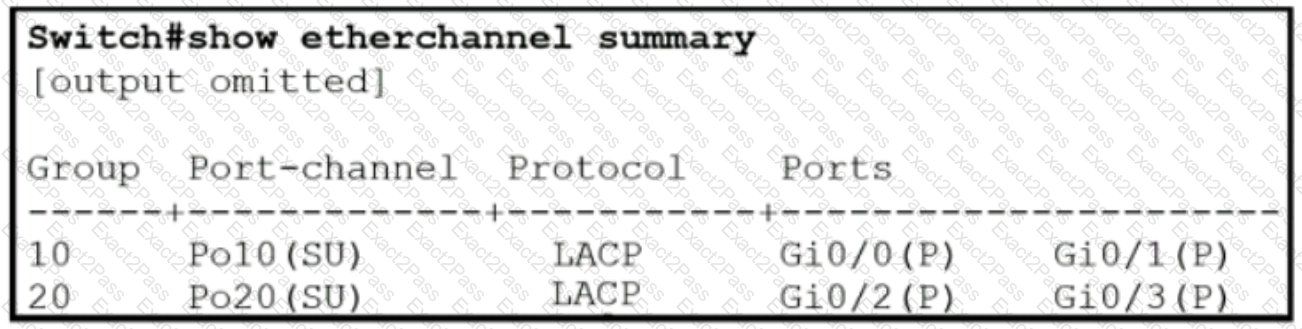

Refer to the exhibit.

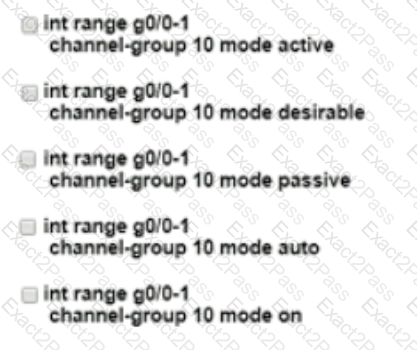

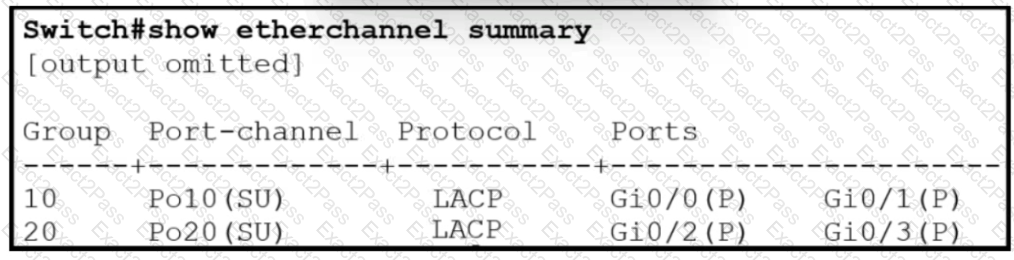

Which two commands when used together create port channel 10? (Choose two.)
Refer to the exhibit.
The DHCP server and clients are connected to the same switch. What is the next step to complete the DHCP configuration to allow clients on VLAN 1 to receive addresses from the DHCP server?

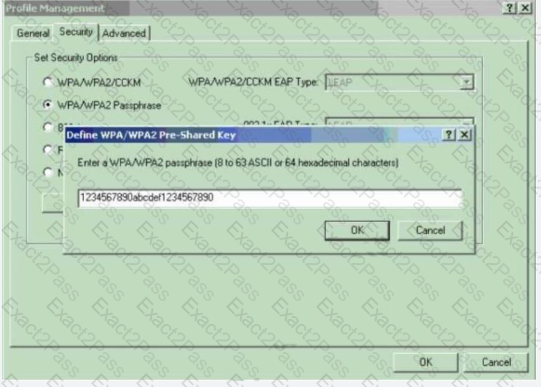

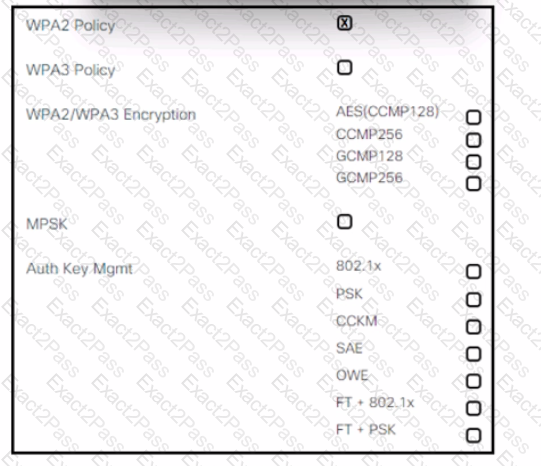

When a WLAN with WPA2 PSK is configured in the Wireless LAN Controller GUI which format is supported?
An office has 8 floors with approximately 30-40 users per floor What command must be configured on the router Switched Virtual Interface to use address space efficiently?

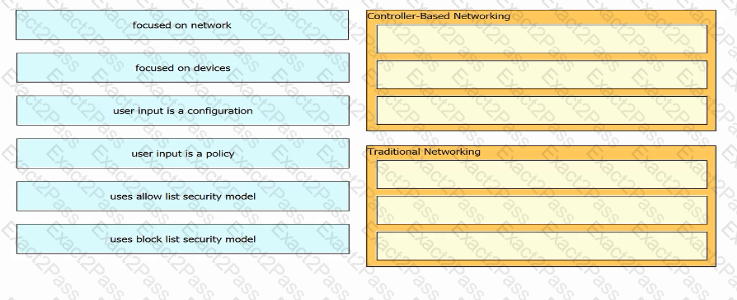

Which statement correctly compares traditional networks and controller-based networks?
A user configured OSPF in a single area between two routers A serial interface connecting R1 and R2 is running encapsulation PPP By default which OSPF network type is seen on this interface when the user types show ip ospf interface on R1 or R2?
Refer to the exhibit.
The New York router is configured with static routes pointing to the Atlanta and Washington sites. Which two tasks must be performed so that the Serial0/0/0 interfaces on the Atlanta and Washington routers can reach one another?
(Choose two.)
Refer to the exhibit.
To which device does Router1 send packets that are destined to host 10.10.13.165?
Refer to the exhibit.
Based on the LACP neighbor status, in which mode is the SW1 port channel configured?
What role does a hypervisor provide for each virtual machine in server virtualization?
How does a Cisco Unified Wireless network respond to Wi-Fi channel overlap?
What are two differences between optical-fiber cabling and copper cabling? (Choose two)
Which 802.11 frame type is indicated by a probe response after a client sends a probe request?
Which technology can prevent client devices from arbitrarily connecting to the network without state remediation?
A network administrator must to configure SSH for remote access to router R1 The requirement is to use a public and private key pair to encrypt management traffic to and from the connecting client.
Which configuration, when applied, meets the requirements?

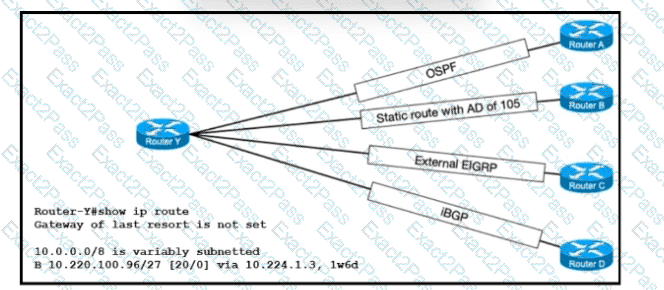

R1 has learned route 10.10.10.0/24 via numerous routing protocols. Which route is installed?
Refer to the exhibit.
An engineer configured the New York router with state routes that point to the Atlanta and Washington sites. When command must be configured on the Atlanta and Washington routers so that both sites are able to reach the loopback2 interface on the New York router?
When a site-to-site VPN is used, which protocol is responsible for the transport of user data?
Using direct sequence spread spectrum, which three 2.4-GHz channels are used to limit collisions?
What are two reasons for an engineer to configure a floating state route? (Choose two)

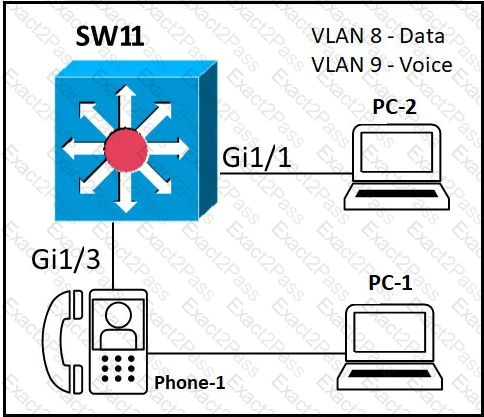

Refer to the exhibit.

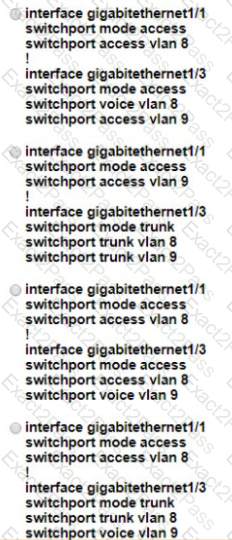

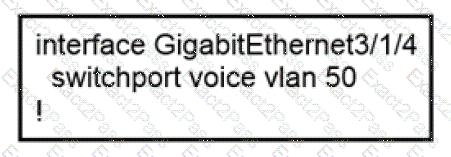

An engineer must configure GigabitEthernet1/1 to accommodate voice and data traffic Which configuration accomplishes this task?
Drag the descriptions of device management from the left onto the types of device management on the right.
A router running EIGRP has learned the same route from two different paths. Which parameter does the router use to select the best path?
When the active router in an HSRP group fails, what router assumes the role and forwards packets?
An implementer is preparing hardware for virtualization to create virtual machines on a host. What is needed to provide communication between hardware and virtual machines?
Which configuration is needed to generate an RSA key for SSH on a router?
Refer to Exhibit.
Which configuration must be applied to the router that configures PAT to translate all addresses in VLAN 200 while allowing devices on VLAN 100 to use their own IP addresses?
An engineer requires a scratch interface to actively attempt to establish a trunk link with a neighbor switch. What command must be configured?
Refer to the exhibit.
For security reasons, automatic neighbor discovery must be disabled on the R5 Gi0/1 interface. These tasks must be completed:
• Disable all neighbor discovery methods on R5 interface GiO/1.
• Permit neighbor discovery on R5 interface GiO/2.
• Verify there are no dynamically learned neighbors on R5 interface Gi0/1.
• Display the IP address of R6*s interface Gi0/2.
Which configuration must be used?

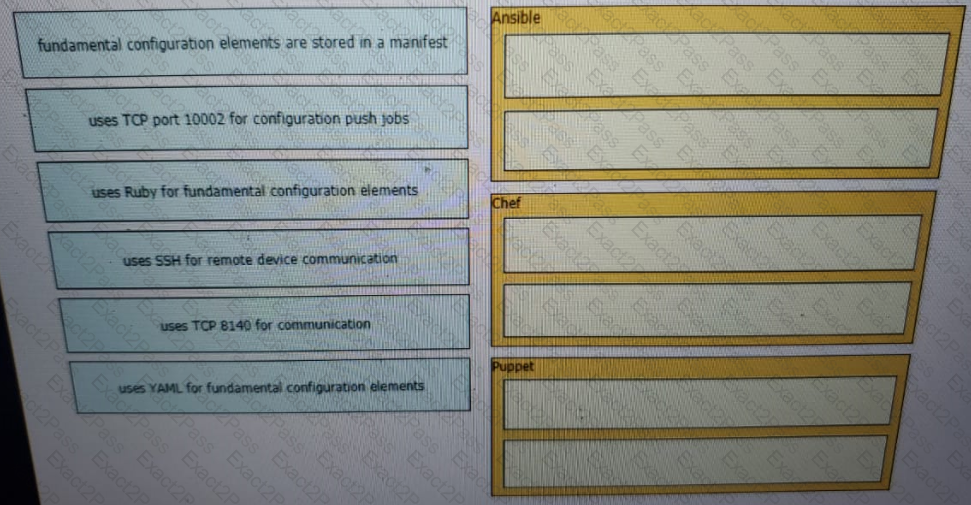

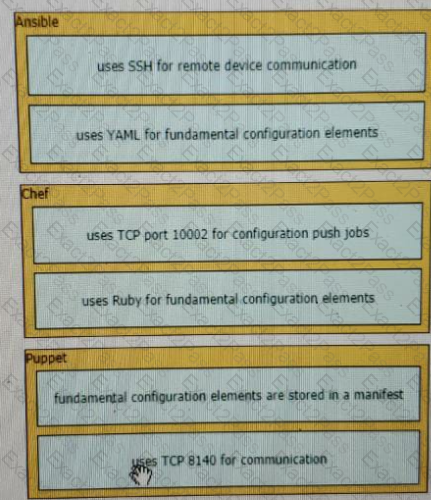

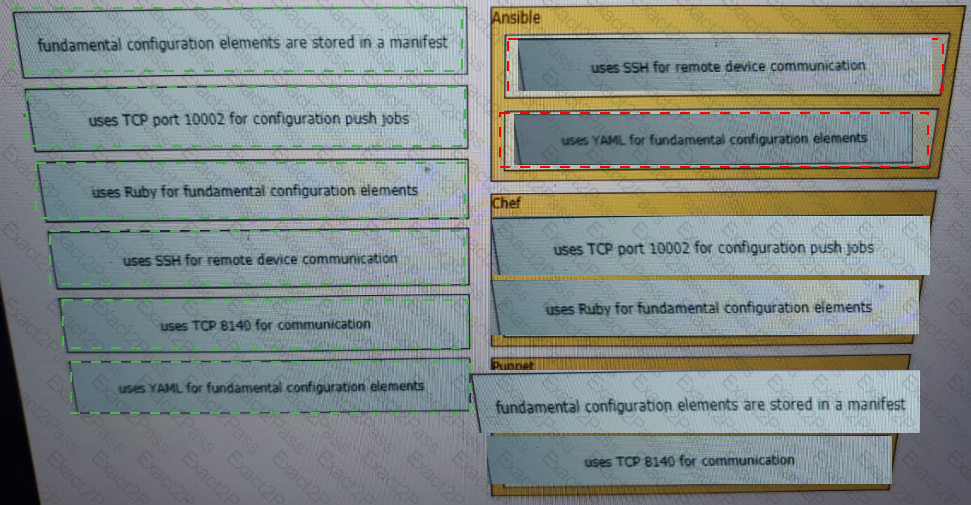

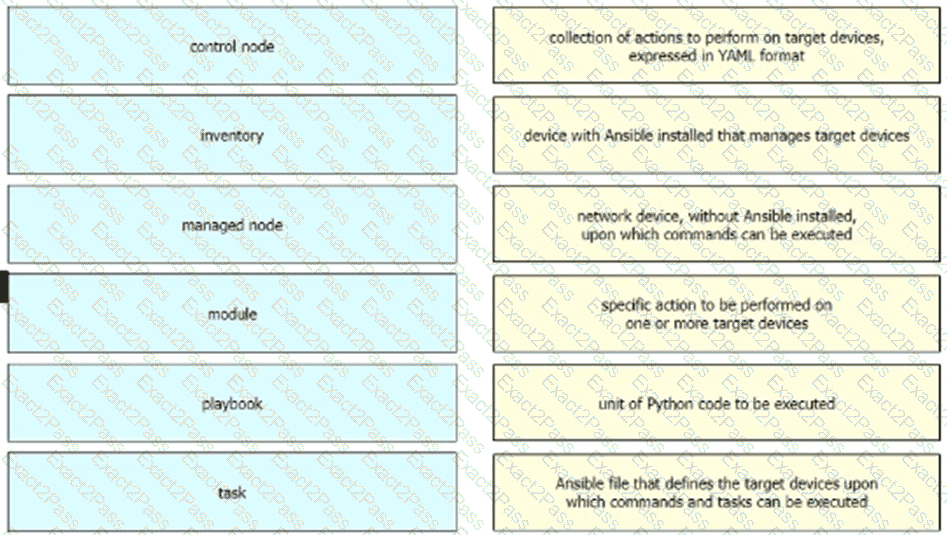

Drag and drop the descriptions from the left onto the configuration-management technologies on the right.

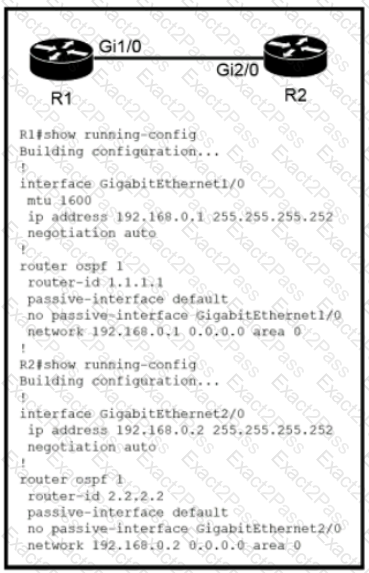

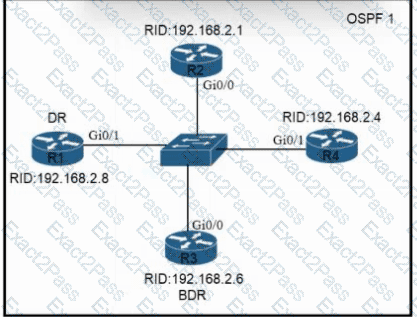

Refer to the exhibit.
What action establishes the OSPF neighbor relationship without forming an adjacency?
A corporate office uses four floors in a building
• Floor 1 has 24 users
• Floor 2 has 29 users
• Floor 3 has 28 users
•Floor 4 has 22 users
Which subnet summarizes and gives the most efficient distribution of IP addresses for the router configuration?
Which result occurs when PortFast is enabled on an interface that is connected to another switch?
Which action does the router take as rt forwards a packet through the network?

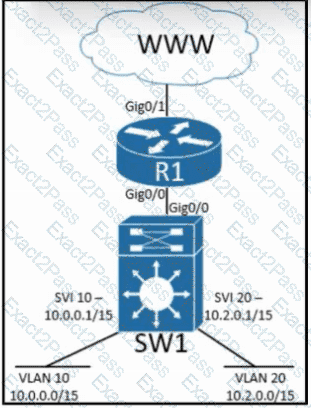

Refer to the exhibit.
A network engineer must block access for all computers on VLAN 20 to the web server via HTTP All other computers must be able to access the web server Which configuration when applied to switch A accomplishes this task?
An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels. What must be configured to allow clients to preferentially use 5GH2 access points?
Refer to the exhibit.

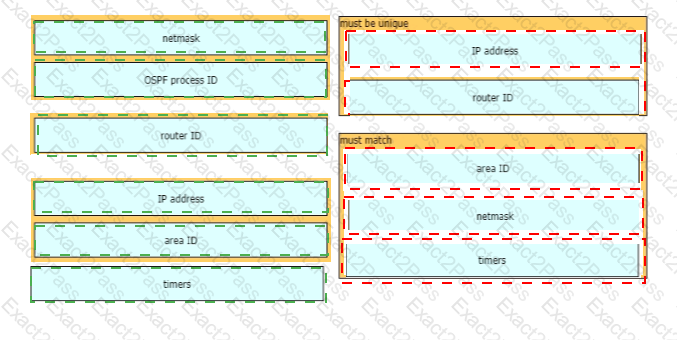

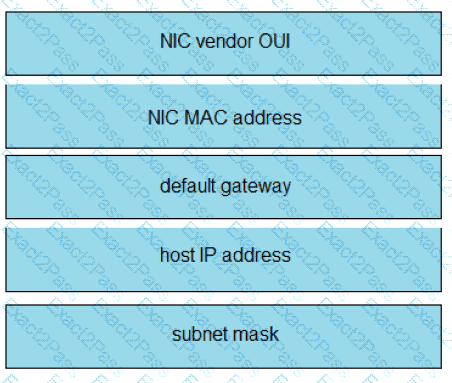

Drag and drop the networking parameters from the left onto the correct values on the right.
Refer to the exhibit.

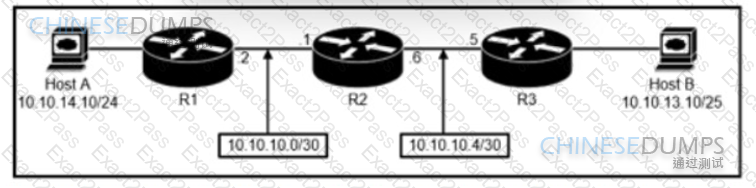

Which prefix does Router 1 use for traffic to Host A?
Which protocol requires authentication to transfer a backup configuration file from a router to a remote server?

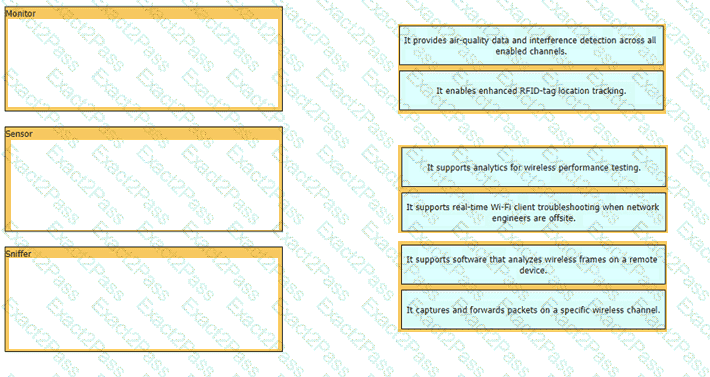

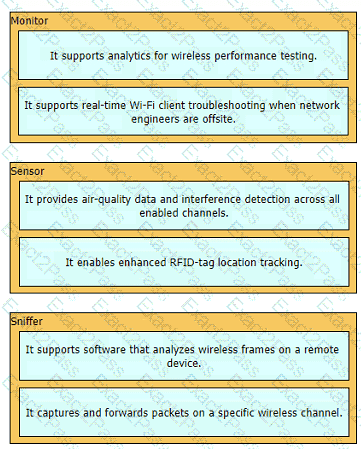

Drag and drop the lightweight access point operation modes from the left onto the descriptions on the right
An engineer must configure an OSPF neighbor relationship between router R1 and R3 The authentication configuration has been configured and the connecting interfaces are in the same 192.168 1.0/30 sublet. What are the next two steps to complete the configuration? (Choose two.)
Which type of IPv6 address is publicly routable in the same way as IPv4 public address?
Refer to the exhibit.

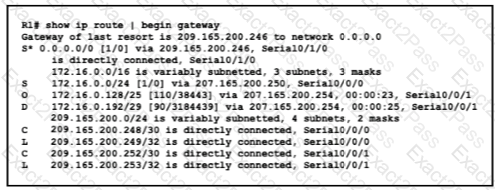

A packet is being sent across router R1 to host 172.16.0.14. What is the destination route for the packet?

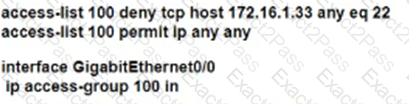

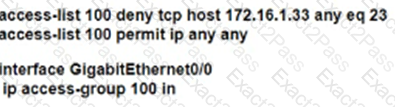

While examining excessive traffic on the network, it is noted that all incoming packets on an interface appear to be allowed even though an IPv4 ACL is applied to the interface.
Which two misconfigurations cause this behavior? (Choose two)

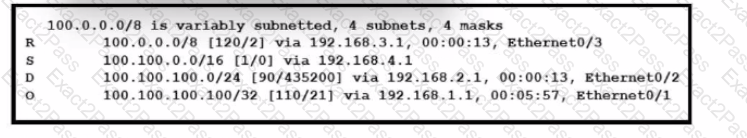

R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?
An engineer configures interface Gi1/0 on the company PE router to connect to an ISP Neighbor discovery is disabled
Which action is necessary to complete the configuration if the ISP uses third-party network devices?
Drag and drop the AAA functions from the left onto the correct AAA services on the right

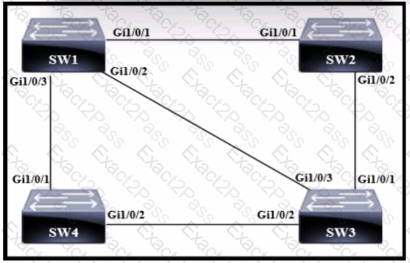

Refer to the exhibit.

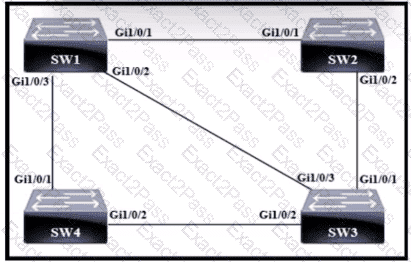

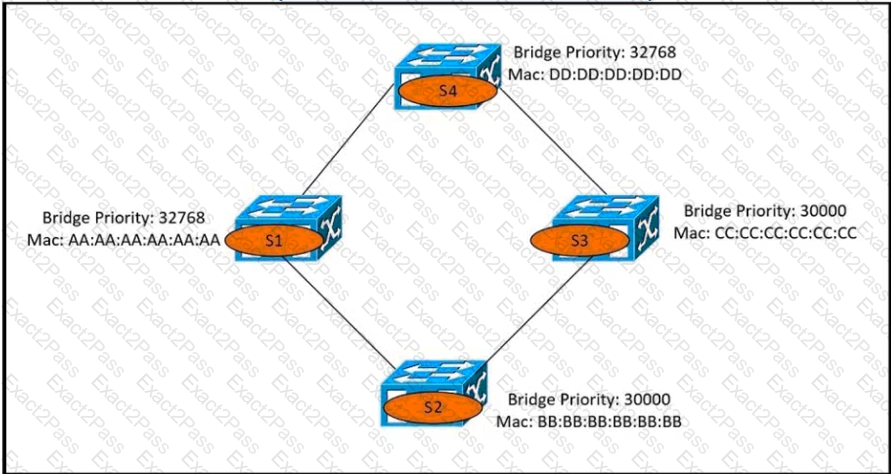

Which switch in this configuration will be elected as the root bridge?
Drag and drop the descriptions of file-transfer protocols from the left onto the correct protocols on the right.
What mechanism carries multicast traffic between remote sites and supports encryption?

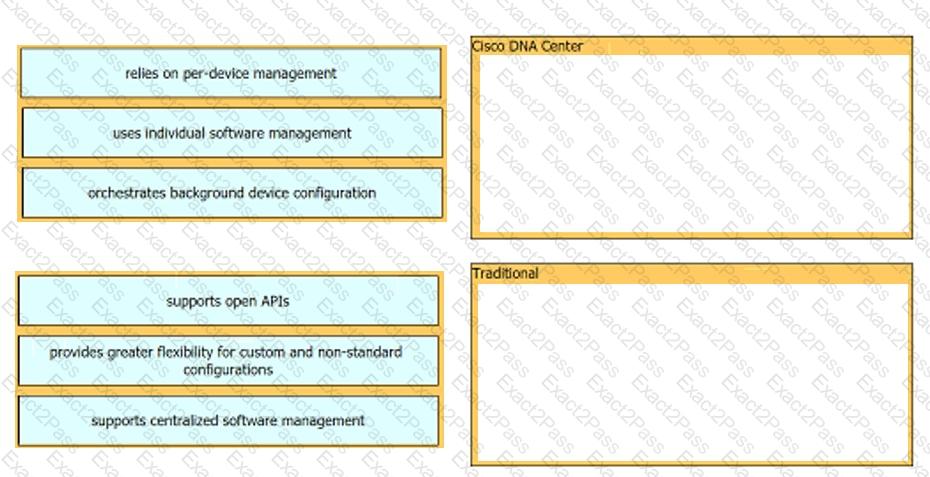

Drag and drop the statement about networking from the left into the Corresponding networking types on the right. Not all statements are used.
Which IPv6 address block sends packets to a group address rather than a single address?
A manager asks a network engineer to advise which cloud service models are used so employees do not have to waste their time installing, managing, and updating software which is only used occasionally Which cloud service model does the engineer recommend?

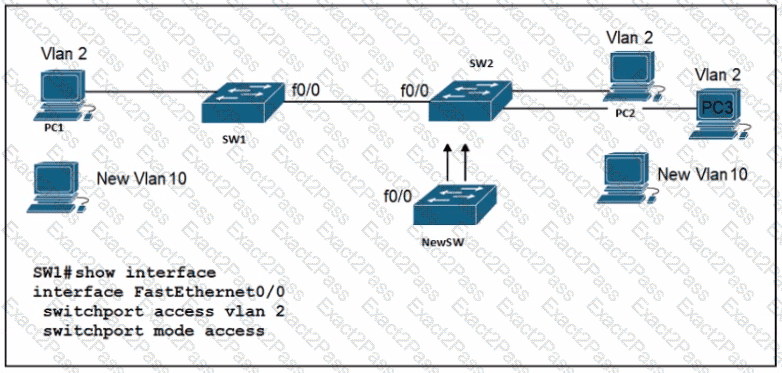

An engineer needs to add an old switch back into a network. To prevent the switch from corrupting the VLAN database which action must be taken?
Which security program element involves installing badge readers on data-center doors to allow workers to enter and exit based on their job roles?
Which command entered on a switch configured with Rapid PVST* listens and learns for a specific time period?

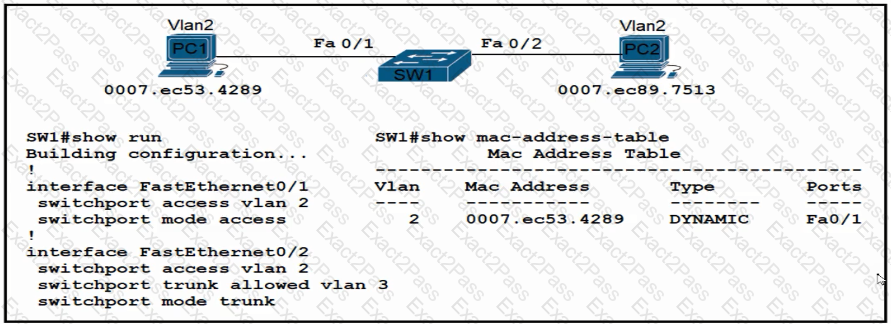

Refer to the exhibit.

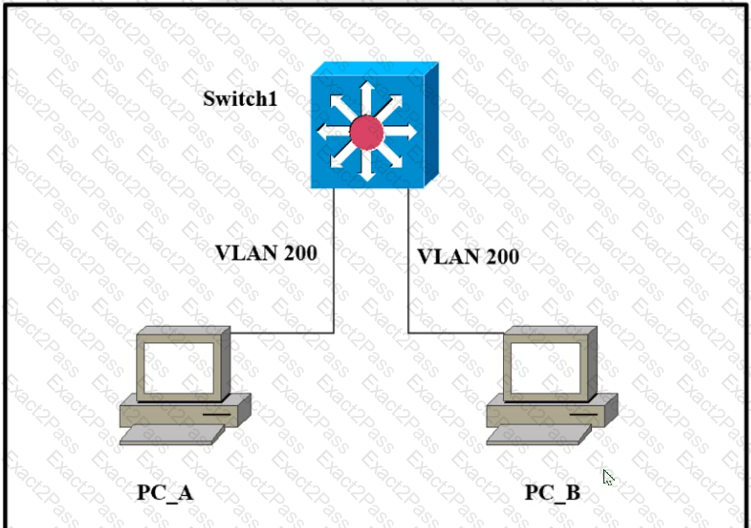

Which outcome is expected when PC_A sends data to PC_B?
What uses HTTP messages to transfer data to applications residing on different hosts?
In software defined architectures, which plane is distributed and responsible for traffic forwarding?

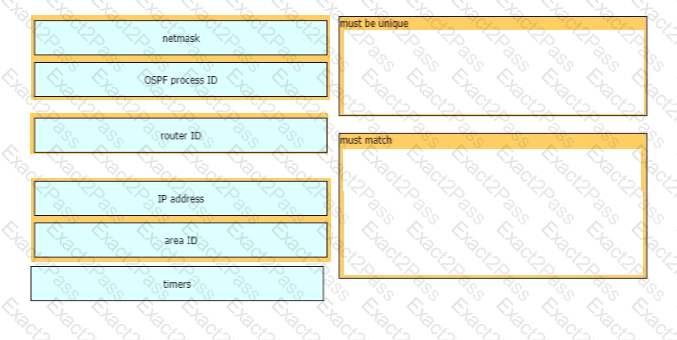

Which two minimum parameters must be configured on an active interface to enable OSPFv2 to operate? (Choose two)

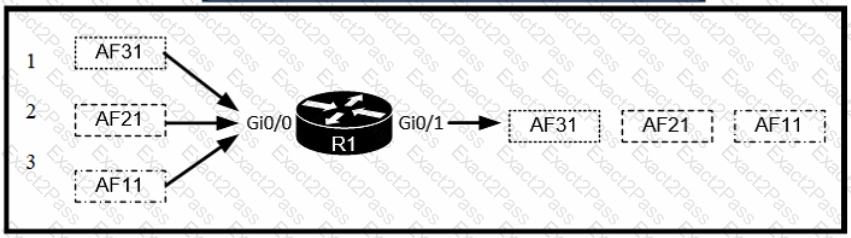

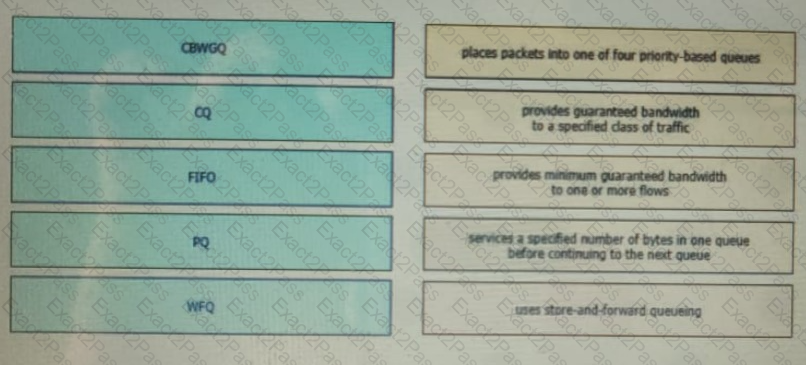

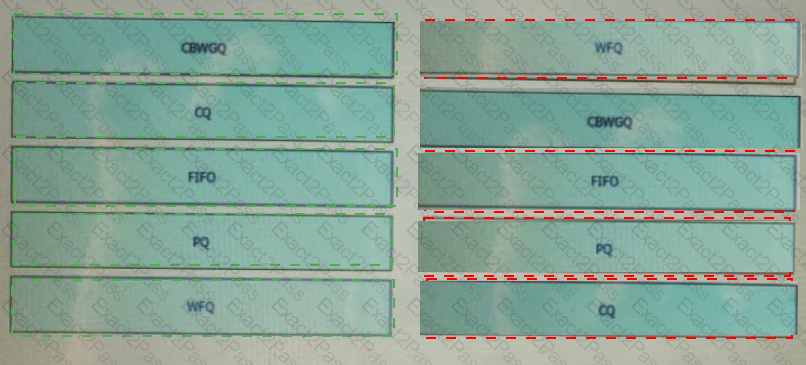

Drag and drop the QoS congestion management terms from the left onto the description on the right.
Which two minimum parameters must be configured on an active interface to enable OSPFv2 to operate? (Choose two)
What is the difference regarding reliability and communication type between TCP and UDP?
A network engineer must back up 20 network router configurations globally within a customer environment. Which protocol allows the engineer to perform this function using the Cisco IOS MIB?

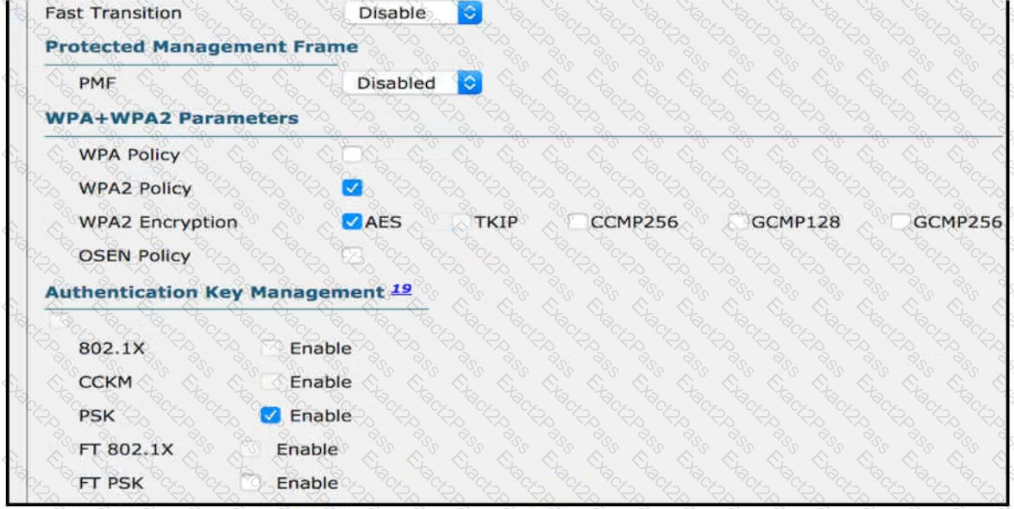

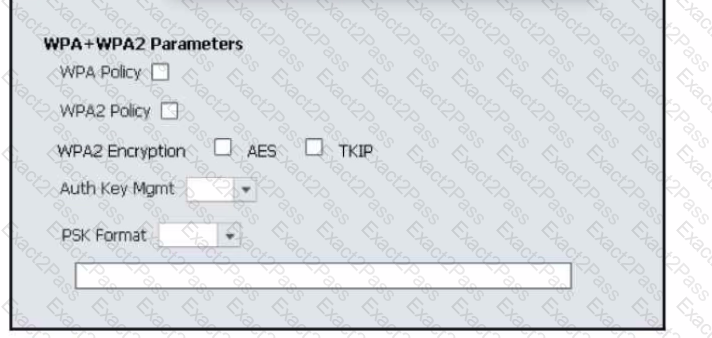

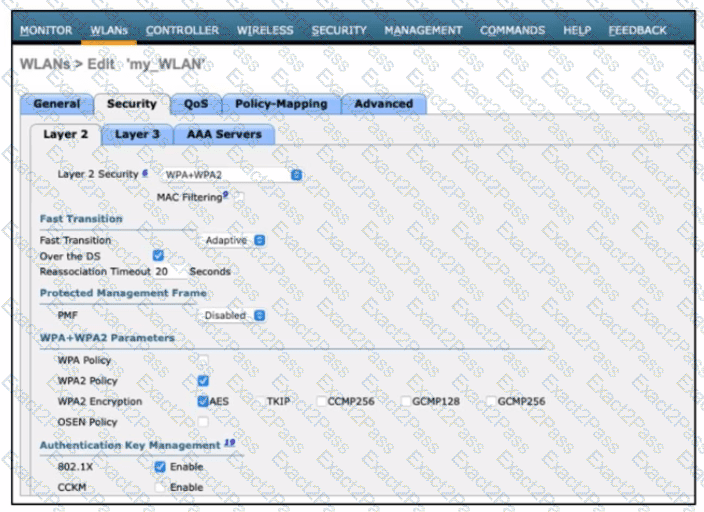

When configuring a WLAN with WPA2 PSK in the Cisco Wireless LAN Controller GUI, which two formats are available to select? (Choose two)

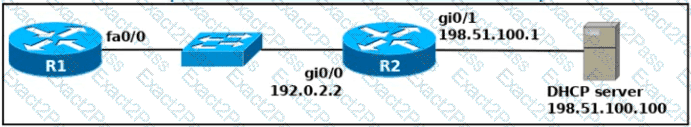

A network administrator must enable DHCP services between two sites. What must be configured for the router to pass DHCPDISCOVER messages on to the server?
A network administrator must enable DHCP services between two sites. What must be configured for the router to pass DHCPDISCOVER messages on to the server?

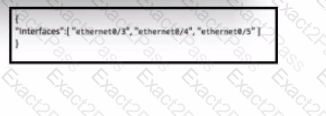

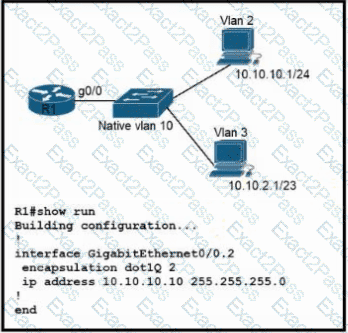

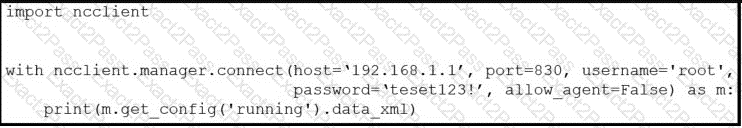

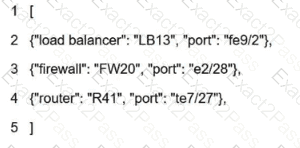

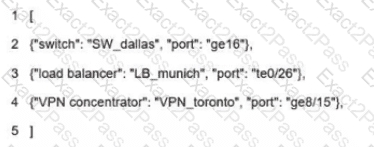

Refer to the exhibit.
After running the code in the exhibit, which step reduces the amount of data that the NETCONF server returns to the NETCONF client, to only the interface's configuration?
Refer to the exhibit.
An administrator must turn off the Cisco Discovery Protocol on the port configured with address last usable address in the 10.0.0.0/30 subnet. Which command set meets the requirement?

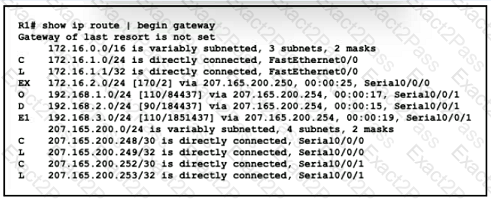

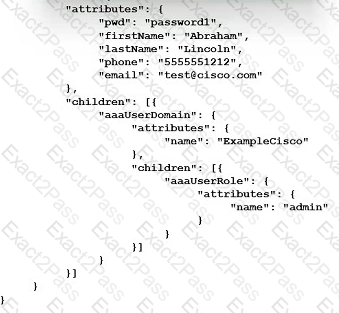

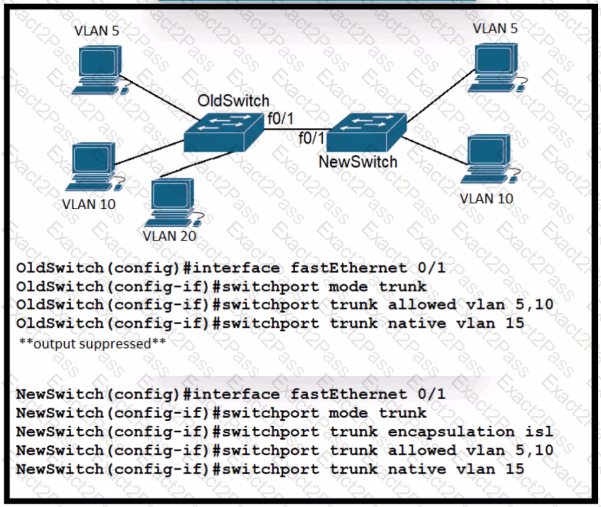

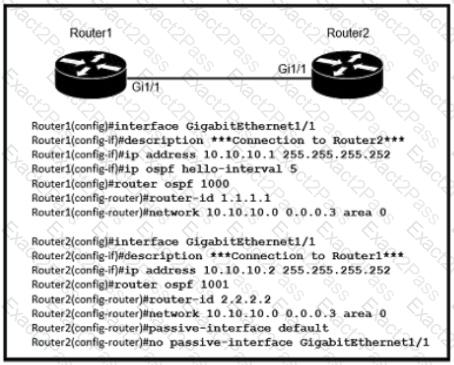

Refer to the exhibit.

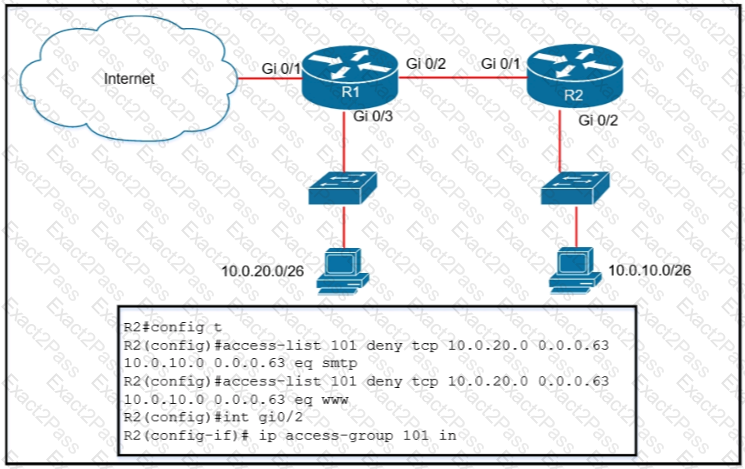

What two conclusions should be made about this configuration? (Choose two )
What software defined architecture plane assists network devices with making packet-forwarding decisions by providing Layer 2 reachability and Layer 3 routing information?
Which mode allows access points to be managed by Cisco Wireless LAN Controllers?
In software-defined architecture, which place handles switching for traffic through a Cisco router?
Which QoS Profile is selected in the GUI when configuring a voice over WLAN deployment?
All physical cabling is in place. A company plans to deploy 32 new sites.
The sites will utilize both IPv4 and IPv6 networks.
1 . Subnet 172.25.0.0/16 to meet the subnet requirements and maximize
the number of hosts
Using the second subnet
• Assign the first usable IP address to e0/0 on Sw1O1
• Assign the last usable IP address to e0/0 on Sw102
2. Subnet to meet the subnet requirements and maximize
the number of hosts
c Using the second subnet
• Assign an IPv6 GUA using a unique 64-Bit interface identifier
on e0/0 on Sw101
• Assign an IPv6 GUA using a unique 64-Bit interface identifier
on eO/O on swi02
Guidelines

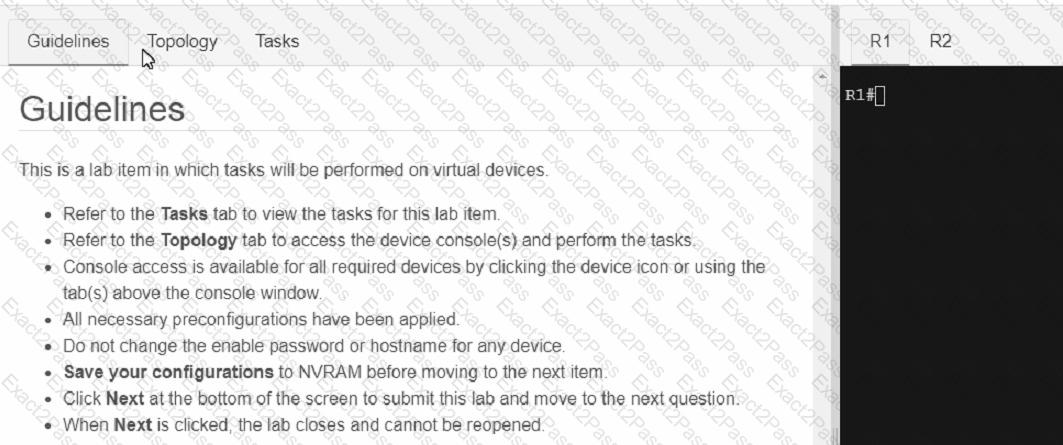

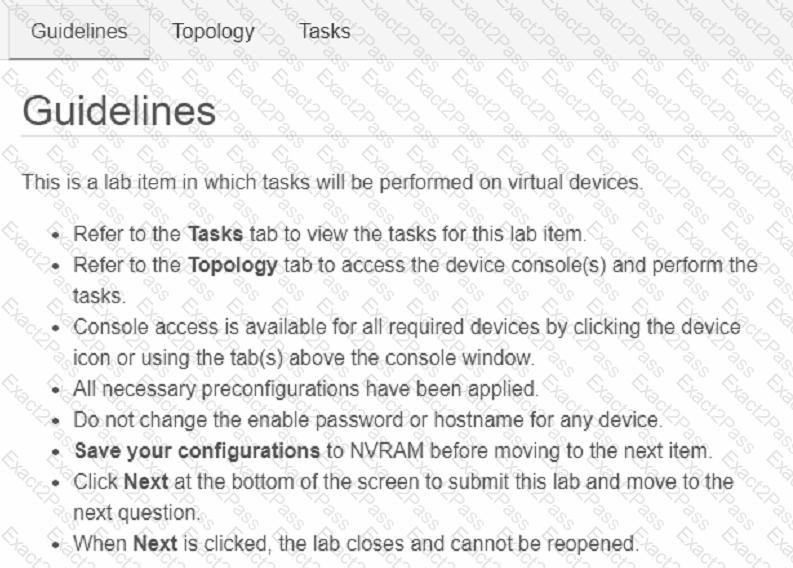

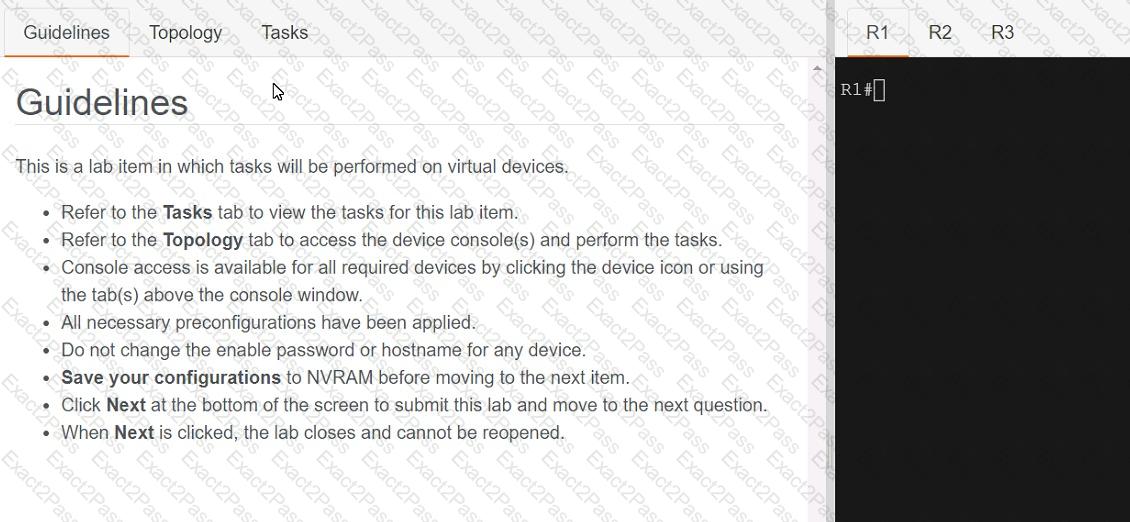

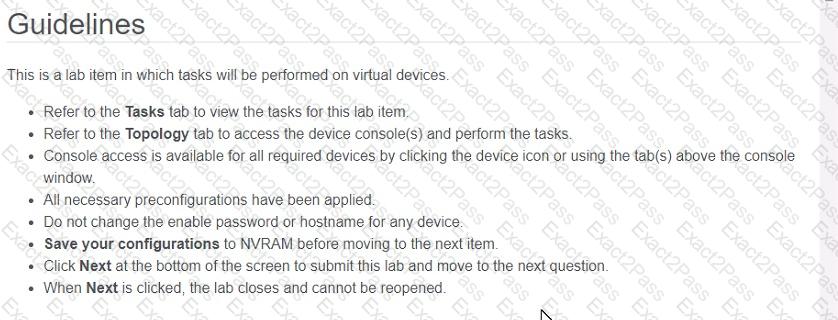

This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

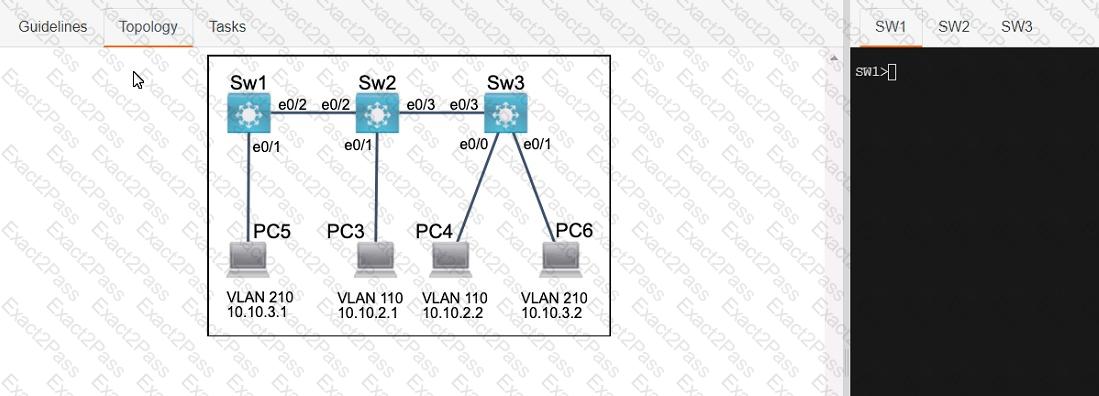

Three switches must be configured for Layer 2 connectivity. The company requires only the designated VLANs to be configured on their respective switches and permitted accross any links between switches for security purposes. Do not modify or delete VTP configurations.
The network needs two user-defined VLANs configured:
VLAN 110: MARKETING
VLAN 210: FINANCE
1. Configure the VLANs on the designated switches and assign them as access ports to the interfaces connected to the PCs.
2. Configure the e0/2 interfaces on Sw1 and Sw2 as 802.1q trunks with only the required VLANs permitted.
3. Configure the e0/3 interfaces on Sw2 and Sw3 as 802.1q trunks with only the required VLANs permitted.
Physical connectivity is implemented between the two Layer 2 switches,
and the network connectivity between them must be configured.

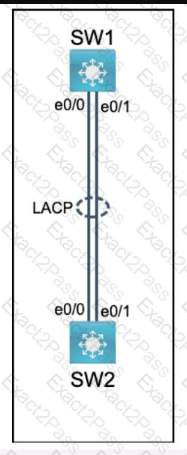

I . Configure an LACP EtherChanneI and number it as 44; configure it
between switches SWI and SW2 using interfaces EthernetO/O and
Ethernet0/1 on both sides. The LACP mode must match on both ends.
2. Configure the EtherChanneI as a trunk link.
3. Configure the trunk link with 802. Iq tags.
4. Configure VLAN 'MONITORING' as the untagged VLAN of the
EtherChannel.
==================

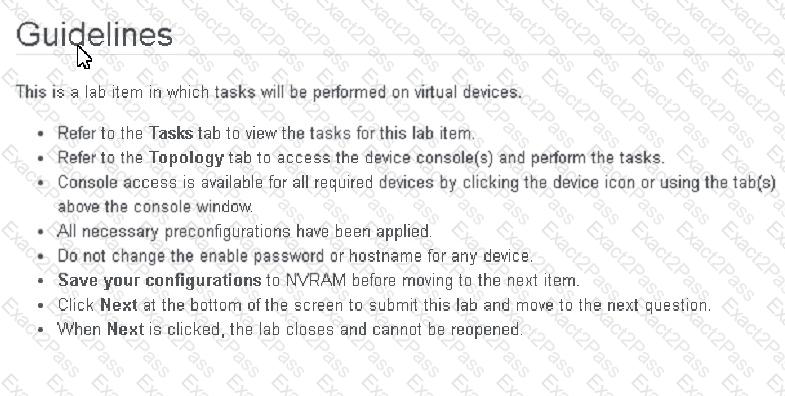

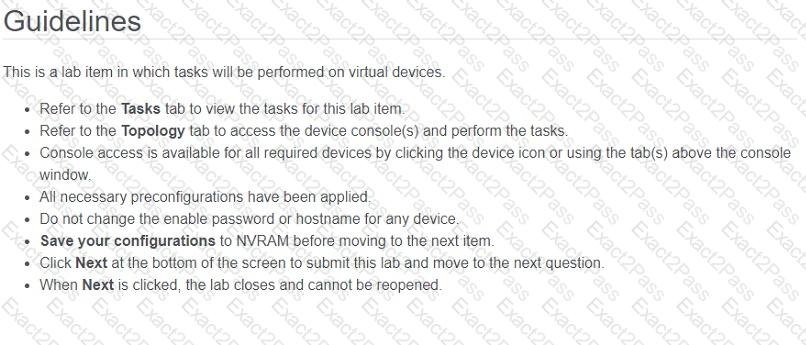

Guidelines

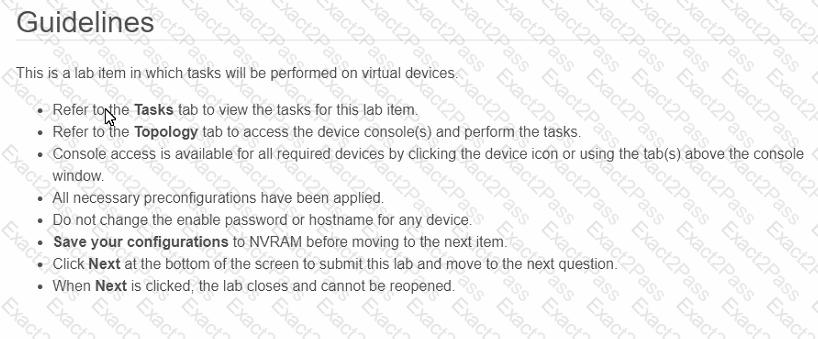

This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

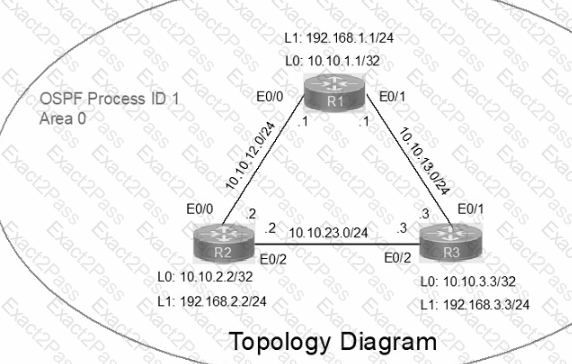

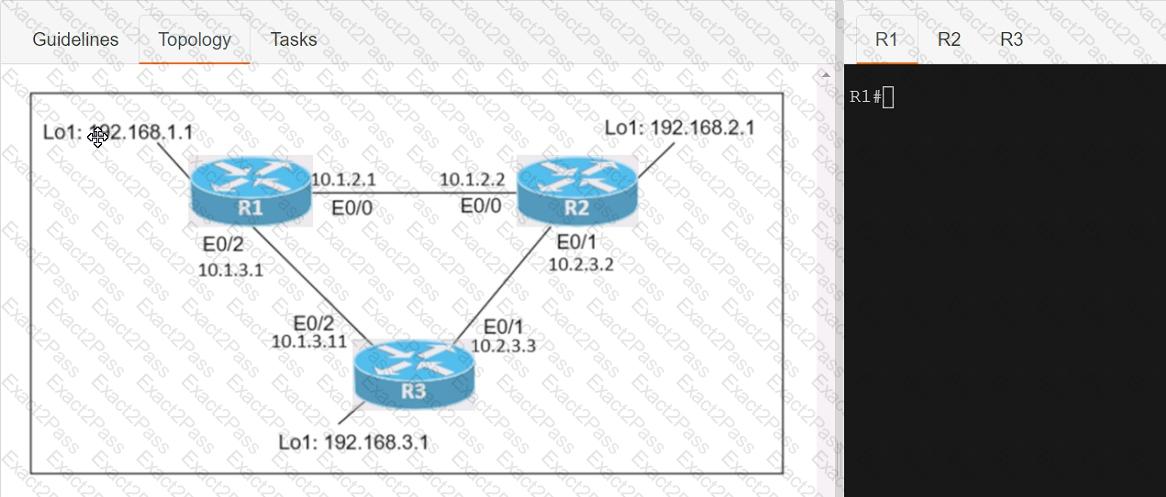

IP connectivity between the three routers is configured. OSPF adjacencies must be established.
1. Configure R1 and R2 Router IDs using the interface IP addresses from the link that is shared between them.
2. Configure the R2 links with a max value facing R1 and R3. R2 must become the DR. R1 and R3 links facing R2 must remain with the default OSPF configuration for DR election. Verify the configuration after clearing the OSPF process.
3. Using a host wildcard mask, configure all three routers to advertise their respective Loopback1 networks.
4. Configure the link between R1 and R3 to disable their ability to add other OSPF routers.

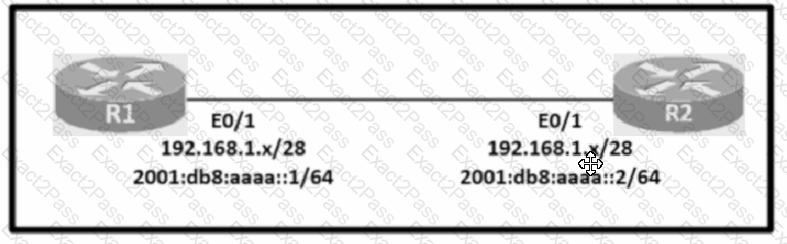

Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.1.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:aaaa::/48 subnet.
1. Using Ethernet0/1 on routers R1 and R2, configure the next usable/28 from the 192.168.1.0/24 range. The network 192.168.1.0/28 is unavailable.
2. For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.
3. For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.
4. For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.
5. A ping must work between the routers on the IPv4 and IPv6 address ranges.
Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured

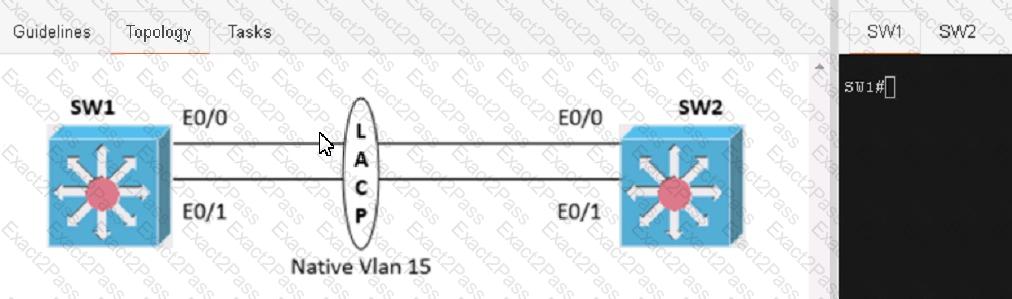

1. Configure an LACP EtherChannel and number it as 1; configure it between switches SW1 and SVV2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends
2 Configure the EtherChannel as a trunk link.
3. Configure the trunk link with 802.1 q tags.
4. Configure the native VLAN of the EtherChannel as VLAN 15.
Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.
1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.
2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.
3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.
4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.

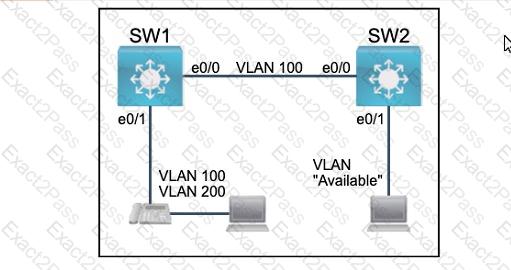

All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.
1. Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.
2. Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.
3. Configure the connection between the switches using access ports.
4. Configure Ethernet0/1 on SW1 using data and voice VLANs.
5. Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.

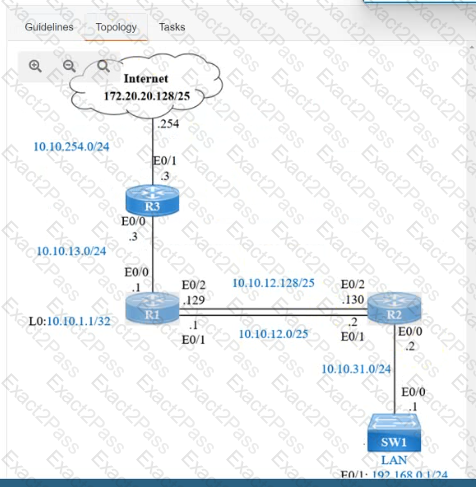

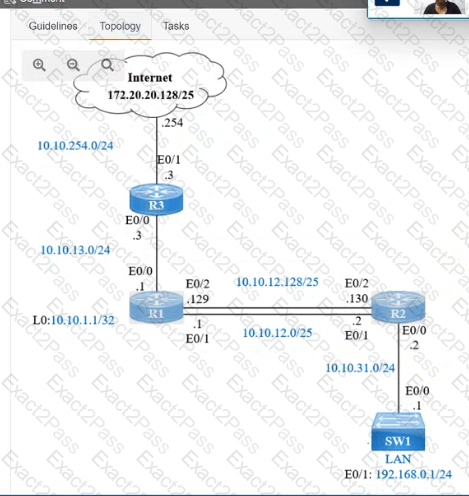

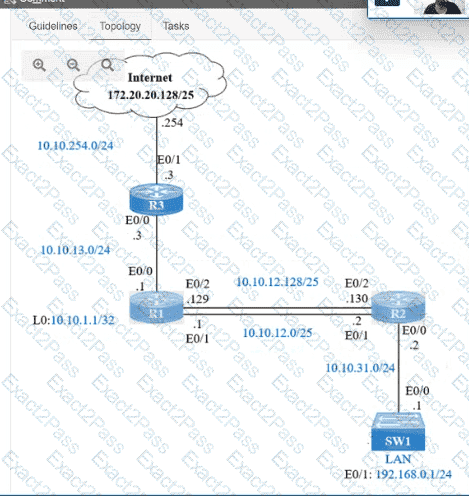

IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:

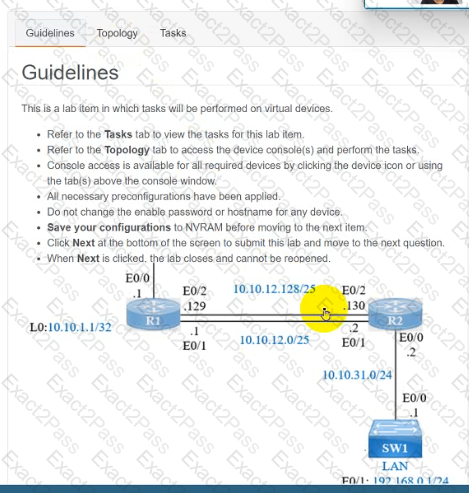

1. Configure reachability to the switch SW1 LAN subnet in router R2.
2. Configure default reachability to the Internet subnet in router R1.
3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.
4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.

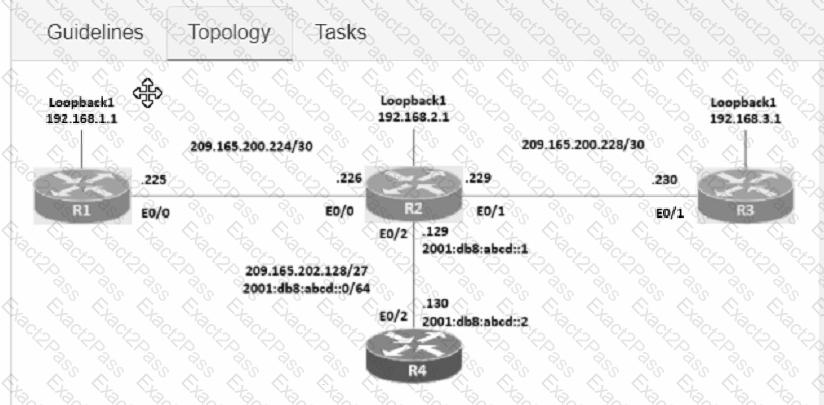

Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.
1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.
2. Configure an IPv4 default route on router R2 destined for router R4.
3. Configure an IPv6 default router on router R2 destined for router R4.

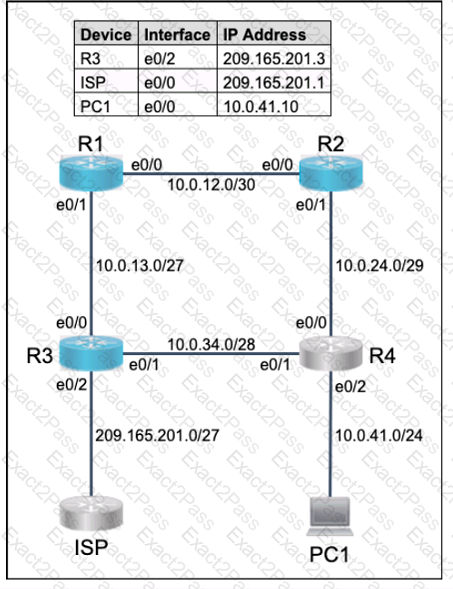

All physical cabling is in place. Router R4 and PCI are fully configured and
inaccessible. R4's WAN interfaces use .4 in the last octet for each subnet.
Configurations should ensure that connectivity is established end-to-end.
1 . Configure static routing to ensure RI prefers the path through R2 to
reach only PCI on R4's LAN
2. Configure static routing that ensures traffic sourced from RI will take
an alternate path through R3 to PCI in the event of an outage along
the primary path
3. Configure default routes on RI and R3 to the Internet using the least number of hops
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

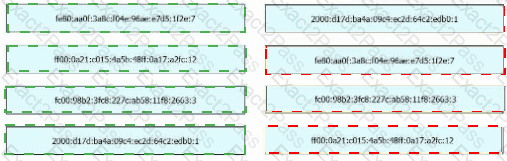

Drag and drop the IPv6 address types from the left onto their description on the right.

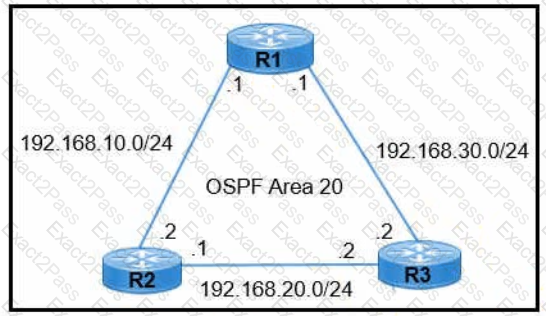

Refer to the exhibit.

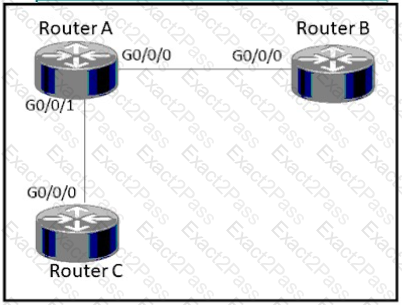

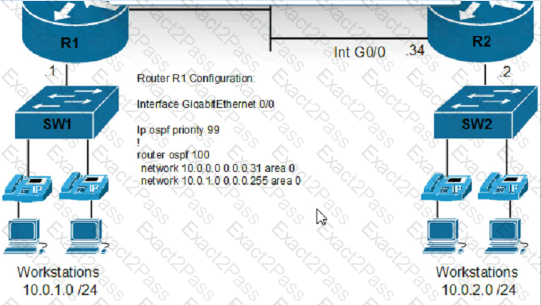

How must OSPF be configured on the GigabitEthernet0/0 interface of the neighbor device to achieve.
A)
B)
C)
D)
Refer to the exhibit.
R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reac B?
Which two wireless security stewards use Counter Mode Cipher Block Chaining Message Authentication Code Protocol for encryption and data integrity'? (Choose two.)
Graphical user interface, application
Description automatically generated
Graphical user interface, application
Description automatically generated
Diagram
Description automatically generated
Table
Description automatically generated
CCNA 200-301 Dumps Full Questions - Exam Study Guide & Free 203
