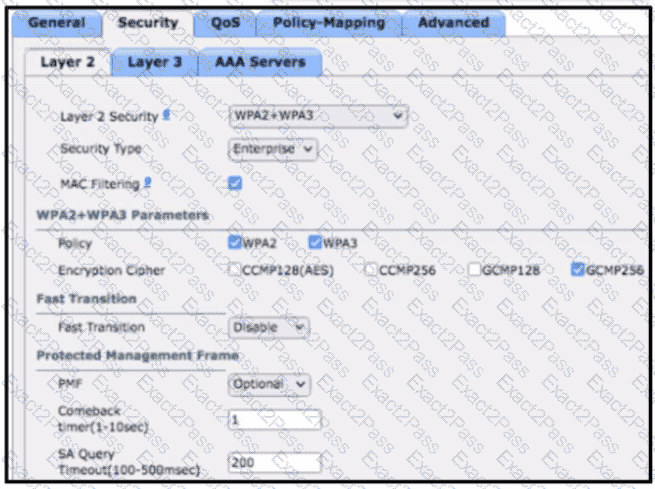

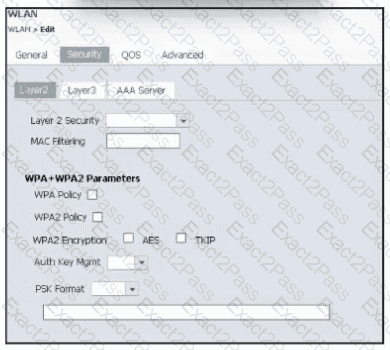

Answer A,B is correct: A. WPA2; B. WPA3. CCMP is the AES-based encryption and integrity mechanism associated with modern Wi-Fi security. WPA2 introduced AES-CCMP as the strong replacement for TKIP, and WPA3 continues to use strong AES-based protection while improving authentication with SAE in personal mode. WEP is obsolete and uses RC4, not CCMP. WPA originally used TKIP/MIC as its transitional protection. Wi-Fi 6 is an 802.11ax performance standard, not itself a security protocol. Cisco CCNA 200-301 v1.1 Network Access requires engineers to separate wireless standards from wireless security standards and to distinguish TKIP, CCMP, AES, WEP, WPA2, and WPA3. The original WPA3/WEP answer was wrong because WEP cannot provide CCMP encryption or integrity. The corrected choices are WPA2 and WPA3.

channels 1, 6, and 11. Wireless design and security require separating AP mode, WLAN identity, RF behavior, authentication, and encryption. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The distractors confuse wireless standards, security mechanisms, controller settings, or RF design practices. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

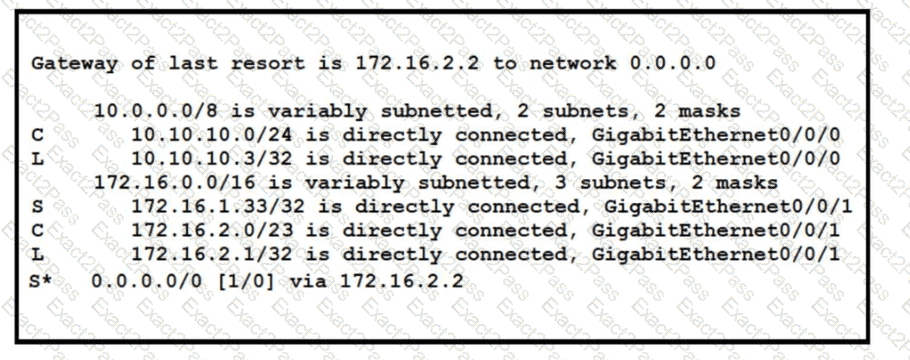

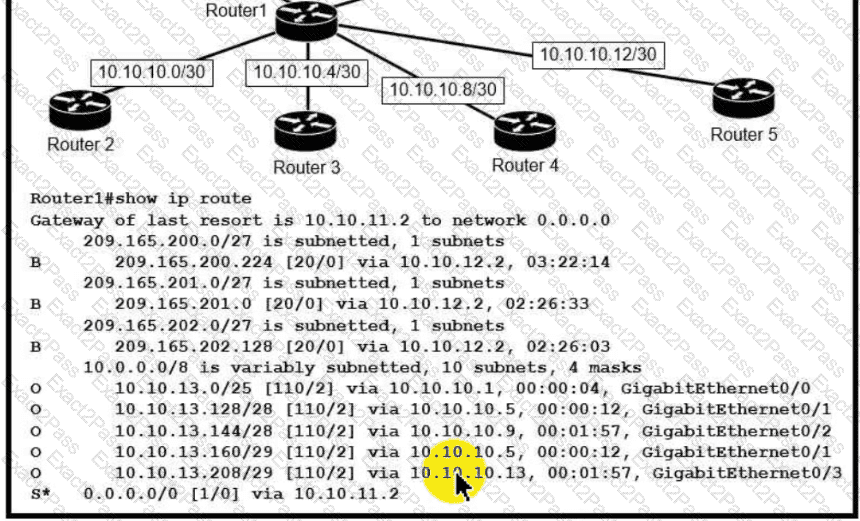

10.10.10.5. Cisco routers select forwarding paths by longest-prefix match first, then administrative distance and metric when comparable routes compete. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong choices either do not match the destination, use the wrong next hop, or fail to provide the intended primary/backup behavior. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

access. Switching behavior depends on VLAN tagging, trunk negotiation, STP role selection, EtherChannel mode, and whether a protocol is standards-based or Cisco-specific. Cisco CCNA 200-301 v1.1 includes this under Network Access, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. Incorrect options change existing VLAN reachability, use the wrong negotiation behavior, or apply a feature to the wrong switch function. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

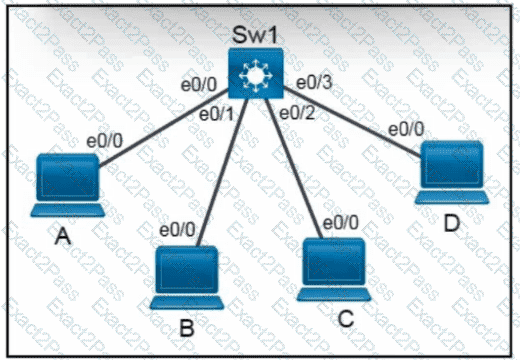

It floods the frame out of every port except the source port.. If the destination MAC address is missing from the switch MAC address table, the switch treats the frame as an unknown unicast. It floods the frame out ports in the same VLAN except the port on which it arrived. It does not err-disable the port, drop the frame from the table, or create a broadcast storm as the default behavior. Cisco CCNA 200-301 v1.1 Network Access expects candidates to know that VLAN boundaries still apply during flooding. Because host A is in VLAN 2, the switch floods only within VLAN 2, not through unrelated VLANs. The corrected answer is that the switch floods the frame out every eligible port except the source port.

The highest up/up physical interface IP address is selected as the router ID.. OSPF behavior is controlled by interface state, area, timers, network type, cost, priority, router ID, and neighbor/adjacency rules. Cisco CCNA 200-301 v1.1 includes this under IP Connectivity, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The distractors confuse OSPF with unrelated metrics, local-only process values, or parameters that do not satisfy the adjacency or route-selection requirement. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

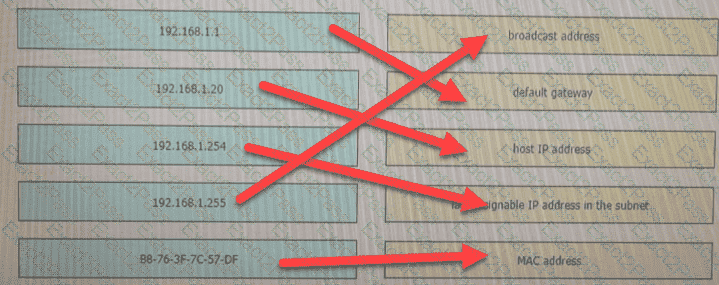

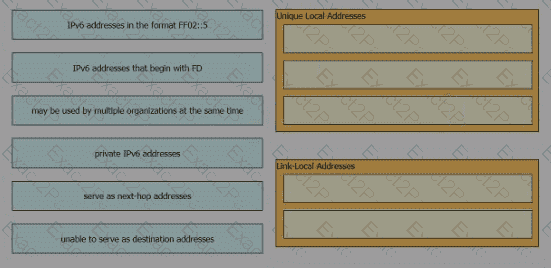

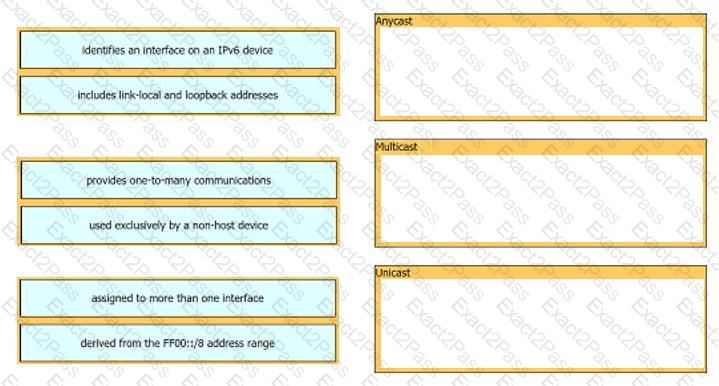

Cisco CCNA 200-301 v1.1 Network Fundamentals questions of this type test whether each item is matched to the technology that actually performs that role. The reliable method is to classify each term by operating layer, packet behavior, management function, or security purpose before matching it. Several terms in these items are legitimate Cisco networking concepts, but they become wrong when assigned to the wrong protocol or plane. The mapping retained in the document follows that separation: transport behavior is matched to TCP or UDP, wireless or security terms are matched to their mechanisms, and automation items are matched to the correct API or management model. This matters operationally because troubleshooting fails quickly when a forwarding-plane function is treated as a management-plane feature or when a security control is applied to the wrong threat. The shown mapping is therefore retained as the verified response.

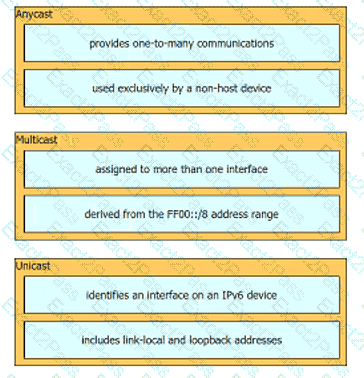

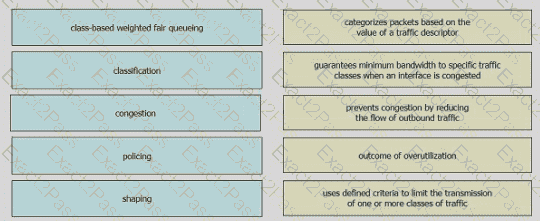

Cisco CCNA 200-301 v1.1 Network Fundamentals questions of this type test whether each item is matched to the technology that actually performs that role. The reliable method is to classify each term by operating layer, packet behavior, management function, or security purpose before matching it. Several terms in these items are legitimate Cisco networking concepts, but they become wrong when assigned to the wrong protocol or plane. The mapping retained in the document follows that separation: transport behavior is matched to TCP or UDP, wireless or security terms are matched to their mechanisms, and automation items are matched to the correct API or management model. This matters operationally because troubleshooting fails quickly when a forwarding-plane function is treated as a management-plane feature or when a security control is applied to the wrong threat. The shown mapping is therefore retained as the verified response.

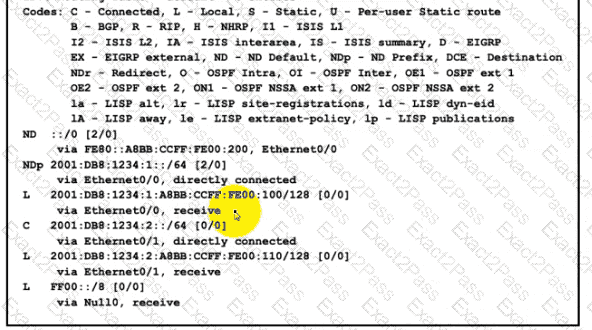

ipv6 route ::/0 2001:db8:1234:2::1 2. A floating static default route must use the IPv6 default prefix ::/0 and an administrative distance higher than the current preferred default route. A ::/128 route is a host route to the unspecified address and is not a default route. An administrative distance of 1 would be the normal static-route distance and would not behave as a backup to another static default route. Cisco CCNA 200-301 v1.1 IP Connectivity expects candidates to understand both the IPv6 default route syntax and the purpose of the final distance value. The corrected command uses ipv6 route ::/0 toward 2001:db8:1234:2::1 with a higher administrative distance. That keeps the route out of the routing table while the primary default route is valid and installs it only when the primary route fails.

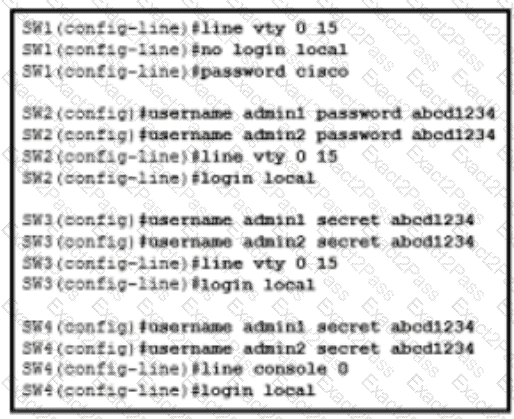

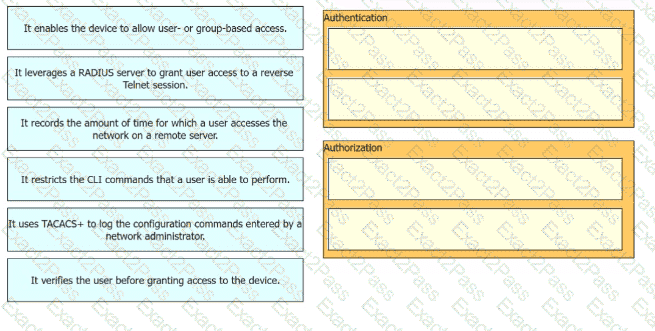

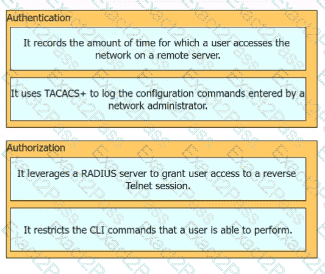

password. Security fundamentals require distinguishing identity, authorization, accounting, encryption, inspection, and physical protection. Cisco CCNA 200-301 v1.1 includes this under Security Fundamentals, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The incorrect choices apply a security term in the wrong control category or protect a different part of the system. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

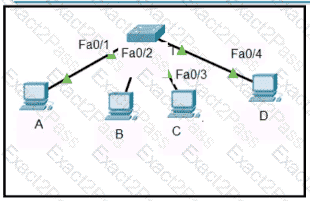

It floods the frame out of all ports except port Fa0/1.. Switching behavior is determined by MAC learning, VLAN membership, trunk state, port security, and EtherChannel negotiation. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The incorrect choices either alter the wrong interface behavior or confuse access-layer switching with routing or security services. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

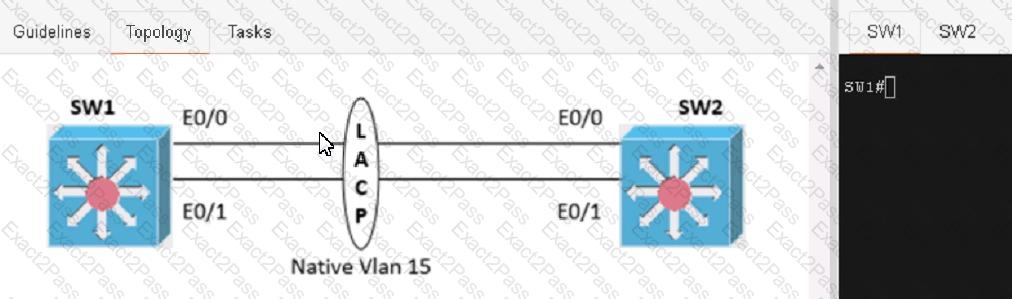

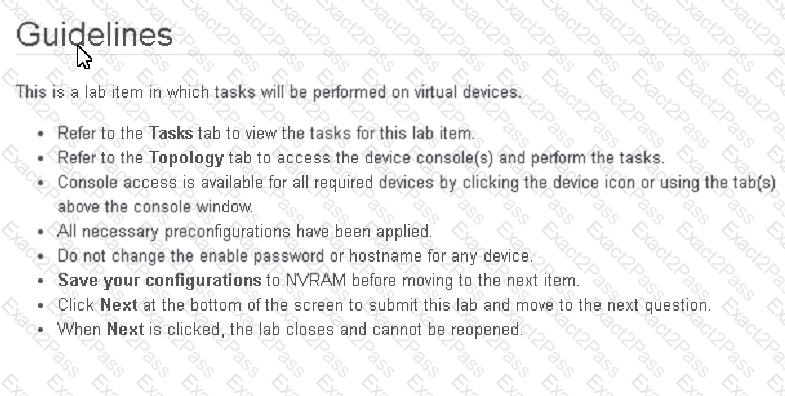

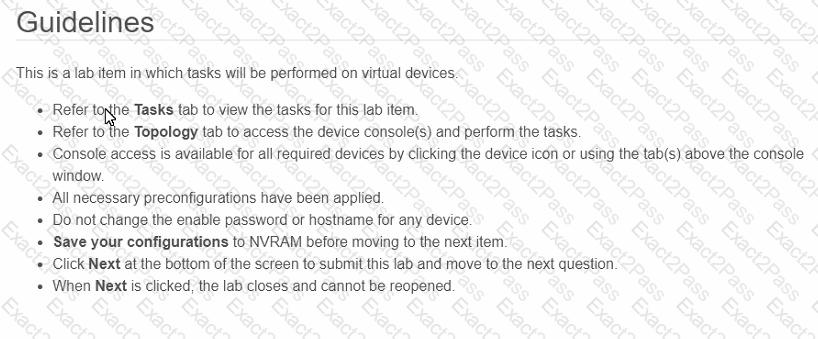

Answer as below configuration:

On SW1:

conf terminal

vlan 15

exit

interface range eth0/0 - 1

channel-group 1 mode active

exit

interface port-channel 1

switchport trunk encapsulation dot1q

switchport mode trunk

switchport trunk native vlan 15

end

copy run start

on SW2:

conf terminal

vlan 15

exit

interface range eth0/0 - 1

channel-group 1 mode active

exit

interface port-channel 1

switchport trunk encapsulation dot1q

switchport mode trunk

switchport trunk native vlan 15

end

copy run start

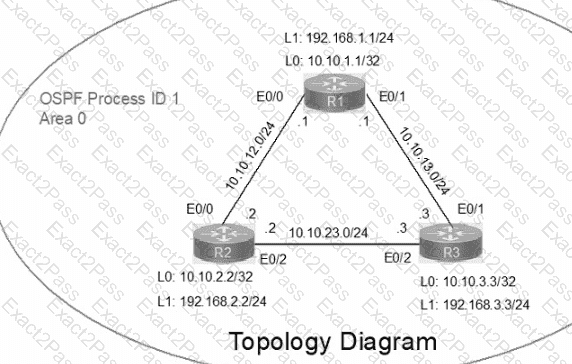

Answer as below configuration:

on R1

conf terminal

interface Loopback0

ip address 10.10.1.1 255.255.255.255

!

interface Loopback1

ip address 192.168.1.1 255.255.255.0

!

interface Ethernet0/0

no shut

ip address 10.10.12.1 255.255.255.0

ip ospf 1 area 0

duplex auto

!

interface Ethernet0/1

no shut

ip address 10.10.13.1 255.255.255.0

ip ospf 1 area 0

duplex auto

!

router ospf 1

router-id 10.10.12.1

network 10.10.1.1 0.0.0.0 area 0

network 192.168.1.0 0.0.0.255 area 0

!

copy run star

---------------------------------------

On R2

conf terminal

interface Loopback0

ip address 10.10.2.2 255.255.255.255

!

interface Loopback1

ip address 192.168.2.2 255.255.255.0

!

interface Ethernet0/0

no shut

ip address 10.10.12.2 255.255.255.0

ip ospf priority 255

ip ospf 1 area 0

duplex auto

!

interface Ethernet0/2

no shut

ip address 10.10.23.2 255.255.255.0

ip ospf priority 255

ip ospf 1 area 0

duplex auto

!

router ospf 1

network 10.10.2.2 0.0.0.0 area 0

network 192.168.2.0 0.0.0.255 area 0

!

copy runs start

-----------------------

On R3

conf ter

interface Loopback0

ip address 10.10.3.3 255.255.255.255

!

interface Loopback1

ip address 192.168.3.3 255.255.255.0

!

interface Ethernet0/1

no shut

ip address 10.10.13.3 255.255.255.0

ip ospf 1 area 0

duplex auto

!

interface Ethernet0/2

no shut

ip address 10.10.23.3 255.255.255.0

ip ospf 1 area 0

duplex auto

!

router ospf 1

network 10.10.3.3 0.0.0.0 area 0

network 192.168.3.0 0.0.0.255 area 0

!

copy run start

!

To configure static routing on R1 to ensure that it prefers the path through R2 to reach only PC1 on R4’s LAN, you need to create a static route for the host 10.0.0.100/8 with a next-hop address of 20.0.0.2, which is the IP address of R2’s interface connected to R1. You also need to assign a lower administrative distance (AD) to this route than the default AD of 1 for static routes, so that it has a higher preference over other possible routes. For example, you can use an AD of 10 for this route. To create this static route, you need to enter the following commands on R1’s console:

R1#configure terminal R1(config)#ip route 10.0.0.100 255.0.0.0 20.0.0.2 10 R1(config)#end

To configure static routing on R1 that ensures that traffic sourced from R1 will take an alternate path through R3 to PC1 in the event of an outage along the primary path, you need to create another static route for the host 10.0.0.100/8 with a next-hop address of 40.0.0.2, which is the IP address of R3’s interface connected to R1. You also need to assign a higher AD to this route than the AD of the primary route, so that it has a lower preference and acts as a backup route. For example, you can use an AD of 20 for this route. This type of static route is also known as a floating static route. To create this static route, you need to enter the following commands on R1’s console:

R1#configure terminal R1(config)#ip route 10.0.0.100 255.0.0.0 40.0.0.2 20 R1(config)#end

To configure default routes on R1 and R3 to the Internet using the least number of hops, you need to create a static route for the network 0.0.0.0/0 with a next-hop address of the ISP’s interface connected to each router respectively. A default route is a special type of static route that matches any destination address and is used when no other specific route is available. The ISP’s interface connected to R1 has an IP address of 10.0.0.4, and the ISP’s interface connected to R3 has an IP address of 50.0.0.4. To create these default routes, you need to enter the following commands on each router’s console:

On R1: R1#configure terminal R1(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.4 R1(config)#end

On R3: R3#configure terminal R3(config)#ip route 0.0.0.0 0.0.0.0 50.0.0.4 R3(config)#end

Option B. IP services must be selected by their exact operational role: addressing, translation, time, monitoring, logging, redundancy, or traffic treatment. Cisco CCNA 200-301 v1.1 includes this under IP Services, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The wrong options name real services or commands, but they solve a different infrastructure problem. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

R1 (config)# username engineer2 algorithm-type scrypt secret test2021. Cisco IOS local user accounts can store credentials with different hashing and password-handling methods. The strongest option shown is the username command using algorithm-type scrypt with secret, because scrypt is a modern password-hashing algorithm designed to resist brute-force attacks better than older type 5 MD5-style secrets or reversible type 7 passwords. The type 7 password option is weak obfuscation, not real cryptographic protection. The type 4 option is deprecated and should not be selected. Cisco CCNA 200-301 v1.1 Security Fundamentals expects engineers to recognize secure local authentication syntax, especially when SSH or console fallback authentication uses the local database. The original hashed-looking option may appear attractive, but it uses an older secret type. For a new local account with the strongest configurable password protection from the options, algorithm-type scrypt secret is the correct command.

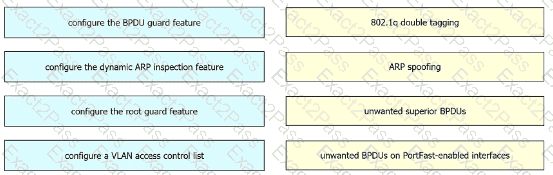

Cisco CCNA 200-301 v1.1 Network Fundamentals questions of this type test whether each item is matched to the technology that actually performs that role. The reliable method is to classify each term by operating layer, packet behavior, management function, or security purpose before matching it. Several terms in these items are legitimate Cisco networking concepts, but they become wrong when assigned to the wrong protocol or plane. The mapping retained in the document follows that separation: transport behavior is matched to TCP or UDP, wireless or security terms are matched to their mechanisms, and automation items are matched to the correct API or management model. This matters operationally because troubleshooting fails quickly when a forwarding-plane function is treated as a management-plane feature or when a security control is applied to the wrong threat. The shown mapping is therefore retained as the verified response.

Cisco CCNA 200-301 v1.1 Network Fundamentals questions of this type test whether each item is matched to the technology that actually performs that role. The reliable method is to classify each term by operating layer, packet behavior, management function, or security purpose before matching it. Several terms in these items are legitimate Cisco networking concepts, but they become wrong when assigned to the wrong protocol or plane. The mapping retained in the document follows that separation: transport behavior is matched to TCP or UDP, wireless or security terms are matched to their mechanisms, and automation items are matched to the correct API or management model. This matters operationally because troubleshooting fails quickly when a forwarding-plane function is treated as a management-plane feature or when a security control is applied to the wrong threat. The shown mapping is therefore retained as the verified response.

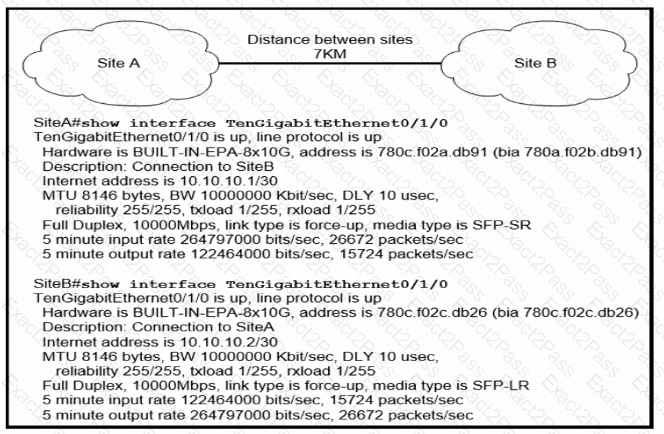

An incorrect type of transceiver has been inserted into a device on the link.. The answer follows from normal Cisco device behavior and the operating clue in the scenario. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The other options use adjacent terms, wrong-layer behavior, or configuration that would not produce the requested result. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

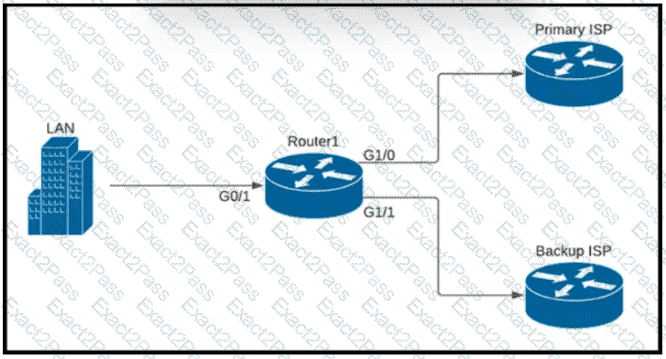

ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked. Cisco routers select forwarding paths by longest-prefix match first, then administrative distance and metric when comparable routes compete. Cisco CCNA 200-301 v1.1 includes this under IP Connectivity, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong choices either do not match the destination, use the wrong next hop, or fail to provide the intended primary/backup behavior. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.
