In a wireless design that requires bridging wired IP surveillance cameras through a mesh AP, the cameras should connect to the AP operating in Mesh AP mode (MAP). This mode allows the AP to function as part of a wireless mesh network, providing connectivity to wired devices like IP cameras in areas where it’s difficult to run Ethernet cables.

For an effective office site survey, it’s recommended to: A. Use a battery pack to power APs - This allows for mobility and testing in various locations without relying on fixed power sources. B. Use a drawing of the office space to mark AP and client placements - This helps in planning the optimal locations for AP installation. F. Use APs with built-in antennas - They are commonly used for site surveys as they represent the typical deployment scenario.

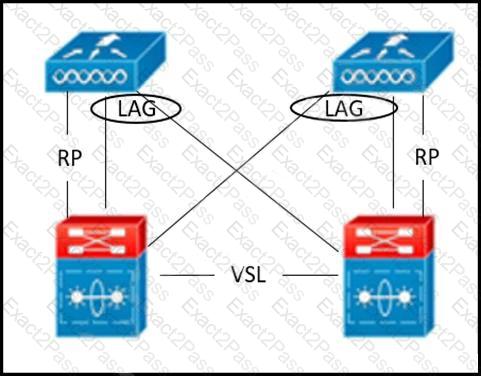

The Virtual Switching Link (VSL) is essential for communication between the active and standby Wireless LAN Controllers (WLCs) in a Stateful Switch Over (SSO) setup. If the VSL goes down, it can lead to a split-brain scenario where both WLCs assume they are active, causing network disruptions and inconsistencies in client handling.  References : Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425) Official Cert Guide.

The Voice Readiness tool within Cisco Prime Infrastructure is designed to assess the wireless network’s ability to support voice services, including VoIP. It evaluates various factors such as signal strength, noise levels, and coverage to ensure that the wireless network can handle the quality of service requirements needed for voice communications.

Setting AP fallback to disabled will prevent the AP from moving back to its defined Cisco WLCs automatically after failing over to an undefined controller. This allows manual intervention to determine when the AP should revert to its primary controller.

Mobility domains and mobility groups are concepts used in Cisco wireless networking to manage client roaming and controller interaction. When Wireless LAN Controllers (WLCs) are part of the same mobility domain, they share a common database, allowing them to communicate and facilitate seamless client roaming. A mobility group is a subset of this domain, where specific WLCs work together more closely to share client context and security credentials. This ensures that when a client roams from one access point (AP) to another across different controllers, the authentication and security context are maintained, allowing for a seamless transition without the need to re-authenticate. The mobility group also manages AP fail-over between controllers, ensuring clients can maintain their connections even if their current AP fails or becomes unreachable.

https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-0/configuration-guide/b_cg80/b_cg80_chapter_010011.html

To minimize channel utilization and interference with existing tenant networks, it’s best to use the UNII-1 channels, which are typically less congested, and stick to 20-MHz channels to provide more non-overlapping channels and reduce co-channel interference.
