301b F5 LTM Specialist: Maintain & Troubleshoot exact Exam Questions

LTM Specialist: Maintain & Troubleshoot

Last Update 4 hours ago Total Questions : 209

The LTM Specialist: Maintain & Troubleshoot content is now fully updated, with all current exam questions added 4 hours ago. Deciding to include 301b practice exam questions in your study plan goes far beyond basic test preparation.

You'll find that our 301b exam questions frequently feature detailed scenarios and practical problem-solving exercises that directly mirror industry challenges. Engaging with these 301b sample sets allows you to effectively manage your time and pace yourself, giving you the ability to finish any LTM Specialist: Maintain & Troubleshoot practice test comfortably within the allotted time.

Question # 41

An LTM Specialist notices the following error on the stdout console:

mcpd[2395]: 01070608:0: License is not operational(expired or digital signature does not match contents)

Which command should be executed to verify the LTM device license?

bigpipe version

tmsh show /sys license

tmsh /util bigpipe version

tmsh show /sys license status

Question # 42

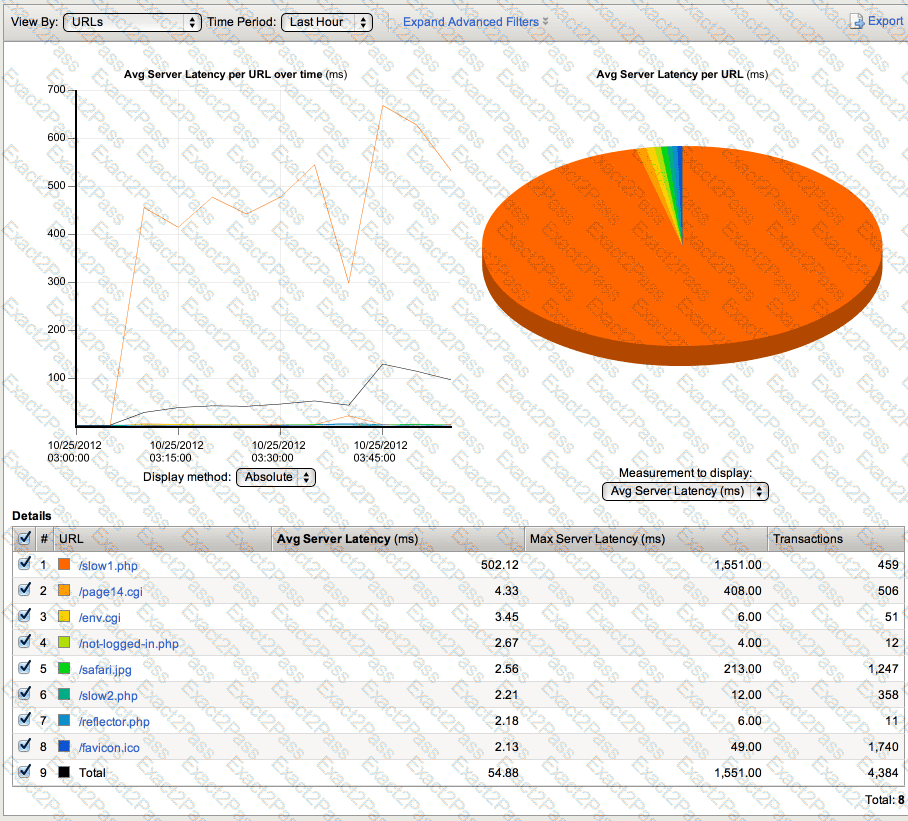

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

Which URL should be reported to the server/application team as getting user-visible errors?

/env.cgi

/page14.cgi

/reflector.php

/browserspecific.html

Question # 43

An LTM device pair is configured for failover and connection mirroring. The LTM devices are configured with virtual servers for HTTP, HTTPS with SSL offload, and SSH. An event occurs that causes a failover. HTTP and SSH sessions active at the time of failover remain active, but HTTPS sessions are dropped.

What is the root cause of this problem?

The SSL certificates on the LTM devices do NOT match.

Connection mirroring is incompatible with clientssl profiles.

SNAT automap was NOT enabled for the HTTPS virtual servers.

Connection mirroring was NOT enabled for the HTTPS virtual servers.

Question # 44

An LTM Specialist receives a request to monitor the network path through a member, but NOT the member itself.

Which monitor option should the LTM Specialist enable or configure?

Reverse

Up interval

Transparent

Alias address

Time until up

Question # 45

An LTM Specialist configured a virtual server to load balance a custom application. The application works when it is tested from within the firewall but it fails when tested externally. The pool member address is 192.168.200.10:80. A capture from an external client shows:

GET /index.jsp HTTP/1.1

Host: 207.206.201.100

User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; rv:15.0) Gecko/20100101 Firefox/15.0.1

Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8

Connection: keep-alive

HTTP/1.1 302 Found

DatE. Wed, 17 Oct 2012 23:09:55 GMT

Server: Apache/2.2.15 (CentOS)

Location: http://192.168.200.10/user/home.jsp

Content-LengtH. 304

Connection: close

What is the solution to this issue?

Assign a SNAT pool to the virtual server.

Add a Web Acceleration Profile to the virtual server.

Configure redirect rewrite option in the HTTP profile.

Configure a content filter on the backend web server.

Question # 46

An LTM device has been configured to log the reasons for generating TCP RST packets.

The following log entry occurs:

"01230140:3: RST sent from 192.168.1.100:80 to 192.168.1.124:39272, [0x112d82a:1721] {peer} TCP RST from remote system."

Which condition will trigger this log entry?

A virtual server connection limit has been reached.

The host at the other end terminated the TCP connection.

The LTM device reset the connection because no pool members are available.

The LTM device has reached the maximum number of allowed attempts to send the data segment to the affected TCP connection.

Question # 47

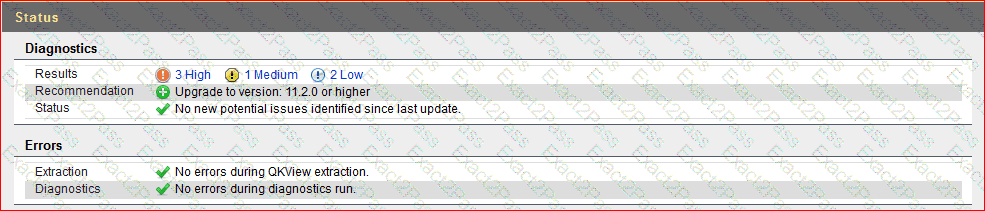

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

Which step should an LTM Specialist take next to finish upgrading to HD1.3?

Install image to HD1.3

Install hotfix to HD1.3

Activate HD1.3

Relicense HD1.3

Question # 48

An LTM Specialist must perform a hot fix installation from the command line.

What is the correct procedure to ensure that the installation is successful?

import the hot fix to the /var/shared/images directory

check the integrity of the file with an md5 checksum

tmsh apply sys software hotfix volume < volume_name > < hotfix_name > .iso

import the hot fix to the /var/shared/images directory

check the integrity of the file with an md5 checksum

tmsh install sys software hotfix < hotfix_name > .iso volume < volume_name >

import the hot fix to the /shared/images directory

check the integrity of the file with an md5 checksum

tmsh apply sys software hotfix volume < volume_name > < hotfix_name > .iso

import the hot fix to the /shared/images directory

check the integrity of the file with an md5 checksum

tmsh install sys software hotfix < hotfix_name > .iso volume < volume_name >

Question # 49

Windows PC clients are connecting to a virtual server over a high-speed, low-latency network with no packet loss.

Which built-in client-side TCP profile provides the highest throughput for HTTP downloads?

tcp

tcp-legacy

tcp-lan-optimized

tcp-wan-optimized

Question # 50

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

An LTM Specialist is troubleshooting an HTTP monitor that is marking a pool member as down. Connecting to the pool member directly through a browser shows the application is up and functioning correctly.

How should the send string be modified to correct this issue?

GET /\r\n\r\n

GET / HTTP/1.0\r\n\r\n

GET /\r\nHost: \r\n\r\n

GET /\r\nHTTP/1.0\r\n\r\n
