-- Exhibit –

-- Exhibit --

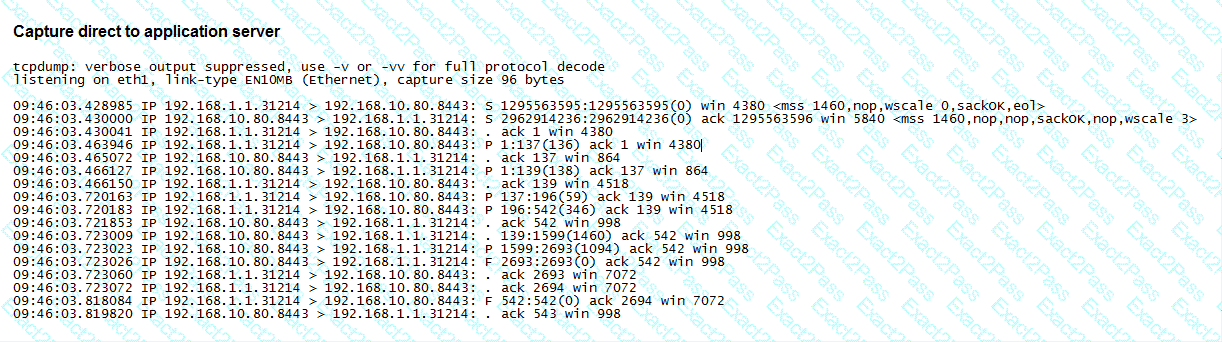

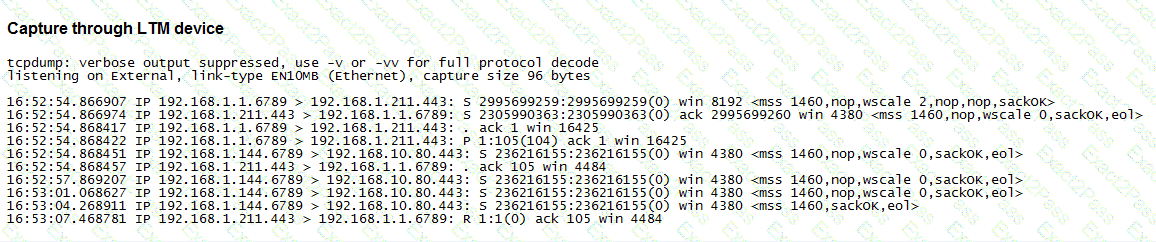

Refer to the exhibits.

An LTM Specialist is troubleshooting an application configured on an LTM device on a one-armed configuration. The application is NOT working through the LTM device but does work when accessed directly via the application servers. The virtual server 192.168.1.211:443 is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. No Client or Server SSL profiles are associated. The LTM Specialist has collected two traffic captures to help determine the issue.

What is the problem with the configuration on the LTM device?

An LTM Specialist has configured a virtual server for www.example.com, load balancing connections to a pool of application servers that provide a shopping cart application. Cookie persistence is enabled on the virtual server. Users are able to connect to the application, but the user's shopping cart fails to update. A traffic capture shows the following:

Request:

GET /cart/updatecart.php HTTP/1.1

Host: www.example.com

Connection: keep-alive

Cache-Control: max-age=0

User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_5) AppleWebKit/537.4 (KHTML, like Gecko) Chrome/22.0.1229.94 Safari/537.4

Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8

Accept-EncodinG. gzip,deflate,sdch

Accept-LanguagE. en-US,en;q=0.8

Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.3

CookiE. BIGipServerwebstore_pool=353636524.20480.0000

Response:

HTTP/1.1 200 OK

DatE. Wed, 24 Oct 2012 18:00:13 GMT

Server: Apache/2.2.22 (Ubuntu)

X-Powered-By: PHP/5.3.10-1ubuntu3.1

Set-CookiE. cartID=647A5EA6657828C69DB8188981CB5; path=/; domain=wb01.example.com

Keep-AlivE. timeout=5, max=100

Connection: Keep-Alive

Content-TypE. text/html

No changes can be made to the application.

What should the LTM Specialist do to resolve the problem?
