You want traffic to avoid the flow daemon for administrative tasks. In this scenario, the two stateless services that are available with selective stateless packet-based services are:

A. Layer 2 switching. Layer 2 switching is a stateless service that forwards packets based on the MAC addresses of the source and destination hosts. Layer 2 switching does not require any routing or flow processing, and can be performed by the Packet Forwarding Engine (PFE) of the SRX Series device. You can use selective stateless packet-based services to enable Layer 2 switching for traffic that matches a stateless firewall filter.  The firewall filter must have the packet-mode action modifier to bypass the flow daemon 1 .

B. IPv4 routing. IPv4 routing is a stateless service that forwards packets based on the IP addresses of the source and destination hosts. IPv4 routing does not require any flow processing, and can be performed by the PFE of the SRX Series device. You can use selective stateless packet-based services to enable IPv4 routing for traffic that matches a stateless firewall filter.  The firewall filter must have the packet-mode action modifier to bypass the flow daemon 1 .

The other options are incorrect because:

C. IPsec. IPsec is a stateful service that provides security and encryption for IP packets. IPsec requires flow processing, and cannot be performed by the PFE of the SRX Series device. You cannot use selective stateless packet-based services to enable IPsec for traffic that matches a stateless firewall filter.  The firewall filter cannot have the packet-mode action modifier to bypass the flow daemon 2 .

D. IPv6 routing. IPv6 routing is a stateful service that forwards packets based on the IP addresses of the source and destination hosts. IPv6 routing requires flow processing, and cannot be performed by the PFE of the SRX Series device. You cannot use selective stateless packet-based services to enable IPv6 routing for traffic that matches a stateless firewall filter.  The firewall filter cannot have the packet-mode action modifier to bypass the flow daemon 3 .

References:

Selective Stateless Packet-Based Services Overview

IPsec VPN Overview

IPv6 Overview

Proxy ARP is a technique used by routers to answer ARP requests on one network segment on behalf of hosts on another network segment. This is useful in situations where a host on one network segment needs to communicate with a host on another network segment, but the two hosts are not directly connected. In this case, the router acts as a proxy, answering ARP requests on behalf of the other host. In the exhibit, the vSRX device is configured to use a pool of addresses that are in the same subnet as the external interface ge-0/0/0 for source NAT. This means that the vSRX device will translate the source IP address of the internal hosts to one of the addresses in the pool before sending the packets to the external network. However, the external hosts will not know how to reach the NATed addresses, since they are not directly connected to the vSRX device. They will send ARP requests for the NATed addresses, expecting to receive a MAC address from the vSRX device. If proxy ARP is not enabled on the vSRX device, it will not respond to these ARP requests, since it does not have the NATed addresses configured on its interface. The ARP requests will time out and the packets will be dropped by the external hosts or the service provider router. To solve this problem, proxy ARP must be enabled on the vSRX device for the NATed addresses. This will allow the vSRX device to respond to the ARP requests from the external hosts, providing its own MAC address as the destination. The external hosts will then send the packets to the vSRX device, which will reverse the NAT and forward the packets to the internal hosts.  References:

Configuring Proxy ARP (CLI Procedure)

[SRX] When and how to configure Proxy ARP (https://supportportal.juniper.net/s/article/SRX-Dynamic-VPN-scenario-for-configuring-Proxy-ARP-on-SRX?language=en_US)

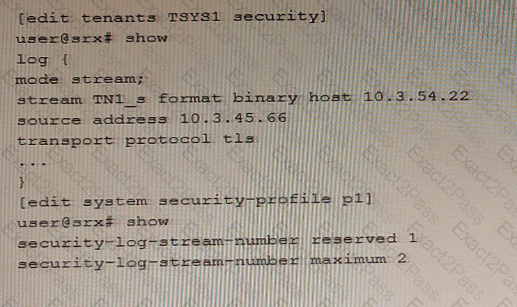

According to the Juniper documentation, a tenant system is a logical system that supports routing, services, and security features. A tenant system can be configured to log binary security events to a remote server using the pi security profile. The pi security profile specifies the tenant name, the server address, the server port, and the protocol for logging binary security events. In the exhibit, the pi security profile is configured with the server address 10.0.0.1, the server port 514, and the protocol UDP. However, the tenant name is missing from the configuration. To complete the configuration, the tenant name must be configured as local for the pi security profile. This is because the local tenant name is used to identify the tenant system that is sending the binary security events to the remote server. Therefore, the correct statement to complete the configuration is D.  Configure the tenant as local for the pi security profile.  References : [Tenant Systems Overview]  1 , [Configuring Binary Security Event Logging for Tenant Systems]  2

1 : https://www.juniper.net/documentation/us/en/software/junos/logical-system-security/topics/topic-map/tenant-systems-overview.html  2 : https://www.juniper.net/documentation/us/en/software/junos/logical-system-security/topics/task/security-tenant-systems-binary-logging-configuring.html
