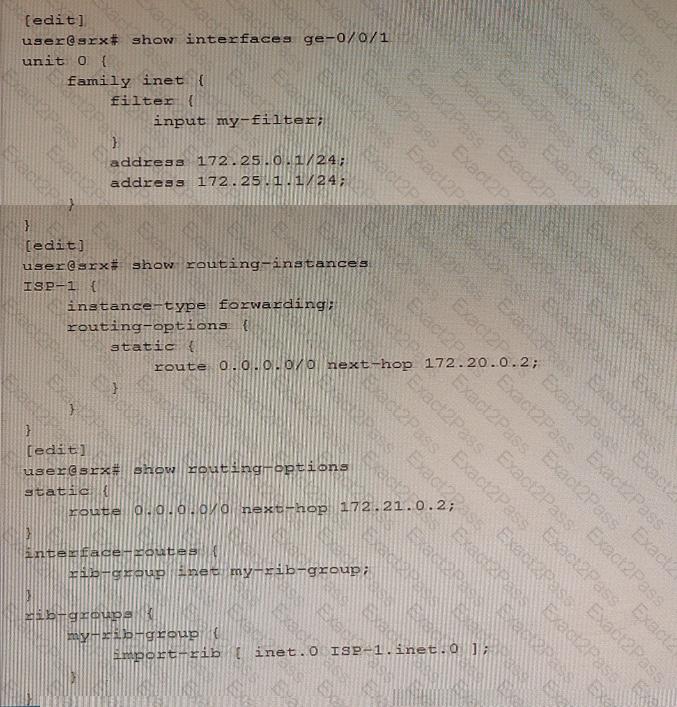

The exhibit shows the configuration of filter-based forwarding on an SRX Series device. Filter-based forwarding is a feature that allows the device to use firewall filters to direct traffic to different routing instances based on the match criteria. In this scenario, the device has two routing instances - ISP-1 and ISP-2 - and two firewall filters - FBF and FBF-ISP-1. The FBF filter is applied to the ge-0/0/1 interface as an input filter. The FBF filter has one term that matches the traffic from the 172.25.0.0/24 network and directs it to the ISP-1 routing instance. The ISP-1 routing instance has a static route to the next hop 172.20.0.2. The FBF-ISP-1 filter is applied to the ge-0/0/0 interface as an output filter. The FBF-ISP-1 filter has one term that matches the traffic to the 172.20.0.2 next hop and sets the forwarding class to expedited-forwarding.

The problem in this scenario is that the traffic from the other network (172.25.1.0/24) is not being forwarded to the upstream 172.21.0.2 neighbor. This is because the FBF filter does not have a term that accepts the traffic from the 172.25.1.0/24 network. The FBF filter only has one term that matches the traffic from the 172.25.0.0/24 network and directs it to the ISP-1 routing instance. The traffic from the 172.25.1.0/24 network does not match this term and is therefore discarded by the implicit deny action at the end of the filter. The traffic from the 172.25.1.0/24 network should be forwarded to the ISP-2 routing instance, which has a static default route to the next hop 172.21.0.2.

To solve this problem, you must add another term to the FBF filter to accept the traffic from the 172.25.1.0/24 network. This term should have the action accept, which means that the traffic will be forwarded according to the routing table of the master routing instance. The master routing instance has a static default route to the ISP-2 routing instance, which in turn has a static default route to the next hop 172.21.0.2. By adding this term, the traffic from the 172.25.1.0/24 network will be forwarded to the upstream 172.21.0.2 neighbor as expected.

The configuration of the new term in the FBF filter could look something like this:

[edit firewall family inet filter FBF] term 2 { from { source-address { 172.25.1.0/24; } } then { accept; } }

References : Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/concept/firewall-filter-option-filter-based-forwarding-overview.html https://www.juniper.net/documentation/en_US/junos/topics/example/filter-based-forwarding-example.html

To control access to network resources based on the identity of an authenticated device on the SRX Series firewalls, you need to perform the following steps:

A. Configure an end-user-profile that characterizes a device or set of devices. An end-user-profile is a device identity profile that contains a collection of attributes that are characteristics of a specific group of devices, or of a specific device, depending on the attributes configured in the profile. The end-user-profile must contain a domain name and at least one value in each attribute.  The attributes include device-identity, device-category, device-vendor, device-type, device-os, and device-os-version 1 .  You can configure an end-user-profile by using the Junos Space Security Director or the CLI 2 .

C. Reference the end-user-profile in the security policy. A security policy is a rule that defines the action to be taken for the traffic that matches the specified criteria, such as source and destination addresses, zones, protocols, ports, and applications. You can reference the end-user-profile in the source-end-user-profile field of the security policy to identify the traffic source based on the device from which the traffic issued.  The SRX Series device matches the IP address of the device to the end-user-profile and applies the security policy accordingly 3 .  You can reference the end-user-profile in the security policy by using the Junos Space Security Director or the CLI 4 .

E. Configure the authentication source to be used to authenticate the device. An authentication source is a system that provides the device identity information to the SRX Series device. The authentication source can be Microsoft Windows Active Directory or a third-party network access control (NAC) system. You need to configure the authentication source to be used to authenticate the device and to send the device identity information to the SRX Series device.  The SRX Series device stores the device identity information in the device identity authentication table 5 .  You can configure the authentication source by using the Junos Space Security Director or the CLI 6 .

The other options are incorrect because:

B. Referencing the end-user-profile in the security zone is not a valid step to control access to network resources based on the identity of an authenticated device. A security zone is a logical grouping of interfaces that have similar security requirements.  You can reference the user role in the security zone to identify the user who is accessing the network resources, but not the end-user-profile 7 .

D. Applying the end-user-profile at the interface connecting the devices is also not a valid step to control access to network resources based on the identity of an authenticated device. You cannot apply the end-user-profile at the interface level, but only at the security policy level.  The end-user-profile is not a firewall filter or a security policy, but a device identity profile that is referenced in the security policy 1 .

References:

End User Profile Overview

Creating an End User Profile

source-end-user-profile

Creating Firewall Policy Rules

Understanding the Device Identity Authentication Table and Its Entries

Configuring the Authentication Source for Device Identity

user-role

The security feature that achieves the objective of identifying potential threats within SSL-encrypted sessions without requiring SSL proxy to decrypt the session contents is encrypted traffic insights. Encrypted traffic insights (ETI) is a feature of Juniper ATP Cloud that helps you to detect malicious threats that are hidden in encrypted traffic without intercepting and decrypting the traffic. ETI uses machine learning and behavioral analysis to identify anomalies and suspicious patterns in the encrypted traffic metadata, such as the SSL/TLS handshake, the certificate, the cipher suite, and the session duration. ETI can also leverage third-party feeds and threat intelligence from Juniper ATP Cloud to correlate the encrypted traffic with known indicators of compromise (IoCs). ETI can provide insights into the risk level, the threat category, the threat location, and the threat time of the encrypted traffic. ETI can also trigger mitigation actions, such as blocking, quarantining, or alerting, based on the threat severity and the policy configuration. ETI can help you to improve your security posture and visibility without compromising the privacy and performance of the encrypted traffic.  References : Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/concept/security-atp-cloud-encrypted-traffic-insights-overview.html

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/ref/statement/family-ethernet-switching-edit-interfaces-qfx-series.html#statement-name-statement__d26608e73

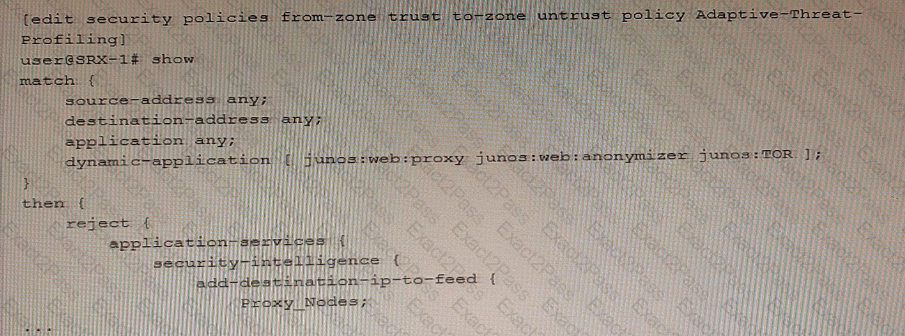

The exhibit shows the output of the show security intelligence category summary command on the SRX-1 device. This command displays the status of the security intelligence categories configured on the device. In the output, we can see that there are two categories configured - Proxy_Nodes and Proxy_Node3. The Proxy_Nodes category is a custom category that is created by the SRX-1 device using the adaptive threat profiling feature. The Proxy_Node3 category is a third-party category that is downloaded from the Juniper ATP Cloud service. The Proxy_Nodes category contains the IP addresses that match the security policy named Proxy-ATP on the SRX-1 device. The Proxy_Node3 category contains the IP addresses that are associated with the Tor network.

The two statements that are true based on the exhibit are:

The SRX-1 device creates the Proxy_Nodes feed, so it cannot use it in another security policy. This is because the adaptive threat profiling feature does not allow the device that creates the feed to use it in another security policy. The feed is intended to be shared with other devices in the same realm through the Juniper ATP Cloud service. The SRX-1 device can only use the feeds that are created by other devices or downloaded from third-party sources.

You can only use the Proxy_Node3 feed as the destination-address match criteria of another security policy on a different SRX Series device. This is because the Proxy_Node3 feed is a third-party feed that is downloaded from the Juniper ATP Cloud service. The SRX-1 device can use this feed as a dynamic address object in its security policies. However, the feed is configured with the destination-only option, which means that it can only be used as the destination-address match criteria of a security policy. The source-address match criteria of a security policy cannot use this feed.

References : Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-security-intelligence-category-summary.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-intelligence-third-party-feed-configuring.html https://www.juniper.net/documentation/en_US/junos/topics/concept/security-adaptive-threat-profiling-overview.html

A company wants to partition their physical SRX series firewall into multiple logical units and assign each unit (tenant) to a department within the organization. You are the primary administrator of the firewall and a colleague is the administrator for one of the departments. The two statements that are correct about your colleague are:

B. The colleague can access and view the resources of the tenant system. A tenant system is a type of logical system that is created and managed by the primary administrator of the firewall. A tenant system has its own discrete administrative domain, logical interfaces, routing instances, security policies, and other features. The primary administrator can assign a tenant system to a department within the organization and delegate the administration of the tenant system to a colleague.  The colleague can access and view the resources of the tenant system, such as the allocated CPU, memory, and bandwidth, and the configured interfaces, zones, and policies 1 .

C. The colleague can create and assign logical interfaces to the tenant system. A logical interface is a software interface that represents a subset of the physical interface. A logical interface can have its own address, encapsulation, and routing parameters. The primary administrator can allocate a number of logical interfaces to a tenant system and allow the colleague to create and assign logical interfaces to the tenant system.  The colleague can configure the logical interfaces with the appropriate address, encapsulation, and routing parameters for the tenant system 2 .

The other statements are incorrect because:

A. The colleague cannot configure the resources allocated and routing protocols. The resources allocated and routing protocols are configured by the primary administrator of the firewall. The primary administrator can allocate a fixed amount of resources, such as CPU, memory, and bandwidth, to a tenant system and specify the routing protocols that are allowed for the tenant system.  The colleague cannot modify the resources allocated or routing protocols for the tenant system 1 .

D. The colleague cannot modify the number of allocated resources for the tenant system. The number of allocated resources for the tenant system is configured by the primary administrator of the firewall. The primary administrator can allocate a fixed amount of resources, such as CPU, memory, and bandwidth, to a tenant system and monitor the resource usage of the tenant system.  The colleague cannot modify the number of allocated resources for the tenant system 1 .

References:

Understanding Tenant Systems

Understanding Logical Interfaces

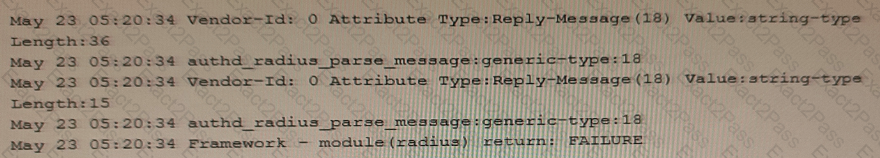

According to the output of the traceoptions file called radius, the source of the problem is that the RADIUS server IP address is unreachable. This is indicated by the line  FAILURE: sendto: No route to host , which shows that the SRX device cannot send the authentication request to the RADIUS server. This could be due to a network issue, such as a misconfigured route, a firewall blocking the traffic, or a physical link failure.

To troubleshoot this issue, the user should check the following:

The RADIUS server IP address and port are correctly configured on the SRX device.  The user can verify this by using the command  show configuration access radius-server 1 .

The SRX device can ping the RADIUS server IP address.  The user can use the command  ping < RADIUS-server-IP >  to test the connectivity 2 .

The SRX device has a valid route to the RADIUS server IP address.  The user can use the command  show route < RADIUS-server-IP >  to check the routing table 3 .

The SRX device and the RADIUS server are using the same shared secret key.  The user can verify this by using the command  show configuration access radius-server secret 1 .

The SRX device and the RADIUS server are using the same authentication protocol.  The user can verify this by using the command  show configuration access profile < profile-name > 4 .

The firewall policies on the SRX device and any intermediate devices are allowing the RADIUS traffic.  The user can use the command  show security policies from-zone < source-zone > to-zone < destination-zone >  to check the firewall policies 5 .

References:   1 :  Configuring RADIUS Server Parameters   2 :  ping - Technical Documentation - Support - Juniper Networks   3 :  show route - Technical Documentation - Support - Juniper Networks   4 :  Configuring Authentication Profiles   5 :  show security policies - Technical Documentation - Support - Juniper Networks

You are required to secure a network against malware. You must ensure that in the event that a compromised host is identified within the network, the host is isolated from the rest of the network. In this scenario, after a threat has been identified, the two components that are responsible for enforcing MAC-level infected host are:

C. Policy Enforcer. Policy Enforcer is a software solution that integrates with Juniper ATP Cloud and Juniper ATP Appliance to provide automated threat remediation across the network. Policy Enforcer can receive threat intelligence feeds from Juniper ATP Cloud or Juniper ATP Appliance and apply them to the security policies on the SRX Series devices and the EX Series devices. Policy Enforcer can also enforce MAC-level infected host, which is a feature that allows you to quarantine a compromised host by blocking its MAC address on the switch port.  Policy Enforcer can communicate with the EX Series devices and instruct them to apply the MAC-level infected host policy to the infected host 1 .

D. EX Series device. EX Series devices are Ethernet switches that can provide Layer 2 and Layer 3 switching capabilities and security features. EX Series devices can integrate with Policy Enforcer and Juniper ATP Cloud or Juniper ATP Appliance to provide automated threat remediation across the network. EX Series devices can support MAC-level infected host, which is a feature that allows them to quarantine a compromised host by blocking its MAC address on the switch port.  EX Series devices can receive instructions from Policy Enforcer and apply the MAC-level infected host policy to the infected host 2 .

The other options are incorrect because:

A. SRX Series device. SRX Series devices are high-performance firewalls that can provide Layer 3 and Layer 4 security features and integrate with Juniper ATP Cloud or Juniper ATP Appliance to provide advanced threat prevention. SRX Series devices can re ceive threat intelligence feeds from Juniper ATP Cloud or Juniper ATP Appliance and apply them to the security policies.  However, SRX Series devices cannot enforce MAC-level infected host, which is a feature that requires Layer 2 switching capabilities and is supported by EX Series devices 3 .

B. Juniper ATP Appliance. Juniper ATP Appliance is a hardware solution that provides advanced threat prevention by detecting and blocking malware, ransomware, and other cyberattacks. Juniper ATP Appliance can analyze the network traffic and identify the compromised hosts based on their behavior and communication patterns. Juniper ATP Appliance can also send threat intelligence feeds to Policy Enforcer and SRX Series devices to enable automated threat remediation across the network. However, Juniper ATP Appliance cannot enforce MAC-level infected host, which is a feature that requires Layer 2 switching capabilities and is supported by EX Series devices.

References:

Policy Enforcer Overview

EX Series Switches Overview

SRX Series Services Gateways Overview

[Juniper ATP Appliance Overview]
