The Dijkstra algorithm in IS-IS operates as follows:

Tree Database Initialization : The local router (root) is added to the tree database with a cost of 0.

Candidate Database Population : Neighbors of the root (from the LSDB) are placed into the candidate database with their associated costs.

Processing Nodes : The node with the lowest cost in the candidate database is moved to the tree database.

Neighbor Evaluation : For each neighbor of the newly added node (from the LSDB), if the neighbor is not already in the tree or candidate database, it is added to the candidate database. If it exists in the candidate with a higher cost, it is updated with the lower cost.

Termination : The algorithm stops when the  candidate database is empty , ensuring all shortest paths are computed.

Analysis of Options:

A.  Incorrect. The local router is placed directly into the tree database, not the candidate database.

B.  Correct (with context). When a node is added to the tree database, its neighbors (existing in the LSDB) are evaluated. If these neighbors are not already in the tree or candidate database, they are  added  (not " moved " ) to the candidate database. The wording " moved " is technically inaccurate, but this option aligns closest with the process of populating the candidate database using LSDB entries during tree database processing.

C.  Incorrect. Tuples (nodes) with the lowest cost are moved from the  candidate  database to the  tree  database, not from the tree to the LSDB. The LSDB remains static during SPF computation.

D.  Incorrect. The algorithm stops when the  candidate database is empty , not the tree database. The tree database grows as nodes are processed.

class-of-service (CoS) is a feature that allows you to prioritize and manage network traffic based on various criteria, such as application type, user group, or packet loss priority. CoS uses different components to classify, mark, queue, schedule, shape, and drop traffic according to the configured policies.

One of the components of CoS is drop profiles, which define how packets are dropped when a queue is congested. Drop profiles use random early detection (RED) algorithm to drop packets randomly before the queue is full, which helps to avoid global synchronization and improve network performance. Drop profiles can be discrete or interpolated. A discrete drop profile maps a specific fill level of a queue to a specific drop probability. An interpolated drop profile maps a range of fill levels of a queue to a range of drop probabilities and interpolates the values in between.

In the exhibit, we can see that the class-of-service configuration shows an interpolated drop profile with two fill levels (50 and 75) and two drop probabilities (20 and 60). Based on this configuration, we can infer the following statements:

The drop probability jumps immediately from 20% to 60% when the queue level reaches 75% full. This is not correct because the drop profile is interpolated, not discrete. This means that the drop probability gradually increases from 20% to 60% as the queue level increases from 50% full to 75% full. The drop probability for any fill level between 50% and 75% can be calculated by using linear interpolation formula.

The drop probability gradually increases from 20% to 60% as the queue level increases from 50% full to 75% full. This is correct because the drop profile is interpolated and uses linear interpolation formula to calculate the drop probability for any fill level between 50% and 75%. For example, if the fill level is 60%, the drop probability is 28%, which is calculated by using the formula: (60 - 50) / (75 - 50) * (60 - 20) + 20 = 28.

To use this drop profile, you reference it in a scheduler. This is correct because a scheduler is a component of CoS that determines how packets are dequeued from different queues and transmitted on an interface. A scheduler can reference a drop profile by using the random-detect statement under the [edit class-of-service schedulers] hierarchy level. For example: scheduler test { transmit-rate percent 10; buffer-size percent 10; random-detect test-profile; }

To use this drop profile, you apply it directly to an interface. This is not correct because a drop profile cannot be applied directly to an interface. A drop profile can only be referenced by a scheduler, which can be applied to an interface by using the scheduler-map statement under the [edit class-of-service interfaces] hierarchy level. For example: interfaces ge-0/0/0 { unit 0 { scheduler-map test-map; } }

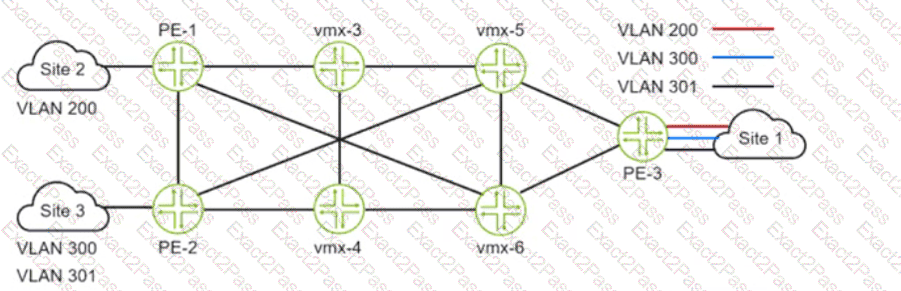

To allow Site 1 to access three VLANs that are located in Site 2 and Site 3, you need to configure three L2VPN routing instances on PE-1, one for each VLAN. Each L2VPN routing instance will have a different VLAN ID and a different VNI for VXLAN encapsulation. Each L2VPN routing instance will also have a different vrf-target export value to identify which VPN routes belong to which VLAN. This way, PE-1 can forward traffic from Site 1 to Site 2 and Site 3 based on the VLAN tags and VNIs.

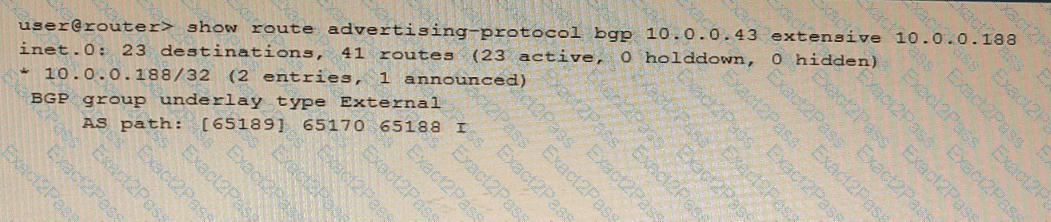

https://www.juniper.net/documentation/us/en/software/junos/cli-reference/topics/ref/command/show-route-advertising-protocol.html

BGP Layer 2 VPNs use BGP to distribute endpoint provisioning information and set up pseudowires between PE devices. BGP uses the Layer 2 VPN (L2VPN) Routing Information Base (RIB) to store endpoint provisioning information, which is updated each time any Layer 2 virtual forwarding instance (VFI) is configured. The prefix and path information is stored in the L2VPN database, which allows BGP to make decisions about the best path.

In BGP Layer 2 VPNs, each site has a unique site ID that identifies it within a VFI. The site ID can be manually configured or automatically assigned by the PE device. By default, the site ID is automatically assigned based on the order that you add the interfaces to the site configuration. The first interface added to a site configuration has a site ID of 1, the second interface added has a site ID of 2, and so on.

Option D is correct because by default on PE-2, the remote site IDs are automatically assigned based on the order that you add the interfaces to the site configuration. Option A is not correct because by default on PE-2, the site’s local ID is automatically assigned a value of 0 and does not need to be configured to match the total number of attached sites. Option B is not correct because you do not need to create a unique Layer 2 VPN routing instance for each site on the PE-2 device. You can create one routing instance for all sites within a VFI. Option C is not correct because you do not need to use separate physical interfaces to connect PE-2 to each site. You can use subinterfaces or service instances on a single physical interface.

OSPF is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. OSPF prevents routing loops in multi-area networks by using two methods: area hierarchy and SPF algorithm. Area hierarchy is the concept of dividing a large OSPF network into smaller areas that are connected to a backbone area (area 0). This reduces the amount of routing information that each router has to store and process, and also limits the scope of link-state updates within each area.  All areas are required to connect to area 0 either directly or through virtual links 2 . SPF algorithm is the method that OSPF uses to calculate the shortest path to each destination in the network based on link-state information. The SPF algorithm runs on each router and builds a shortest-path tree that represents the topology of the network from the router’s perspective.  The SPF algorithm prunes looped paths within an area by choosing only one best path for each destination 3 .

When configuring Class of Service (CoS) properties for output queues, we need to manage packet drops during periods of congestion. Juniper ' s CoS framework provides several tools to manage congestion, including drop profiles, buffer sizes, and scheduling mechanisms. Let’s break down each option and identify the correct one.

Evaluating the Answer Choices

✅ D. drop profile (Correct Answer)

Why?

A drop profile defines when packets should be dropped based on the queue fill level .

Random Early Detection (RED) or Tail Drop can be used to manage congestion by discarding lower-priority packets first.

Drop profiles are configured under the scheduler to determine how aggressive packet dropping should be during congestion.

Example Juniper Configuration:

schedulers {

best-effort {

drop-profile low-drop;

}

}

drop-profiles {

low-drop {

fill-level 80 drop-probability 50;

}

}

fill-level 80 → When the queue reaches 80% full , packet drops begin.

drop-probability 50 → There is a 50% chance of dropping packets once the threshold is reached.

???? Official Juniper Documentation Reference:

???? Junos Class of Service Configuration Guide

" A drop profile determines how packets are discarded based on the queue fill level, allowing control over congestion behavior. "

Why the Other Options Are Incorrect?

❌ A. buffer size (Incorrect)

Why?

The buffer size determines how many packets the queue can store before congestion occurs .

A larger buffer can delay drops , but it does not actively control dropping behavior .

It affects latency rather than controlling packet drops.

❌ B. priority (Incorrect)

Why?

Priority controls which queue gets serviced first , not how drops are handled .

Higher priority queues are serviced before lower-priority queues , but this does not prevent congestion-related drops.

❌ C. shaping rate (Incorrect)

Why?

Shaping limits the maximum transmission rate of the queue.

While shaping helps reduce congestion , it does not control which packets get dropped during congestion.

Shaping is useful for traffic smoothing , but it does not actively drop packets based on queue fill levels.

Final Answer: ✅ D. drop profile

Controls packet drops based on queue congestion.

Defines RED (Random Early Detection) or Tail Drop mechanisms .

Directly influences drop probability as the queue fills up .

???? Official Juniper Reference :

" Drop profiles are used to manage congestion by determining when and how aggressively packets are dropped based on queue fill level. "

PIM sparse mode (PIM-SM) is a multicast routing protocol that uses a pull model to deliver multicast traffic. In PIM-SM, routers with receivers send join messages to their upstream neighbors toward a rendezvous point (RP) or a source-specific tree (SPT). The RP or SPT acts as the root of a shared distribution tree for a multicast group. Traffic is only forwarded to routers that request to join the distribution tree by sending join messages. PIM-SM does not flood traffic to all routers or prune routers without receivers, as PIM dense mode does.

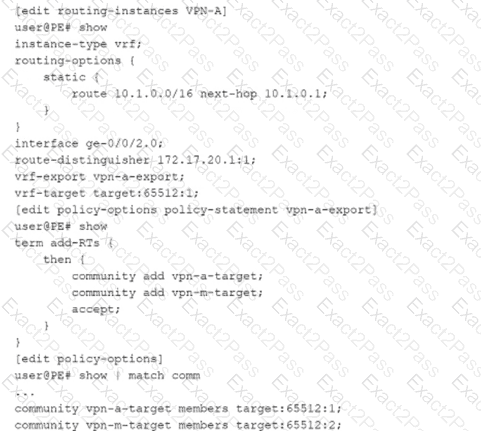

The exhibit shows the configuration of a VRF (Virtual Routing and Forwarding) instance on a Juniper PE router . Let ' s break down the key components:

VRF Configuration (VPN-A)

The instance type is VRF , meaning this is an L3VPN (Layer 3 VPN) .

The routing instance contains a static route (10.1.0.0/16 next-hop 10.1.0.1) .

The interface ge-0/0/2.0 is assigned to the VRF.

Route Distinguisher (RD): 172.17.20.1:1

VRF-Export Policy: vpn-a-export

VRF-Target: target:65512:1 (This defines which routes will be imported into the VRF).

VRF Export Policy (vpn-a-export)

The vpn-a-export policy adds two BGP communities (route targets) to exported VPN routes:

community add vpn-a-target;

community add vpn-m-target;

accept;

The vpn-a-target community corresponds to target:65512:1 .

The vpn-m-target community corresponds to target:65512:2 .

Policy-Options (Community Definitions)

community vpn-a-target members target:65512:1;

community vpn-m-target members target:65512:2;

This confirms that routes exported from this VRF will have BOTH target:65512:1 and target:65512:2 .

Evaluating the Answer Choices

✅ Option A: " VPN routes are exported with the target:65512:1 and target:65512:2 route targets. "

The vpn-a-export policy explicitly adds both vpn-a-target (65512:1) and vpn-m-target (65512:2) to exported routes .

This is correct. ✅

❌ Option B: " You cannot use the vrf-target and vrf-export statements in the same VRF. "

This is incorrect.

Juniper allows the use of both vrf-target and vrf-export in the same VRF :

vrf-target is used for importing routes.

vrf-export defines export policies (which can add additional route targets).

This is incorrect. ❌

❌ Option C: " VPN routes with the target:65512:1 and target:65512:2 route targets are imported. "

The vrf-target target:65512:1; statement only controls importing routes .

The import policy does not include target:65512:2 , so routes tagged with target:65512:2 alone would not be imported into this VRF.

This is incorrect. ❌

❌ Option D: " VPN routes are exported with only the target:65512:1 route target. "

The export policy (vpn-a-export) clearly adds both 65512:1 and 65512:2 .

This is incorrect. ❌

Final Answer:

✅ A. VPN routes are exported with the target:65512:1 and target:65512:2 route targets.

Verification from Juniper Documentation

Juniper MPLS L3VPN Configuration Guide confirms that vrf-target is used for importing , while vrf-export can be used for exporting multiple route targets .

Juniper Routing Policy Documentation states that export policies can add multiple BGP communities (route targets).

RFC 4364 (BGP/MPLS IP VPNs) defines the use of route targets for VPN route control.
