In Splunk data models, child datasets inherit constraints and fields from parent datasets , not the other way around.

Extract: “Child datasets inherit field and constraint definitions from their parent datasets. Changes to child datasets do not affect their parent datasets.”

Therefore, the All Customer Interactions dataset (the parent) remains unaffected by changes to the Category Products child dataset.

A macro is a way to save a commonly used search string as a variable that you can reuse in other searches1. When you create a macro, you can define arguments that are placeholders for values that you specify at execution time1. The argument values are used to resolve the search string when the macro is invoked, not when it is created1. Therefore, statements B and C are true, while statements A and D are false.

When performing an outer join in Splunk using the | join employeeNumber type=outer command, it combines the rows from both tables based on the employeeNumber field. An outer join returns all rows from both tables, with matching rows from both sides where available. If there is no match, the result is NULL on the side of the join where there is no match.

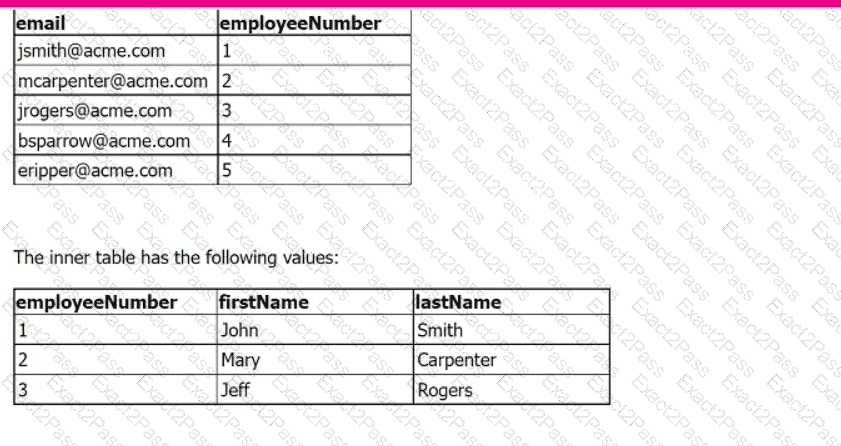

In the provided tables, there are five rows in the first table and three in the second. Since it’s an outer join, all rows from both tables will be returned. This means the new table will have a total of eight rows, combining the matched rows and the unmatched rows from both tables.

The where command can be used to complete the search below.

… | where failure > successes

The where command is a search command that allows you to filter events based on complex or custom criteria. The where command can use any boolean expression or function to evaluate each event and determine whether to keep it or discard it. The where command can also compare fields or perform calculations on fields using operators such as > , < , =, +, -, etc. The where command can be used after any transforming command that creates a table or a chart.

The search string below does the following:

It uses … to represent any search criteria or commands before the where command.

It uses the where command to filter events based on a comparison between two fields: failure and successes.

It uses the greater than operator ( > ) to compare the values of failure and successes fields for each event.

It only keeps events where failure is greater than successes.

If a search returns statistics, it can be viewed as a chart2. Statistics are tabular data that show the relationship between two or more fields2. You can create statistics by using commands such as stats, chart or timechart2. You can view statistics as a chart by selecting the Visualization tab in the Search app and choosing a chart type such as column, line or pie2. Therefore, option B is correct, while options A, C and D are incorrect because they are not types of data that can be viewed as a chart.

During the validation step of the Field Extractor workflow, you can remove values that aren’t a match for the field you want to define2. The validation step allows you to review and edit the values that have been extracted by the FX and make sure they are correct and consistent2. You can remove values that aren’t a match by clicking on them and selecting Remove Value from the menu2. This will exclude them from your field extraction and update the regular expression accordingly2. Therefore, option A is correct, while options B and C are incorrect because they are not actions that you can perform during the validation step of the Field Extractor workflow.

The correct answer is A. | where 10yearAnnerversary=Renewal-MonthYear.

The where command is used to filter the search results based on an expression that evaluates to true or false. The where command can compare two fields, two values, or a field and a value. The where command can also use functions, operators, and wildcards to create complex expressions1.

The syntax for the where command is:

| where < expression >

The expression can be a comparison, a calculation, a logical operation, or a combination of these. The expression must evaluate to true or false for each event.

To compare two fields with the where command, you need to use the field names without any quotation marks. For example, if you want to find events where the values for the 10yearAnnerversary field match the values for the Renewal-MonthYear field, you can use the following syntax:

| where 10yearAnnerversary=Renewal-MonthYear

This will return only the events where the two fields have the same value.

The other options are not correct because they use quotation marks around the field names, which will cause the where command to interpret them as string values instead of field names. For example, if you use:

| where ‘10yearAnnerversary’=‘Renewal-MonthYear’

This will return no events because there are no events where the string value ‘10yearAnnerversary’ is equal to the string value ‘Renewal-MonthYear’.

The correct answer is A. chart, timechart, stats, eventstats.

Transforming commands are commands that change the format of the search results into a table or a chart. They can be used to perform statistical calculations, create visualizations, or manipulate data in various ways1.

Transactions are groups of events that share some common values and are related in some way. Transactions can be defined by using the transaction command or by creating a transaction type in the transactiontypes.conf file2.

Some transforming commands can be used with transactions to create tables or charts based on the transaction fields. These commands include:

chart: This command creates a table or a chart that shows the relationship between two or more fields. It can be used to aggregate values, count occurrences, or calculate statistics3.

timechart: This command creates a table or a chart that shows how a field changes over time. It can be used to plot trends, patterns, or outliers4.

stats: This command calculates summary statistics on the fields in the search results, such as count, sum, average, etc. It can be used to group and aggregate data by one or more fields5.

eventstats: This command calculates summary statistics on the fields in the search results, similar to stats, but it also adds the results to each event as new fields. It can be used to compare events with the overall statistics.

These commands can be applied to transactions by using the transaction fields as arguments. For example, if you have a transaction type named “login” that groups events based on the user field and has fields such as duration and eventcount, you can use the following commands with transactions:

| chart count by user : This command creates a table or a chart that shows how many transactions each user has.

| timechart span=1h avg(duration) by user : This command creates a table or a chart that shows the average duration of transactions for each user per hour.

| stats sum(eventcount) as total_events by user : This command creates a table that shows the total number of events for each user across all transactions.

| eventstats avg(duration) as avg_duration : This command adds a new field named avg_duration to each transaction that shows the average duration of all transactions.

The other options are not valid because they include commands that are not transforming commands or cannot be used with transactions. These commands are:

diff: This command compares two search results and shows the differences between them. It is not a transforming command and it does not work with transactions.

datamodel: This command retrieves data from a data model, which is a way to organize and categorize data in Splunk. It is not a transforming command and it does not work with transactions.

pivot: This command creates a pivot report, which is a way to analyze data from a data model using a graphical interface. It is not a transforming command and it does not work with transactions.

The correct answer is B. Root event dataset. This is because root event datasets are defined by a constraint that filters out events that are not relevant to the dataset. A constraint for a root event dataset is a simple search that returns a fairly wide range of data, such as sourcetype=access_combined. Without a constraint, a root event dataset would include all the events in the index, which is not useful for data modeling. You can learn more about how to design data models and add root event datasets from the Splunk documentation1. The other options are incorrect because root transaction datasets and root search datasets have different ways of defining their datasets, such as transaction definitions or complex searches, and root child datasets are not a valid type of root dataset.
