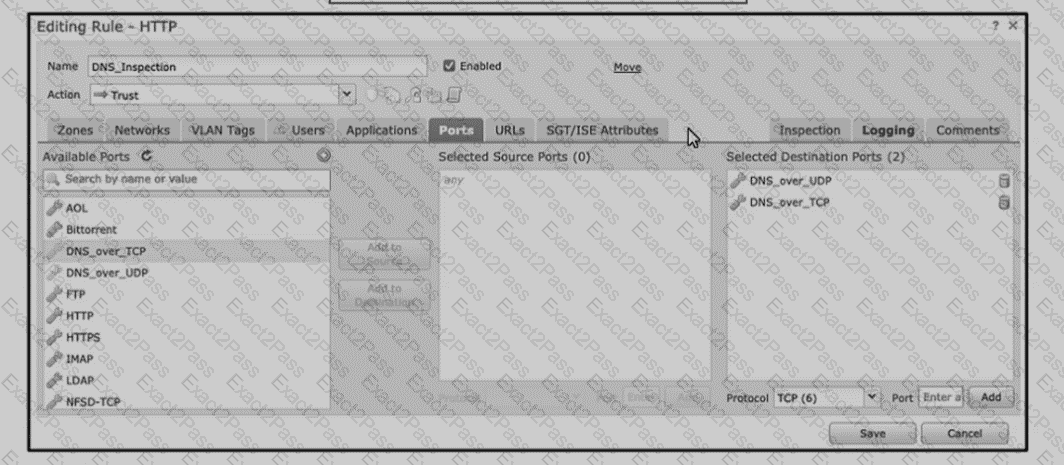

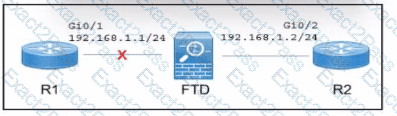

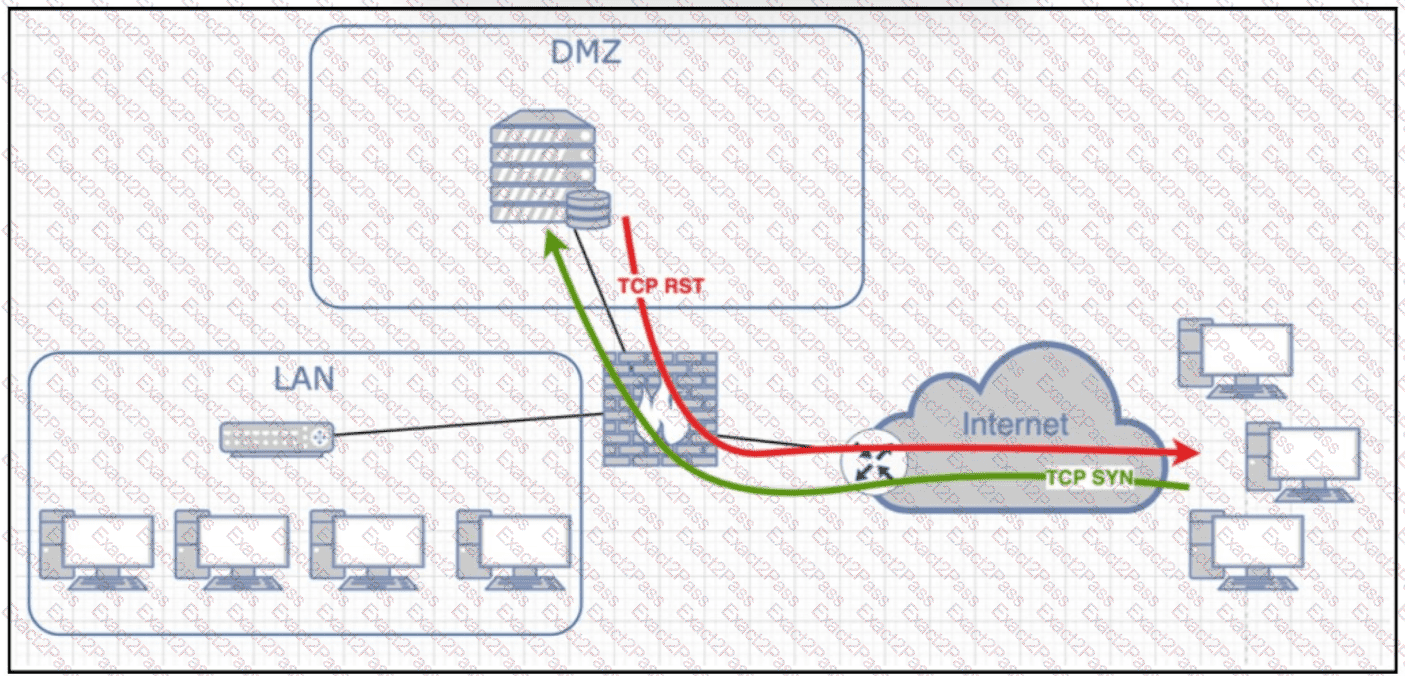

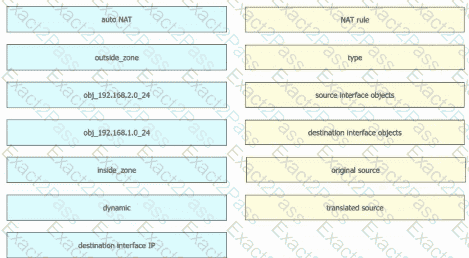

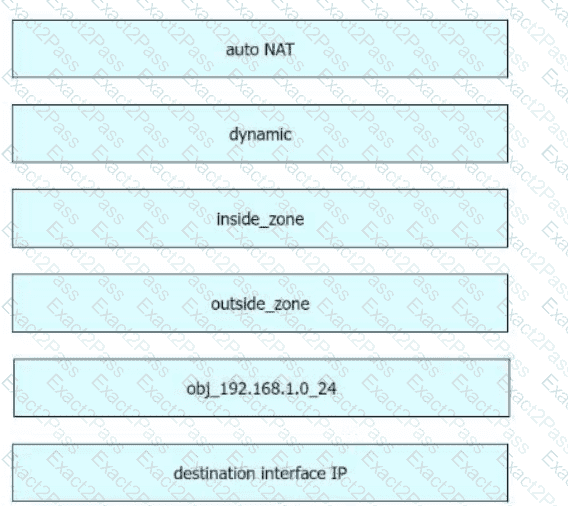

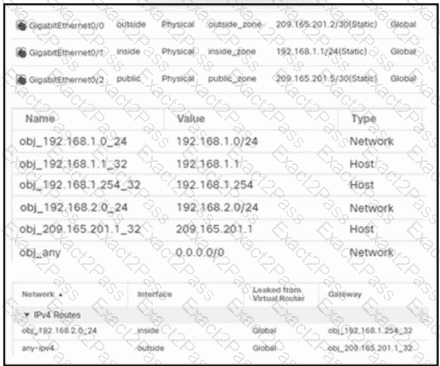

The Capture w/Trace wizard in Cisco FMC allows you to capture packets on an FTD device and trace their path through the Snort engine. This can help you troubleshoot connectivity issues from an endpoint behind an FTD device and a public DNS server, as well as verify the Snort verdict for the DNS traffic. The Capture w/Trace wizard lets you specify the source and destination IP addresses, ports, and protocols for the packets you want to capture and trace, as well as the FTD device and interface where you want to perform the capture. You can also apply filters to limit the capture size and duration. After you start the capture, you can ping the DNS server from the endpoint and then view the captured packets and their Snort verdicts in the FMC web interface2.

To use the Capture w/Trace wizard in Cisco FMC, you need to follow these steps2:

In the FMC web interface, navigate to Troubleshooting > Capture/Trace.

Click New Capture.

Choose an FTD device from the Device drop-down list.

Choose an interface from the Interface drop-down list.

Enter the source and destination IP addresses, ports, and protocols for the packets you want to capture and trace. For example, if you want to capture DNS queries from an endpoint with IP address 10.1.1.100 to a DNS server with IP address 8.8.8.8, you can enter these values:

Source IP: 10.1.1.100

Source Port: any

Destination IP: 8.8.8.8

Destination Port: 53

Protocol: UDP

Optionally, apply filters to limit the capture size and duration. For example, you can set the maximum number of packets to capture, the maximum capture file size, or the maximum capture time.

Click Start.

Ping the DNS server from the endpoint and wait for some packets to be captured.

Click Stop to stop the capture.

Click View Capture to see the captured packets and their Snort verdicts.

The other options are incorrect because:

Performing a Snort engine capture using tcpdump from the FTD CLI will not allow you to trace the path of the packets through the Snort engine or verify their Snort verdicts. Tcpdump is a command-line tool that can capture packets on an FTD device, but it does not provide any information about how Snort processes those packets or what actions Snort takes on them2.

Creating a Custom Workflow in Cisco FMC will not help you troubleshoot a connectivity issue from an endpoint behind an FTD device and a public DNS server. A Custom Workflow is a user-defined set of pages that display event data in different formats, such as tables, charts, maps, and so on. A Custom Workflow does not allow you to capture or trace packets on an FTD device3.

Running the system support firewall-engine-debug command from the FTD CLI will not allow you to simulate real DNS traffic on the FTD device or verify the Snort verdict for that traffic. The firewall-engine-debug command is a diagnostic tool that can generate synthetic packets and send them through the Snort engine on an FTD device. The synthetic packets are not real network traffic and do not affect any connections or policies on the FTD device4.

Change Reconciliation is specifically designed to generate and email a detailed summary of configuration changes made during the preceding 24 hours. Secure Firewall Management Center takes snapshots when users save configuration changes and consolidates those records into a daily change report. The administrator can enable the feature, select the scheduled delivery time, specify recipient email addresses, and optionally include the full change history. Sending audit logs to a syslog or HTTP server exports individual audit events to an external system but does not automatically generate the required daily management report. STIG Compliance evaluates the system against security configuration guidance and is unrelated to change reporting. Therefore, Change Reconciliation is the only option that directly satisfies both the 24-hour reporting period and email-delivery requirements. Cisco Change Reconciliation configuration

================

To streamline the process of reviewing events and modifying blocking of specific files across both the firewall console and the endpoint console, the security engineer should initiate the integration between Secure FMC and Cisco Secure Endpoint (formerly AMP for Endpoints) from the Secure FMC using the AMP tab.

Steps:

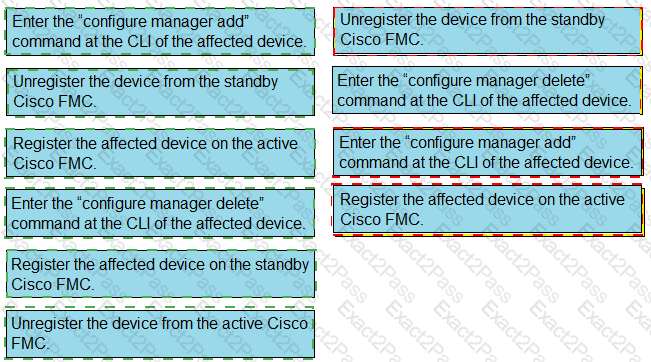

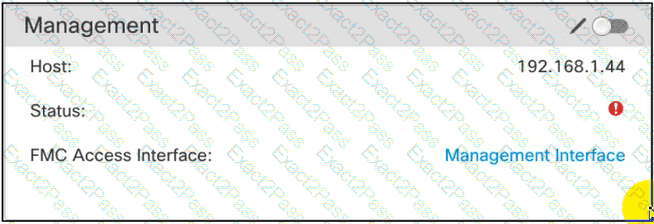

In the FMC, navigate toDevices > Device Management.

Select the device and go to theAMPtab.

Initiate the integration by configuring the necessary API credentials and linking the FMC to the Cisco Secure Endpoint console.

This integration allows the security engineer to view endpoint events and apply blocking actions directly from the FMC, consolidating the management tasks.

This approach simplifies the workflow by providing a single interface to manage both network and endpoint security, reducing the time and effort required to maintain security across the organization.

The intended control node should be assigned a numerically lower priority value than the other cluster nodes. Cisco Secure Firewall cluster priority values operate inversely: the lowest numerical value represents the highest election priority. For example, a node configured with priority 1 takes precedence over nodes configured with priorities 10 or 20. If the current control node fails, the available node with the highest priority—meaning the lowest configured number—is elected as the replacement. Values 0 and 255 are outside the documented 1–100 range for this Management Center clustering implementation. Therefore, the node with greater processing resources should receive a lower numerical value. The supplied answer of C in List B is incorrect and has been corrected to B based on Cisco documentation. Cisco Secure Firewall clustering documentation

================
