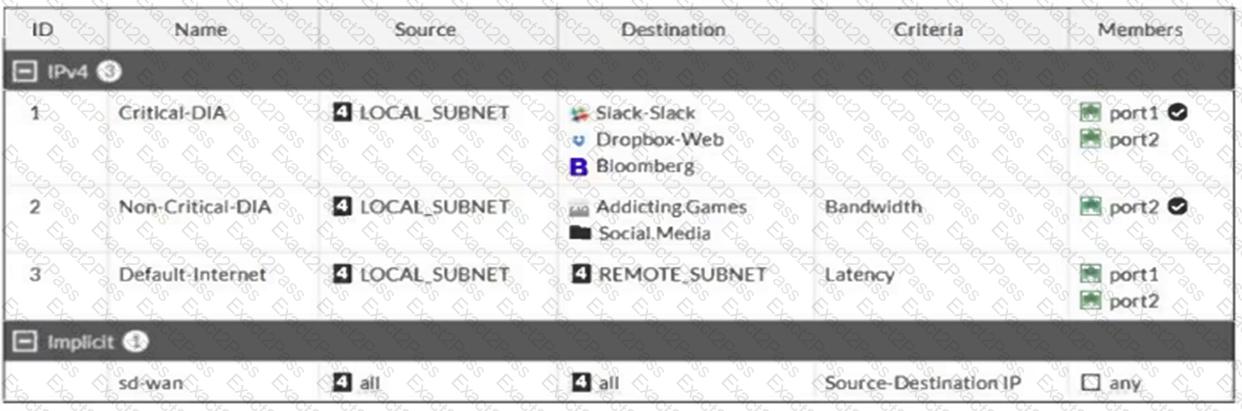

For traffic that does not match any of the defined SD-WAN rules, the default implicit SD-WAN rule is applied. By default, the FortiGate uses a "source-destination IP-based" algorithm, which means all traffic from a specific source IP to a specific destination IP is sent through the same in terface. This ensures that a consistent path is used for traffic between the same source and destination IP addresses. Options B, C, and D do not apply because the default algorithm does not prioritize by latency, session count, or source IP alone.

References:

FortiOS 7.4.1 Administration Guide: SD-WAN Load Balancing Algorithms​

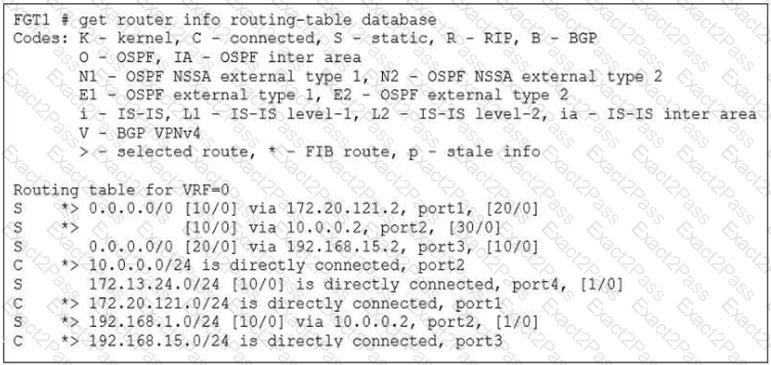

The port1 and port2 default routes are active in the routing table

The routes with 0.0.0.0/0 for both port1 and port2 are marked with an asterisk * and > symbol, which indicates that these routes are active and selected in the routing table.

The port3 default route has the highest distance

The route via port3 has a distance of [20/0], which is higher than the distances for the routes via port1 [10/0] and port2 [30/0]. This indicates that the port3 default route has the highest distance.

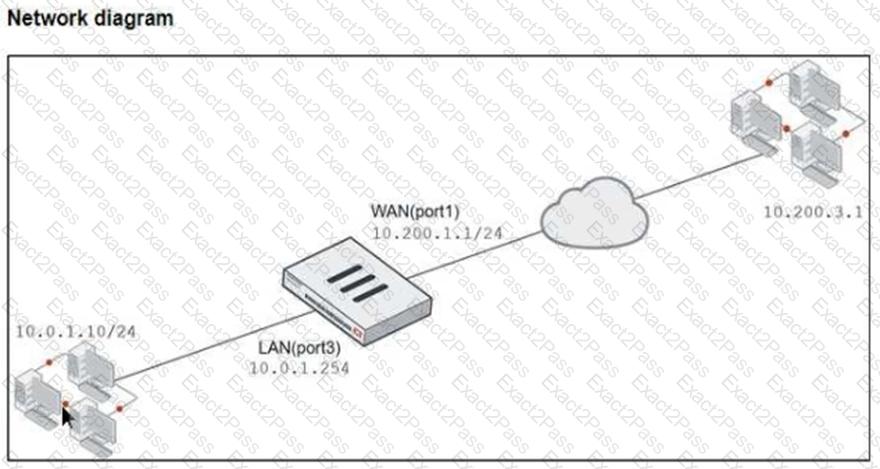

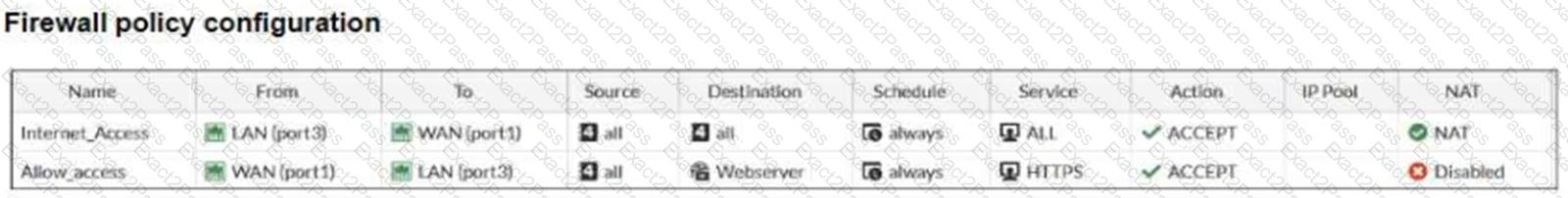

The source address remains 10.200.3.1 because FortiGate does not modify the source address by default unless NAT is applied (which is disabled in the policy).

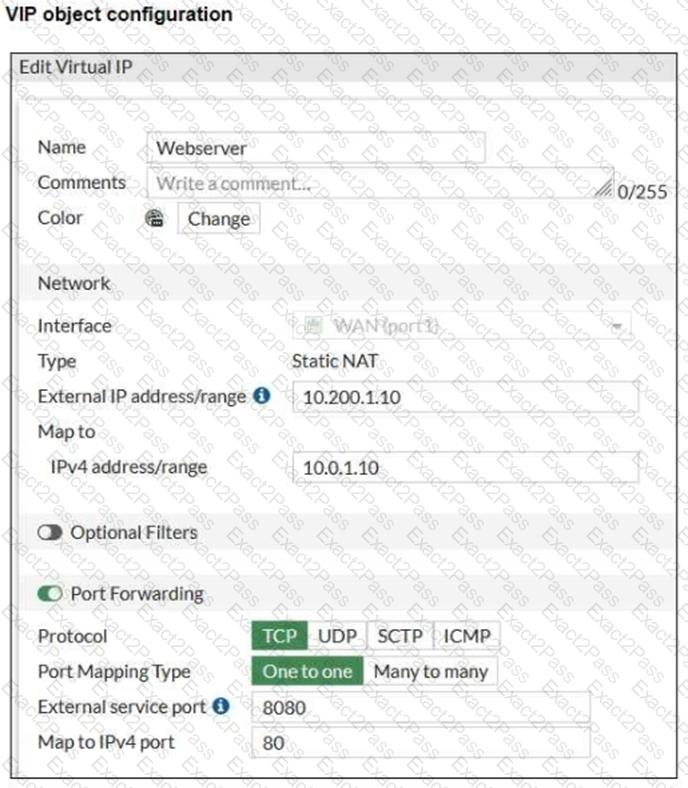

The destination address is translated to 10.0.1.10 by the VIP (Virtual IP) object, as this is the internal server address mapped to the external IP 10.200.1.10.

The destination port is translated from 8080 to 80 as per the port forwarding rule configured in the VIP object.

If fortigate is used as an SSL VPN client, it needs a ssl virtual tunnel interface to connect to the SSL VPN server. This is the client virtual interface that the vpn server will assign the temporary IP address to during the lifetime of an ssl connection. The SSL VPN server also needs a correct CA certificate to authenticate/trust client's certificate.

The Reverse Path Forwarding (RPF) check is run on the first sent packet of any new session to ensure that the packet arrives on a legitimate interface. This check protects the network from IP spoofing attacks by verifying that a return route exists from the receiving interface back to the source IP address. If the route is invalid or not found, the packet is discarded. Options B and C are incorrect because RPF checks are performed on the first sent packet, not the reply packet.

References:

FortiOS 7.4.1 Administration Guide: Reverse Path Forwarding (RPF) Check

The SSL VPN http-request-header-timeout timer is used to mitigate denial of service (DoS) attacks by limiting the amount of time the FortiGate waits for the client to send an HTTP request header after a connection is established. This helps reduce the attack surface by preventing potential attacks that exploit prolonged connection times without fully completing requests.

NGFW (Next Generation Firewall) profile-based mode in FortiGate allows policies to use both flow-based and proxy-based inspection modes, providing flexibility depending on security and performance requirements. Additionally, profile-based mode supports applying applications and web filtering profiles directly in a firewall policy, allowing granular control over the traffic.

References:

FortiOS 7.4.1 Administration Guide: NGFW Mode Configuration

For configuring an IPsec VPN tunnel for a sales employee traveling abroad, the "Remote Access" template is the most appropriate choice. This template is designed to allow remote users to securely connect to the internal network of an organization from any location using FortiClient or a compatible client. The other options, such as "Site to Site," "Dial up User," and "iHub-and-Spoke," are used for connecting different networks or sites, not individual remote users.

References:

FortiOS 7.4.1 Administration Guide: IPsec Wizard Template Types

When a firewall policy is created in FortiGate integrated with FortiAnalyzer and FortiManager, a Universally Unique Identifier (UUID) is added to the policy to support logging and management​.
