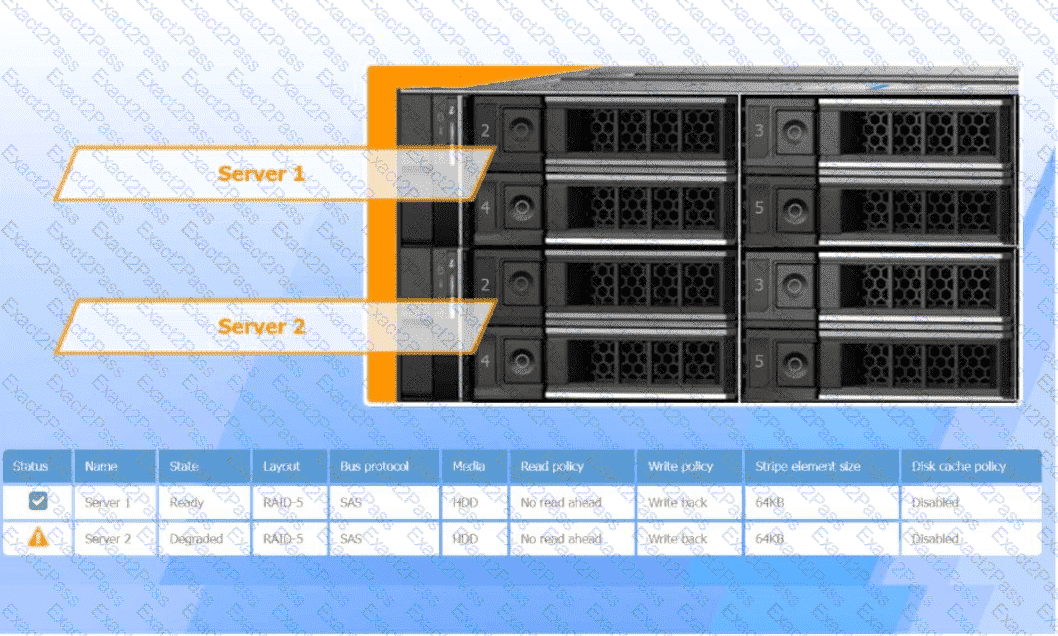

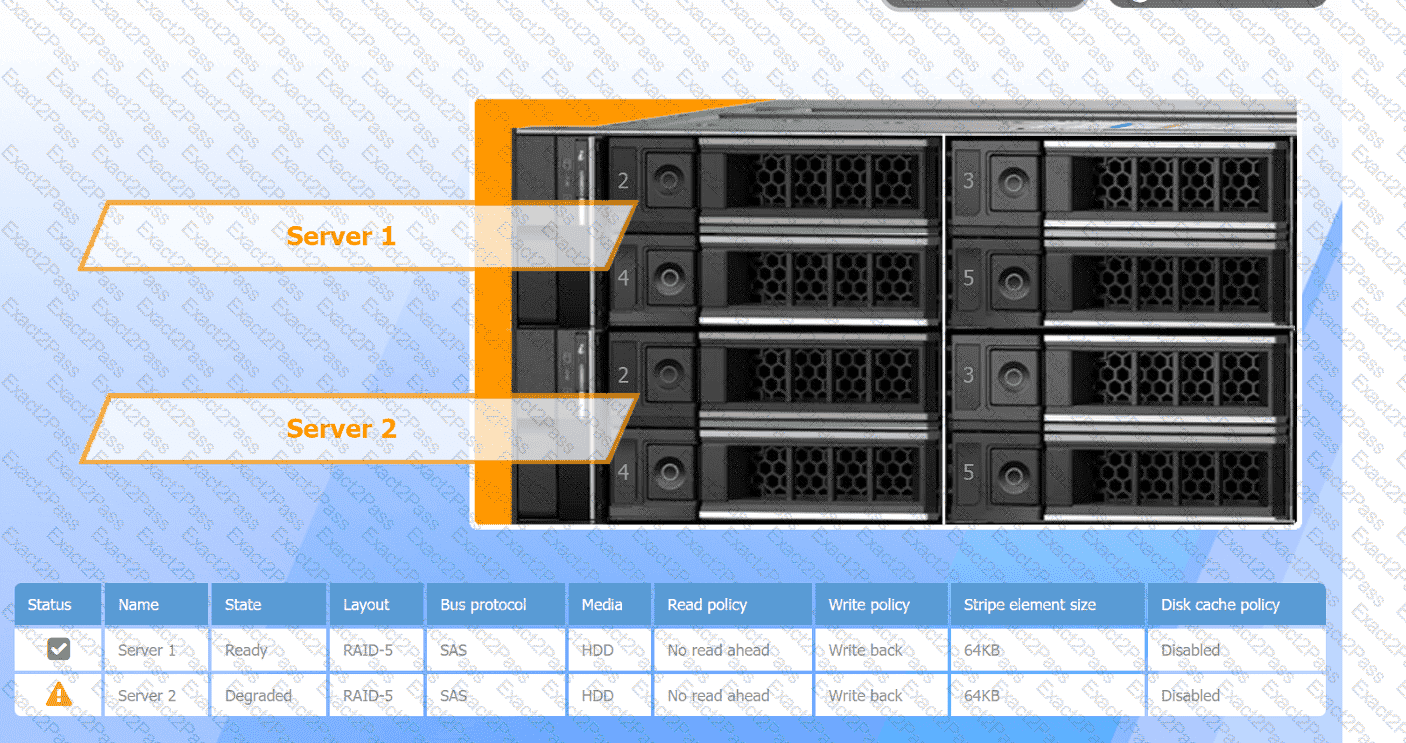

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

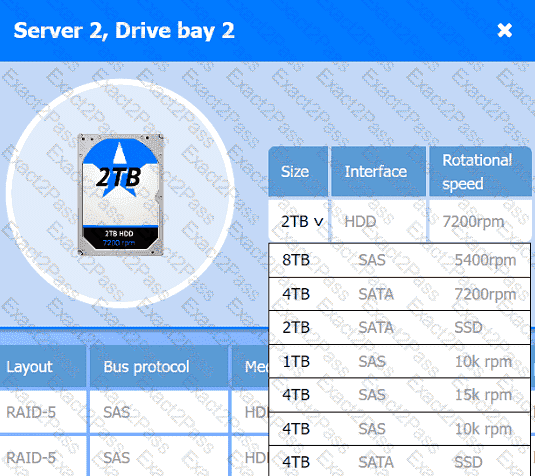

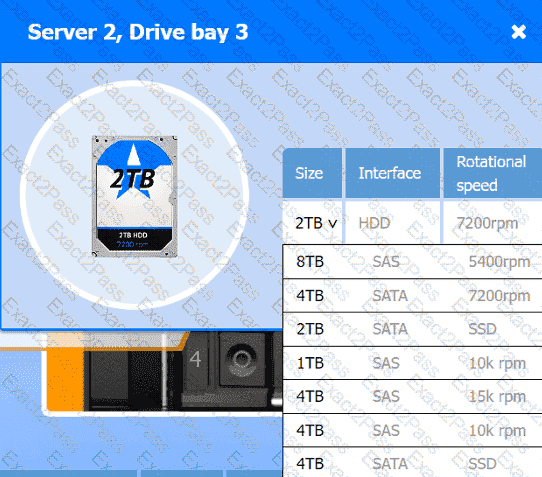

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

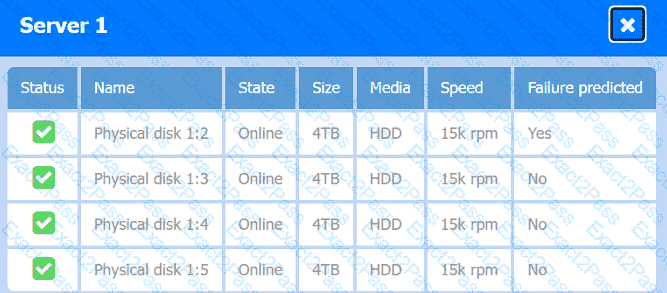

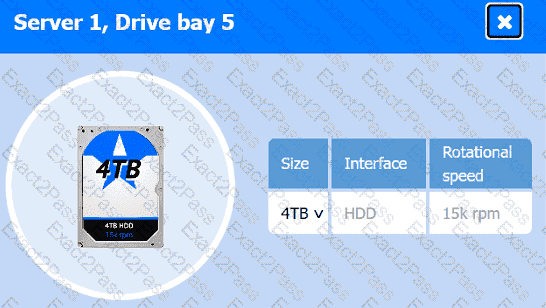

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

The correct answer is D. Decreased burn-in.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

Mini-LED displays use an array of tiny LEDs as a backlight for LCD panels.

Unlike OLED displays, which are susceptible to burn-in (permanent image retention when static content is displayed for long periods), mini-LEDs reduce the risk because the pixels themselves do not emit light individually and are less prone to permanent image retention.

Why the other options are incorrect:

A. Increased contrast: OLED typically provides better contrast because it can turn off individual pixels completely.

B. No backlight: Mini-LEDs still use a backlight, whereas OLEDs do not.

C. Improved viewing angle: OLEDs generally offer wider viewing angles than mini-LED LCDs.

NFC (Near-Field Communication) is a subset of RFID technology designed for very short-range wireless communication, typically within a few centimeters. It is primarily used for contactless transactions, like mobile payments, and can also support peer-to-peer data exchanges. NFC operates at 13.56 MHz and enables devices to communicate when placed near each other.

The correct answer is B. Elasticity.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud Concepts:

Elasticity refers to the cloud computing capability to automatically allocate and deallocate resources based on current demand. This ensures that applications have the necessary compute, storage, and network capacity during peak loads, and resources can be scaled down when demand decreases, optimizing efficiency and cost.

Why the other options are incorrect:

A. Hybrid deployment: Refers to using a combination of public and private clouds; it does not describe dynamic resource allocation.

C. Multitenancy: Describes the architecture where multiple users share the same infrastructure securely.

D. Metered utilization: Refers to charging based on resource consumption; it is a billing mechanism, not a dynamic allocation feature.

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

Dedicated resources (sometimes called single-tenant or bare metal) guarantee that physical hardware is allocated exclusively to one customer and not shared.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud deployment models:

“Dedicated resources ensure data isolation at the hardware level for compliance and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Deployment

CompTIA Exam Objectives 220-1101, Domain 3.7

============

The technician should first open Disk Management and determine whether the disk or volume is still recognized by Windows.

Disk Management can reveal whether the volume:

Is present but does not have a drive letter.

Has been assigned a different drive letter.

Is offline.

Is unallocated or not initialized.

Has a partition or file-system problem.

Is no longer detected by the operating system.

This follows proper troubleshooting practice: inspect the existing configuration before making destructive or unnecessary changes.

There is no evidence that hardware was stolen, so escalation for theft is premature.

Creating a new partition could alter the existing disk layout and does not locate the missing F: volume.

Installing a new hard drive is unnecessary before determining what happened to the existing volume.

CompTIA objective 5.2 includes “missing drives in OS” as a drive-troubleshooting symptom. Microsoft identifies Disk Management as the Windows utility for viewing volumes and assigning or changing drive letters.

==========
