A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

A firewall examines network traffic and permits or blocks it according to configured security rules. Rules can be based on characteristics such as:

Source or destination IP address.

Network protocol.

Source or destination port.

Connection state.

Application or service.

Direction of communication.

This makes a firewall the device that most directly blocks unauthorized or unwanted network traffic.

An access point provides wireless network connectivity.

A switch forwards Ethernet frames between devices on a local network.

A router directs packets between different IP networks. Some routers contain integrated firewall functionality, but routing itself is not the primary security control described by the question.

CompTIA objective 2.5 includes firewalls among common network hardware devices. Microsoft describes a firewall as a technology that filters network traffic and blocks unauthorized access.

==========

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

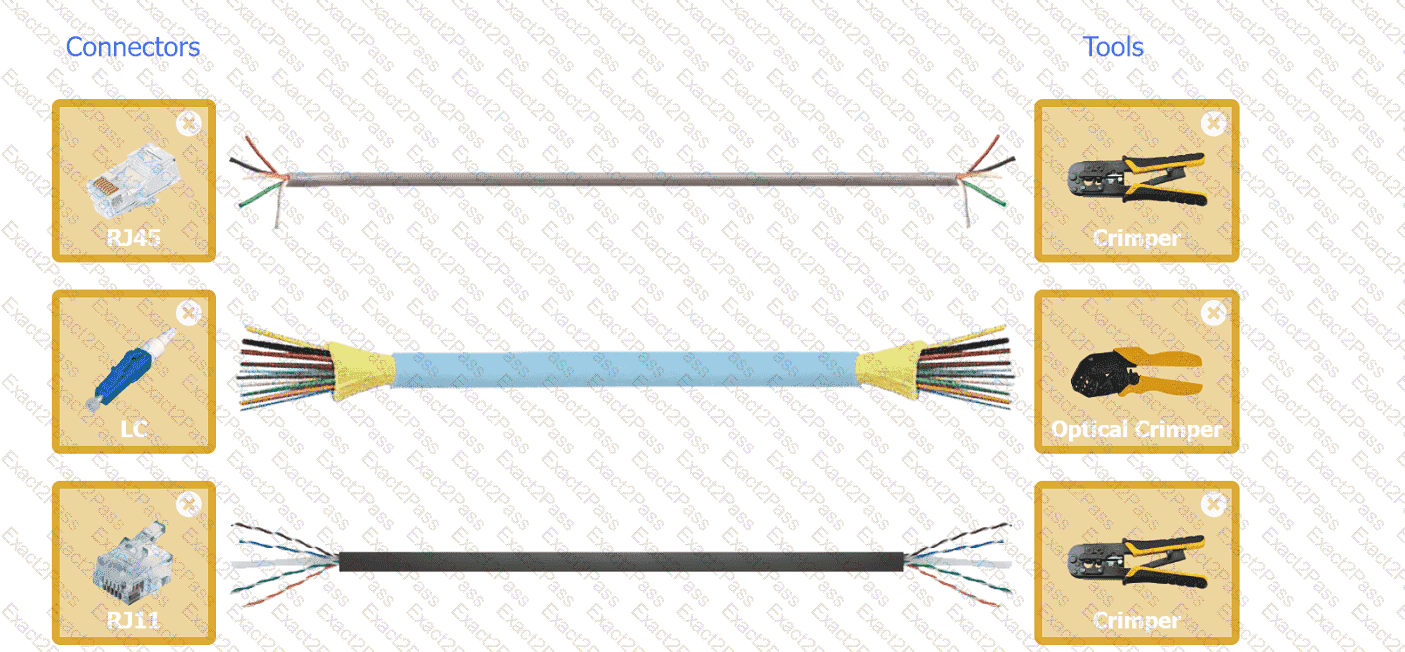

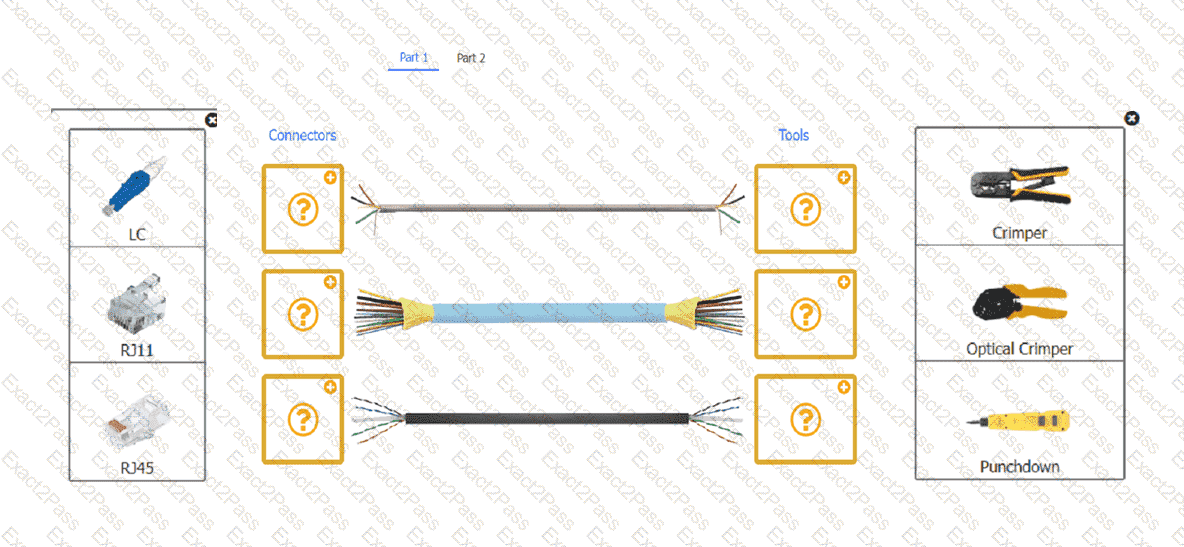

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

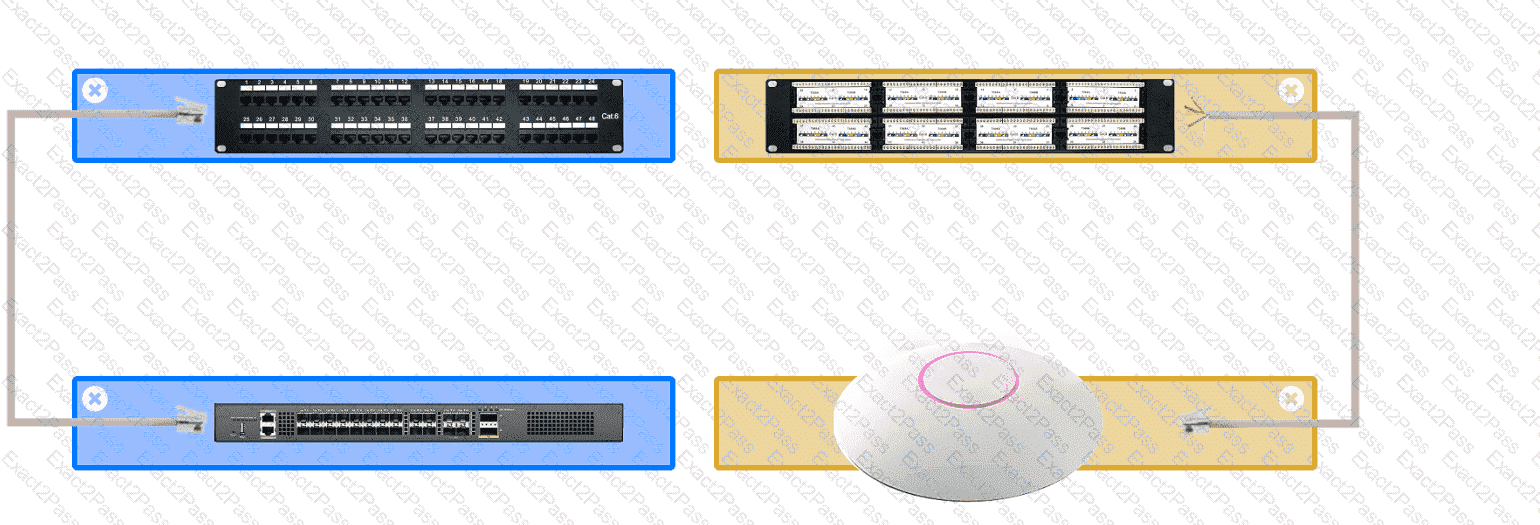

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

The combination of an unusual mechanical noise and random shutdowns strongly indicates a problem with the computer’s cooling system . A cooling fan with worn bearings, accumulated debris, or physical obstruction can produce a grinding sound.

When the CPU fan cannot rotate properly, airflow decreases and the CPU temperature rises. The computer may then shut down automatically to protect the processor and motherboard from thermal damage. Therefore, among the available answers, CPU overheating is the most likely cause of the shutdowns.

The other answers are less appropriate:

An SSD contains no moving mechanical components and would not normally produce a grinding noise.

An improperly installed graphics card is more likely to produce a blank screen, display artifacts, crashes, or failure to complete POST.

Damaged RAM commonly causes application crashes, POST errors, blue screens, freezes, or data corruption, but not a grinding sound.

CompTIA objective 5.1 associates overheating, random shutdowns, and unusual noises with motherboard, CPU, power, and RAM troubleshooting. Dell identifies fan problems as causes of noise and overheating, while SSD documentation confirms that SSDs have no moving mechanical parts.

==========

The correct answer is D. WLAN (Wireless Local Area Network).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

The technician is creating a DHCP reservation . A DHCP reservation associates a specific IP address with a particular network interface. The network interface is normally identified by its MAC address , also called its physical address or hardware address.

When the printer requests an address from DHCP, the DHCP service recognizes the printer’s MAC address and repeatedly assigns the reserved IP address. This allows computers and print servers to reach the printer consistently without requiring the printer to be manually configured with a static address.

The printer driver version affects how the operating system communicates with the printer, not DHCP addressing.

A spool target relates to print-job processing.

A serial number identifies the physical product but is not normally used by DHCP.

CompTIA objective 2.4 includes DHCP reservations, while objective 2.5 identifies the MAC address as the physical address of a network interface card. Microsoft confirms that DHCP reservations assign an address to a particular client NIC based on its MAC address.

==========

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

The correct answer is B. Moving to a supported system under a Type 2 hypervisor.

In the CompTIA A+ Core 1 (220-1201) objectives, virtualization is a key concept for maintaining compatibility with legacy systems. A Type 2 hypervisor (hosted hypervisor) runs on top of an existing operating system and allows users to run a virtual machine (VM) with an older OS.

This solution is ideal because:

It allows the legacy application to run in its required OS environment.

It avoids replacing the application (which could cause data loss or compatibility issues).

It is cost-effective, as it uses existing hardware.

It minimizes user disruption, since users can continue using the application within a VM.

Why the other options are incorrect:

A. Setting up a bare-metal hypervisor

A Type 1 (bare-metal) hypervisor is more complex, costly, and disruptive. It typically requires dedicating hardware and is not ideal for a single department use case.

C. Upgrading to an alternative product and importing the data

Although this may be a long-term solution, it involves higher cost, potential data loss, retraining, and disruption.

D. Uploading the database to a private cloud

This does not solve the compatibility issue of the legacy application with the new OS.

Final Answer: B. Moving to a supported system under a Type 2 hypervisor

Dual-BIOS motherboards contain two firmware chips. If theprimary BIOS becomescorrupted, the system canfailover to the secondary BIOS. Most boards allow manual enabling of the secondary BIOS via a physical switch or jumper.

Option B:Downgrading firmware may not be possible if the system won’t POST or access UEFI.

Option C:Not necessary until both BIOS chips are non-functional.

Option D:Thermal paste affects heat dissipation, not BIOS/boot behavior.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

A Power over Ethernet injector is the simplest solution because the unmanaged switch does not provide PoE. The injector is installed inline between the switch and the wireless access point. It adds electrical power to the Ethernet connection while allowing network data to travel over the same cable. This eliminates the need to install a separate electrical outlet in the attic, reducing installation complexity and cost. A patch panel organizes and terminates network cabling but does not provide power. Mounting an antenna on the roof would not solve the access point’s power requirement and could create additional environmental and cabling concerns. Installing an electrical outlet would work, but it requires electrical work and is less convenient. A PoE injector is specifically designed to power devices such as access points and IP cameras when the existing switch lacks PoE capability.

Whenever a CPU heat sink is removed or replaced, thermal paste must be reapplied. Thermal paste fills microscopic gaps between the CPU heat spreader and the heat sink, ensuring efficient heat transfer. Without it, there is a significant air gap, which acts as an insulator, causing CPU temperatures to rise dramatically even under light load. CompTIA A+ stresses thermal compound application as a key step in CPU cooling installation.

The scenario indicates that temperatures increased drastically after upgrading to a better heat sink. A higher-performing heat sink should improve temperatures, not worsen them—unless a critical installation step was missed. Missing thermal paste is the most common cause of this symptom and easily explains the sudden overheating.

Decreased CPU voltage would lower temperatures, not raise them. Higher fan RPM increases cooling efficiency, not reduces it. Airflow interruption is possible but less likely in a simple heat sink upgrade scenario unless the technician installed the CPU cooler incorrectly; however, the most direct and common cause described by CompTIA is missing thermal paste.

Thus, D is the correct answer.

OLED (Organic Light-Emitting Diode) technology can turn off individual pixels completely, producing “true black” and resulting in the highest contrast ratios compared to other display types.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 – Display types and features:

“OLED displays provide superior contrast by emitting light per pixel, allowing perfect black and extremely high contrast ratios.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Display Technologies

CompTIA Exam Objectives 220-1101, Domain 3.1

============
