CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

The correct answer is A. Adjust the SMTP server configurations for email .

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server . The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols) , not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

Answer of both steps below.

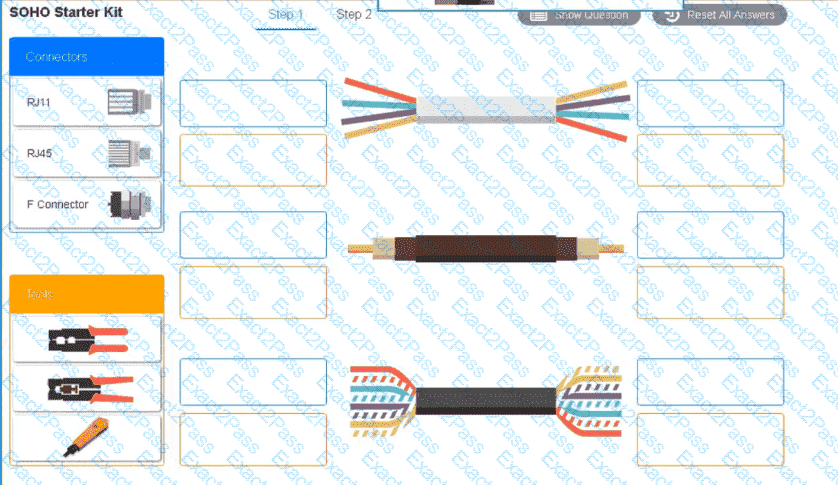

A group of wires with different colors AI-generated content may be incorrect.

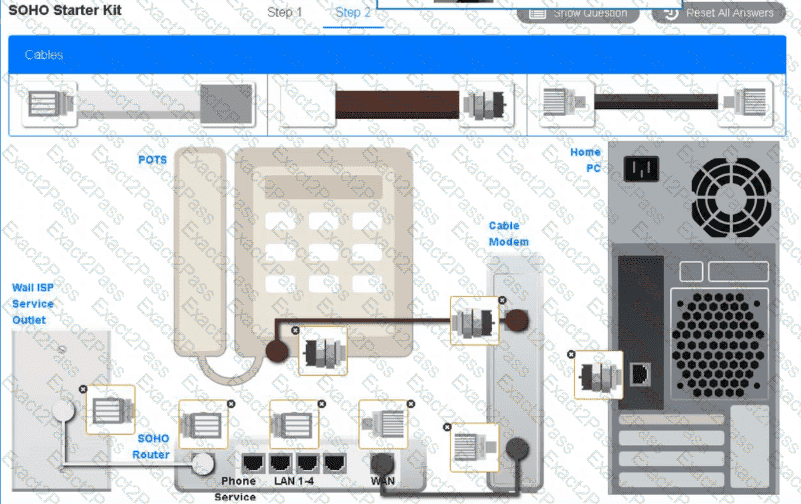

A screenshot of a computer AI-generated content may be incorrect.

Input voltage must be validated to ensure desktop PCs can operate in different regions with varying power standards (e.g., 110V in North America vs. 220V in Europe). Failure to verify input voltage compatibility can lead to hardware damage or operational issues.

Option B (BIOS language support): Incorrect. While language support may be helpful, it is not critical for hardware deployment across regions.

Option C (Supply chain security): Incorrect. This refers to ensuring secure sourcing of components but does not directly impact deployment.

Option D (Power efficiency): Incorrect. Power efficiency may be important for energy savings but is not relevant to regional compatibility.

Port 22 is used by SSH (Secure Shell), which is the standard protocol for secure remote administration of network devices such as switches, routers, firewalls, and Linux-based systems. CompTIA A+ Core 1 emphasizes knowing common ports and selecting secure management methods. SSH provides encrypted communication for both authentication and the session data, protecting usernames, passwords, and command output from being intercepted by packet sniffers. This makes it the preferred choice over older remote access methods.

In contrast, port 23 is Telnet, which is also used for remote terminal access but sends traffic in cleartext, making it insecure and generally discouraged in modern environments. Port 21 is FTP control traffic, used for file transfers and typically not secure unless paired with FTPS or replaced by SFTP (which actually runs over SSH on port 22). Port 25 is SMTP, used for sending email between mail servers and is unrelated to remote device management. Therefore, for secure remote access to a network device, SSH on port 22 is the correct answer.

B. USB-C:

USB-C is a versatile connector that supports charging, high-speed data transfer, and the ability to send audio and video signals (e.g., DisplayPort over USB-C).

It is used by most modern mobile devices and laptops because of its fast transfer speeds and power delivery capabilities.

Incorrect Options:

A. Lightning: Lightning is proprietary to Apple devices and does not natively support video output.

C. MicroUSB: MicroUSB is outdated and does not support video output.

D. MiniUSB: MiniUSB is an older standard and does not support modern features like video output or fast charging.

Key Takeaway: USB-C is the most versatile connector for charging and transferring data, audio, and video.

A smart card provides an additional factor of authentication by storing secure credentials, such as certificates, that cannot be guessed or replicated. It complements user accounts and is " something you have " .

Why Not A (Fingerprint reader): This is " something you are " , but the scenario specifically requires a physical token.

Why Not C (Secure token): Secure tokens are also valid but may not integrate as seamlessly into multi-factor authentication for physical and system access.

Why Not D (NFC scanner): An NFC scanner is a device and not a token itself; it reads cards or other credentials.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, access controls​.

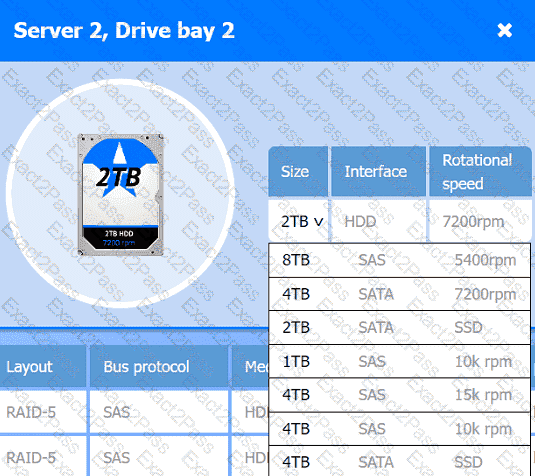

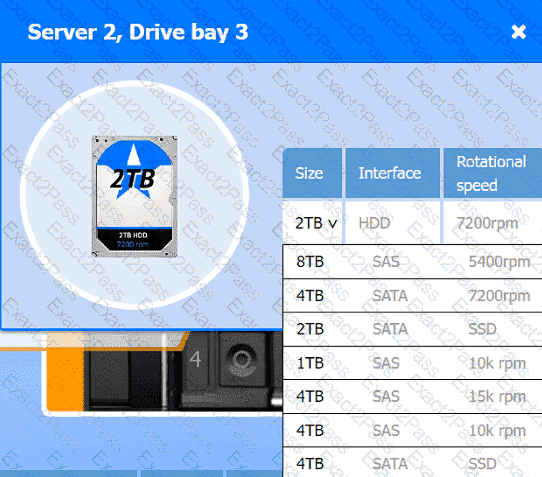

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

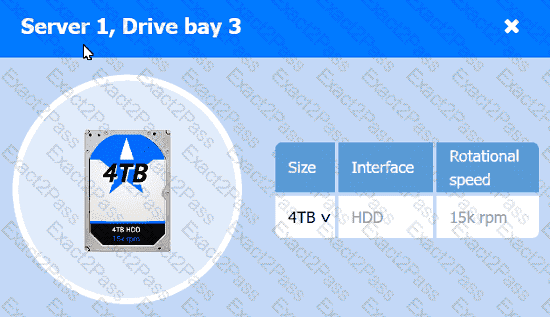

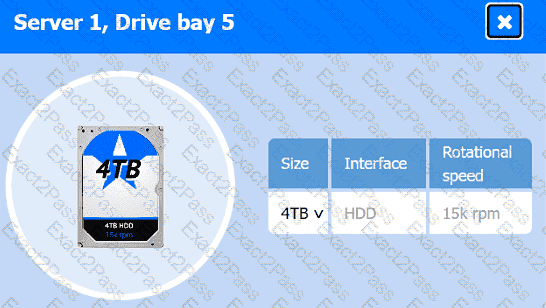

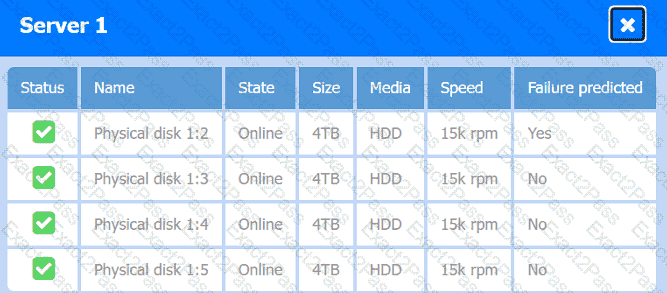

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

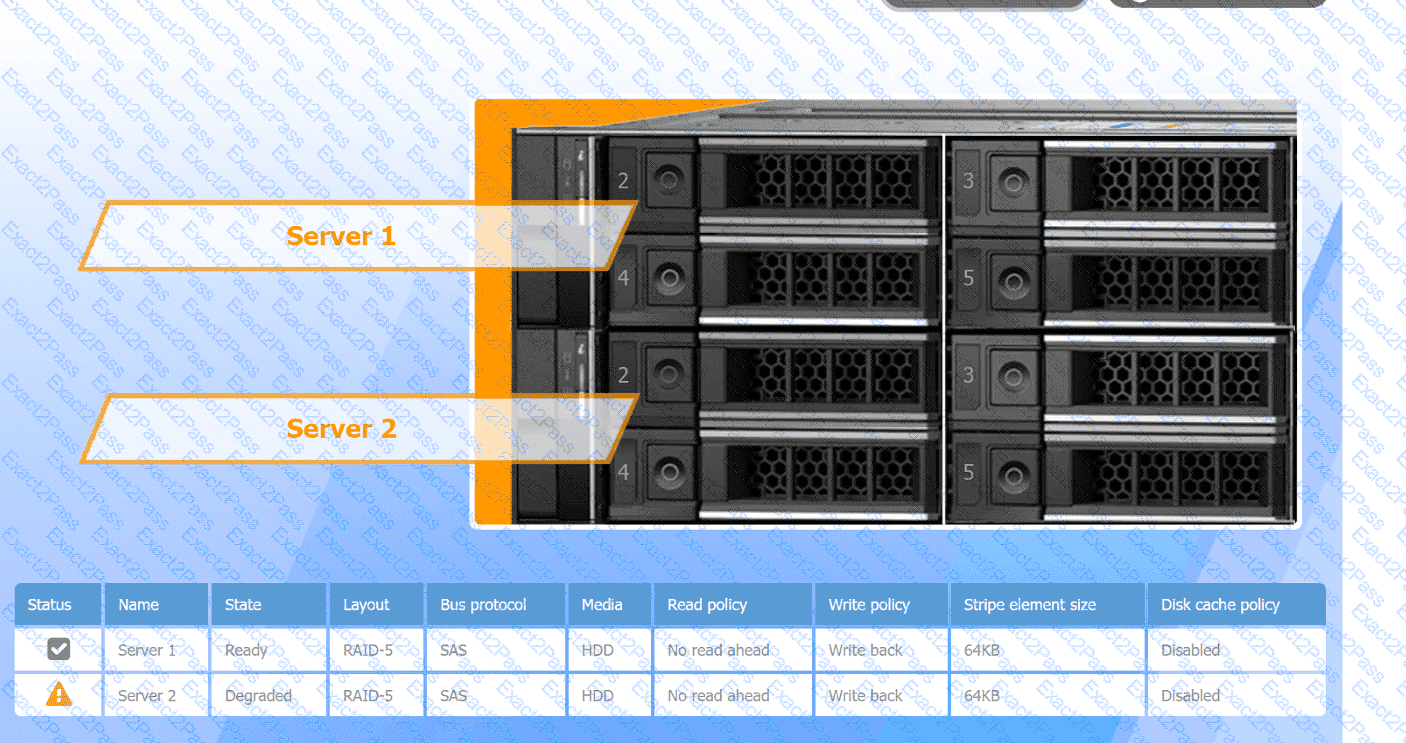

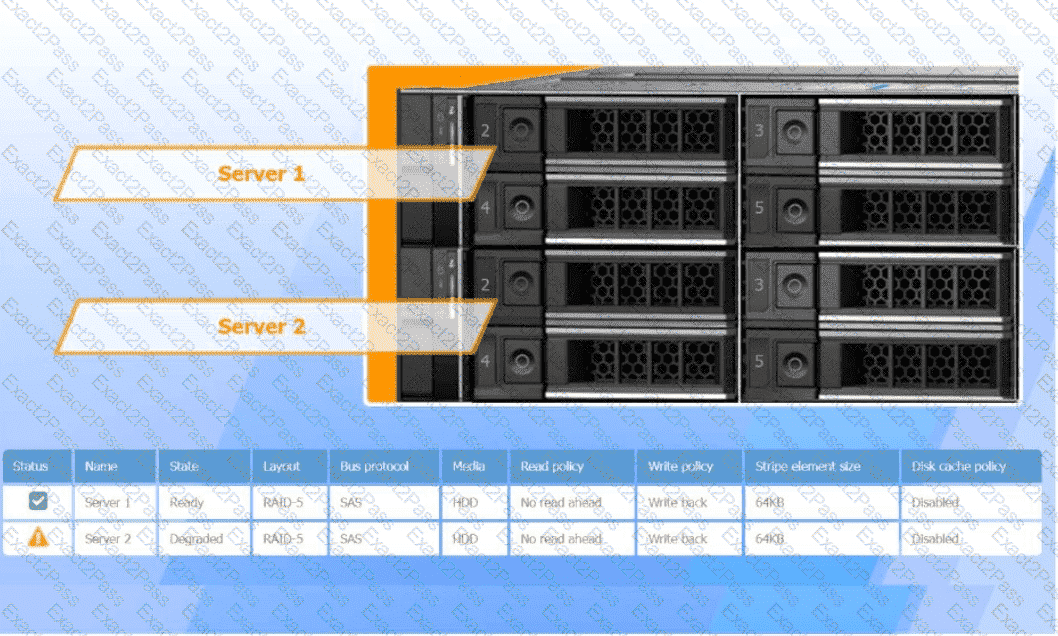

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is B. Header pinouts .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

SMB (Server Message Block)is a protocol used to access files and printers over a network, including across shared network folders. It enables the user to access and print files stored remotely on a shared directory.

Option A (ADF):Automatic Document Feeder hardware, not a network protocol.

Option B (USB):Used for direct physical connections, not for printing over networks.

Option C (PCL):Printer Command Language relates to printer drivers, not file sharing or access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.
