A DHCP reservation binds a specific MAC address to an IP address so the device always receives the same IP from the DHCP server. This ensures network devices like printers maintain consistent connectivity and availability even when the IP pool is low.

Dedicated resources (sometimes called single-tenant or bare metal) guarantee that physical hardware is allocated exclusively to one customer and not shared.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud deployment models:

“Dedicated resources ensure data isolation at the hardware level for compliance and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Deployment

CompTIA Exam Objectives 220-1101, Domain 3.7

============

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

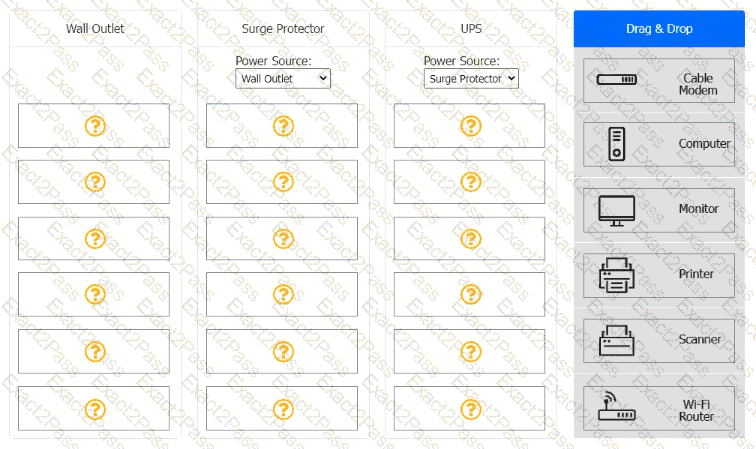

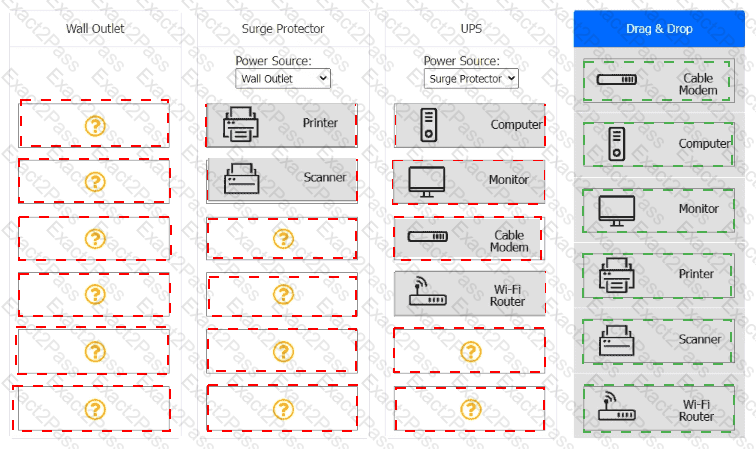

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

Check the exhibit diagram for both parts.

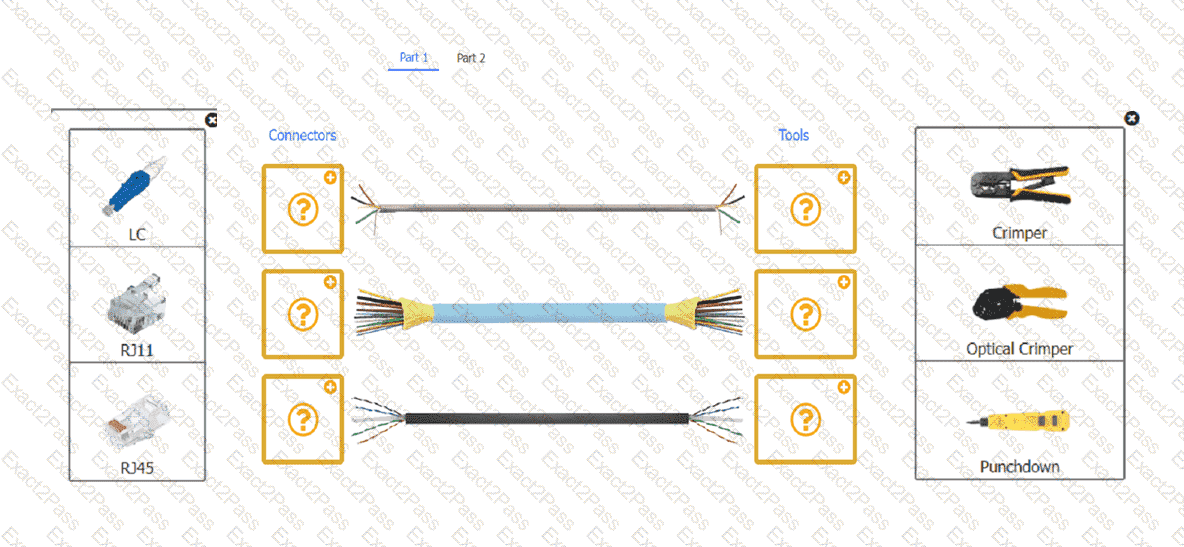

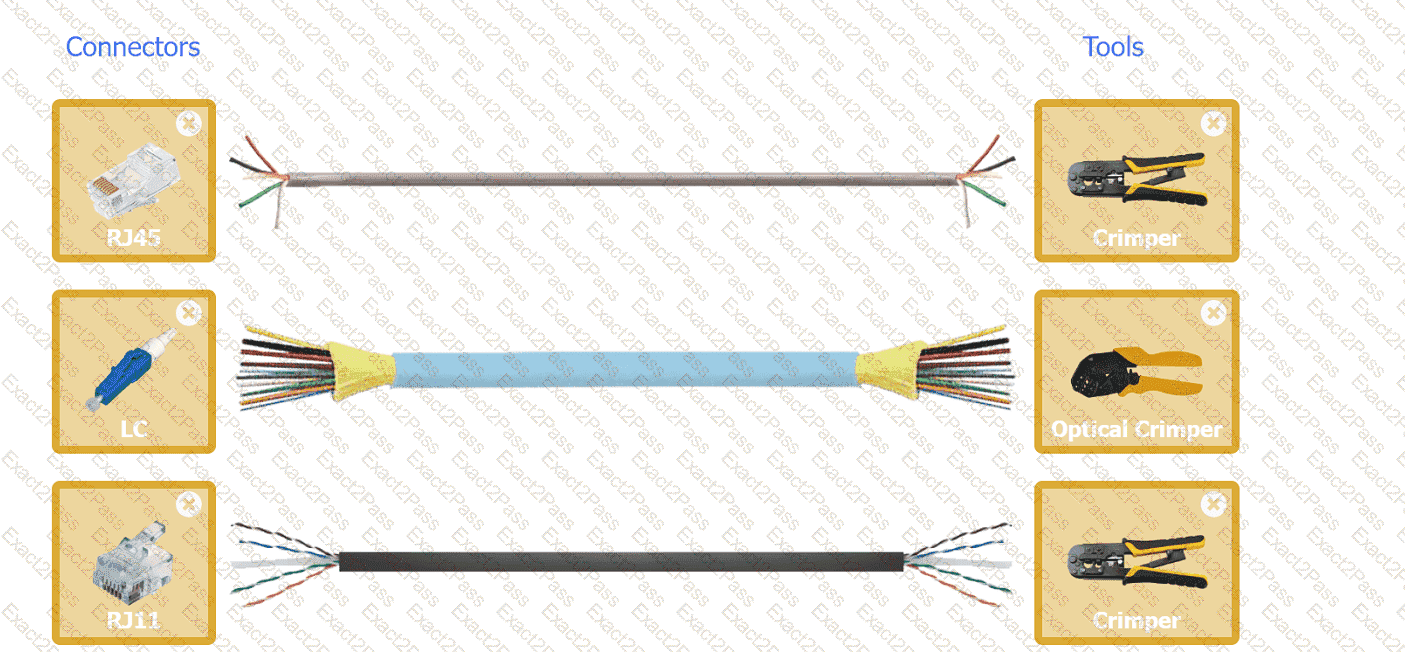

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

The correct answer is D. Data is being throttled.

Data throttling refers to the intentional slowing down of internet speeds by a mobile carrier after a user reaches a certain data usage limit or during network congestion. In this scenario, the employee can still successfully upload files, but the speed has decreased compared to before—this is a classic symptom of throttling.

Why the other options are incorrect:

A. Wireless is turned off

If wireless were turned off, the employee would not be able to upload anything at all. The question clearly states that uploads are still successful.

B. 5G is disabled

Disabling 5G could reduce speeds slightly if the device falls back to 4G/LTE, but it would not typically cause a significant or noticeable degradation unless compared under ideal conditions. It is not the most likely cause.

C. Roaming is turned on

Roaming allows connectivity outside the home network. While it may incur additional charges, it does not inherently cause significant speed reduction in most modern networks. It is less likely than throttling.

Exam Tip (Core 1 220-1201):

Slow but working connection → Think throttling or congestion

No connection → Think disabled wireless or network issues

Final Answer: D. Data is being throttled

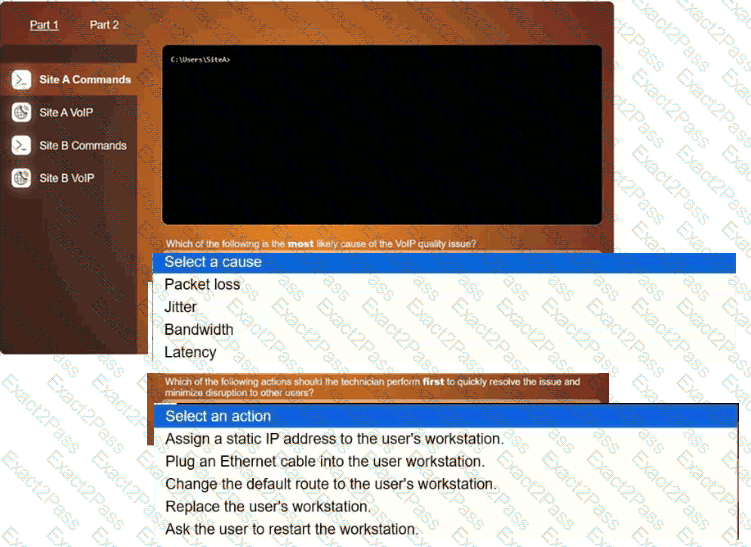

Packet loss

Plug an Ethernet cable into the workstation

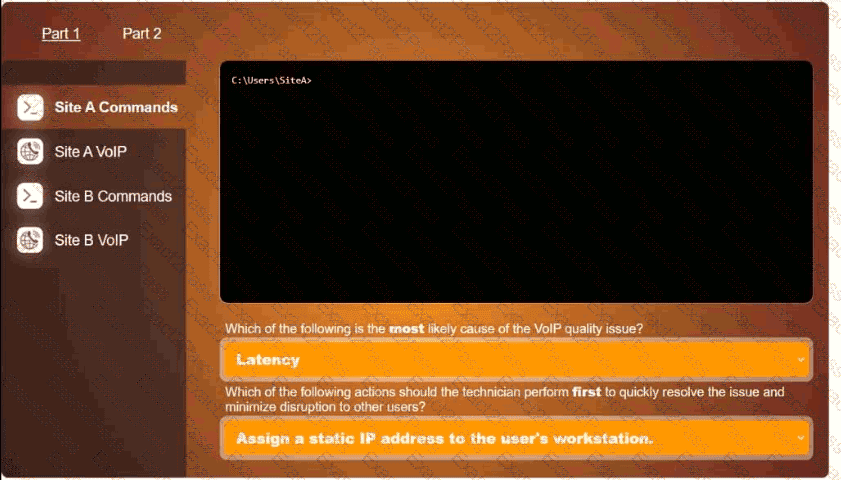

A screenshot of a computer AI-generated content may be incorrect.
