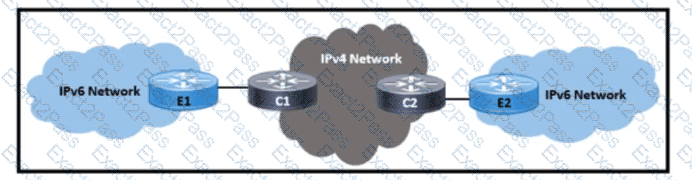

The design must enable IPv6 multi-topology behavior at the appropriate edge routers and move metric handling toward transition support where the current IS-IS network still uses narrow metrics. Multi-topology IS-IS is important during IPv4-to-IPv6 migration because IPv4 and IPv6 reachability do not always exist on identical links at every stage of the migration. If IPv6 follows the IPv4 topology when some devices or paths are not IPv6-ready, traffic can be blackholed. Multi-topology allows independent IPv4 and IPv6 SPF calculations, which prevents IPv6 traffic from being forwarded through IPv4-only portions of the network. The metric-style transition setting is used when migrating from narrow to wide metrics, allowing interoperability while routers are upgraded and the design scales. Because the requirement says IPv6 areas will grow and the current network uses narrow metrics, the selected edge devices must support the IPv6 topology and metric transition behavior shown in the exhibit. Reference topics: IS-IS IPv6, multi-topology IS-IS, narrow metrics, wide metric transition, IPv6 migration, blackhole prevention.

VPLS is the appropriate design model when multiple remote sites must appear to share the same Layer 2 segment. Because all sites use the same IP subnet, the solution must preserve a common broadcast domain rather than require Layer 3 route exchange between unique subnets. Cisco VPLS provides multipoint Layer 2 VPN service across a provider network, allowing customer edge devices at different sites to communicate as though they were attached to the same Ethernet LAN. Including 802.1Q connectivity on the LAN-facing side of the CE is the practical requirement because the CE must carry the relevant VLAN toward the provider-delivered VPLS service. Route exchange with the provider is not the main mechanism because VPLS is a Layer 2 service. NAT would hide overlapping addressing, but it would defeat the requirement to keep the same subnet operational across the sites. Placing each site in a different VLAN would also break the shared-subnet design. The correct design is therefore VPLS with VLAN tagging on the CE LAN side. Reference topics: VPLS, Layer 2 VPN, 802.1Q trunking, shared subnet extension, Ethernet WAN design.

VRRP object tracking allows the effective priority of a VRRP router to change when a tracked object changes state. Cisco documentation states that VRRP object tracking ensures the best VRRP router is master by altering VRRP priorities according to tracked objects such as interface or IP route states. This directly supports answer A. It also supports answer D, because VRRP can track interfaces and routes through the tracking process. The priority does not have to remain fixed; object tracking is specifically designed so a router can lower its priority when an uplink, route, or critical dependency fails. A VRRP group is not limited to one tracked object in modern Cisco implementations, so option C is too restrictive. VRRP does not support only interface tracking; route tracking is also a common use case, especially when the LAN interface is still up but upstream reachability has failed. In a resilient campus or branch gateway design, object tracking prevents a router from remaining master when it no longer has a valid upstream path, improving deterministic failover.

HSRP version 2 with MD5 authentication is the correct resilient gateway choice because the design requires IPv6 support and protection against false hello packets. HSRPv2 supports both IPv4 and IPv6 gateway redundancy and improves group scaling compared with the original version. MD5 authentication protects the HSRP control exchange by ensuring that only authorized routers participate in the redundancy group, reducing the risk of a rogue or misconfigured device sending false hello messages and influencing active gateway selection. GLBP provides load balancing but does not satisfy the same IPv6 and authenticated hello requirement in this option set. VRRP version 2 is IPv4-focused and therefore does not meet the IPv6 requirement; VRRPv3 would be the relevant standards-based IPv6-capable version, but it is not offered. Object tracking helps adjust gateway priority after link failure, but it does not protect against false hello packets by itself. Reference topics: HSRPv2, first-hop redundancy, IPv6 gateway redundancy, MD5 authentication, campus high availability.

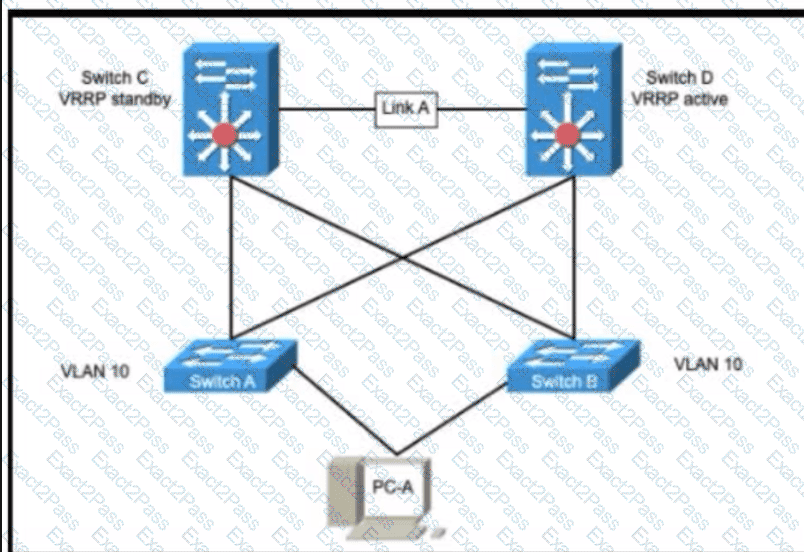

Switch D should be the VLAN 10 primary root, Switch C should be the VLAN 10 secondary root, and link A should remain a Layer 2 trunk. The requirements say VLANs span multiple access switches and all VLANs are trunked on all uplinks. In that design, the distribution interswitch link must remain Layer 2 so the VLAN can exist consistently across the access layer. For fastest and most deterministic Rapid PVST+ convergence, the spanning-tree root bridge should align with the active first-hop gateway for the VLAN. In the exhibit, Switch D is the active gateway for VLAN 10, so making Switch D the primary STP root avoids unnecessary traffic tromboning and keeps the forwarding path optimal. Switch C becomes the secondary root for resiliency. A Layer 3 routed interdistribution link is a best practice when VLANs are not stretched, but it contradicts the stated requirement that VLANs span access switches. Reference topics: Rapid PVST+, STP root placement, FHRP alignment, Layer 2 campus distribution, VLAN spanning design.

An on-change telemetry subscription is the best solution when the team needs device state data while limiting impact on the device. With periodic telemetry, the device sends subscribed data at a configured interval regardless of whether the value has changed. For state such as shared memory utilization, aggressive periodic polling or streaming can create unnecessary CPU, memory, and bandwidth overhead, especially at scale. On-change telemetry sends an update only when the subscribed data changes, or when a relevant event occurs according to the model and platform behavior. This reduces needless data transmission while still providing timely visibility into meaningful state changes. IPFIX is designed for flow information and traffic accounting rather than detailed device state telemetry. Static telemetry is not the best characterization of the efficient event-driven behavior required here. A periodic subscription can provide the data, but it continuously streams updates and therefore has greater device and collector impact. Cisco model-driven telemetry design favors on-change subscriptions when the operational requirement is state awareness with minimal repeated polling.

STP loop guard is the correct protection feature. Cisco defines loop guard as a spanning-tree enhancement that prevents alternate or root ports from incorrectly becoming designated forwarding ports when expected BPDUs are no longer received. That failure mode is exactly what the question describes: an alternate or root port intermittently transitions to a designated role and creates a Layer 2 loop. With loop guard enabled, the port is placed into a loop-inconsistent blocking state until BPDUs are received again, so the topology remains protected. PortFast BPDU guard is intended for edge ports connected to end hosts and shuts a PortFast port when BPDUs appear; it is not the correct uplink/root-port protection. UDLD can detect unidirectional links, but it does not specifically enforce STP role consistency. Root guard prevents superior BPDUs from changing root placement, which is a different problem. Reference topics: STP loop guard, alternate and root ports, BPDU loss, loop-inconsistent state, Layer 2 loop prevention.

The border node is part of the Cisco SD-Access overlay architecture. In the SD-Access fabric, the overlay consists of fabric roles and services that provide endpoint connectivity, segmentation, policy, and external reachability over the routed underlay. Border nodes connect the fabric overlay to external Layer 3 networks, shared services, WAN, Internet, or other fabric/transit domains. They perform the fabric boundary function, including routing between virtual networks and external routing domains as designed. Spine and leaf are generic data center or fabric topology terms and are not the named SD-Access fabric overlay roles in this question. Cisco DNA Center, now Cisco Catalyst Center, is central to management, automation, assurance, and policy deployment, but it is not itself an overlay forwarding component. The forwarding overlay is built from roles such as edge, border, control-plane, and intermediate nodes. Therefore, the correct component from the options is the border node. The design should select border placement based on external connectivity, scale, route control, redundancy, and whether the border is internal, external, or anywhere border. Reference topics: SD-Access overlay, border node, fabric roles, external connectivity, virtual networks.

Cisco Identity Services Engine is the SD-Access component that integrates with Cisco DNA Center to provide identity-based policy, Security Group Tags, and Security Group ACL policy enforcement. Cisco SD-Access uses Cisco TrustSec technology concepts for group-based policy, but ISE is the actual policy and identity services platform that integrates with Cisco DNA Center. DNA Center automates fabric deployment and policy orchestration, while ISE provides endpoint identity, group assignment, scalable group information, and policy authorization. SGACLs define permitted or denied communication between security groups, and SGTs classify users or endpoints into those groups. APIC-EM is not the SD-Access policy platform. Cisco Network Data Platform supports analytics and assurance functions, not identity policy enforcement. Cisco TrustSec is the underlying policy technology, but the question asks for the component that integrates with Cisco DNA Center. Therefore, the verified answer is Cisco Identity Services Engine. In design terms, ISE should be planned as a critical policy-plane dependency with redundancy, pxGrid integration, RADIUS services, and consistent scalable group policy design.

Traffic shaping is the correct QoS design for a 1-Gbps handoff with a 100-Mbps committed information rate when the provider aggressively drops traffic above the CIR. Cisco distinguishes shaping from policing: shaping buffers and delays excess packets so the sender transmits at a configured rate, while policing drops or remarks traffic that exceeds the configured rate. Because the customer wants to maximize bandwidth usage up to the 100-Mbps CIR and avoid excessive TCP retransmissions, shaping is the better fit. Policing at the customer edge would simply drop excess traffic locally, creating the same kind of loss problem. A markdown policer is useful when lower-priority traffic should be reclassified, but it does not smooth bursts into the provider’s CIR. Queuing helps during congestion, but without shaping the router can still send bursts at the 1-Gbps physical rate into a provider policer. The correct design is to shape outbound traffic to the CIR, then use child-policy queuing if class-based service guarantees are required. Reference topics: traffic shaping, policing, CIR, hierarchical QoS, TCP retransmission avoidance.
