Traffic shaping is the QoS mechanism that queues excess packets and transmits them later to conform to a configured rate. In Cisco QoS design, shaping smooths bursts by buffering traffic instead of immediately discarding it when the offered rate exceeds the configured rate. This makes shaping appropriate on egress interfaces where the enterprise router has a higher physical interface speed than the actual provider committed information rate. WRED and RED are congestion-avoidance mechanisms that drop packets probabilistically to prevent full queue exhaustion, especially for TCP traffic. They do not intentionally hold excess packets for later transmission as the primary behavior. Policing enforces a traffic rate by dropping or remarking traffic that exceeds the configured contract; it does not buffer traffic to smooth bursts. Therefore, when the design requirement says excess packets must be queued for later transmission, the mechanism must be shaping. In WAN edge QoS, shaping is often paired with child queuing policies so latency-sensitive and business-critical classes receive correct treatment inside the shaped parent rate.

Redundancy for Cisco vBond Orchestrators is normally achieved by mapping the IP addresses of multiple vBond instances to a single DNS name. WAN Edge devices use the configured organization name and vBond DNS name during onboarding to resolve and contact an available orchestrator. This design allows several vBond nodes to be deployed across different locations or availability zones while giving the edge device a consistent bootstrap target. If one vBond is unavailable, DNS resolution can return another reachable vBond address, allowing control-connection orchestration to continue. Selecting only the closest vBond is not the redundancy mechanism described here, and deploying a single vBond creates an avoidable single point of failure. The answer that says WAN Edge routers are configured with all orchestrators by IP address and priority does not represent the common DNS-based design model. In production, the DNS record, certificates, firewall policy, NAT behavior, and controller reachability should all be validated so that WAN Edge devices can reach multiple vBond instances during onboarding and after failures. Reference topics: Cisco SD-WAN controller redundancy, vBond DNS, device onboarding, orchestration availability.

Dual stack is the migration topology that supports IPv6 while preserving existing IPv4 services during the transition. In a dual-stack design, hosts and network devices run IPv4 and IPv6 in parallel, allowing applications and services to move gradually from IPv4 to IPv6 without forcing an immediate cutover. That matches the customer’s plan: keep the current IPv4 topology and services, introduce IPv6 connectivity, migrate services, and eventually decommission the IPv4 topology. 6VPE is used to carry IPv6 VPN routes across an MPLS IPv4 provider core, which is a service-provider VPN use case rather than a general enterprise migration topology. 6to4 is an automatic tunneling mechanism and is not appropriate as a stable enterprise migration plan. NAT64 enables IPv6-only clients to reach IPv4 resources through translation, but it does not preserve the complete IPv4 topology while services migrate. Cisco migration guidance treats dual stack as the cleanest operational model when infrastructure supports both protocols, because it avoids translation side effects and allows DNS and application behavior to determine which protocol is used.

When dual WAN Edge routers are deployed at a branch, first-hop redundancy and SD-WAN overlay path preference must be aligned. The correct design consideration is that HSRP priorities on the service side should match the OMP routing policy that determines which WAN Edge is preferred. If the LAN gateway points hosts to one WAN Edge while OMP policy prefers the other edge for return or remote-site traffic, traffic can become asymmetric or hairpinned through the wrong device. Proper alignment gives predictable active/standby or active/active behavior and avoids blackholing during failover. Option A describes traditional BGP path manipulation with AS-path prepending and MED; those are not the primary SD-WAN branch dual-edge design controls. Option C overstates symmetry as a universal requirement for DPI; Cisco SD-WAN can handle many traffic patterns, but gateway and OMP alignment remain the core branch design issue. Option D is wrong because SD-WAN already uses BFD across data-plane tunnels, not as a special direct adjacency between the two local WAN Edges for this purpose. Reference topics: Cisco SD-WAN branch redundancy, HSRP, OMP policy, WAN Edge preference, service-side high availability.

EIGRP and BGP are the two listed routing protocols that can support unequal-cost load balancing in Cisco enterprise designs. EIGRP performs unequal-cost load sharing by using the variance command. Feasible successor routes whose feasible distance falls within the variance multiplier can be installed alongside the successor route, provided they satisfy EIGRP loop-prevention rules. This allows traffic to use links with different composite metrics while still maintaining loop-free forwarding. BGP can also support unequal-cost distribution in specific designs, such as using BGP multipath features with additional bandwidth-based mechanisms or policy to influence traffic sharing across nonidentical paths. OSPF and IS-IS commonly support equal-cost multipath, but they do not natively perform EIGRP-style unequal-cost load balancing based on different path metrics. RIPng is also limited by hop-count behavior and is not used for unequal-cost multipath in this context. The correct design answer is therefore EIGRP and BGP. In production, the engineer must still validate hardware forwarding behavior, policy consistency, and whether the traffic-sharing method is per-flow or per-prefix.

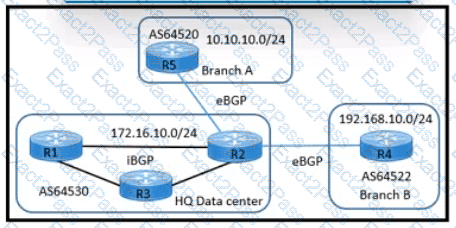

The ORF filter should be applied so the route reflector or upstream peer suppresses the unwanted Branch A prefix before sending updates toward the resource-constrained branch. Cisco BGP outbound route filtering lets a receiving router advertise a prefix-list filter to its peer, causing that peer to apply the filter outbound. This is useful when a router has limited CPU or memory because unwanted prefixes are never sent across the session. In the described design, HQ must prevent Branch A prefixes from reaching R4, while Branch B has limited resources. The answer using the 10.10.10.0/24 prefix list on R2 aligns with filtering the Branch A prefix at the point where HQ can control route reflection or advertisement toward the constrained branch path. Applying the filter on the wrong router or using the wrong prefix would still allow unnecessary updates. ORF is preferred over simple inbound filtering when the goal is to reduce received route volume. Reference topics: BGP ORF, prefix-list signaling, route-reflector filtering, branch route scale, outbound update suppression.

Cisco SD-Access uses virtual networks as macro-segmentation boundaries, and those VNs are represented as VRF instances in the fabric. By design, separate VNs do not communicate directly inside the overlay unless the design introduces controlled inter-VN routing. Cisco SD-Access designs commonly use an external fusion router, firewall, or shared-services device to map fabric VNs to external VRFs and selectively exchange routes between them. That is the correct design because it preserves segmentation while allowing policy-controlled access to shared resources or selected networks. GRE tunnels between fabric edges are not the normal SD-Access inter-VN communication method and would bypass the intended fabric policy model. Security Group Tags provide microsegmentation within or across policy domains, but SGTs do not by themselves leak routes between separate virtual networks. Route leaking on fabric border nodes is not the recommended standalone answer here because inter-VN communication is normally provided through a fusion device or firewall outside the fabric. Therefore, the correct solution is external fusion routing with controlled VRF route exchange.

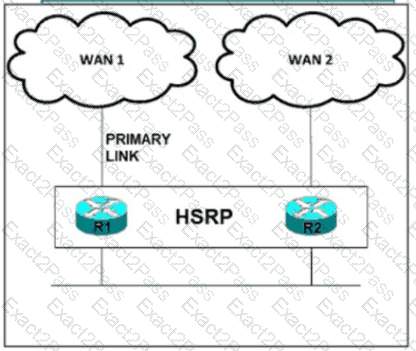

The design should combine IP SLA with Enhanced Object Tracking on router R1. HSRP by itself tracks the health of the local interface and peer state, but it may not detect a remote WAN failure beyond the directly connected segment. IP SLA can actively probe a target through WAN 1, such as an upstream next hop or reachable service address. Enhanced Object Tracking then tracks the IP SLA result and adjusts the HSRP priority when the probe fails. If R1 loses WAN 1 reachability, its HSRP priority is decremented, allowing R2 to become the active default gateway. A floating static route can provide routing backup, but it does not directly trigger HSRP state change for gateway failover. Policy-based routing and IP source routing are not appropriate high-availability mechanisms for this requirement. The correct design pattern is therefore IP SLA plus object tracking integrated with HSRP. The architect should set preemption, decrement values, timers, and tracked destinations carefully to avoid false failovers during transient loss. Reference topics: HSRP, IP SLA, Enhanced Object Tracking, first-hop redundancy, WAN failure detection.

Traffic shaping is required in the parent policy when hierarchical QoS uses CBWFQ in the child policy for low-bandwidth remote sites. In Cisco hierarchical QoS, the parent policy commonly shapes outbound traffic to the real available rate of the WAN service, especially when the physical interface speed is higher than the provider committed rate. The child policy then applies class-based queuing, such as CBWFQ and LLQ, inside the shaped rate. This structure creates an artificial congestion point on the router so the child queues can schedule packets predictably instead of allowing the provider to drop traffic after it exceeds the service rate. Policing in the child policy would drop excess packets and is not the normal prerequisite for nested CBWFQ. CBWFQ is supported in child policies within hierarchical designs, and parent shaping is the mechanism that makes the hierarchy effective. This is especially important on low-bandwidth WAN links where voice, video, and business-critical applications require deterministic treatment. Reference topics: hierarchical QoS, CBWFQ, parent shaping, child queuing, WAN QoS design.

Reverse Path Forwarding prevents multicast loops and duplicate packet forwarding. Multicast routing is source-oriented, so a router must verify that multicast traffic arrives on the interface it would use to reach the source or rendezvous point, depending on the tree state. If the packet arrives on the expected reverse-path interface, the RPF check succeeds and the router can forward the packet to the outgoing interface list. If it arrives on the wrong interface, the packet is dropped because accepting it could create a loop or duplicate stream. Cisco multicast designs rely on RPF checks with PIM to maintain loop-free distribution trees across redundant routed topologies. RPF does not notify upstream routers by itself, does not eliminate overlapping multicast group addresses, and is not simply a prune-generation mechanism. Prune behavior can occur as part of PIM tree maintenance, but the function asked here is loop prevention. Reference topics: multicast RPF check, PIM forwarding, source tree, shared tree, outgoing interface list, duplicate suppression.
