Bidirectional PIM is the correct multicast protocol for this many-to-many financial application. The question states that most multicast sources also receive multicast traffic and that the design must not use source trees. Cisco describes BIDIR-PIM as a multicast mode built for many-to-many applications that use a shared tree rooted at the rendezvous point and avoid per-source shortest-path trees. This reduces multicast state because routers do not maintain separate source/group state for every active sender. PIM Sparse Mode can start with a shared tree, but it can switch to source trees, which violates the stated requirement. PIM-SSM is explicitly source-specific and requires receiver knowledge of the source, so it is not appropriate for a many-to-many model where source trees are disallowed. MSDP is not a multicast forwarding mode; it is used for source discovery between PIM-SM domains. The option text contains a spelling error, but the intended answer is BIDIR-PIM. The architect should verify RP placement, Designated Forwarder behavior, group ranges, and whether the application can tolerate shared-tree forwarding rather than shortest-path source trees. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, source-tree avoidance, multicast scaling.

Dual DMVPN with EIGRP routing is the correct solution because the requirements call for secure public-internet connectivity, redundant paths, automatic path selection, multicast support, and minimal remote-site configuration. DMVPN builds dynamic multipoint GRE tunnels protected by IPsec, allowing spoke sites to communicate securely through the public internet while supporting routing protocols and multicast over GRE. A dual DMVPN design provides redundancy through separate hubs, transports, or tunnel clouds, so a spoke can continue operating if one path fails. EIGRP can calculate alternate paths and react to metric changes, supporting automatic path selection based on failure and quality when engineered correctly. MPLS with BGP does not meet the public-internet and encryption requirements by itself. A full mesh of IPsec tunnels with OSPF or IS-IS would increase configuration complexity at every remote site and does not scale as well. DMVPN is specifically built to simplify deployment of secure, scalable, multipoint branch VPNs. Reference topics: DMVPN, IPsec, mGRE, EIGRP over DMVPN, WAN redundancy, multicast over GRE.

TLOC extension is the Cisco SD-WAN mechanism that allows a WAN Edge router without direct access to a transport to reach that transport through another WAN Edge router at the same site. Cisco describes TLOC extension as a redundancy feature in SD-WAN networks. In the question, the WAN Edge router is connected to an MPLS transport link, but Internet access is available through another WAN Edge device. With TLOC extension, the MPLS-only edge can extend traffic through the peer router toward the Internet transport, allowing the site to use multiple transports without requiring every edge router to have a physical connection to every circuit. OMP can advertise routes and TLOCs, but OMP alone does not create physical Internet access for a router attached only to MPLS. Requiring a local 4G/5G or Internet circuit on the same router is not necessary when TLOC extension is part of the design. An MPLS extranet is also not the normal SD-WAN solution for Internet transport reachability. Therefore, TLOC extension is the correct design method.

An SD-Access intermediate node routes and transports IP traffic between fabric nodes. It is part of the underlay transport path, comparable to a routed distribution or core device that provides IP reachability between edge, border, and control-plane nodes. Intermediate nodes do not perform endpoint registration, VXLAN encapsulation for attached users, virtual-network mapping, or anycast gateway services. Those functions belong primarily to fabric edge nodes. They also do not act as LISP proxy tunnel routers, which is a border-node function used for communication between the fabric and external networks. The intermediate node’s role is deliberately simple: maintain underlay routing, provide resilient transport, and forward encapsulated traffic across the fabric infrastructure. This separation of roles is what lets Cisco SD-Access scale by keeping endpoint intelligence at the edge and mapping intelligence in the control plane while the intermediate layer remains a stable IP transport network. Reference topics: SD-Access intermediate node, routed underlay, IP transport, fabric roles, edge and border node separation.

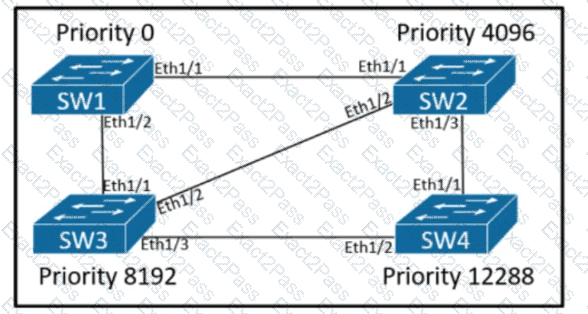

The expected port state follows Rapid Spanning Tree Protocol role selection on equal-speed point-to-point links. With 802.1w, each non-root switch selects one root port based on the lowest path cost to the root bridge. Where there are redundant Layer 2 paths of equal speed, one side of a redundant segment must remain blocked as an alternate port to maintain a loop-free topology. Because all links are 1 Gbps, path cost is equal unless bridge priority, bridge ID, or port ID breaks the tie. The selected option identifies the port pair that becomes alternate blocking based on the root placement and tie-breakers shown in the exhibit. RSTP improves convergence compared with classic 802.1D by using proposal and agreement handshakes on point-to-point links, but it still blocks redundant paths when a pure Layer 2 loop exists. A design requiring all links to forward would need a routed access design, MEC, StackWise Virtual, VSS, or another loop-free multipath technology. Reference topics: RSTP, root port, designated port, alternate port, point-to-point links, Layer 2 loop prevention.

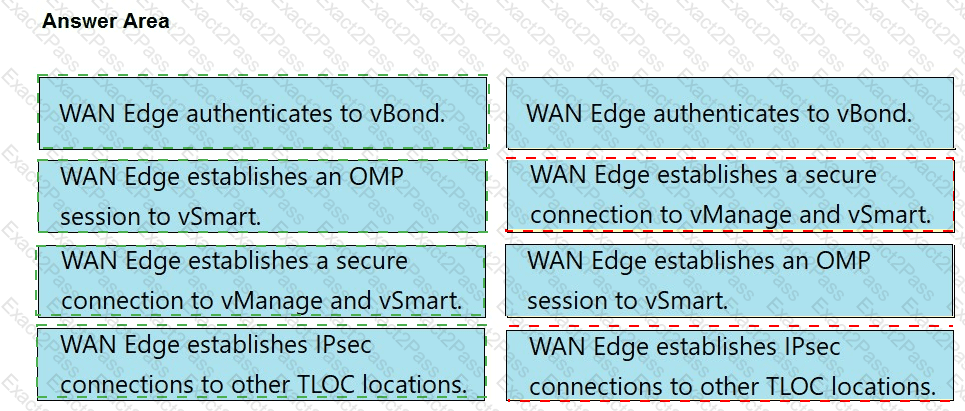

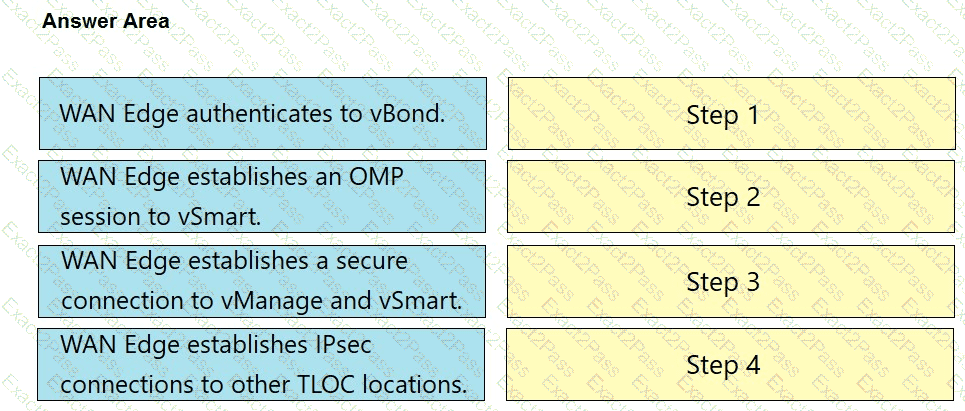

The SD-WAN onboarding sequence follows the controller trust and overlay-establishment workflow. A WAN Edge device first obtains basic reachability information through manual bootstrap, ZTP, or PnP-style provisioning so it can reach the orchestration components. It then establishes secure control connectivity to the orchestrator and validates identity through the certificate and authorized serial number information. After orchestration, the device forms the required secure control connections to the management and control-plane components, receives its configuration, and participates in OMP route exchange. Finally, the WAN Edge builds encrypted data-plane tunnels to other WAN Edge devices based on the TLOC and policy information learned through the control plane. This order matters because the device cannot exchange overlay routes or build data-plane IPsec tunnels until it is authenticated and authorized in the SD-WAN fabric. Cisco SD-WAN designs rely on this sequence to support zero-touch deployment, centralized policy, and secure fabric admission. Reference topics: Cisco SD-WAN onboarding, vBond orchestration, certificate validation, OMP, TLOC exchange, data-plane tunnel establishment.

Class selector code points provide backward compatibility between IP Precedence and DiffServ. IP Precedence uses the three most significant bits of the former Type of Service field. DiffServ expands QoS marking by using the six-bit DSCP field, but class selector values preserve compatibility by setting the three high-order bits to match the corresponding IP Precedence value while leaving the lower bits as zeros. For example, CS3 corresponds to the old precedence value 3, and CS6 corresponds to precedence 6. This allows devices that still interpret IP Precedence to provide broadly consistent treatment while newer DiffServ-aware devices can use DSCP-based policy. Expedited forwarding is used for low-loss, low-latency traffic such as voice. Assured forwarding provides drop precedence within classes. Default per-hop behavior represents best-effort treatment. None of those are specifically the backward-compatibility mechanism for migration from IP Precedence. Therefore, the design should include class selector code points during the transition to DiffServ. Reference topics: DiffServ, DSCP, class selector, IP Precedence compatibility, QoS marking migration.

A dual-homed Internet design with a single edge router and site-to-site VPN topology best matches the stated cost and flexibility requirements. The customer needs redundant WAN links, has a limited budget, wants easy future bandwidth increases, and does not require consistent end-to-end QoS on the branch routers. Internet circuits are typically less expensive and easier to upgrade than MPLS access circuits, making them appropriate for small to medium-sized remote branches when strong QoS guarantees are not required. A single edge router also reduces hardware cost and operational complexity compared with dual edge routers. WAN MPLS designs can provide stronger service-level guarantees and QoS treatment, but they are more expensive and less flexible for rapid bandwidth upgrades. A design with dual edge routers improves device redundancy but conflicts with the limited-budget condition. Therefore, a dual-homed Internet solution using a site-to-site VPN overlay is the most appropriate option. The architect should still validate encryption requirements, failover behavior, routing preference, and whether the Internet underlay can meet application performance expectations. Reference topics: branch WAN design, dual Internet connectivity, site-to-site VPN, cost-driven WAN selection.

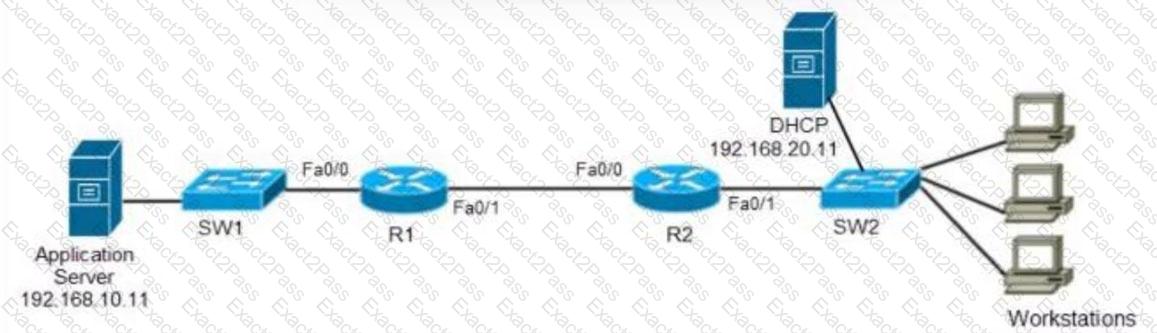

IP directed broadcast must be enabled on the last Layer 3 device connected to the destination client subnet, which is R2 in the exhibit. Wake-on-LAN uses a magic packet that must reach sleeping hosts on the target LAN. Because sleeping clients often do not have an active IP stack or ARP entry, the WoL packet is commonly sent as a directed broadcast toward the target subnet. Routers forward the packet as a unicast until it reaches the destination subnet, where the last-hop router converts it into a Layer 2 broadcast if directed broadcasts are permitted. Cisco disables directed broadcasts by default on many platforms because of historical amplification-attack risks, so the design should enable it only where needed and protect it with ACLs. Spanning-tree UplinkFast is unrelated to delivering WoL packets; it improves STP convergence on access switches. Enabling directed broadcasts on the wrong router would not place the magic packet onto the client VLAN. Therefore, R2, the last-hop router toward the target WoL clients, is the correct location. Reference topics: Wake-on-LAN, IP directed broadcast, last-hop router behavior, subnet broadcast forwarding, ACL protection.

A totally stubby OSPF area is the best choice for a small remote site with low-end routers and no requirement to carry transit traffic. A standard stub area blocks Type 5 external LSAs, but it still receives interarea Type 3 summary LSAs. A totally stubby area goes further by blocking external routes and most interarea summary routes, while allowing a default route to be injected by the ABR. That greatly reduces LSDB size, SPF processing, memory use, and routing-table entries on the low-end routers. The remote site still has full connectivity to the rest of the OSPF domain through the default route. NSSA and totally NSSA designs are useful when the area must inject external routes from an ASBR inside the area, but the question does not state that the remote site needs redistribution. A regular stub area is acceptable but does not minimize resources as much as a totally stubby area. Because there is no demand for traffic to pass through this area, the most efficient Cisco design is totally stubby. Reference topics: OSPF stub areas, totally stubby area, default routing, LSDB reduction, branch OSPF design.
